1.3W solar IoT power supply with 3.6V 9000mAh battery, IP67, 2.2-5V output, BMS protection, waterproof connector, plug & play for low voltage IoT devices.
P/N:FL-IoT-PS-V1
1.3W 4.4V Solar
3.6V 9000mAh Battery
2.2-5V Output
IP67
BMS Protection
ON/OFF Switch
Customizable

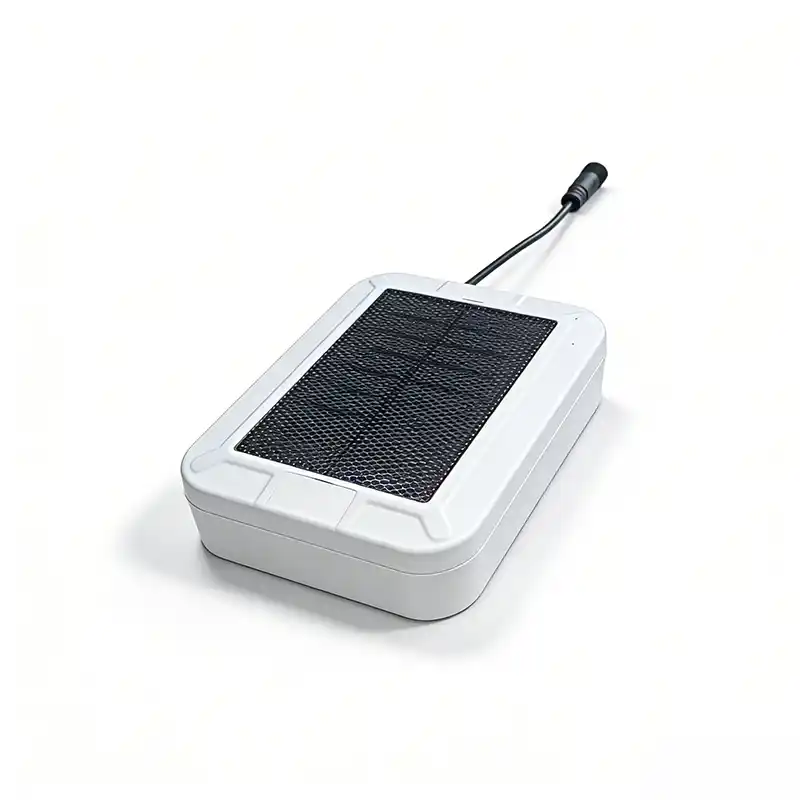

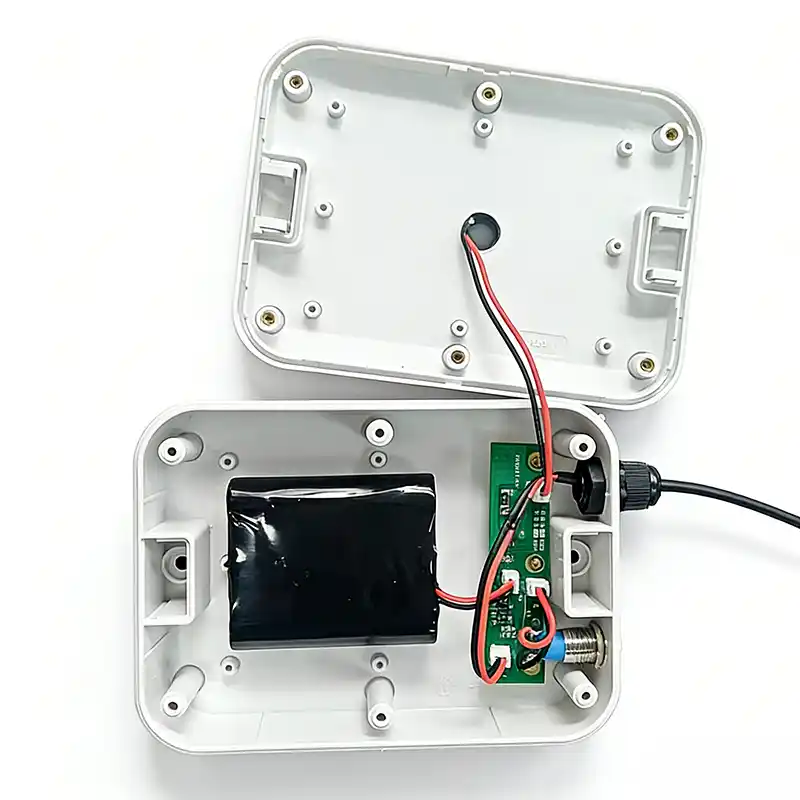

This is a self-contained IoT power supply system integrating solar panel, Li-ion battery pack, protection PCBA, and output interface. It is designed for low voltage IoT terminal equipment with 2.2–5V input and max 150mA load.
Built with 1.3W 4.4V monocrystalline solar panel, 3.6V 9000mAh high-temperature power battery, full protection BMS, IP67 enclosure, and waterproof DC connector. It provides stable, maintenance-free power for outdoor and industrial IoT sensors even in harsh environments.
| Item | Specification |
| Solar Panel | 1.3W, 8 cells, 4.4V |
| Battery Configuration | 1S3P, 3.6V, 9000mAh High-Temp Power Li-ion |
| Output Voltage | 2.2–5V adjustable |
| Max Load Current | 150mA |
| Charging Input Voltage | 4.0–6.0V |
| Protection | OVP / LVP / Over Current / Short Circuit |

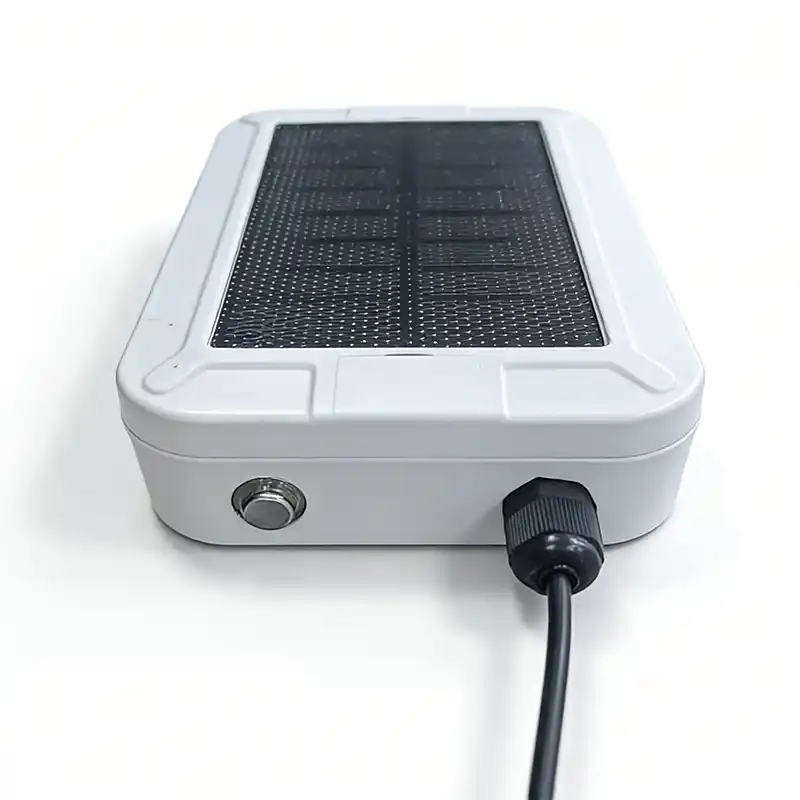

| Switch | Metal ON/OFF switch |
| Connector | Waterproof DC connector, 20cm cable |
| IP Rating | IP67 |
| Size | Approx. 150x110x40mm |
| Weight | 450g |
This power supply is designed for low voltage IoT terminals and wireless sensors, especially suitable for high-temperature and harsh environments:
This product uses a professional high-temperature power Li-ion battery designed for extreme and harsh environments. It provides stable discharge performance even under high temperature conditions, ensuring continuous and reliable power supply for IoT equipment in industrial sites, open areas, and high-temperature scenarios.
Q1: What IoT devices can this power supply support?
A1: It supports 2.2–5V input IoT sensors and wireless modules with max 150mA current.
Q2: Is this unit suitable for high-temperature environments?
A2: Yes, it uses a high-temperature power battery with a discharge range of -40~80℃, ideal for harsh and high-temperature sites.
Q3: Is this unit waterproof?
A3: Yes, IP67 rated enclosure and waterproof DC connector for outdoor use.
Q4: Does it have a switch?
A4: Yes, built-in metal ON/OFF switch for easy control.
Q5: Is it fully protected?
A5: Yes, built-in BMS with over-charge, over-discharge, over-current and short-circuit protection.
Solar IoT Power Supply, IoT Battery Pack, IP67 Solar Power, 2.2-5V Power Module
