Overview

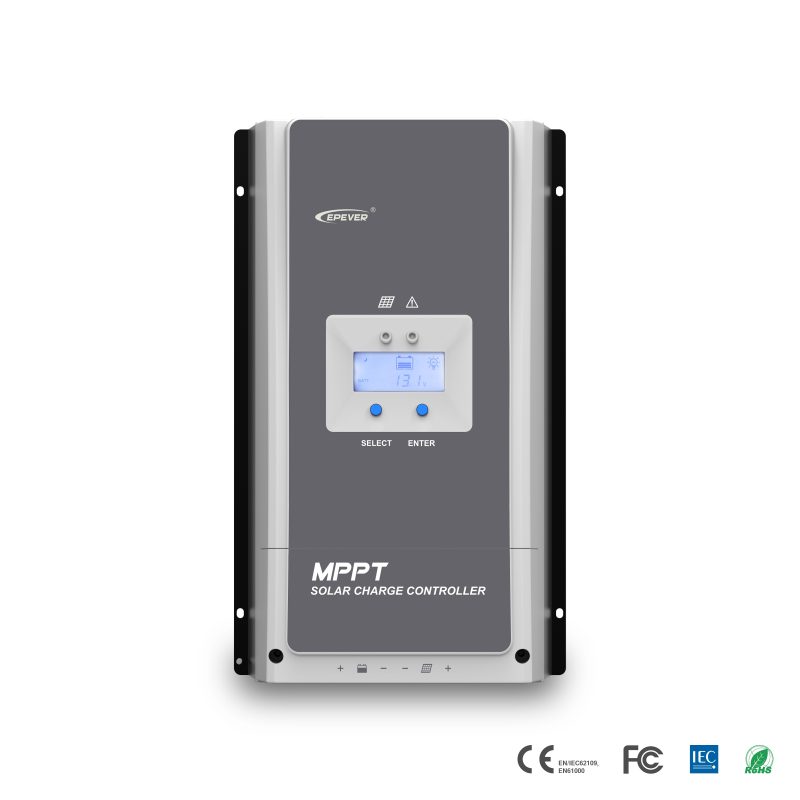

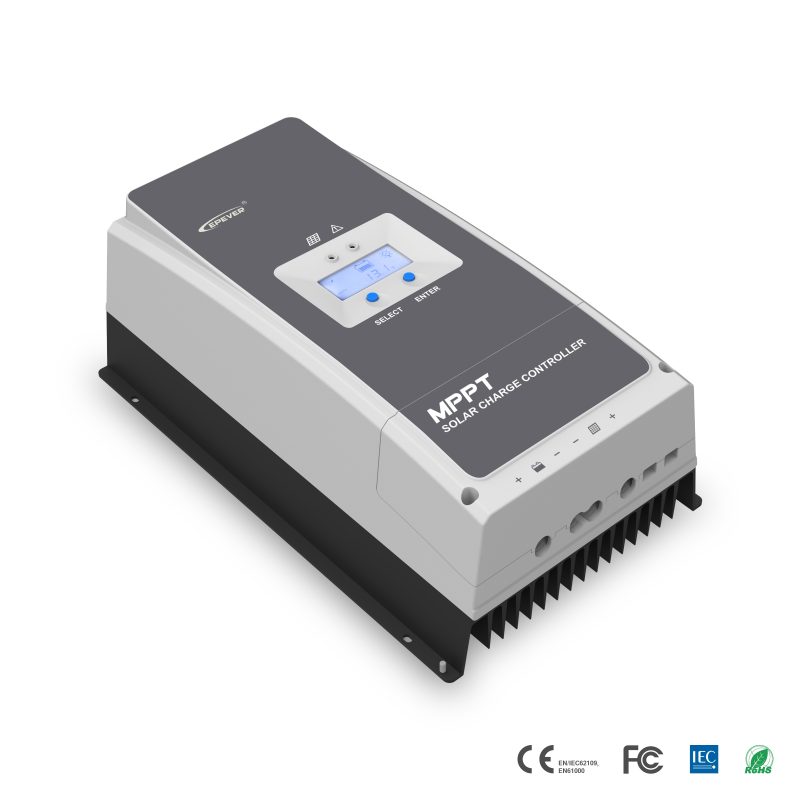

Tracer-AN(50A-100A) series is the largest charge controller series in EPEVER's product range and can take up to 5KW solar panel. For even more power, the user can use PAL-ADP-50N to connect max.6 units of a controller in parallel for up to 30KW system. The multiple dry contact signals are designed for a diversified application.

Features -
· MPPT tracking efficiency above 99.5%
· Maximum charge conversion efficiency as high as 98%. Support lead-acid and lithium-ion batteries
. Common negative grounding, Charging current up to 100A.Charging power and current limitation function
. High-temperature charging power derating function
· 3 relays design for different demand: utility, generator and load.Support up to 6 units in parallel
. Remote temperature and voltage sensor design
· Isolated RS-485 with 5VDC/200mA and MODBUS protocol
