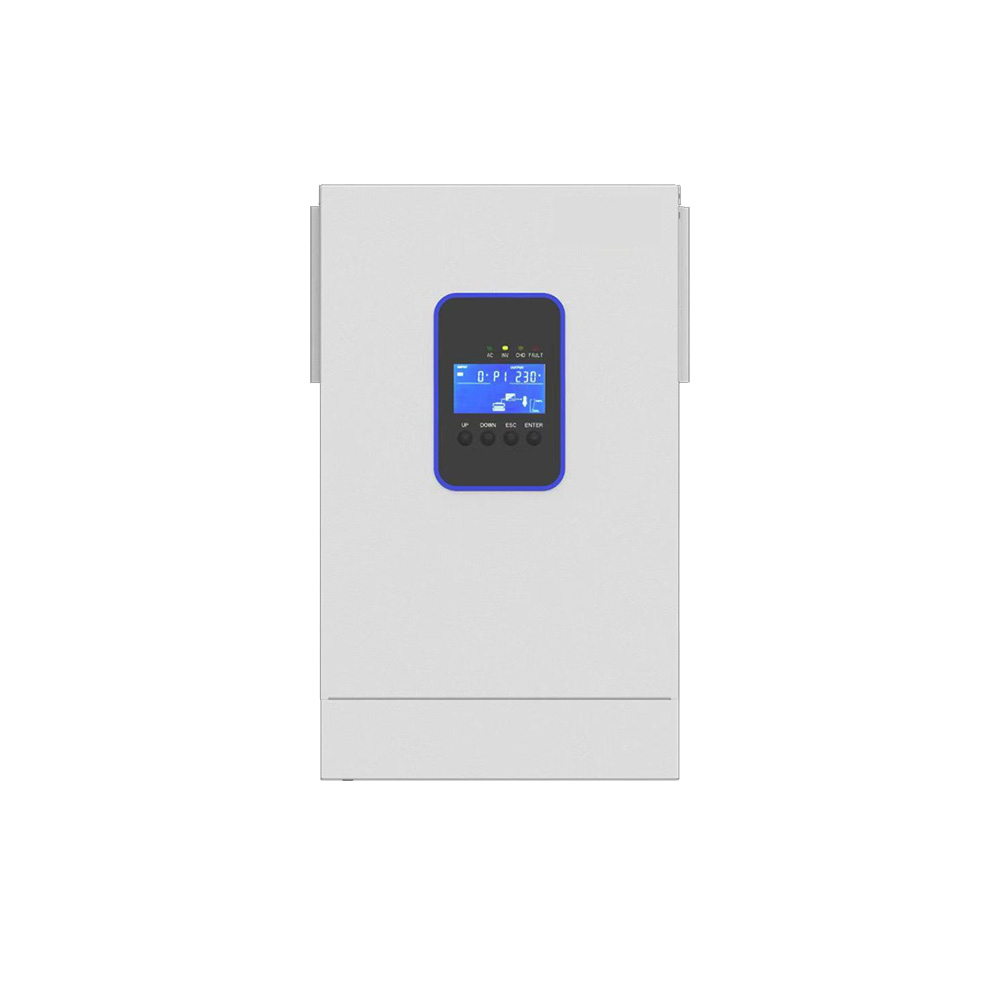

Hybrid Solar Inverter - 6.5kVA

Key Features

• High-Capacity Pure Sine Wave: 6.5kVA output for heavy-duty applications.

• Dual AC Outputs: Supports two separate AC output circuits.

• Advanced MPPT Charger: 120A solar charging current with 60–450Vdc MPPT range.

• Grid-Tie Functionality: Optional grid feed-in for excess solar energy (PGB/GPB modes).

• Flexible Power Sources: Configurable priority for solar, grid, or battery power.

• Wide Input Range: 90–280VAC (APP mode) or 170–280VAC (UPS mode).

• Intelligent LCD Interface: Displays PV generation, load status, and system diagnostics.

• Robust Protections: Overload, short circuit, over-temperature, and battery management.

• Parallel Ready: Supports single-phase or three-phase parallel systems.

• BMS Integration: Compatible with lithium batteries (SOC-based control).

Technical Specifications

• Output Voltage: 230V ±5%.

• Frequency: 50Hz/60Hz (auto-detection).

• Max PV Array Power: 9,000W.

• Battery Voltage: 48V.

• Efficiency: Up to 94%.

• Operating Temperature: -10°C to 50°C.

• Communication: RS485/CAN, USB, parallel port.

Ideal For: Homes, offices, and small businesses seeking reliable solar hybrid solutions.
