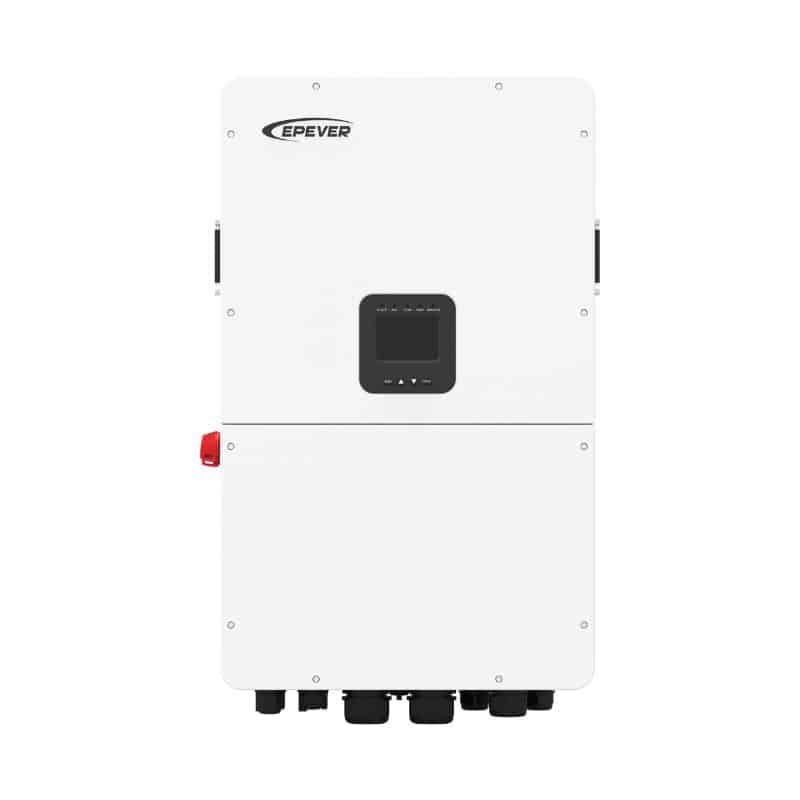

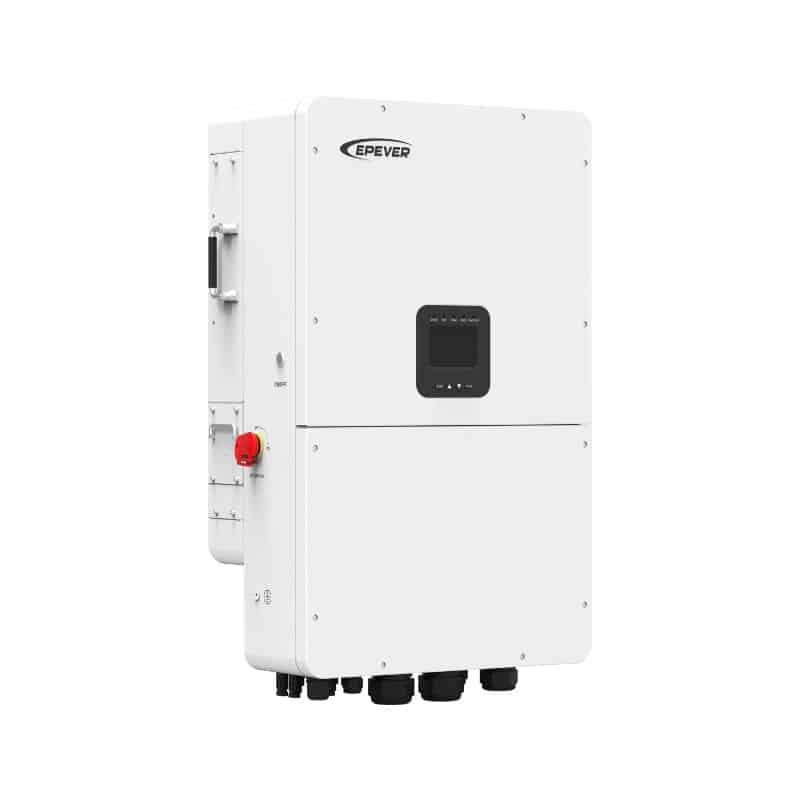

EPEVER ELS Series 7.5KW-15KW 220/230/240VAC Hybrid Solar Inverter

P/N: ELS7K5, ELS8K, ELS10K, ELS12K, ELS15K

Brand: EPEVER | 7.5KW 8KW 10KW 12KW 15KW | 48V/51.2V Battery | 220/230/240VAC | On-grid & Off-grid Hybrid Inverter

Overview

EPEVER ELS 7.5KW-15KW is a single-phase on-grid hybrid inverter with built-in MPPT charge controller. It supports solar, grid and generator charging, and provides UPS-level emergency power supply within 10ms. With IP65 protection, active cooling and smart APP monitoring, it is widely used in residential and commercial solar energy storage systems.

It supports up to 6 units parallel operation, multiple ESS working modes, and is compatible with lithium-ion and lead-acid batteries, providing reliable power supply and energy management for large loads and long-term backup applications.

Key Features

• Wide power range: 7.5KW, 8KW, 10KW, 12KW, 15KW for home & commercial use
• Max efficiency up to 97.6%, battery charge/discharge efficiency 94.6%
• MPPT voltage range 90-450V, max PV input 22500W, 150% oversizing supported
• UPS switching <10ms, continuous power supply for critical loads
• IP65 waterproof, active air cooling, working temp -25°C to +60°C
• Single-phase parallel up to 6 units for capacity expansion
• Supports 5 ESS modes: self-consumption, economic, time-of-use, peak shaving, emergency
• WiFi/GPRS remote monitoring, RS485/CAN for BMS communication
• Full protections: PV reverse polarity, insulation, overcurrent, overvoltage, anti-islanding
• Optional AFCI arc fault protection and RSD rapid shutdown

Related Inverter Products

ELS 3K-6K Hybrid Inverter

Technical Specifications

• Models: ELS7K5, ELS8K, ELS10K, ELS12K, ELS15K
• Battery: 48V/51.2V; 40-60V; Lithium / Lead-acid; max charge/discharge 190A-275A
• PV Input: 90-450V MPPT; max 500V; 3-4 MPPTs; max input power 12KW-22.5KW
• AC Output: 220/230/240VAC, 50/60Hz; on-grid & off-grid; THD<3%
• Efficiency: Max 96.5%-97.6%; European efficiency 95.5%-96.6%
• Protection: IP65; DC Type II SPD; optional AFCI & RSD; noise <60dB
• Cooling & Installation: Active air cooling; wall-mounted; dimensions 840×513×283mm; weight 52kg
• Communication: WiFi/Bluetooth, RS485, CAN; LCD & APP control

Typical Applications

• Residential & villa large-scale solar storage systems
• Small commercial & industrial solar power supply
• Emergency UPS & backup power for important loads
• On-grid & off-grid hybrid solar power stations
• Solar + generator hybrid energy solutions
• Peak shaving & time-of-use energy management systems

FAQ

Q: What battery types does ELS 7.5K-15K support?
A: It supports 48V/51.2V lithium-ion batteries and lead-acid batteries with BMS or 3-stage charging.

Q: Can multiple inverters be connected in parallel?
A: Yes, single-phase parallel operation supports up to 6 units to expand output power.

Q: What is the PV input voltage range?
A: MPPT voltage range 90-450V, maximum PV input voltage 500V, supports 150% PV oversizing.

Q: Is it suitable for outdoor installation?
A: Yes, IP65 protection allows indoor and outdoor wall-mounted installation.

Q: What working modes does it support?
A: Self-consumption, economic, time-of-use, peak shaving and emergency power supply modes.

Q: How to realize remote monitoring?
A: Equipped with WiFi/GPRS module, real-time monitoring and parameter setting via mobile APP.
