Overview

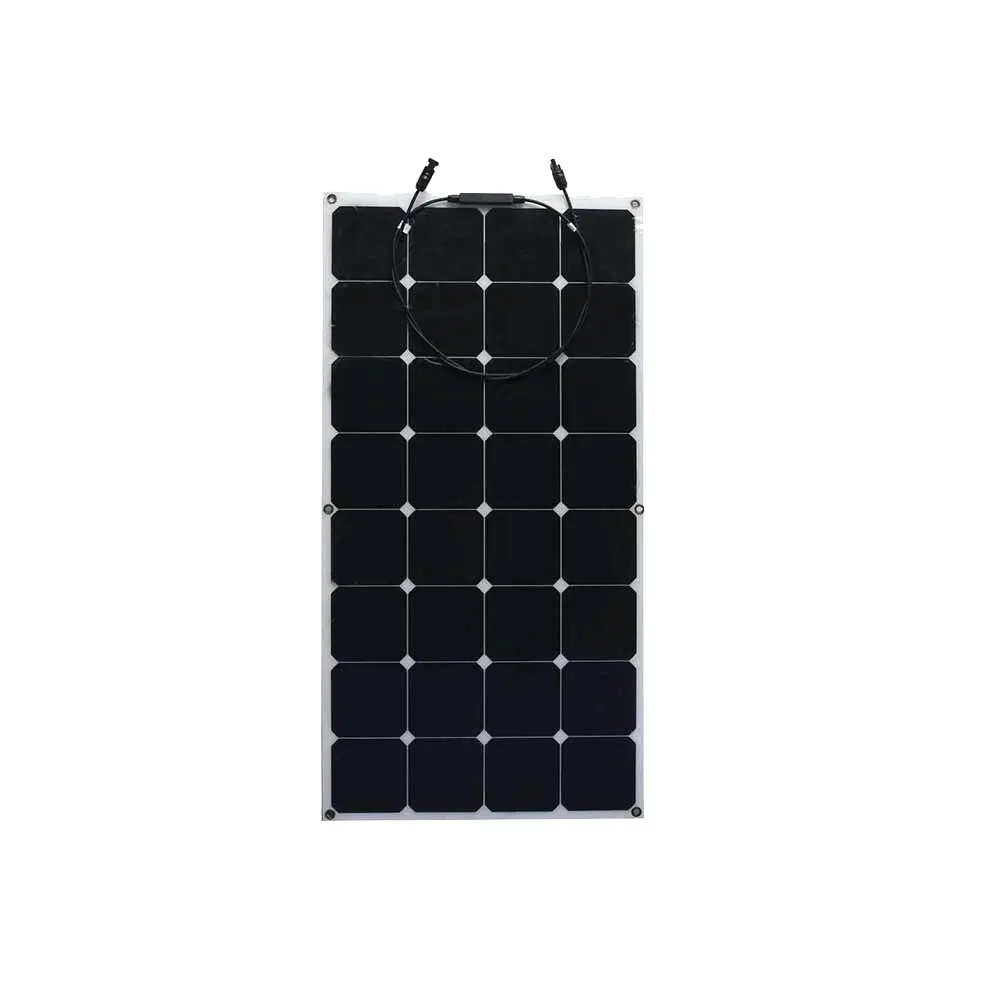

The SunPower series flexible solar panel is a lightweight, high performance solar panel designed specifically for curved surfaces and irregular shapes where traditional rigid panels are unsuitable. It utilizes high-efficiency monocrystalline SUNPOWER MAXEON solar cells with 23%+ efficiency to provide reliable off-grid power for marine, vehicle, cabin, RVs, and special applications. The thin, bendable design and weather-resistant construction make installation easy in tight spaces.

Key Features:
- Extremely flexible - Up to 30 degrees bending
- Lightweight and thin for easy installation - 3~4kgs/m², 2.5~3mm thickness
- High efficiency SunPower Maxeon monocrystalline cells (23%+) (More cells like IBC cells, or Perc cells available)
- IP67 rated junction box - waterproof and dustproof.
- Durable ETFE or Matt PET top layer with high light transmission
- Pre-drilled holes and MC4 connectors for quick mounting (optional)
- Excellent for off-grid applications on irregular surfaces

Technical Specifications
- Model: FLEX-120MS
- Power Output: 120W
- Open Circuit Voltage (Voc): 21.12V
- Maximum Power Voltage (Vmp): 17.6V
- Short Circuit Current (Isc): 7.23A
- Maximum Power Current (Imp): 6.82A
- Dimensions: 1185x540mm
- Weight: appr. 2.2kg
- Cable Length: 90cm
- Connectors: MC4 compatible or other connector
- Operating Temperature: -40°C to 85°C
- Warranty: 1 year
All technical data based on the Standard Test Conditions: AM=1.5, E=1000W/m², TC=25°C

Usage Notes
- Panel can be moderately bent up to 30 degrees for conformability
- Avoid excessive bending as it may damage solar cells and solder joints
- Clean surface regularly for maximum efficiency
