Overview

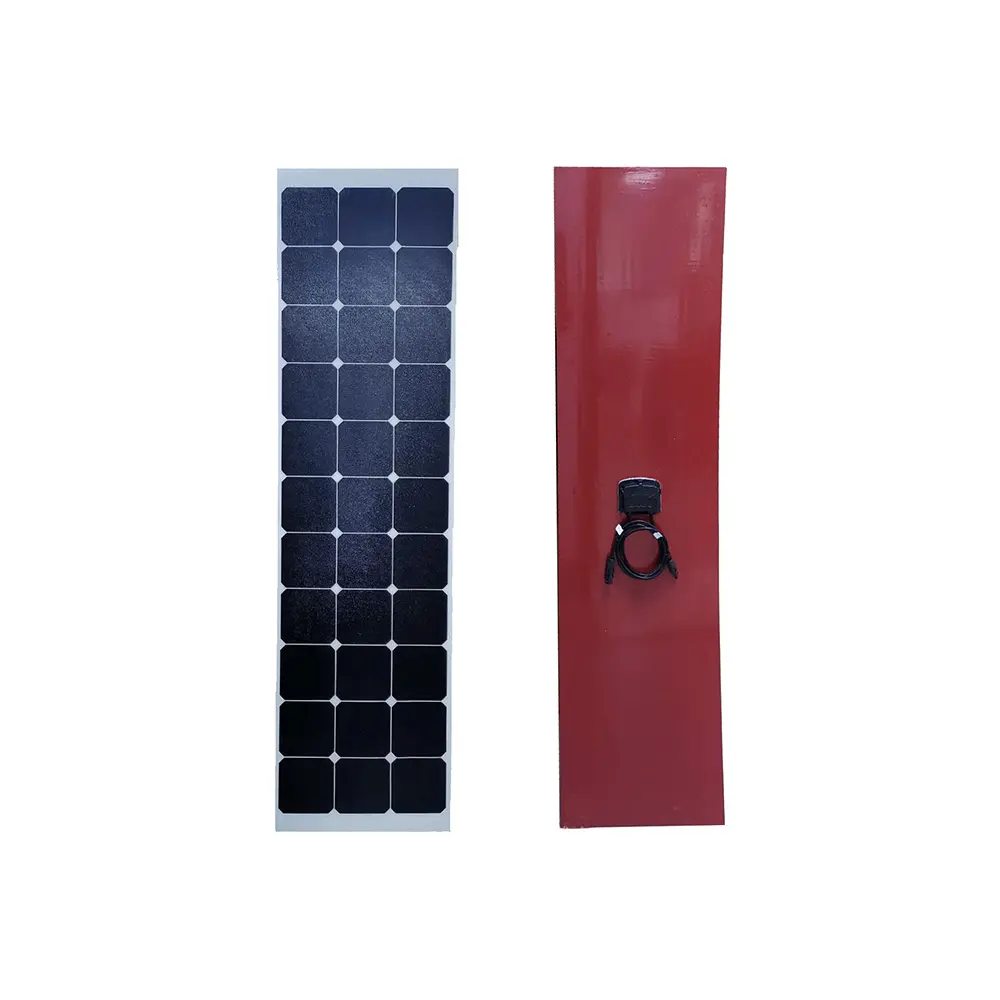

The SunPower series flexible solar panel is a lightweight, high performance solar panel designed specifically for curved surfaces and irregular shapes where traditional rigid panels are unsuitable. It utilizes high-efficiency monocrystalline SUNPOWER MAXEON solar cells with 23%+ efficiency to provide reliable off-grid power for marine, vehicle, cabin, RVs, and special applications. The thin, bendable design and weather-resistant construction make installation easy in tight spaces.
Key Features:
- Extremely flexible - Up to 30 degrees bending
- Lightweight and thin for easy installation - 4kgs/m², 2.5~3mm thickness
- High efficiency SunPower Maxeon monocrystalline cells (23%+) (More cells like IBC cells, or Perc cells available)
- IP65 rated junction box - waterproof and dustproof.
- Durable ETFE or Matt PET top layer with high light transmission
- Pre-drilled holes and MC4 connectors for quick mounting (optional)
- Excellent for off-grid applications on irregular surfaces
Technical Specifications
- Model: FLEX-110MS
- Power Output: 110W
- Open Circuit Voltage (Voc): 21V
- Maximum Power Voltage (Vmp): 18V
- Short Circuit Current (Isc): 6.5A
- Maximum Power Current (Imp): 6.1A
- Dimensions: 1450x400mm
- Weight: appr. 3kg
- Cable Length: 90cm
- Connectors: MC4 compatible or other connector
- Operating Temperature: -40°C to 85°C
- Warranty: 1 year
- Double-sided tape included (optional) for easy installation
All technical data based on the Standard Test Conditions: AM=1.5, E=1000W/m², TC=25°C
Usage Notes
- Panel can be moderately bent up to 30 degrees for conformability
- Avoid excessive bending as it may damage solar cells and solder joints
- Clean surface regularly for maximum efficiency
