Product Overview
A complete, solar-powered attic cooling and ventilation system. This all-in-one unit reduces attic heat, improves airflow, prevents moisture damage, and lowers HVAC energy costs. Designed for long-term reliability with a high-performance fan, IP68 motor, and durable galvanized steel casing.
Key Features & Benefits
- 100% Solar Powered: Maintenance-free operation with no electrical wiring required.
- High-Efficiency 60W Panel: Monocrystalline solar panel for optimal power generation.
- Powerful Ventilation: 14-inch nylon-fiberglass fan moves 2284 CMH / 1344 CFM of air.
- Built to Last: IP68 waterproof brushless DC motor and anti-rust/anti-UV powder-coated steel housing.
- Flexible Installation: Optional adjustable or remote-mounted panel for perfect sun angle on any roof.
- Accessory-Ready: Compatible with smart controls, backup batteries, and more for enhanced functionality.
- Protects Your Home: Extends roof life, prevents mold, and reduces attic heat & moisture.
Specifications
- Part Number: FL2018027 [Square Fan Cover]
- Fan Blade Size: 14” (Φ 368 mm)
- Solar Panel: 60W, 24V Monocrystalline
- Panel Dimensions: 495 × 575 × 25 mm (Adjustable)
- Motor: Brushless DC, IP68 Waterproof
- Motor Speed: 1264 RPM
- Airflow: 2284 CMH / 1344 CFM
- Housing Dimensions: 600 × 600 × 255 mm
- Weight: 17–19 kg
- Housing Material: Galvanized Steel with Powder Coating
- Fan Blades: 7-Blade, Nylon-Fiberglass
- Color Options: Black, White, Green, Brown
- Compatible Roofs: Asphalt Shingle, Tile, Metal

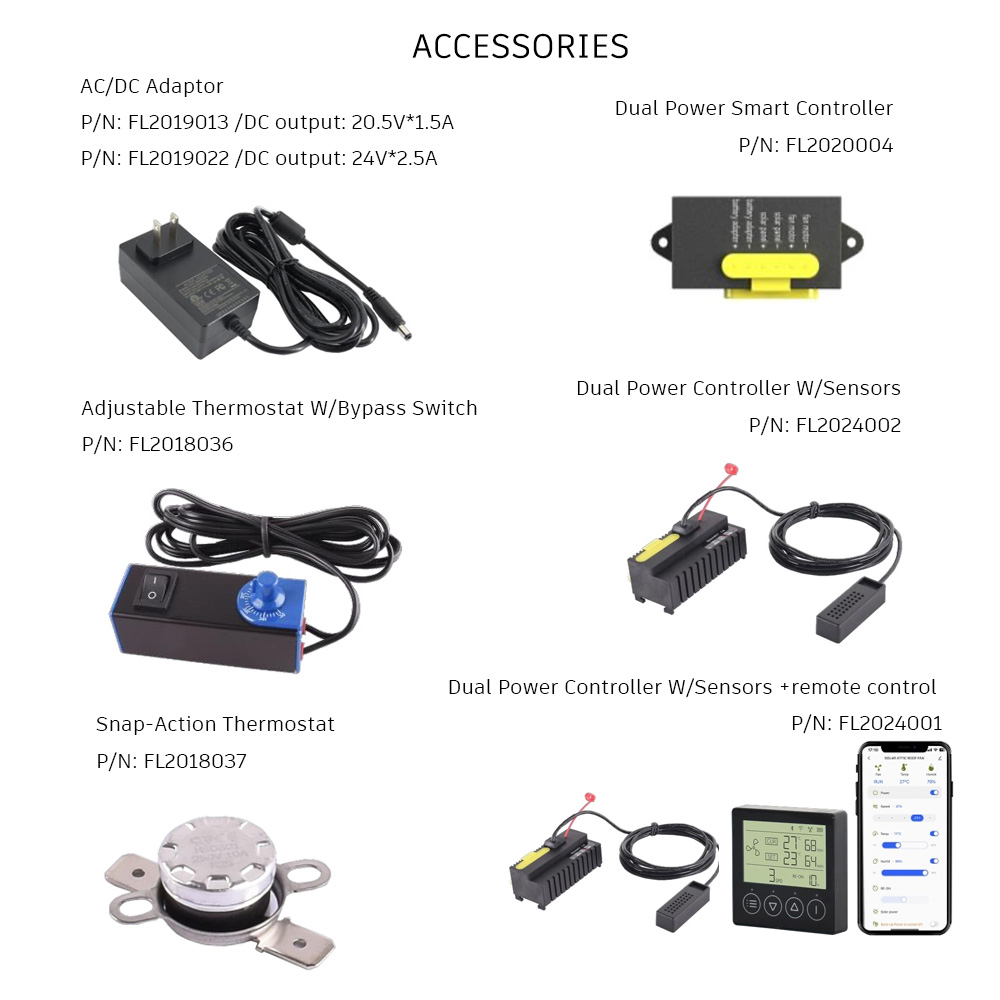

Optional Accessories
1. Smart Controller (Temp/Humidity, Speed, Timer)
2. Wireless Remote Controller
3. Adjustable or Snap-Action Thermostat
4. Solar-Charged Backup Battery Pack
5. AC/DC Adapter for Nighttime Operation
6. Additional Fan Guards
7. Flexible/Extended Fan Bases
8. Remote-Mounted Solar Panel Kit
Recommended Applications
- Residential Attic Ventilation
- Warehouse & Factory Roof Exhaust
- Garage, Shed, and Workshop Cooling
- Greenhouses & Agricultural Buildings
- Prefab Houses, Domes, Portable Buildings
- Water Tank Rooms & Equipment Shelters
Frequently Asked Questions (FAQ)
Q1: What is the difference between the 25W, 40W, and 60W models?
A: Higher wattage models provide greater RPM and airflow, making them suitable for larger spaces or areas with significant heat buildup.
Q2: Can the fan run at night or without sun?
A: Yes, with the optional backup battery pack or AC/DC adapter, the fan can operate without direct sunlight.
Q3: What roof types is this fan compatible with?
A: It is compatible with most common roofs including asphalt shingles, metal, S-tiles, and clay tiles. An optional base is available for curved roofs.
Q4: Is the motor waterproof and durable for outdoor use?
A: Yes. The brushless DC motor has an IP68 waterproof rating, making it suitable for all weather conditions.
Q5: Can the solar panel angle be adjusted?
A: Yes. The 40W and 60W models include an adjustable bracket to optimize the panel's angle towards the sun for maximum efficiency.
