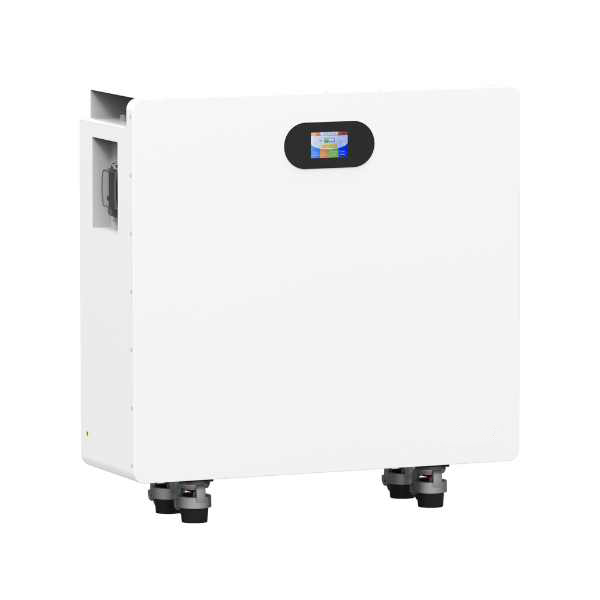

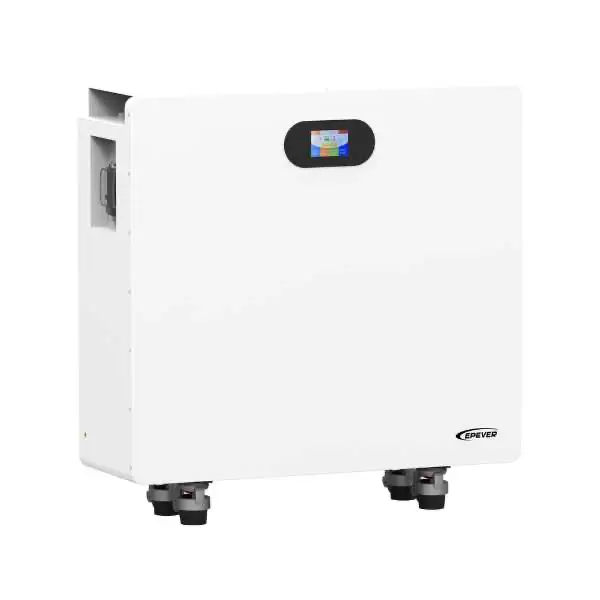

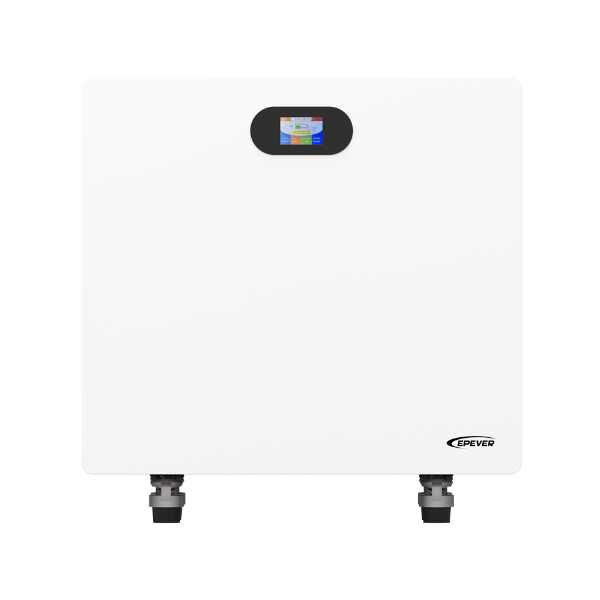

51.2V 314Ah LiFePO4 Battery Scalable Parallel Design for Solar, UPS, and Industrial Applications

P/N: LFP16.07KWH51.2V-P65F1

51.2V 314Ah 16KWh

Lithium iron Phosphate Battery

In-Built BMS

Designed for Home Energy Storage System

A grade brand new prismatic LiFePO4 cells
Long Cycle Life: ＞8000 cycles @80% DOD(25℃, 0.5C )
Safety Assured: Built-in protection against overcharge, over-discharge, over-temperature, low temperature, overcurrent, and short circuits.
Advanced Compatibility: Compatible with most inverters and supports RS485, CAN, and RS232 communication.
Expandable Capacity: Supports up to 8 battery packs in parallel for larger energy systems.
Monitoring Features: Equipped with an LCD display to track SOC, voltage, temperature, and alarm status.
Premium Quality: Built with A-grade prismatic LiFePO4 cells.
Robust Design: Metal casing for enhanced durability.
Certifications: UN38.3, MSDS, IEC62619, EN IEC62619 compliance.

Electrical Characteristics

Model	LFP16.07KWH51.2V-P65F1
Battery type	LiFePO4
Nominal voltage	51.2V
Nominal capacity	314Ah
Energy	16076Wh
Continuous discharge current	100A
Charge cut-off voltage	57.6V
Discharge cut-off voltage	41.6V
Max. charge current	100A
Max. discharge current	200A
Peak discharge current	240A
Recommend discharge current	100A
Cycle life	＞8000 cycles (25°C, 0.5C) 80%DOD
Communication	RS485 CAN RS232
Display	LCD
Open-circuit voltage	50.88~53.6V
Number of series/parallel	Max 8 battery packs in parallel
Environmental Parameter	Charge：0℃~+55℃
Charge & discharge temperature	Discharge：-20℃~+60℃
Storage temperature range	5°C～+35°C
Relative humidity	40%-80%
Ingress protection	IP65
Mechanical Parameter	Quick-plug
Dimension (L x W x H) (mm)	730x660x250
Weight (kg)	115.1±0.5
Certification	UN38.3, MSDS, IEC62619
