EPEVER 25.6V 205Ah 5.248kWh LiFePO4 Battery IP65

EPEVER 25.6V 205Ah 5.248kWh LiFePO4 Battery IP65 Bluetooth Heating 100A 4000 Cycles

P/N: LFP5.12KWH25.6V-P65L2GF40

25.6V 205Ah 5.248kWh

LiFePO4

IP65, 4000+ cycles, 100A discharge, Bluetooth, heating

For solar energy storage, RV, marine, off-grid and backup power.

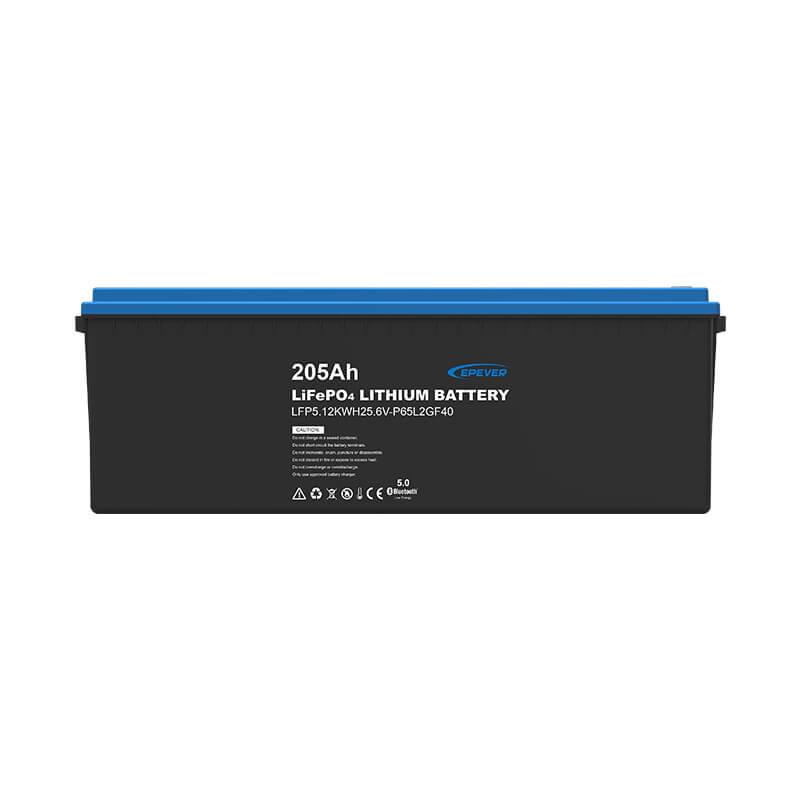

EPEVER 25.6V 205Ah 5.248kWh LiFePO4 Battery IP65

EPEVER's 25.6V 205Ah Lithium Battery is engineered with premium LiFePO4 cells, delivering over 4000 cycles at 80% DOD (25°C, 0.5C). Featuring 100A continuous discharge current, built-in Bluetooth & heating function, IP65 waterproof rating, this battery provides stable and reliable power for solar energy storage, RV, marine, off-grid power and emergency backup applications.

Key Features

High-quality A-grade LiFePO4 cells, high safety and stability
Long cycle life: >4000 cycles (25°C, 0.5C, 80% DOD)
IP65 waterproof and dustproof for indoor & outdoor use
100A continuous discharge current (max 200A, peak 240A)
Built-in Bluetooth communication for real-time monitoring
Integrated heating function for low-temperature performance
8S1P pack mode for optimized power output
Built-in smart BMS with full safety protection system
M8 terminal for secure and reliable connection
Certified with UN38.3, MSDS, IEC62619, CE-RED, ROHS

Technical Specifications

Model: LFP5.12KWH25.6V-P65L2GF40
Brand: EPEVER
Battery type: LiFePO4 (Lithium Iron Phosphate)
Nominal voltage: 25.6V
Nominal capacity: 205Ah
Energy: 5248Wh (5.248kWh)
Pack mode: 8S1P
Continuous discharge current: 100A
Charge cut-off voltage: 28.8V
Discharge cut-off voltage: 20.8V
Max. charge current: 100A
Max. discharge current: 200A
Peak discharge current: 240A
Recommend discharge current: 100A
Recommend discharge depth: 80%
Cycle life: >4000 cycles (25°C, 0.5C, 80% DOD)
Function: Bluetooth, heating
Charge & discharge temperature: Charge 0℃~+55℃, Discharge -20℃~+60℃
Optimal storage temperature: 5℃~+35℃
Relative humidity: 40%-80%
Ingress protection: IP65
Terminal: M8
Dimensions (LxWxH): 636×245×218 mm
Weight: 40.7±0.5 Kg
Certificates: UN38.3, MSDS, IEC62619, CE-RED, ROHS

Applications

Large-scale solar panel energy storage and battery backup systems
24V/25.6V RV, caravan, camper and marine boat power supply
Off-grid home, outdoor and industrial equipment power
Low-temperature environment energy solutions (heating function)
High-power home energy storage and emergency backup power

Related Products

FAQ

Q: What type of cells does this EPEVER 25.6V battery use?
A: It uses high-quality A-grade LiFePO4 cells for high safety and long cycle life.

Q: What is the cycle life?
A: >4000 cycles at 80% DOD under 25℃ and 0.5C charge/discharge.

Q: What is the continuous discharge current?
A: 100A continuous discharge current (max 200A, peak 240A) for high-power output.

Q: Does this battery have Bluetooth function?
A: Yes, built-in Bluetooth communication for real-time battery status monitoring.

Q: Does it have a heating function?
A: Yes, integrated heating function for better performance in low-temperature environments.

Q: Is this battery really IP65 waterproof?
A: Yes, IP65 rated, can be used indoor and outdoor without extra protection cover.

Q: What terminal type does it use?
A: M8 terminal design for secure and reliable electrical connection.

Q: What is the optimal storage temperature?
A: 5℃~+35℃ for long-term storage to extend battery life.

Q: Is it maintenance-free?
A: Yes, fully sealed and maintenance-free, no need to add water or regular checks.

Q: How to maintain and extend battery life?
A: Avoid full discharge; keep operating temperature stable; charge regularly if not in use for long time.

Q: What should I do for long-term storage?
A: Keep SOC 40–60%, recharge every 3 months, store in cool dry and ventilated place (5℃~+35℃).

Q: Can I use it for 24V RV, solar and marine systems?
A: Yes, perfect for 24V/25.6V high-power solar storage, RV, marine, off-grid and backup power.

Q: Do I need extra charger?
A: It works with standard 25.6V LiFePO4 chargers (max 100A charge current) and solar controllers.

Q: What certifications does it have?
A: UN38.3, MSDS, IEC62619, CE-RED, ROHS certified for safe use and global transportation.
