12.8V 72Ah Custom LiFePO4 Battery Pack With Bluetooth


FORLEAVES 12.8V 72Ah LiFePO4 Battery Bluetooth BMS Solar Street Light Custom Battery Pack

P/N: FL-4S12P32700

12.8V 72Ah

32700 Cell 3.2V 4s12p

Lithium iron Phosphate Battery

In-Built BMS

Bluetooth Module

Customized for Solar Street Lights & Off Grid Systems

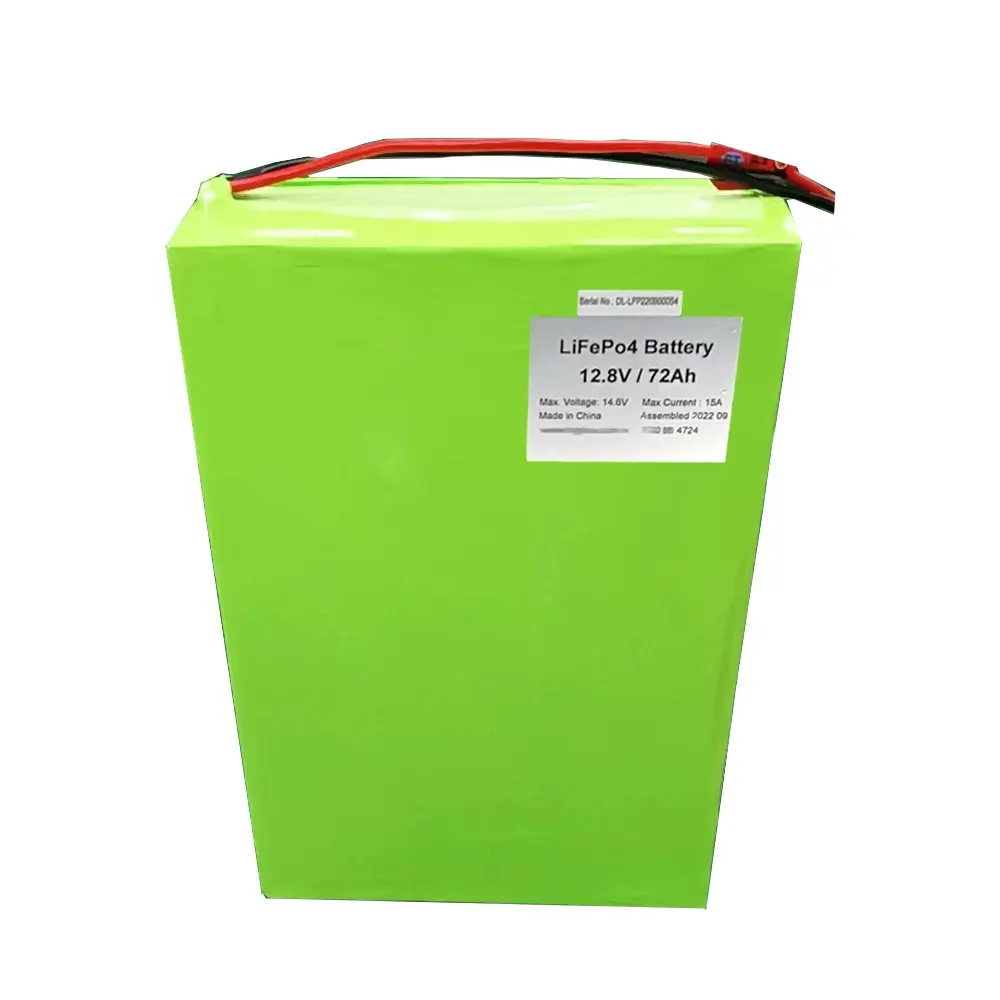

FORLEAVES 12.8V 72Ah Lithium Iron Phosphate Battery | Solar Street Light Custom Pack

FORLEAVES 12.8V 72Ah LiFePO4 battery pack is a high-performance rechargeable lithium iron phosphate battery specially designed for solar street lights, outdoor integrated solar lights, and on-grid/off-grid solar energy systems. Equipped with high-quality lithium cells, built-in smart BMS protection board and Bluetooth communication module, this battery pack provides stable power supply and intelligent monitoring for outdoor lighting applications. Customization services for wires, connectors, dimensions and electrical parameters are available to meet different project requirements.

Product Features

  • Light Weight & High Capacity Design
  • Excellent Discharge Performance & Stable Output
  • Long Cycle Life: 1200 cycles at 80% DOD
  • High Safety Performance & Low Internal Resistance
  • No Memory Effects, Green & Environment-friendly
  • Built-in BMS for full safety protection
  • Built-in Bluetooth module for APP monitoring
  • Customized shape, wires, terminals and connectors
  • Wide working temperature range for outdoor use
  • 3 years warranty for reliable use

Technical Specifications

  • Model: Custom 12.8V 72Ah LiFePO4 Battery Pack
  • Battery Type: Lithium Iron Phosphate (LiFePO4)
  • Cell Specification: 32700 3.2V 6000mAh, 4S combination
  • Nominal Voltage: 12.8V
  • Rated Capacity: 72Ah
  • Energy: 921.6Wh
  • Max Charge Voltage: 14.6V
  • Discharge Cut-off Voltage: 10V
  • Standard Charge Current: ≤15A
  • Working Discharge Current: ≤30A
  • Single Cell Over Charge Cut-off: 3.65V
  • Single Cell Over Discharge Cut-off: 2.5V
  • Charge Temperature Range: 0℃ ~ 45℃
  • Discharge Temperature Range: -20℃ ~ 65℃
  • Cycle Life: 1200 cycles @ 80% DOD
  • Warranty: 3 Years
  • Lead Wire: 2.5mm² cable + JST connector (customizable)
  • Dimensions (L×W×H): 300×198×73mm
  • Gross Weight: Approx. 7kgs
  • Built-in BMS Protection: Yes
  • Communication Module: Bluetooth
  • Application: Solar Street Lights, Outdoor Solar Lighting Systems

Applications

  • Solar Street Lights & Integrated Solar Lights
  • On-grid & Off-grid Solar Energy Storage Systems
  • Electric Tools, Home Appliances, Consumer Electronics
  • Small Electric Power Systems & Boats
  • Outdoor Monitoring & Security Equipment
  • Customized Portable Power & Industrial Power

Related Products

FORLEAVES 12.8V 48Ah LiFePO4 Battery Pack

FAQ - Frequently Asked Questions

Q1: Is this battery FORLEAVES brand?
A: Yes, this is 100% FORLEAVES brand original lithium iron phosphate battery pack for solar street lights.

Q2: Does this battery have built-in BMS and Bluetooth?
A: Yes. It has built-in BMS for full protection and built-in Bluetooth module for mobile APP monitoring.

Q3: Can I customize the cable, connector or terminals?
A: Yes. We support customized wires, connectors, terminals, length and output mode according to your requirements.

Q4: Can I customize voltage, capacity or size?
A: Yes. We provide full customization service including voltage, capacity, dimensions, BMS parameters and appearance.

Q5: What is the cycle life of this battery?
A: It can reach up to 1200 cycles at 80% DOD, long service life for solar and outdoor applications.

Q6: What applications is this battery suitable for?
A: It is mainly designed for solar street lights, on-grid solar systems, outdoor lighting, industrial equipment and custom power solutions.

Q7: What is the warranty period?
A: This model provides 3 years warranty under normal use conditions.

Q8: Can I adjust BMS parameters via APP?
A: Yes. With built-in Bluetooth, you can connect APP to view battery status and adjust related working parameters.
