SKX-TYD-C24 Series 30-120W Modern AC LED Garden Lights – Urban & Landscape Lighting

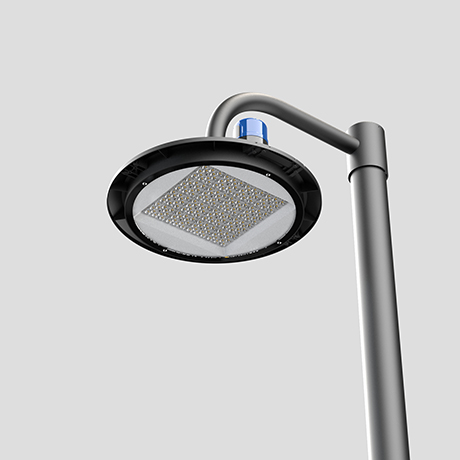

SKX-TYD-C24 Series 30-120W Modern AC LED Garden Light

P/N: SKX-TYD-C24 Series

Power: 30-120W

Input Voltage: AC 90-305Vac; 50/60Hz

Luminous efficiency: 120-160lm/W

Die-cast Aluminum housing

Lifetime: 5,000 hrs

IP66 CE

Versatile, Durable, and High-Performance Outdoor Lighting

High Luminous Efficiency: Delivers 120–160 lm/W with advanced Lumileds or CREE chips.
Energy Saving: Designed to reduce energy and maintenance costs significantly.
Premium Build: Die-cast aluminum body ensures excellent durability, corrosion resistance, and heat dissipation.

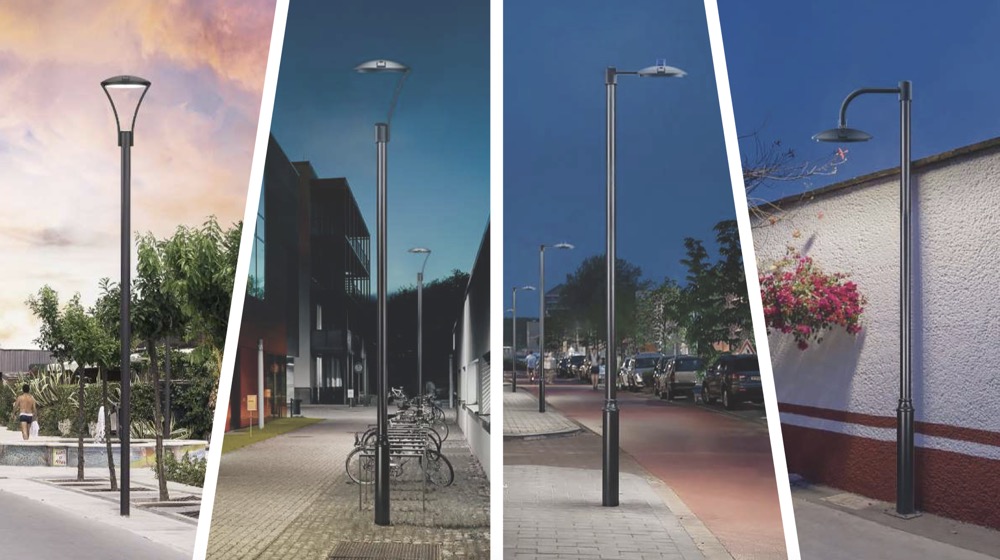

Multiple Optics & Mounting Options: Compatible with Type I to Type V lenses for various applications such as pathways, parks, and residential landscapes.
Smart Ready: Supports optional photocell sensors and dimming protocols for smart lighting control.
Wide CCT Range: Available from 2700K (warm white) to 6500K (cool daylight), customizable for different ambiances.
IP66 Rated: Fully sealed for reliable outdoor use in harsh weather conditions.

Parameter	Description
Model No.	SKX-TYD-GD24
Power Range	30W – 120W
Optic Lens Types	Type I, II, III, IV, V
Input Voltage	AC 90-305V, 50/60Hz
Power Factor	> 0.95
Luminous Efficiency	120–160 lm/W
LED Chips	Lumileds / CREE / Customizable
Material	Die-casting Aluminum (ADC12)
CCT	2700K – 6500K / Customizable
CRI	>70 / >80
Driver Options	Inventronics / Meanwell / Custom
Lifespan	50,000 hours
IP Rating	IP66
