100W~300W LED Street Lights
P/N: SKX-LD-M-A18 Series Series
Power: 100W /160W / 200W / 250W / 300W
Input Voltage: AC 90-305Vac; 50/60Hz
Luminous efficiency: 110-150lm/W
Die-cast Aluminum housing
Lifetime: 6,000 hrs
IP65 IK08 CE
LED Street Light SKX-LD-M-A18 (100–300W)
Key Features
Exceptional Energy Efficiency
≥130 lm/W system efficacy
Robust Construction
High-strength die-cast aluminum housing (ADC12) with anti-corrosion coating; IP65-rated for dust/water resistance and IK08 impact resistance.
Advanced Optical Design
Precision-engineered optics with customizable beam distribution (Type II, III, or V) for uniform illumination and minimal glare.
Modular & Scalable Design
LED modules vary by power (100–300W) while maintaining uniform dimensions; tool-free access for quick maintenance.

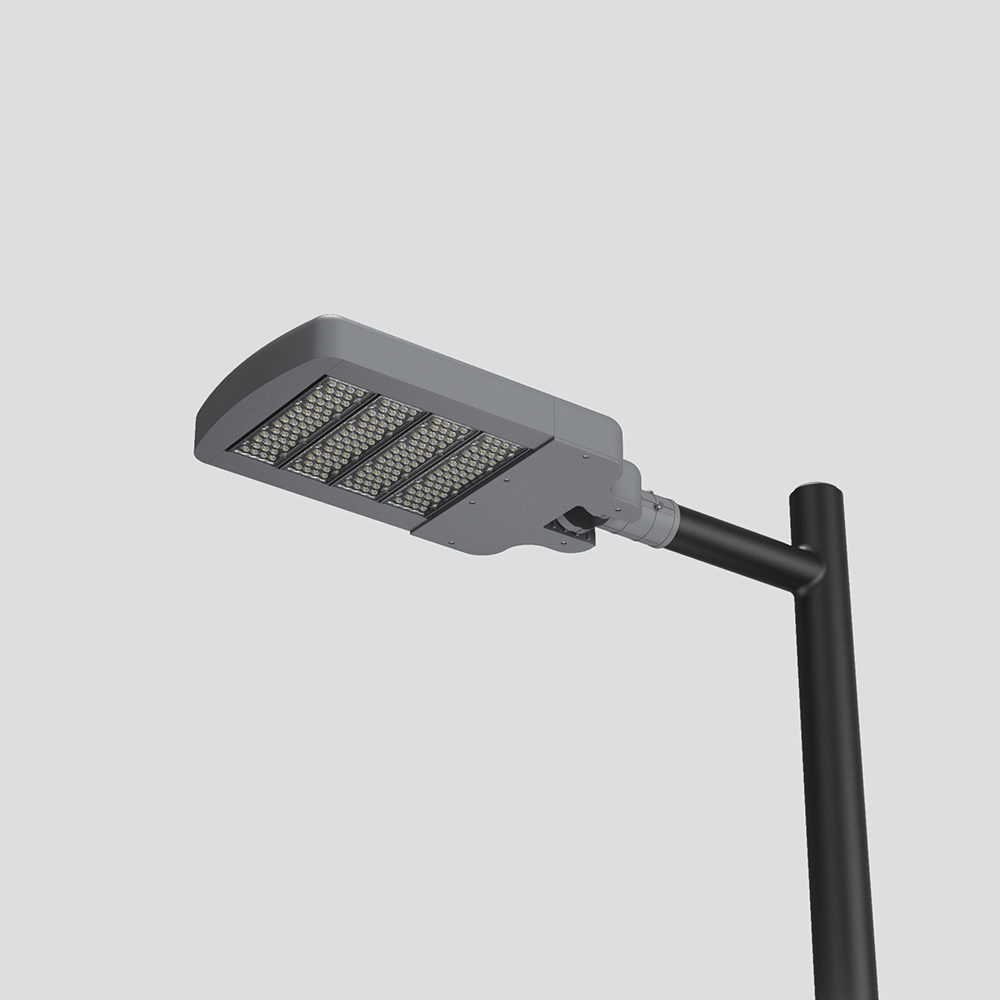

Versatile Mounting
Compatible with ⌀60–76 mm poles; supports side-mount, top-mount, or bracket installations.
Smart Control Compatibility (Optional)
Supports 0–10V/DALI dimming; optional photocell, microwave sensor, or IoT integration for remote management.
Technical Specifications
| Parameter | Details |
|---|---|
| Model No. | SKX-LD-M-A18 |
| Power Range | 100W / 160W / 200W / 250W / 300W |
| Input Voltage | AC 90–305V, 50/60Hz |
| Power Factor | >0.95 |
| Luminous Efficacy | 110–150 lm/W (system) |
| LED Chips | Lumileds / CREE / Customizable |
| Material | ADC12 Die-cast Aluminum |
| CCT | 2700–6500K (Adjustable or Customizable) |
| CRI | >70 / 80 |
| Driver Options | Meanwell / Inventronics / Customizable |
| Lifetime | 50,000 hours (L70) |
| IP Rating | IP65 |
| Fixture Dimensions (L×W×H) |
All Models: 330mm (W) × 95mm (H) × Length: 100W: 545mm / 150W: 660mm / 200W: 730mm / 250W: 800mm / 300W: 870mm |
| Package Dimensions (L×W×H) |
100W: 590×330×110mm / 150W: 660×330×110mm / 200W: 730×330×110mm / 250W: 800×330×110mm / 300W: 870×330×110mm |
Unified Design: Only LED module quantity varies by power; housing dimensions remain consistent (W:330mm, H:95mm).
Customization: CCT, beam angles, and smart controls can be tailored to project needs.
Compliance: Meets IEC, EN, and RoHS standards for safety and environmental protection.
Warranty: 5-year warranty on LED modules and drivers.
Applications
Ideal for urban roads, highways, industrial zones, parking lots, and area lighting.
