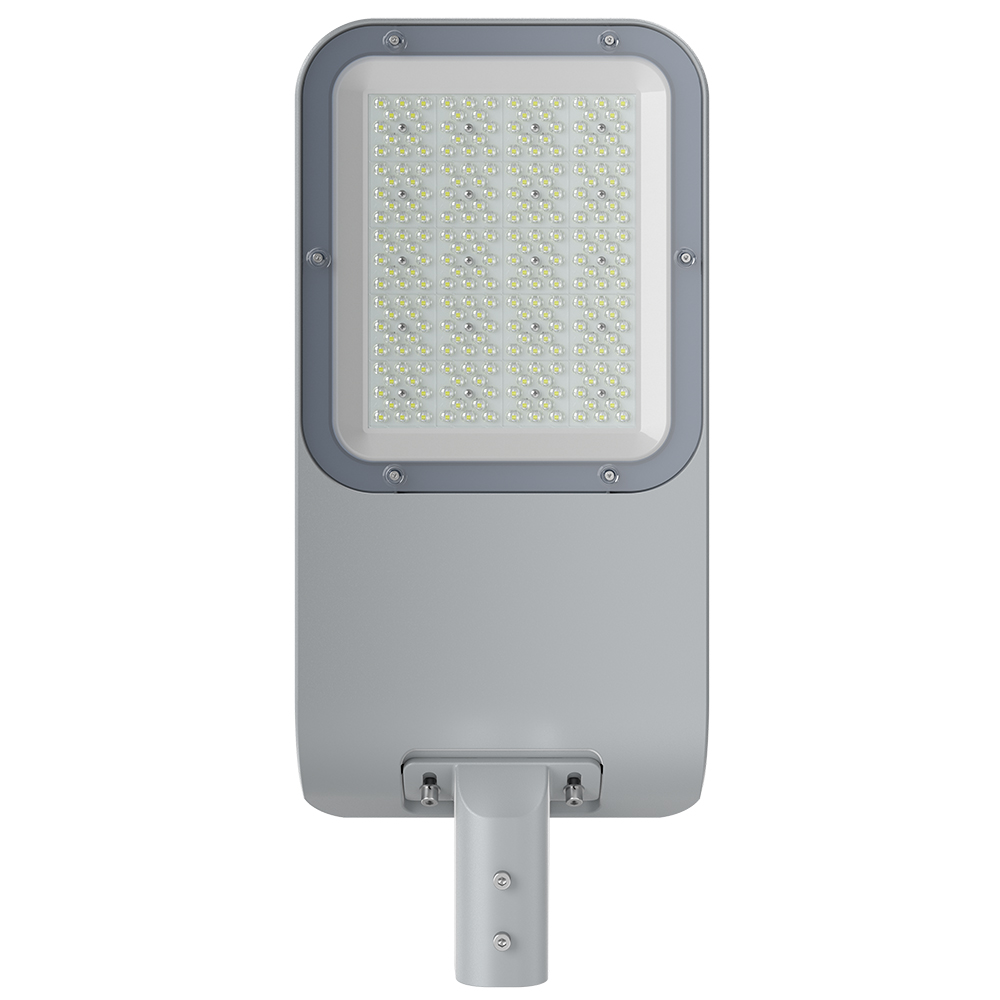

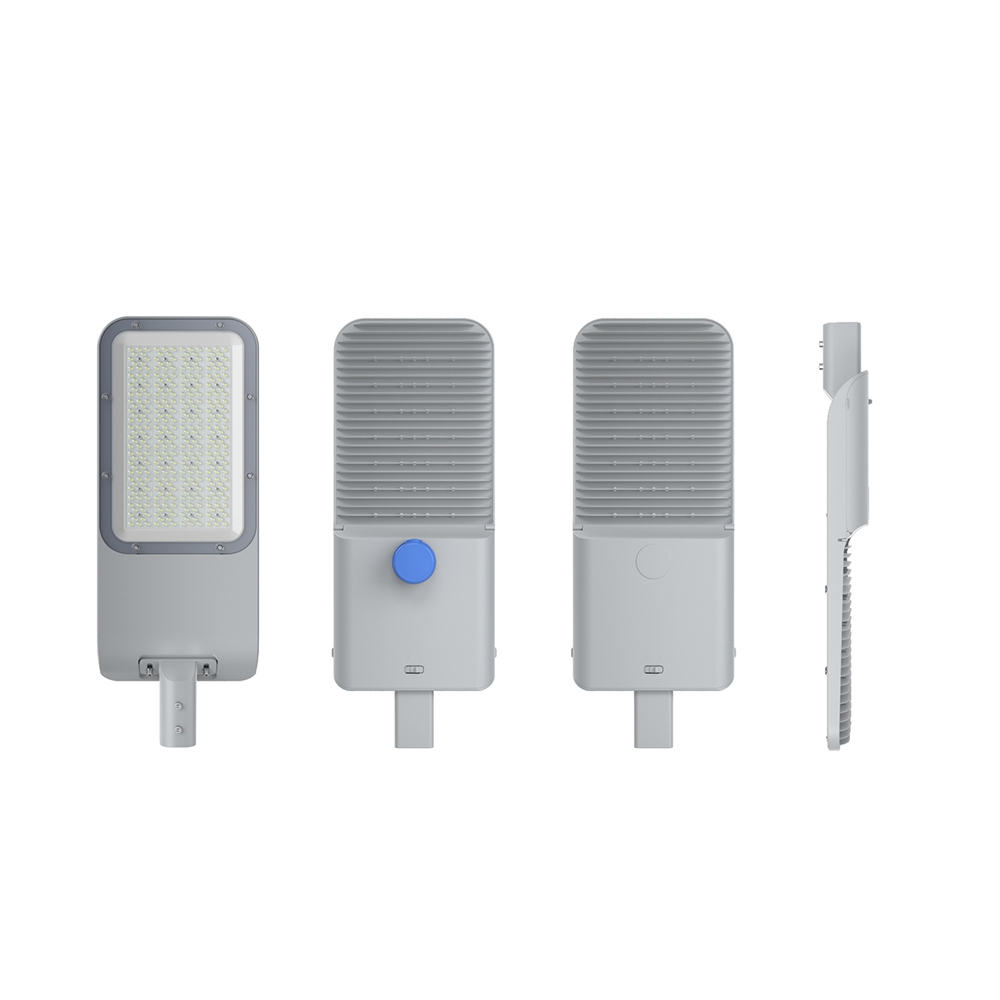

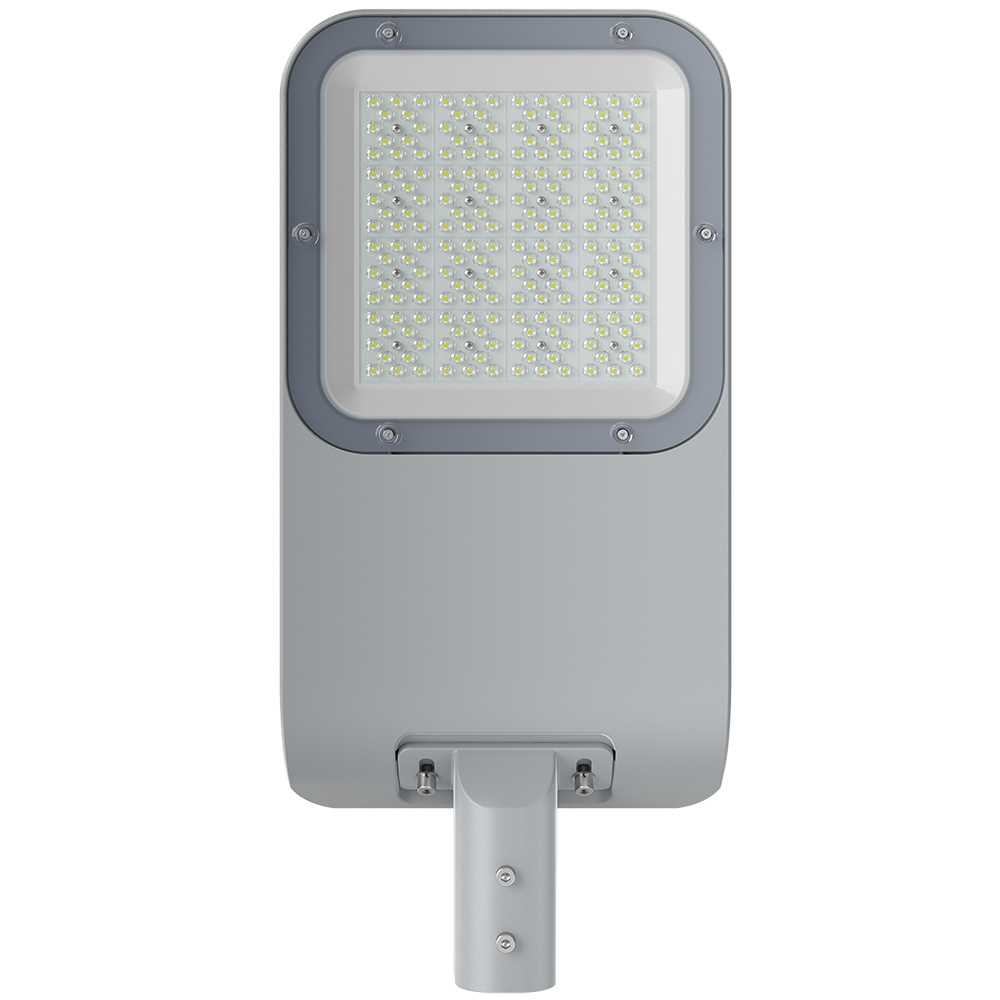

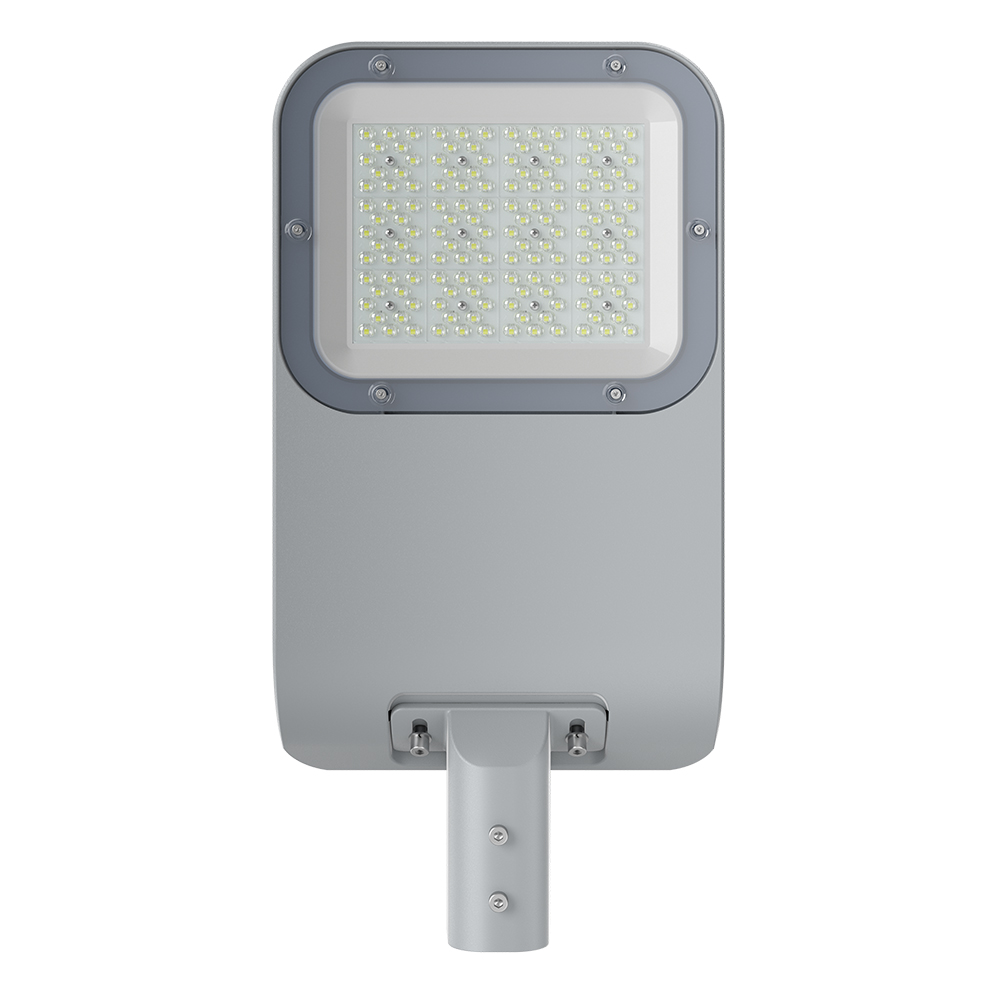

SKX-ST-YZ-TY25 Series 100W | 150W | 200W | 300W LED Street Lights
P/N: SKX-ST-YZ-TY25 Series
Power: 100W /150W / 200W / 300W
Input Voltage: AC 85-265Vac; 50/60Hz
Luminous efficiency: upto 180lm/W
Die-cast Aluminum housing
Lifetime: 50,000 hrs
IP65 IK08 CE
LED Street Light – SKX-ST-YZ-TY25 Series (100W–300W)
Professional-Grade Lighting for Roads, Parks & Public Spaces

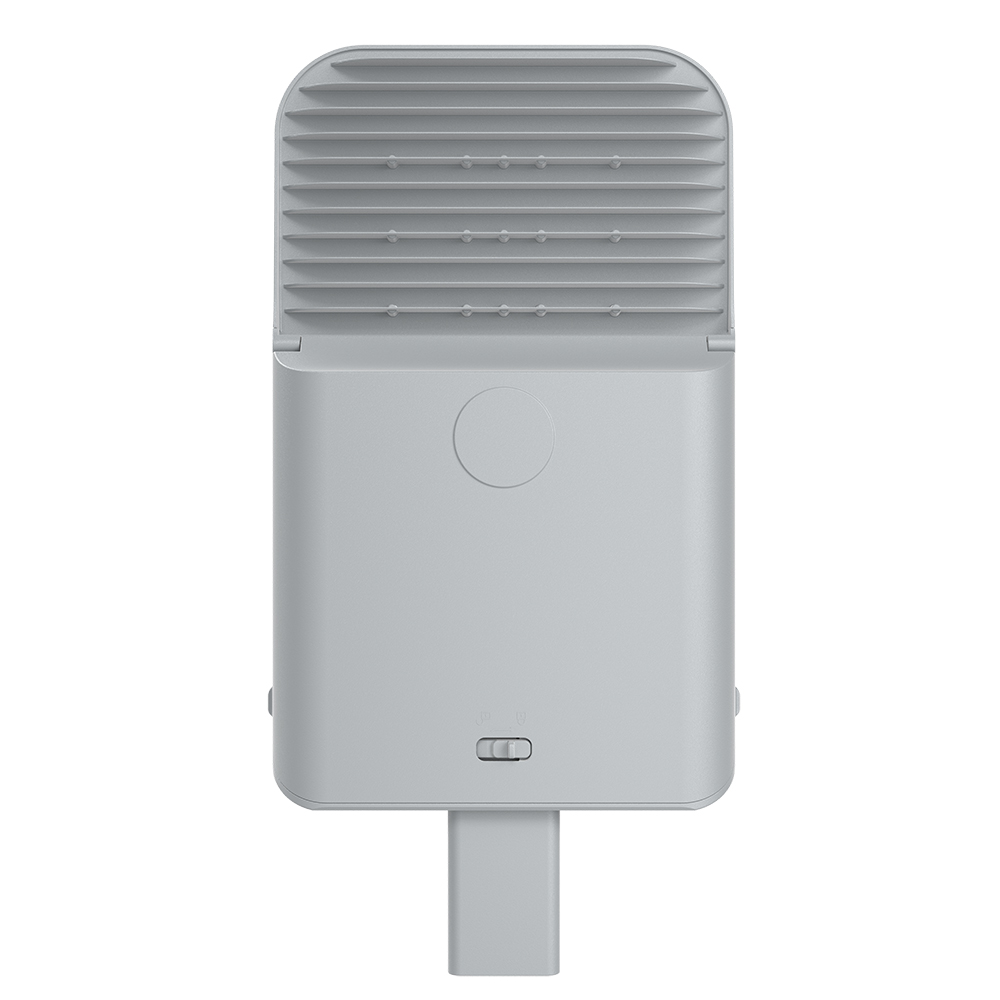

Exceptional Thermal Management
Advanced FEA-optimized structure with Cold-Hot Zone separation
High thermal conductivity (96W/M.K) aluminum body + thermally conductive PCB
Auto power-off safety switch when opened
Ultra-High Efficiency
180 lm/W efficacy with 3030/5050 SMD LEDs (LM-80 certified)
Wide voltage input: AC85-265V, 50/60Hz, PF>0.95
Rugged & Safe Design
ADC12 die-cast aluminum housing with anti-corrosion coating
IP65 waterproof (silicone gel seals + tempered glass)

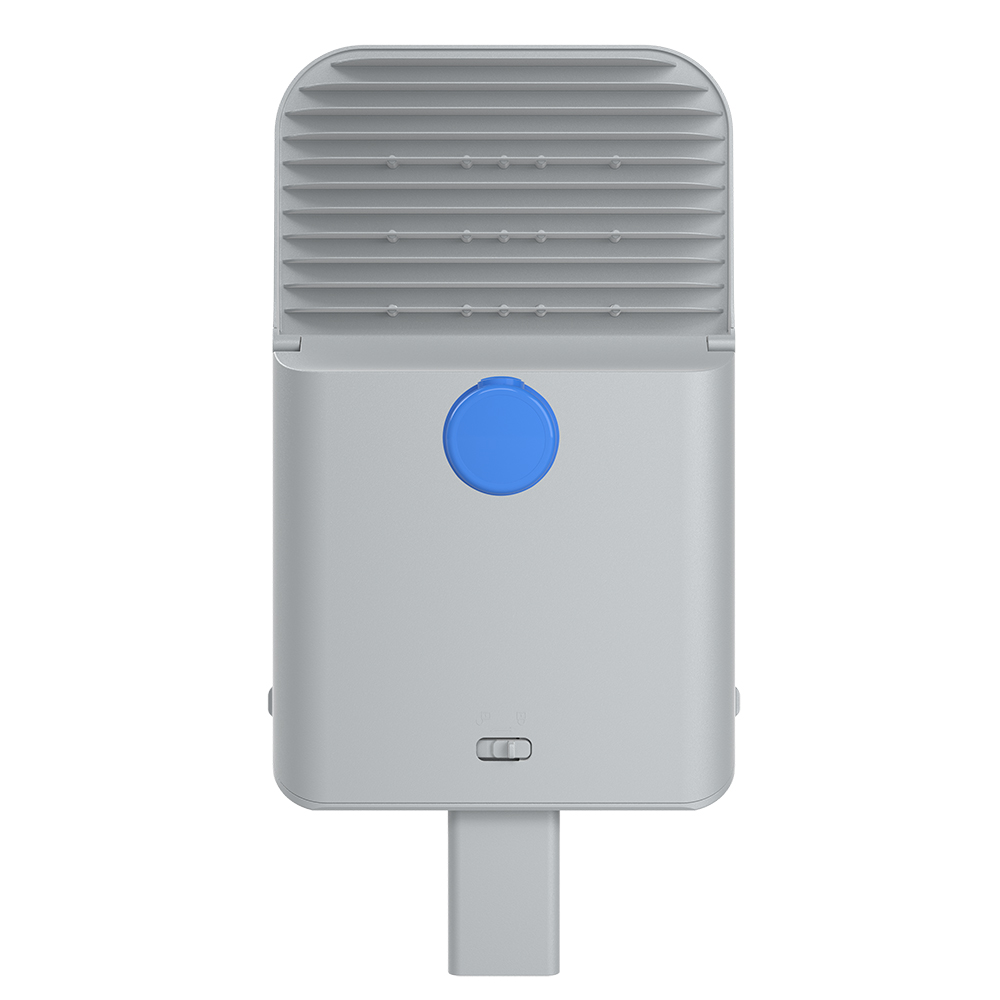

Optional SPD surge protection and photocell sensor
Smart-Ready Lighting
Supports 0-10V/DALI dimming
Free DIALux simulations and .ies files
| Parameter | Details |
|---|---|
| Model | SKX-ST-YZ-TY25 Series |
| Power Options | 100W / 150W / 200W / 300W |
| LED Type | 3030 SMD (100W: 144pcs) or 5050 SMD (100W: 72pcs) |
| Input Voltage | AC85-265V, 50/60Hz |
| Luminous Efficacy | Up to 180 lm/W |
| Material | ADC12 Die-cast Aluminum + Tempered Glass |
| CCT/CRI | 2700K–6500K (Customizable) / >70 (Standard), >80 (Optional) |
| Thermal Conductivity | 96W/M.K |
| IP Rating | IP65 |

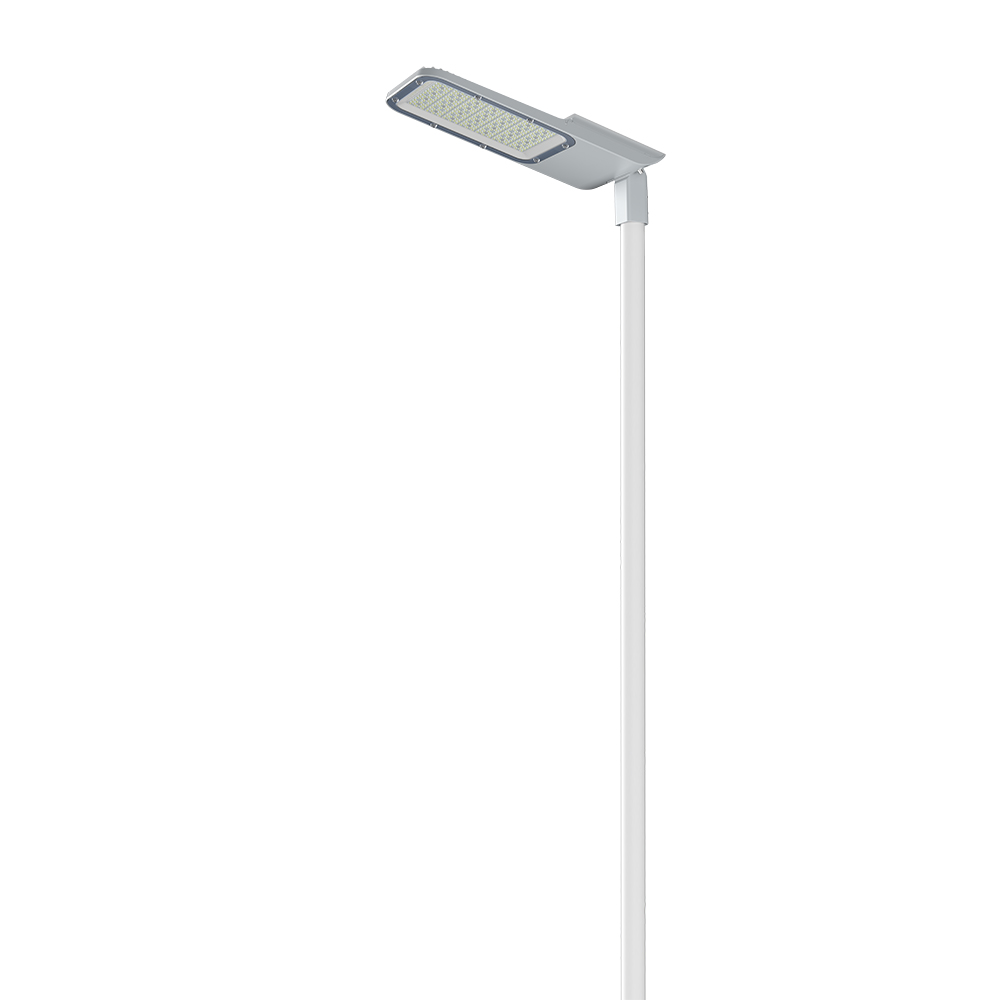

| Installation Height | 100W: 6–8m / 300W: 9–12m |

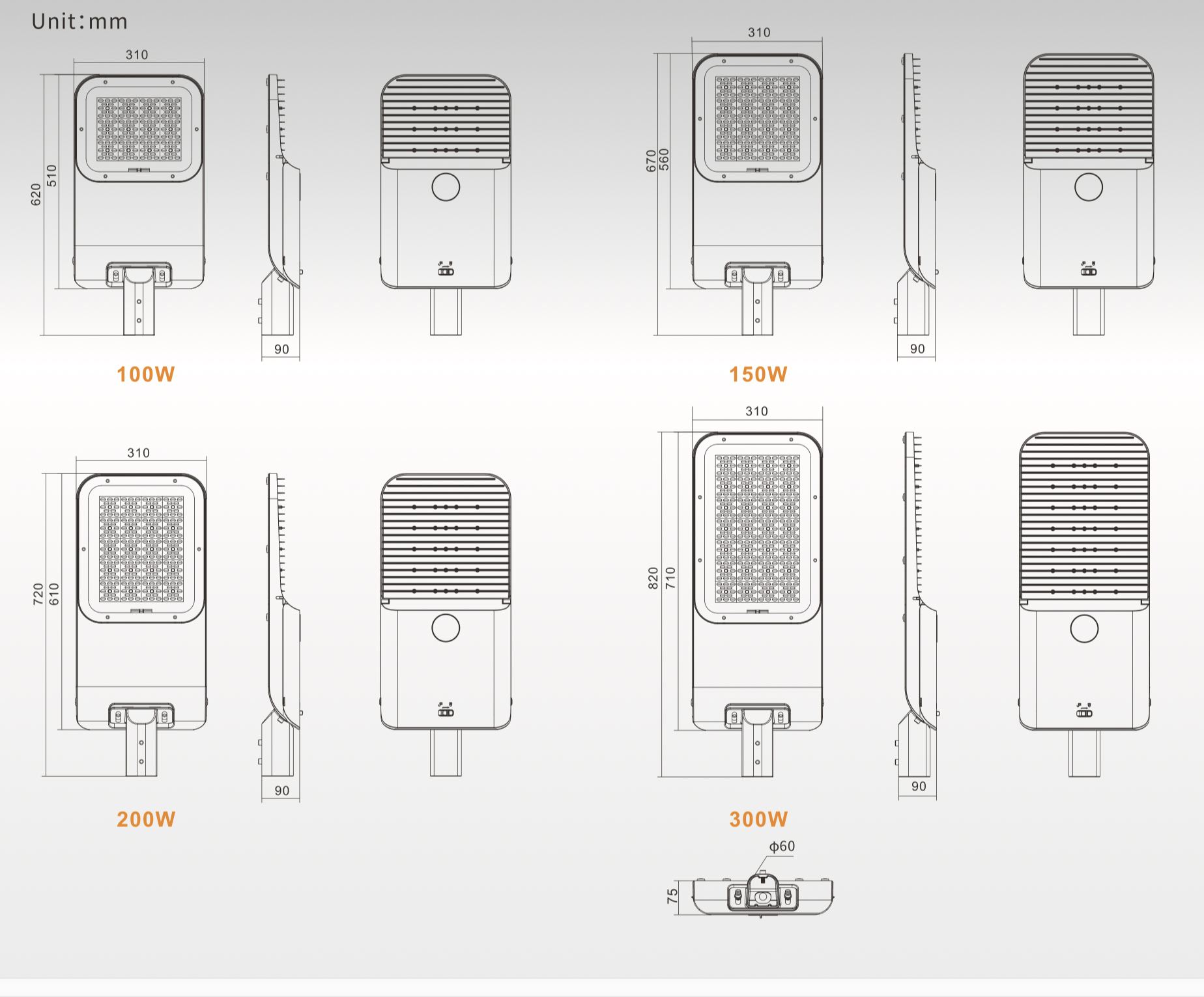

| Power | Fixture (L×W×H) | Package (L×W×H) |
|---|---|---|
| 100W | 31.0×33.0×9.5cm | 66.5×37×12cm |
| 150W | 44.0×33.0×9.5cm | 71.5×37×12cm |
| 200W | 60.0×33.0×9.5cm | 81.5×37×12cm |
| 300W | 96.0×33.0×9.5cm | 86.5×37×12cm |
| Power | CTN Size | Qty/CTN | 20'GP | 40'GP | 40'HQ | Gross Weight |
|---|---|---|---|---|---|---|
| 100W | 66.5×37×12cm | 1 | 948 | 1964 | 2303 | 5.2kg |
| 150W | 71.5×37×12cm | 1 | 882 | 1807 | 2142 | 6.0kg |
| 200W | 81.5×37×12cm | 1 | 774 | 1603 | 1879 | 7.5kg |
| 300W | 86.5×37×12cm | 1 | 729 | 1510 | 1771 | 9.0kg |
Highways & Urban Roads
Residential Areas & Communities
Parks, Squares & Pedestrian Zones
Certified: CE, RoHS, ENEC, IEC 60598-1
Warranty: 5 years (extendable to 7 years)
Free Support: DIALux lighting design & .ies files
Safety Notes
Professional installation required
Do not stare directly at LEDs
Ensure waterproof cable connections for outdoor use
