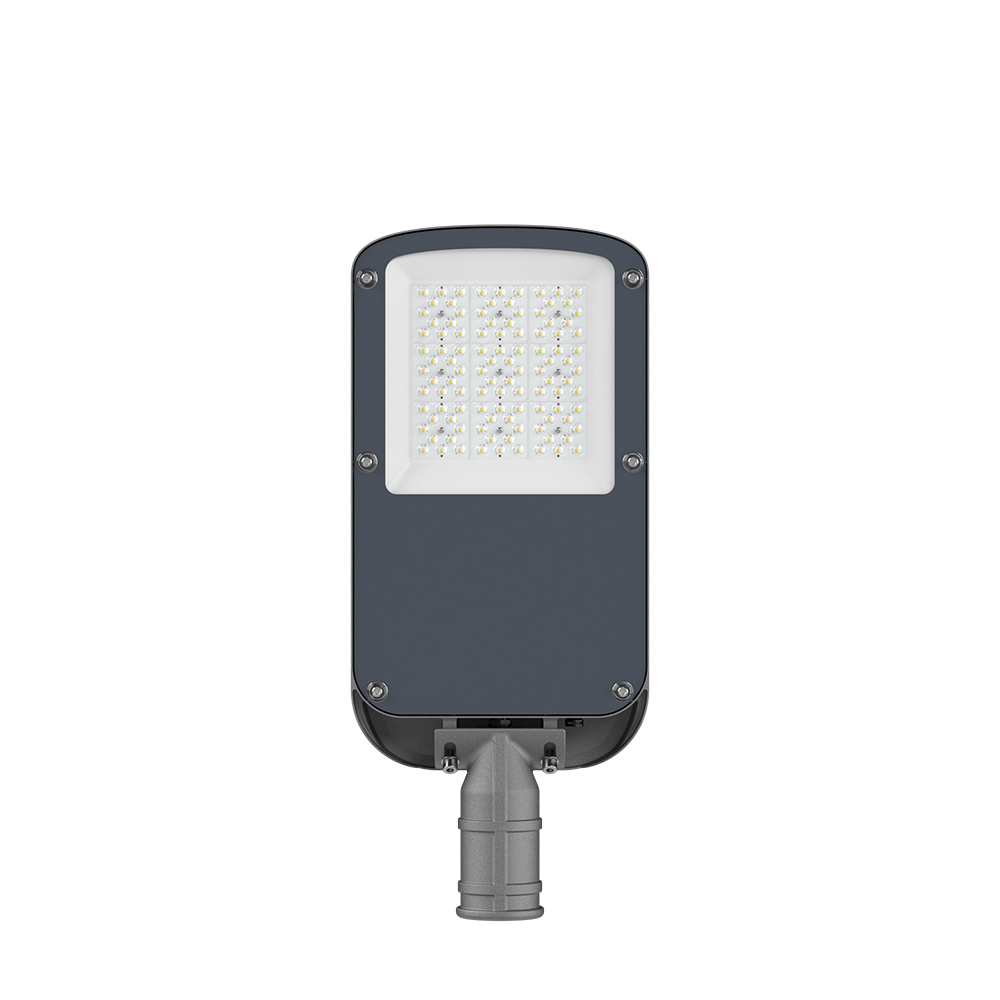

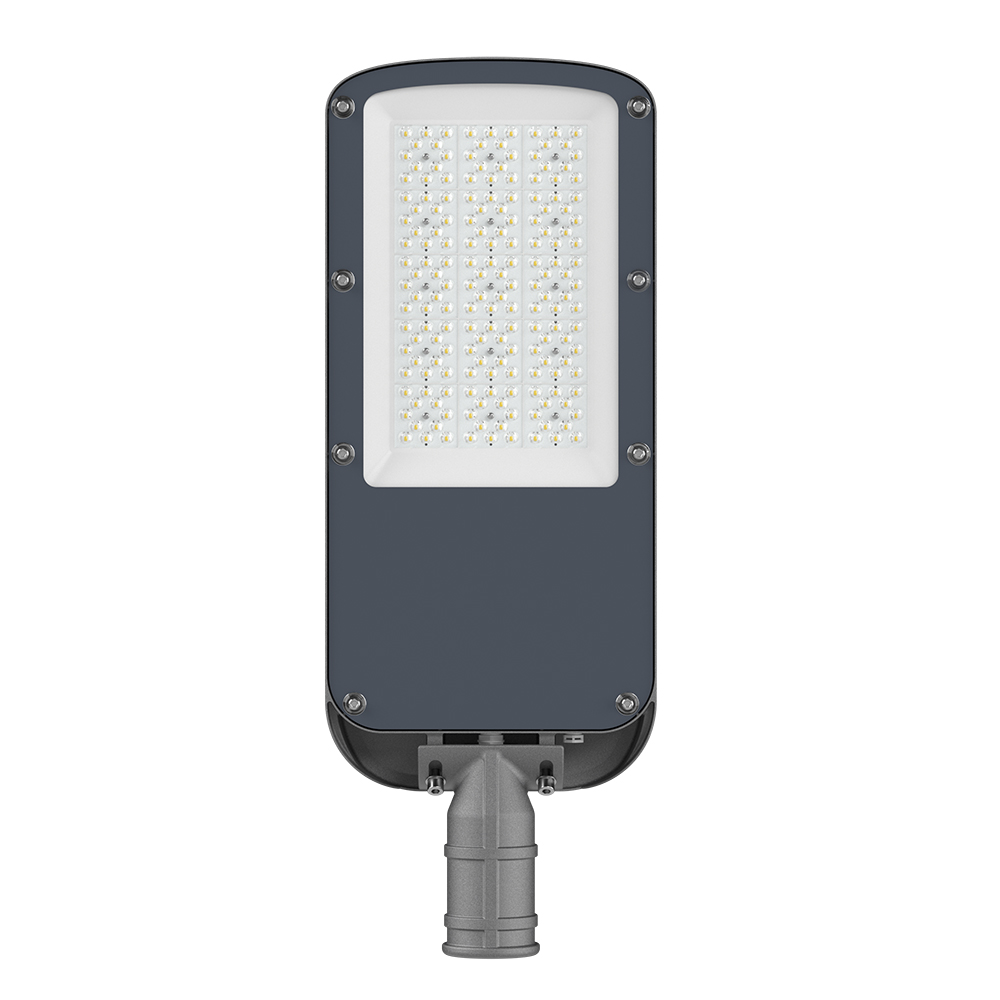

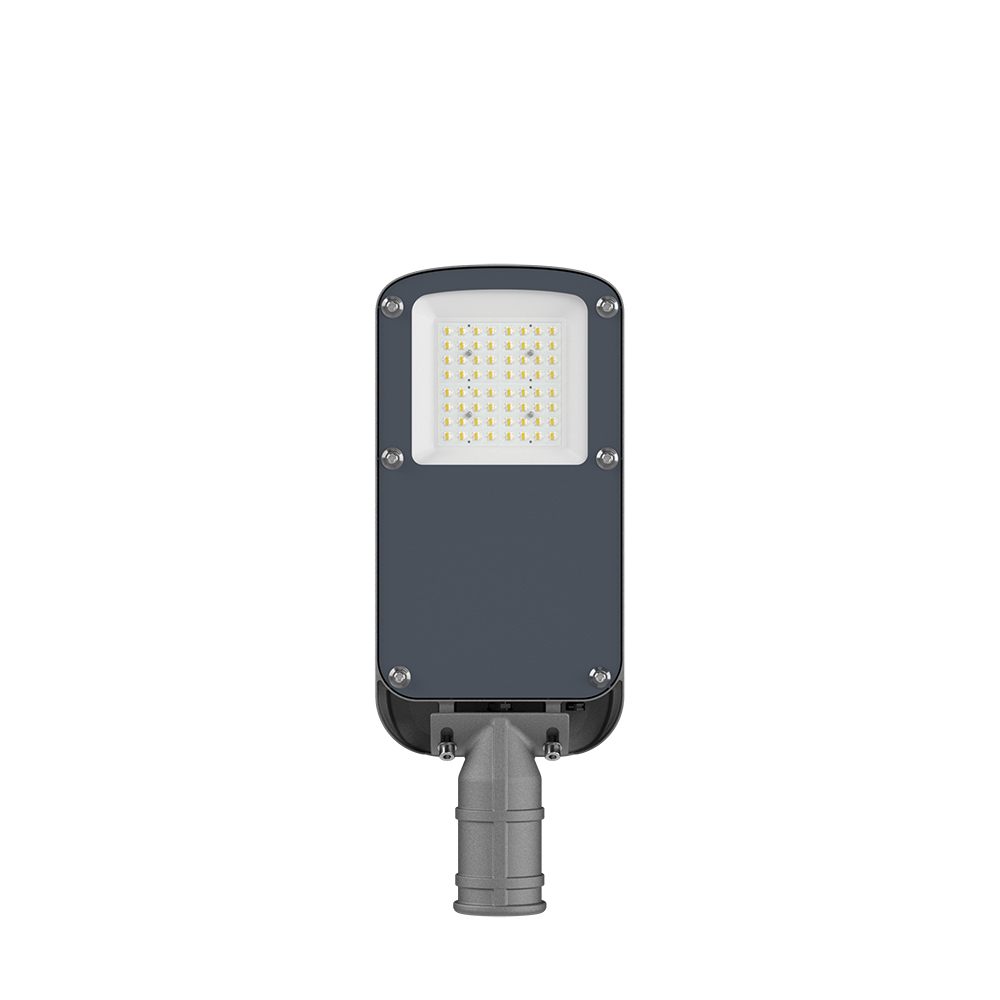

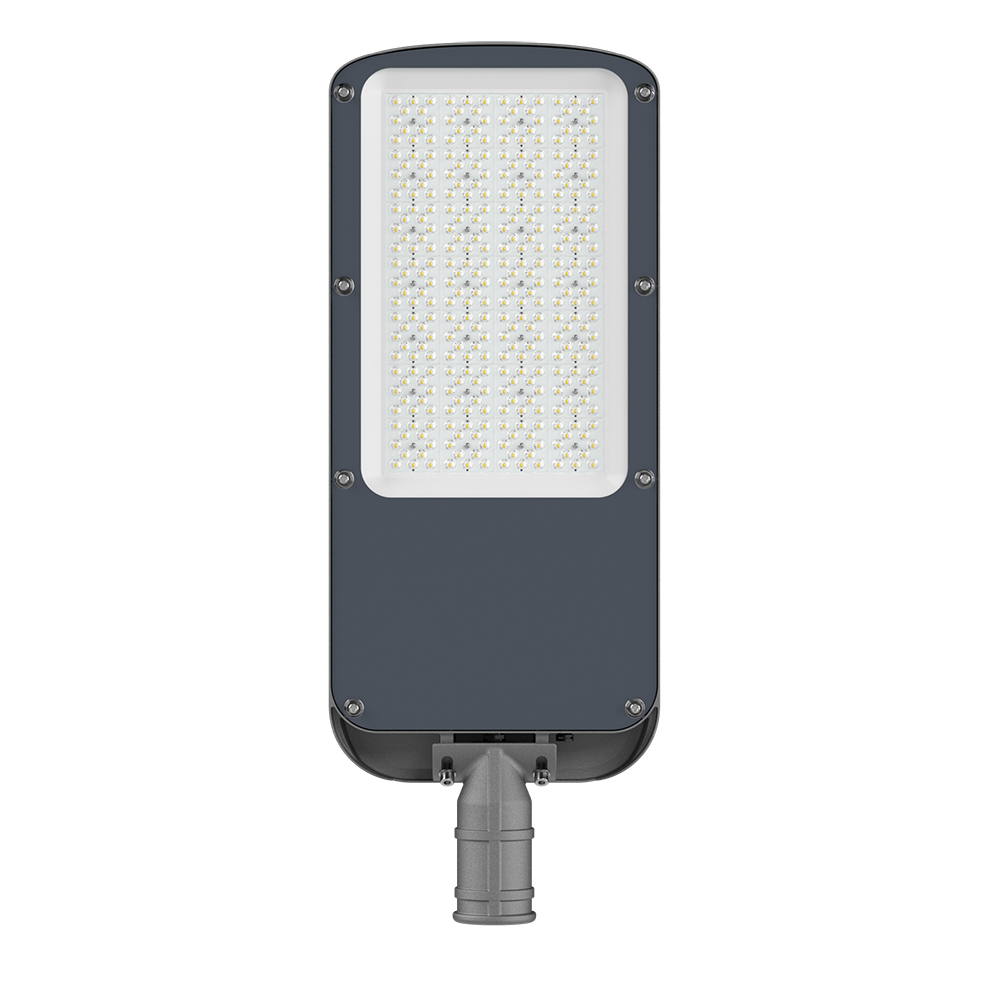

SKX-ST-YZ-TX25 Series 50W | 100W | 150W | 200W LED Street Lights
P/N: SKX-ST-YZ-TX25 Series
Power: 50W/100W /150W / 200W / 300W
Input Voltage: AC 85-265Vac; 50/60Hz
Luminous efficiency: upto 160lm/W
Die-cast Aluminum housing
Lifetime: 50,000 hrs
IP65 IK08 CE

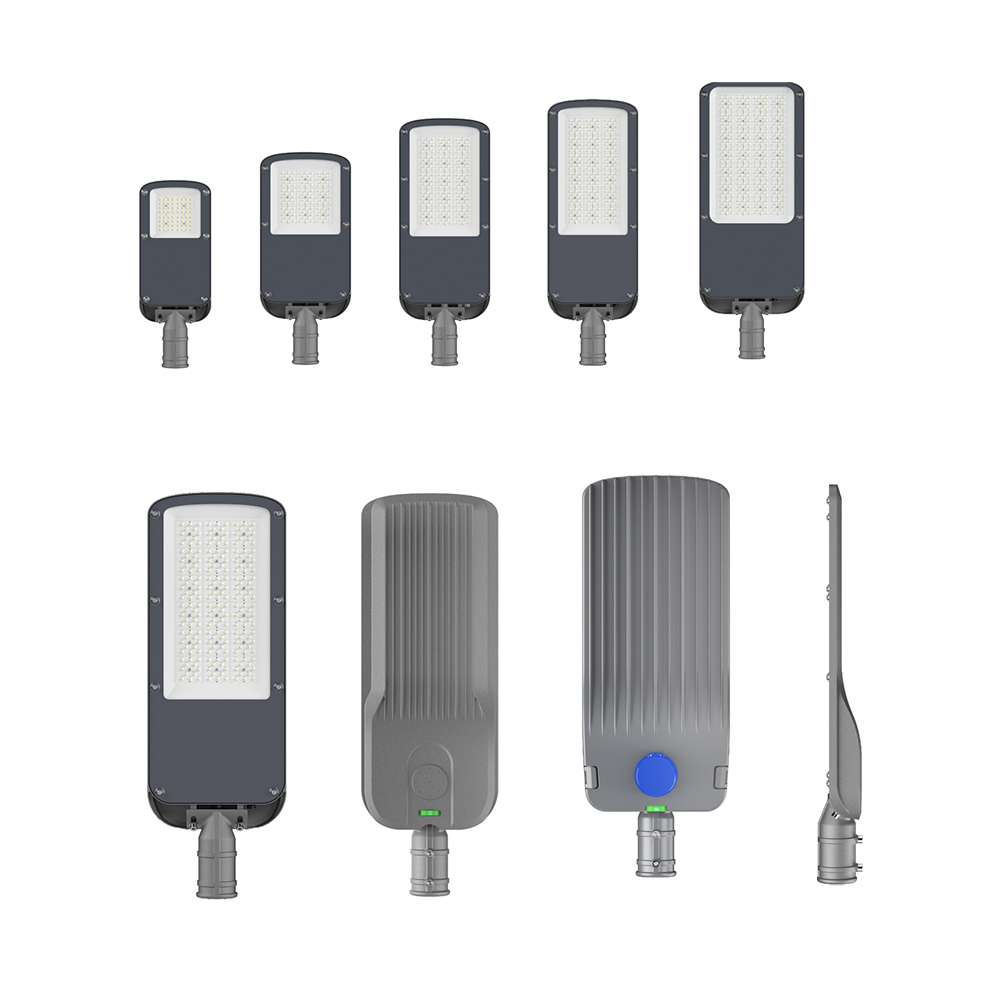

LED Street Light – SKX-ST-YZ-TX25 Series (50W–300W)
Professional-Grade Road Lighting Solutions
The SKX-ST-YZ-TX25 series represents the latest in high-efficiency LED street lighting technology, offering five power options from 50W to 300W. With industry-leading thermal management and optical performance, these luminaires deliver superior illumination for various outdoor applications.
| Parameter | Specifications |
|---|---|
| Model Range | 50W/100W/150W/200W/300W |
| Input Voltage | AC85-265V, 50/60Hz |
| Power Factor | >0.95 |
| System Efficacy | Up to 160 lm/W |
| LED Options | 3030 SMD (All models)/5050 SMD (50W-150W) |
| Housing Material | ADC12 Die-cast Aluminum |
| Lens Material | Tempered Glass (5mm) |
| Protection Rating | IP65 |
| Impact Rating | IK08 |
| CCT Options | 2700K-6500K (Customizable) |
| CRI | >70 (Standard), >80 (Optional) |
| Warranty | 5 Years |
| Model | Fixture Dimensions (L×W×H) | Package Dimensions (cm) | Weight (kg) |
|---|---|---|---|
| TX25-50W | 525×330×83.5mm | 59×21.5×10 | 5.0 |
| TX25-100W | 540×330×83.5mm | 63×27×10 | 6.2 |
| TX25-150W | 579×330×83.5mm | 73×27×10 | 7.5 |
| TX25-200W | 600×330×83.5mm | 78×27×10 | 8.8 |
| TX25-300W | 760×330×83.5mm | 83×32×10 | 10.5 |
| Power | 3030 SMD | 5050 SMD |
|---|---|---|
| 50W | 104pcs (13B5C/8B8C) | 60pcs (3B5C/12B2C) |
| 100W | 176pcs (22B5C/14B8C) | 112pcs (7B8C/27B2C) |
| 150W | 288pcs (36B5C/23B8C) | 180pcs (11B8C/45B2C) |
| 200W | 344pcs (43B5C/27B8C) | N/A |
| 300W | 336pcs (42B8C) | N/A |
Standard Beam Angle: 70°×140°
Light Distribution: Type II, III, V available
Optical Lens: Darkoo anti-glare PC lens
Uniformity: >0.7
Glare Control: UGR<19
Thermal Conductivity: 96W/M.K
Junction Temperature: <65°C at 45°C ambient
Heat Dissipation: Cold-Hot Zone separation design
Thermal Interface Material: High-performance thermal grease
| Model | CTN Qty | 20'GP | 40'HQ | Pallet Loading |
|---|---|---|---|---|
| TX25-50W | 1 | 2368 | 5751 | 24 |
| TX25-100W | 1 | 1646 | 3998 | 20 |
| TX25-150W | 1 | 1421 | 3450 | 18 |
| TX25-200W | 1 | 1330 | 3229 | 16 |
| TX25-300W | 1 | 1054 | 2560 | 14 |
Packaging Features:
Double-wall corrugated cartons
EPS foam corner protection
Waterproof plastic inner lining
Barcode tracking system
| Application | Power | Pole Height | Spacing |
|---|---|---|---|
| Pathways/Parking Lots | 50W | 4-6m | 12-15m |
| Residential Streets | 100W | 6-8m | 15-20m |
| Urban Arterials | 150W | 7-9m | 18-25m |
| Main Roads | 200W | 8-10m | 20-30m |
| Highways/Expressways | 300W | 10-12m | 25-35m |

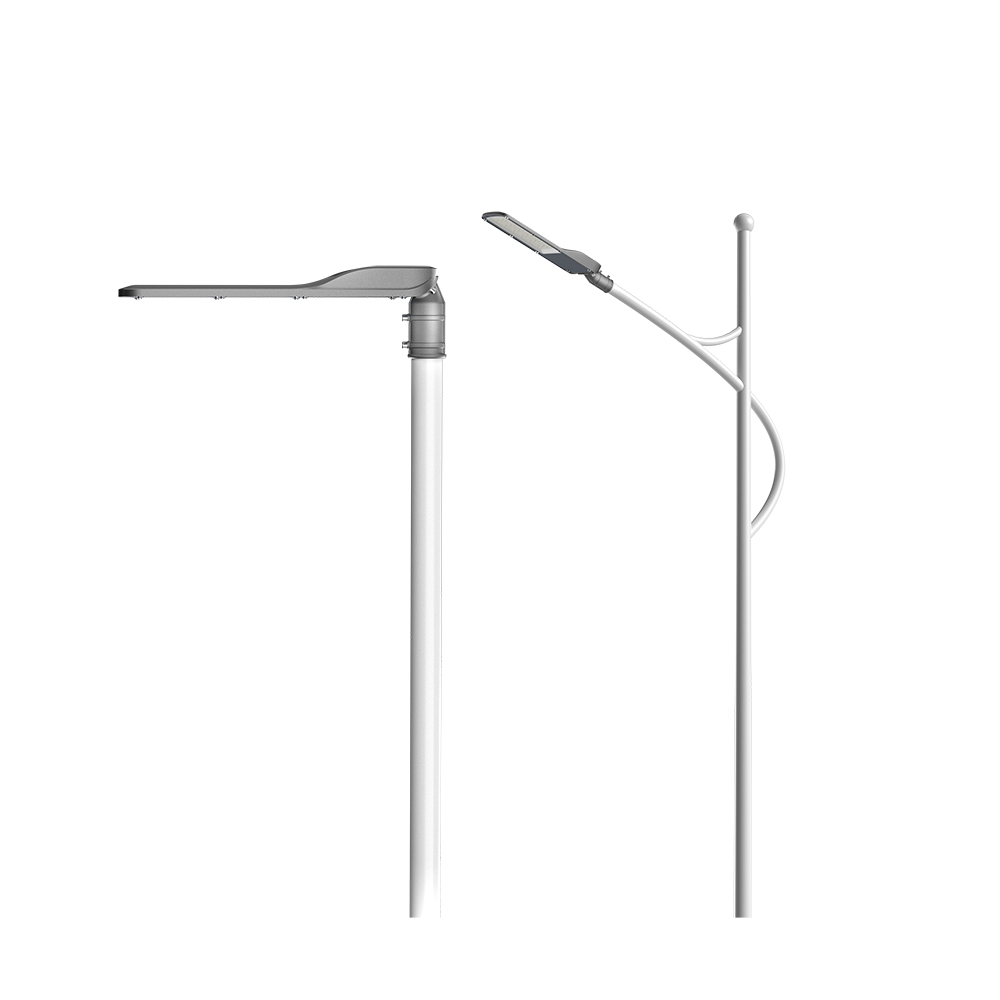

Vertical Installation: Standard pole mounting
Horizontal Installation: Wall or bracket mounting

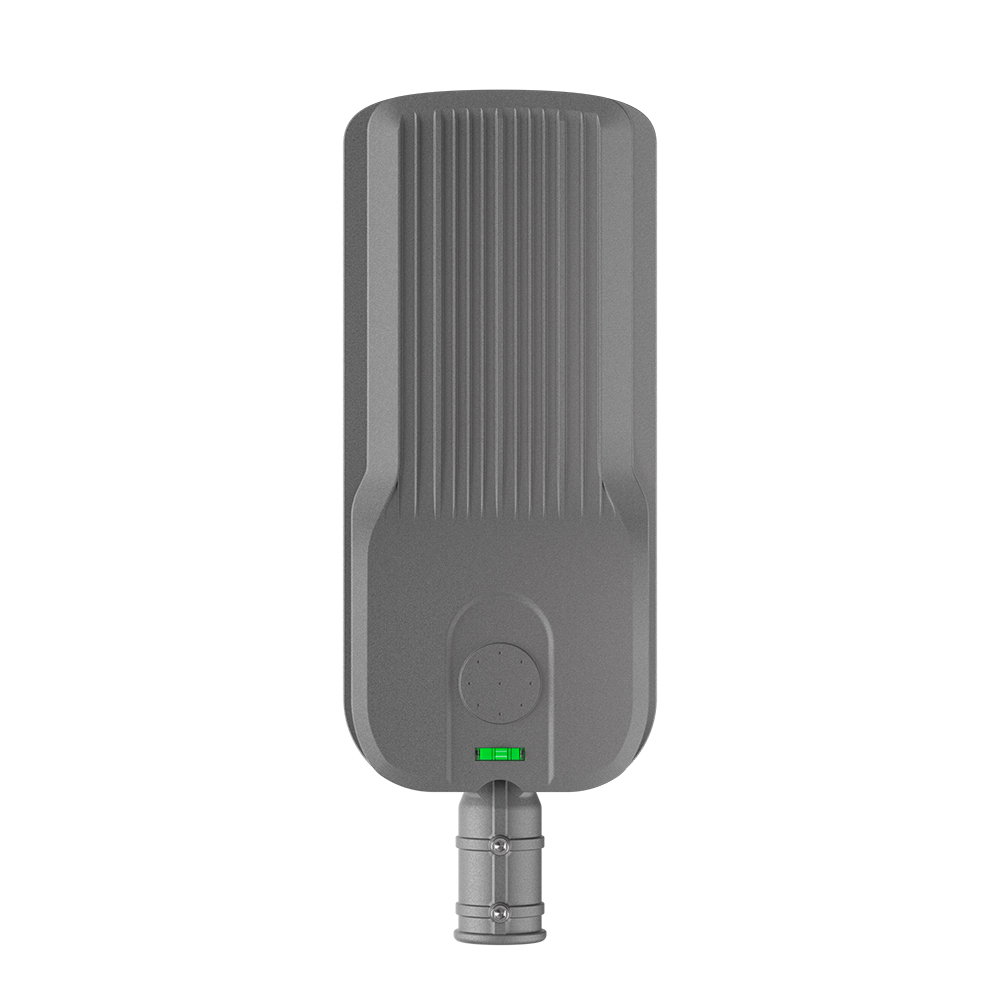

Adjustment Range: 90°-180° with built-in spirit level
Standard: Photocell sensor (Dusk-to-Dawn)
Optional:
0-10V/DALI dimming
Motion sensors
IoT connectivity (4G/LoRa/NB-IoT)
Central management system
Safety: CE, ENEC, IEC 60598-1
EMC: EN 55015, EN 61000-3-2
Environmental: RoHS, REACH
Performance: LM-80, TM-21, EN 13201
Basic Model Number: SKX-ST-YZ-TX25-XXX
(XXX = 050/100/150/200/300)
Options:
-CCT: Specify color temperature (2700K-6500K)
-CRI: CRI>80 upgrade
-D: Dimming version
-P: Photocell version
Free DIALux lighting design
.ies files available
24-month spare parts guarantee
On-site technical support (Optional)
