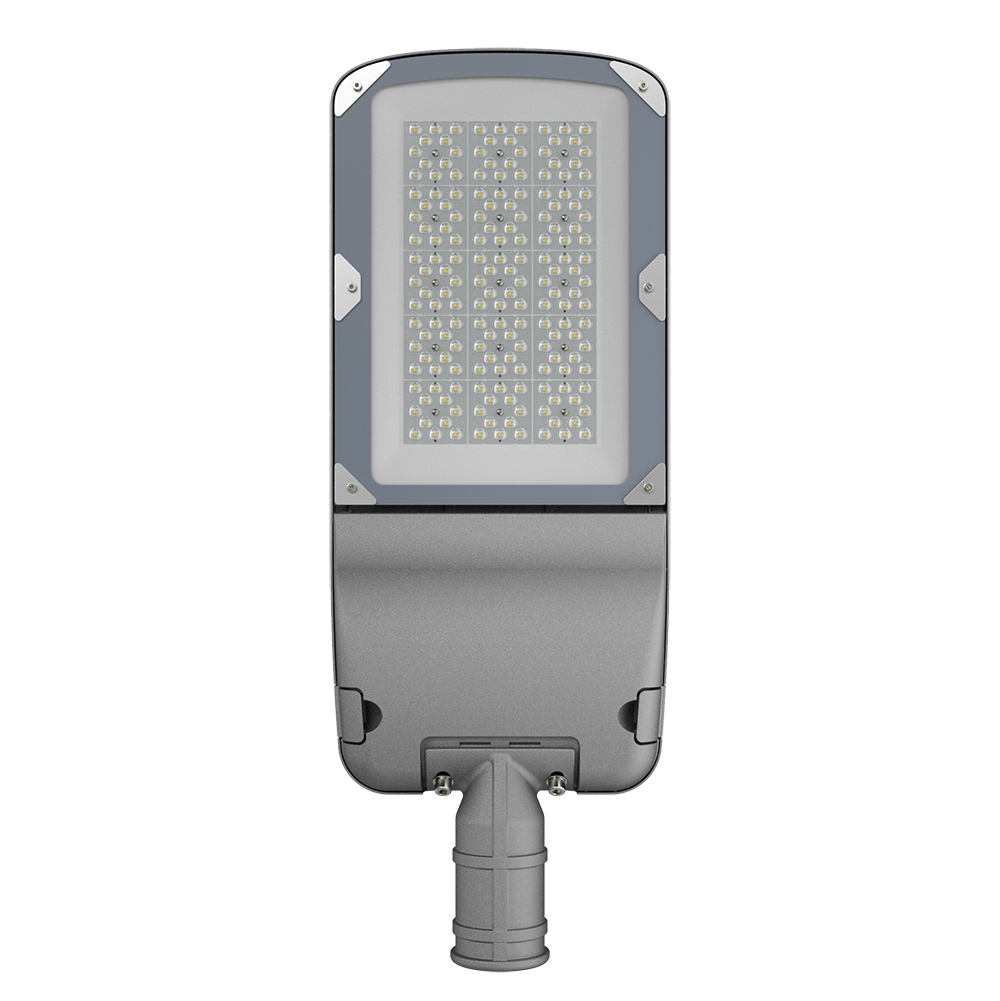

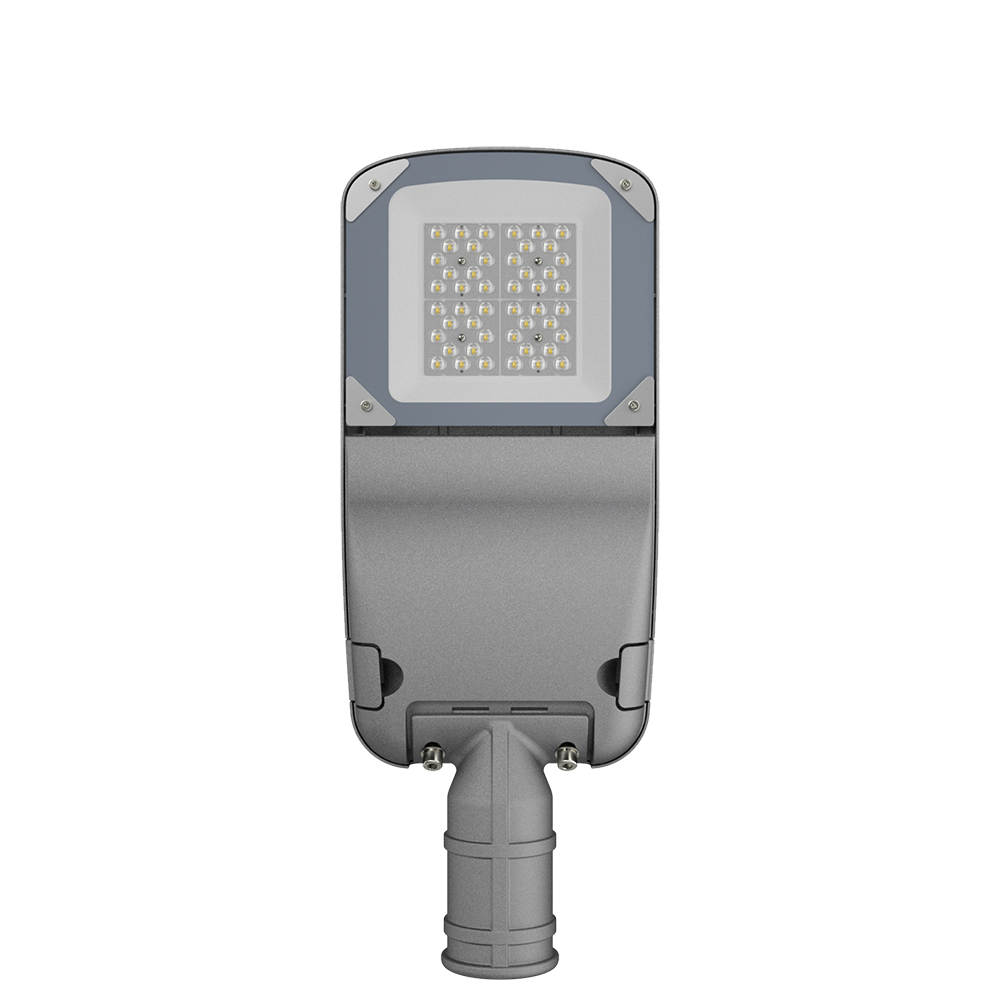

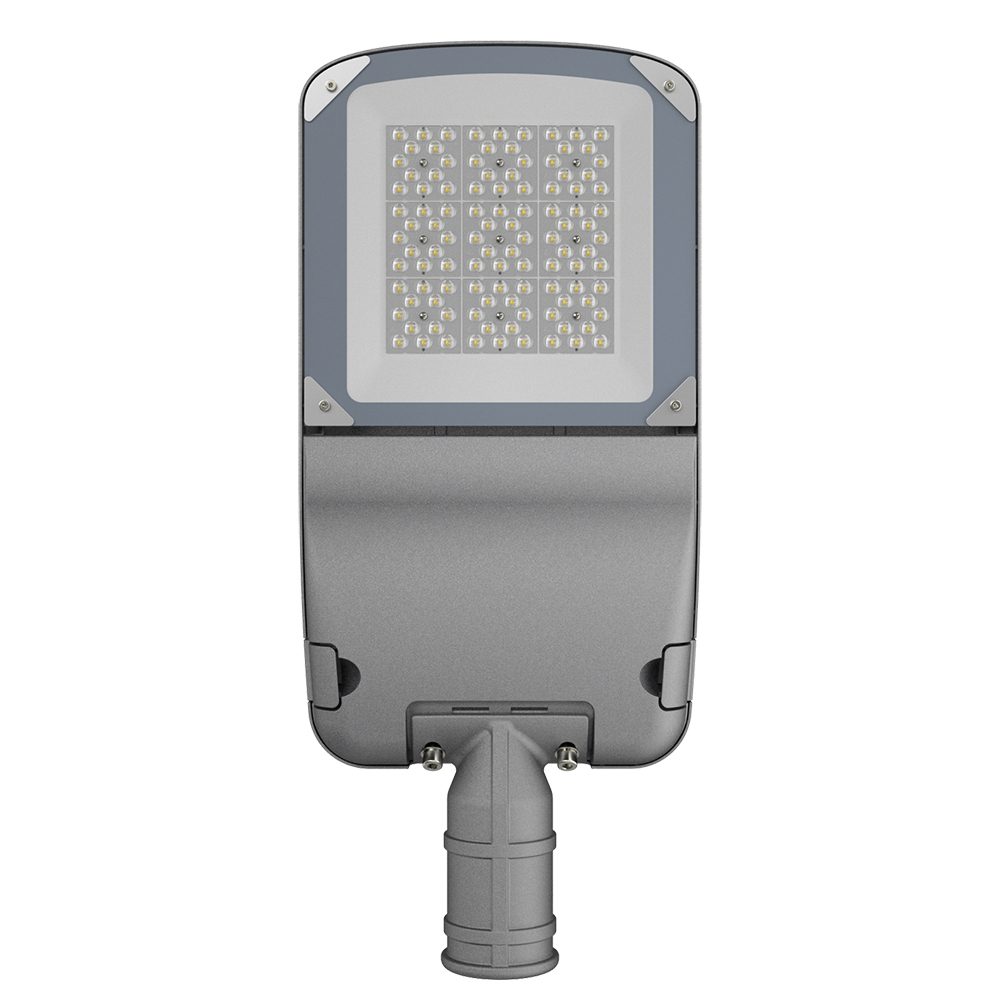

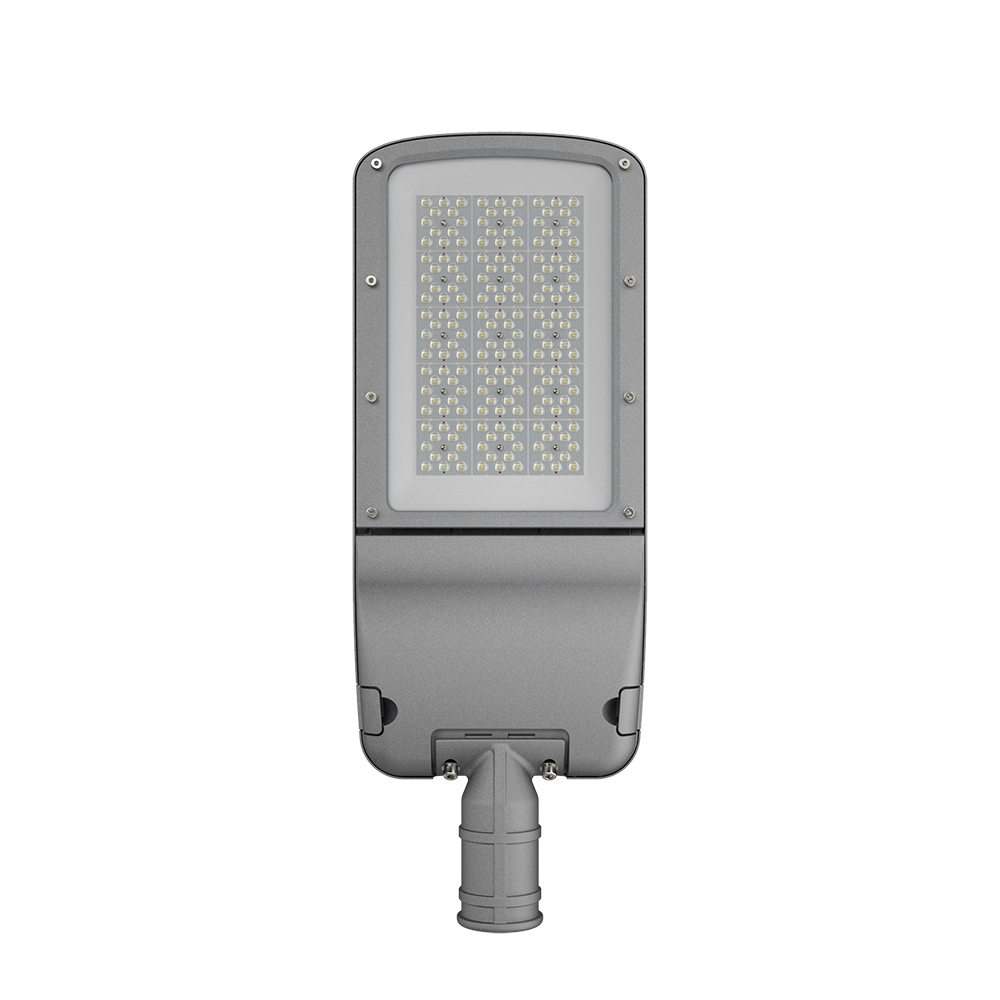

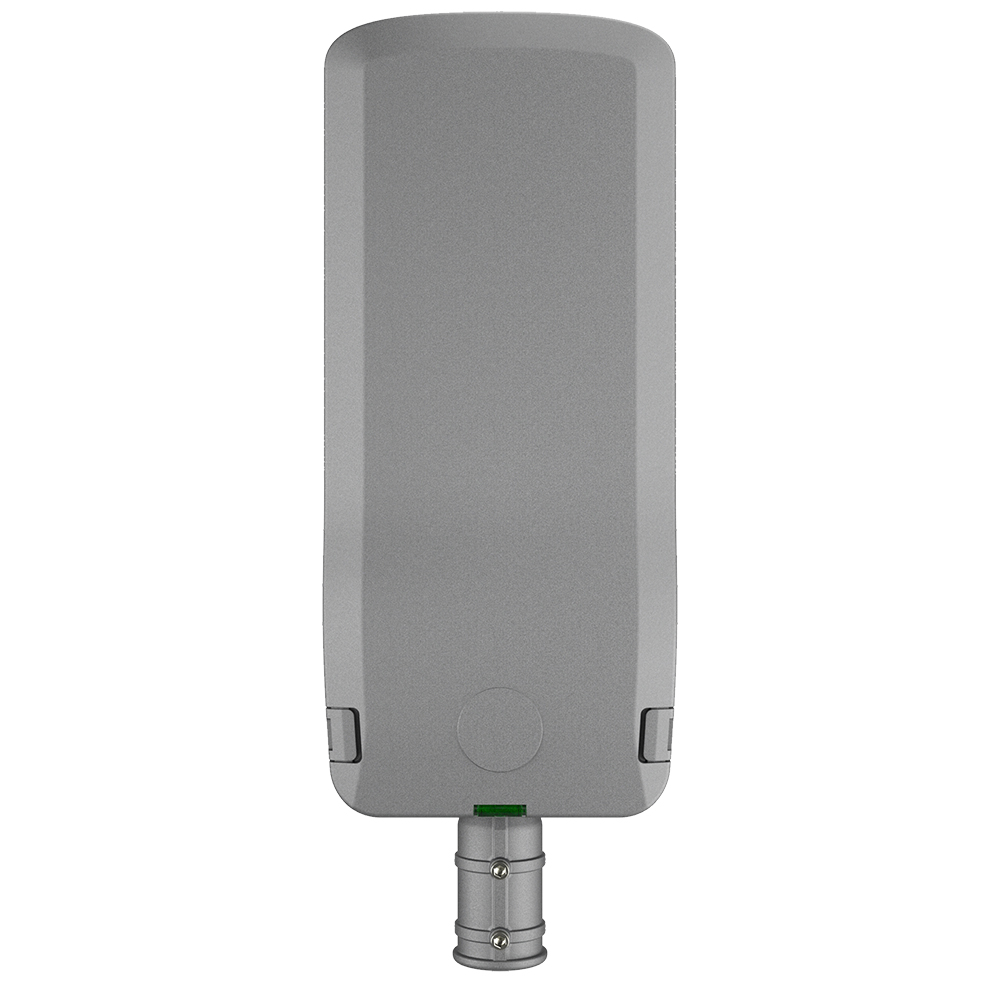

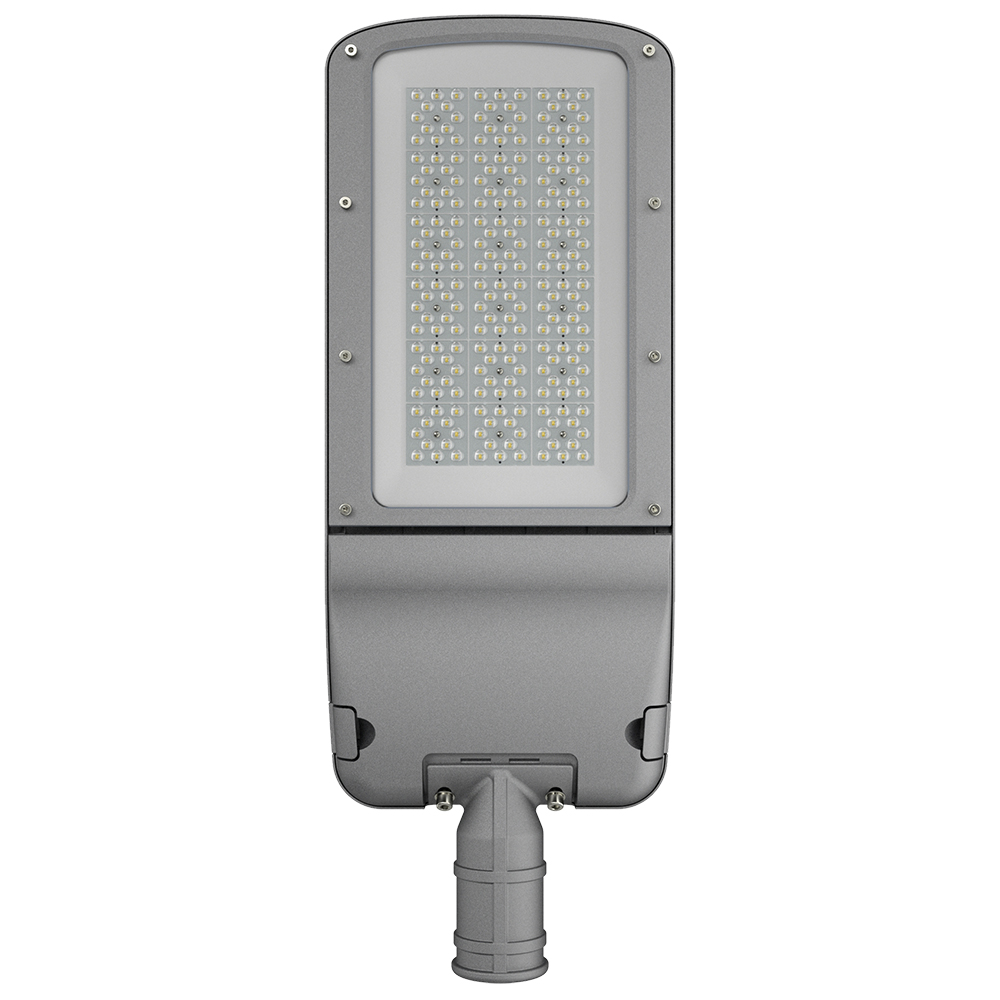

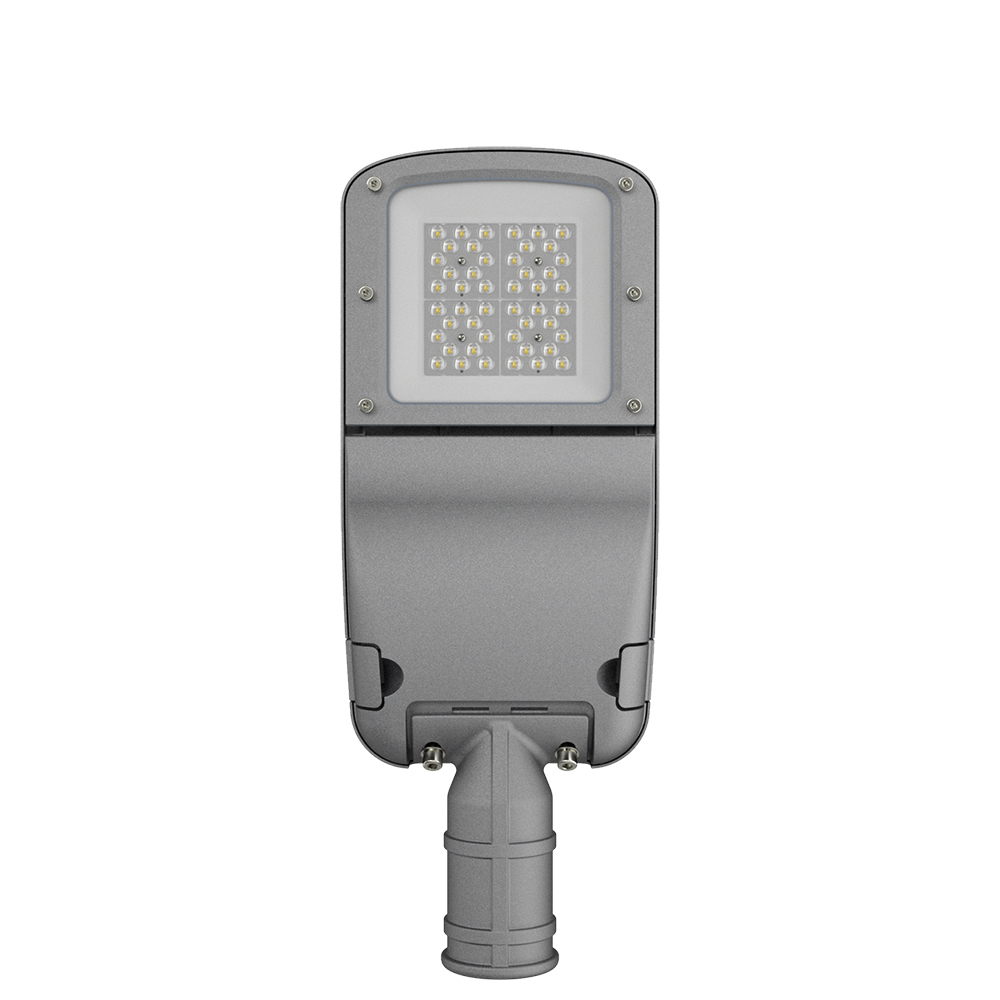

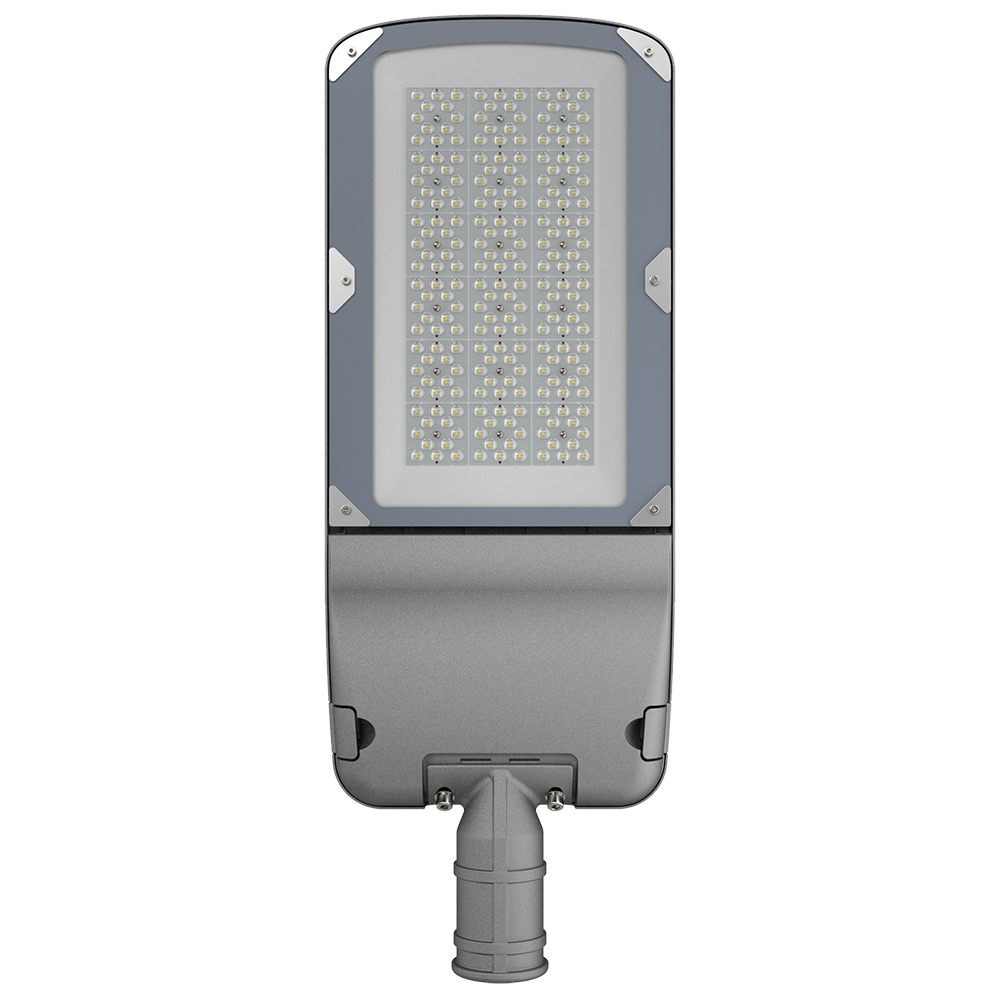

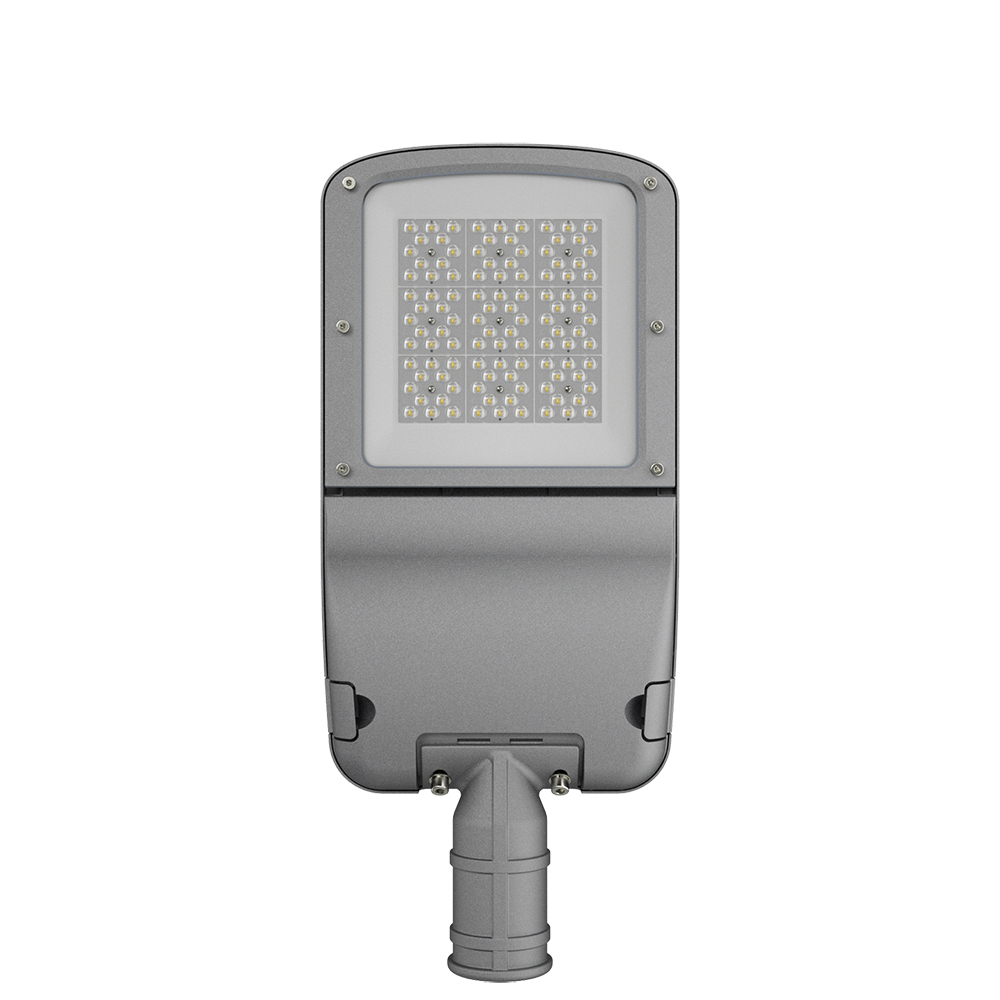

SKX-LD-YZ22 Series 50W | 100W | 150W | 200W LED Street Lights

P/N: SKX-LD-YZ22 Series

Power: 50W /100W / 150W / 200W

Input Voltage: AC 90-305Vac; 50/60Hz

Luminous efficiency: upto 150lm/W

Die-cast Aluminum housing

Lifetime: 50,000 hrs

IP65 CE

SKX-LD-YZ22 Series LED Street Light (50-200W)
Compact & Efficient Urban Lighting Solution

Technical Specifications

1. Electrical & Optical Performance

Parameter	50W	100W	150W	200W
Input Voltage	AC90-305V, 50/60Hz
Power Factor	>0.95
Luminous Efficacy	110-150 lm/W
LED Type	3030/5050 SMD (Lumileds/CREE)
LED Count	60pcs (3030)	120pcs (3030)	180pcs (3030)	240pcs (3030)
CCT Options	2700K-6500K (Customizable)
CRI	>70 (Standard), >80 (Optional)
Beam Angle	70°×140° (Standard)

2. Mechanical Design

Feature	Specification
Housing Material	ADC12 Die-cast Aluminum
Lens Material	5mm Tempered Glass + PC Reflector
Thermal Conductivity	96W/M.K
Protection Rating	IP65 (Full silicone sealing)
Impact Resistance	IK08

3. Dimensions & Weight

Model	Fixture (L×W×H)	Package (L×W×H)	Weight
50W	320×320×135mm	570×270×155mm	4.8kg
100W	480×320×135mm	640×320×155mm	6.2kg
150W	580×320×135mm	740×320×155mm	7.5kg
200W	640×320×135mm	790×320×155mm	8.9kg

4. Thermal Performance

Junction Temperature: <65°C at 45°C ambient
Hot-Cold Zone Separation: Extends LED lifespan to 50,000+ hours
Heat Dissipation: Optimized fin structure (20% larger surface area)

Key Features

✔ Space-Saving Design

Uniform 320mm width across all models for consistent aesthetics
Slim profile (135mm thickness) for discreet urban installation

✔ Advanced Optics

Nano-coated PC reflector for 92% light output efficiency
Optional Type II, III or V light distributions

✔ Durability Optimized

Salt spray tested coating (1,000h)
-40°C to +60°C operating range

✔ Smart-Ready

Pre-wired for photocell/dimming controls
Optional IoT nodes (4G/LoRa)

Packaging & Logistics

Model	CTN Qty	20'GP Capacity	40'HQ Capacity	Pallet Config
50W	1	1,500	3,600	28pcs/pallet
200W	1	1,100	2,700	20pcs/pallet

Packaging Features:

Reinforced triple-wall cartons
Custom foam inserts for vibration protection
Weather-resistant plastic wrapping

Certifications & Warranty

Safety: CE, ENEC, IEC 60598-1
EMC: EN 55015, EN 61000-3-2
Environmental: RoHS, REACH
Warranty: 5 years (LED modules)

Recommended Applications

Value-Added Services
Free lighting layout design (Provide site plans)
Custom branding available (Housing color/logo)
Extended warranty up to 7 years

Note: 5050 SMD option reduces power by 15%. All dimensions in millimeters.
