SKX-LD-DY20 Series 100W | 150W LED Street Lights

P/N: SKX-LD-DY20 Series

Power: 100W / 150W

Input Voltage: AC 90-305Vac; 50/60Hz

Luminous efficiency: upto 150lm/W

Die-cast Aluminum housing

Lifetime: 50,000 hrs

IP65 CE

SKX-LD-DY20 Series LED Street Light (100-150W)
High-Efficiency Medium-Power Roadway Lighting

Technical Specifications

1. Electrical & Optical Performance

Parameter	100W Model	150W Model
Input Voltage	AC90-305V, 50/60Hz
Power Factor	>0.95
Luminous Efficacy	110-160 lm/W

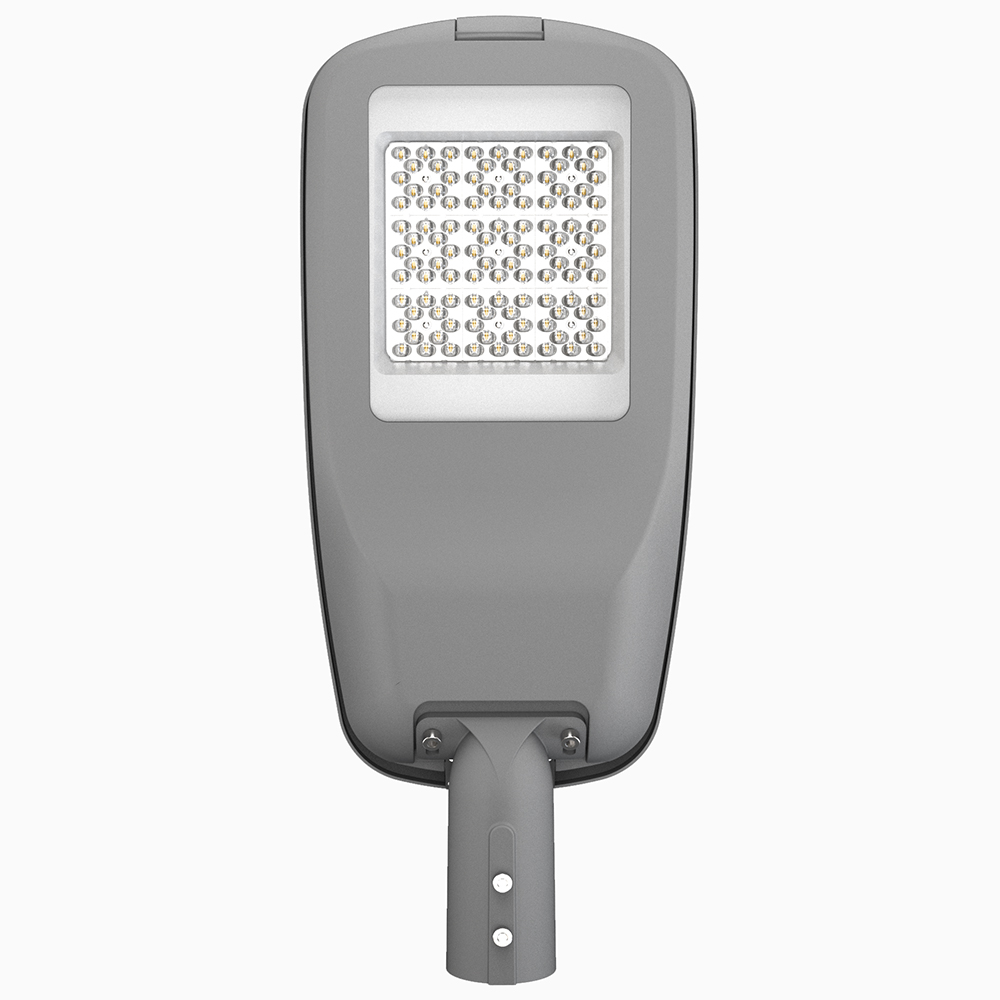

LED Type	3030/5050 SMD (Lumileds/CREE)
LED Configuration	100W: 120pcs (3030) / 60pcs (5050)	150W: 180pcs (3030) / 90pcs (5050)
CCT Options	2700K-6500K (Customizable)
CRI	>70 (Standard)
Beam Angle	70°×140° (Standard)

2. Mechanical Design

Feature	Specification
Housing Material	ADC12 Die-cast Aluminum
Lens Material	5mm Tempered Glass + PC Reflector
Thermal Conductivity	96W/M.K
Protection Rating	IP65 (Full silicone sealing)
Impact Resistance	IK08

3. Dimensions & Weight

Model	Fixture (L×W×H)	Package (L×W×H)	Weight
100W	583×260×960mm	680×290×170mm	7.5kg
150W	673×275×960mm	740×330×200mm	9.2kg

4. Thermal Performance

Junction Temperature: <68°C at 45°C ambient
Hot-Cold Zone Separation: Extends LED lifespan to 50,000+ hours
Heat Dissipation: Optimized aluminum fins

Key Features

✔ Precision Optics

Anti-glare PC reflector for uniform light distribution
Optional Type II or III beam patterns

✔ Durable Construction

Corrosion-resistant powder coating (RAL9005)
Streamlined design withstands 50m/s winds

✔ Smart Control Ready

Compatible with 0-10V/DALI dimming (Optional)
Photocell sensor pre-wired

✔ Easy Installation

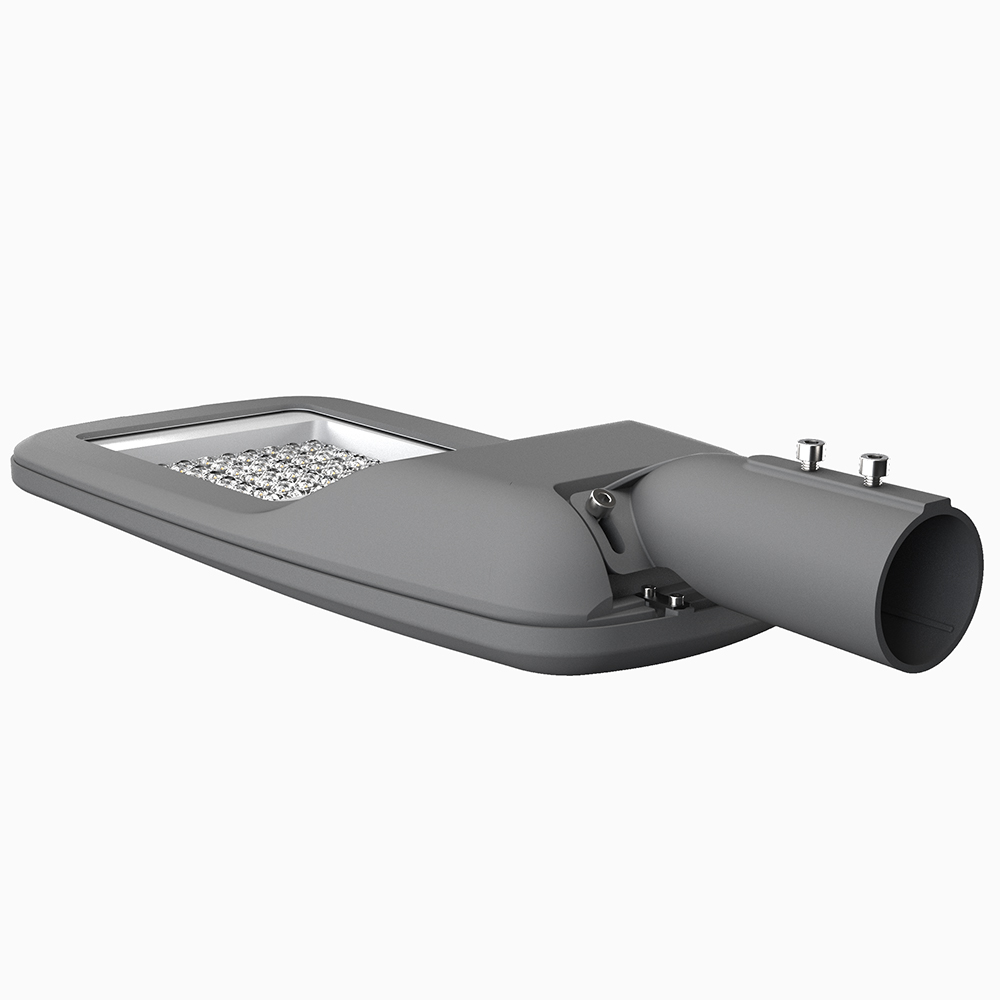

Adjustable mounting bracket (±15°)

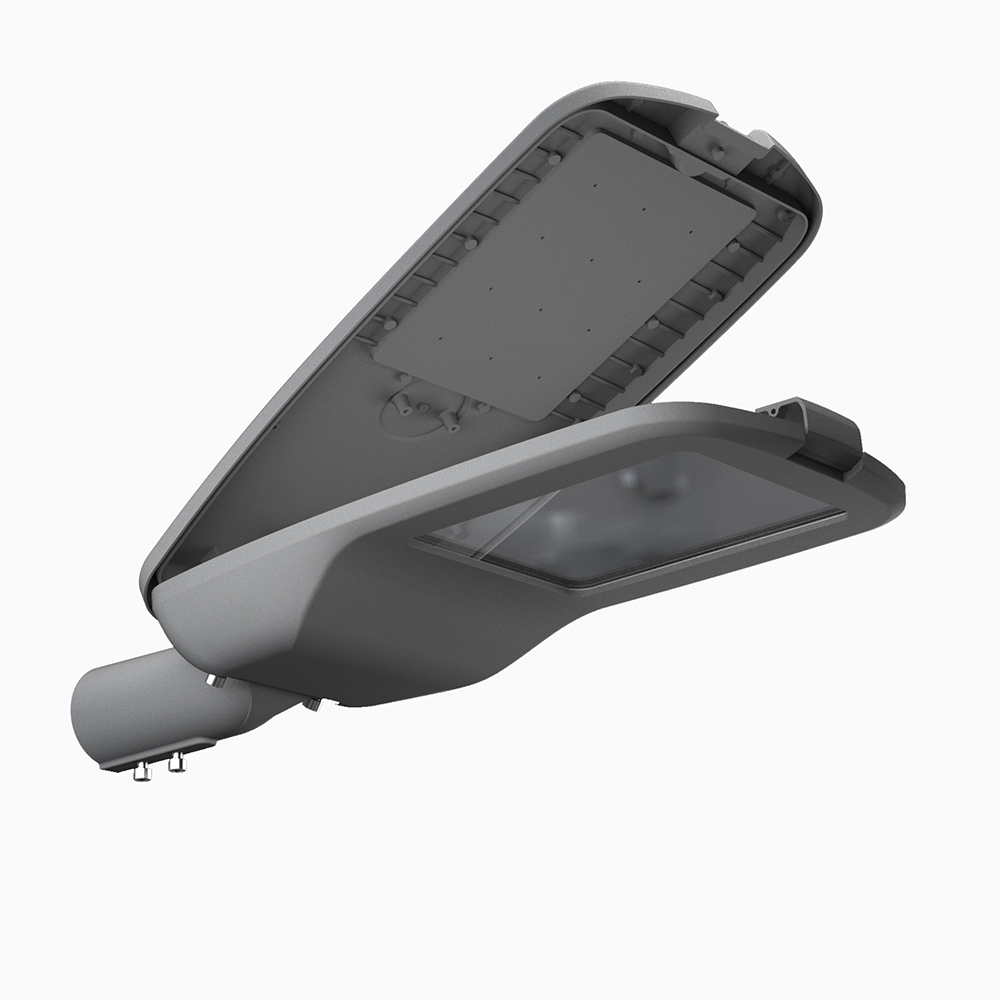

Tool-less access for maintenance

Packaging & Logistics

Model	CTN Qty	20'GP Capacity	40'HQ Capacity
100W	1	1,200	2,900
150W	1	1,000	2,400

Packaging Features:

Reinforced double-wall cartons
EPS corner protectors
Moisture-proof inner lining

Certifications & Warranty

Safety: CE, RoHS, IEC 60598-1
EMC: EN 55015, EN 61000-3-2
Warranty: 5 years standard

Recommended Applications

Urban Streets: 100W @ 6-8m poles
Parking Lots: 150W @ 7-9m
Campus Areas: 100W-150W @ 5-7m
