SKX-LD-FF Series 60-100W | 120-180W | 200-300W LED Street Lights

P/N: SKX-LD-FF Series

Power: 60-100W /120-180W / 200-300W

Input Voltage: AC 85-265Vac; 50/60Hz

Luminous efficiency: upto 150lm/W

Die-cast Aluminum housing

Lifetime: 50,000 hrs

IP65 IK08 CE

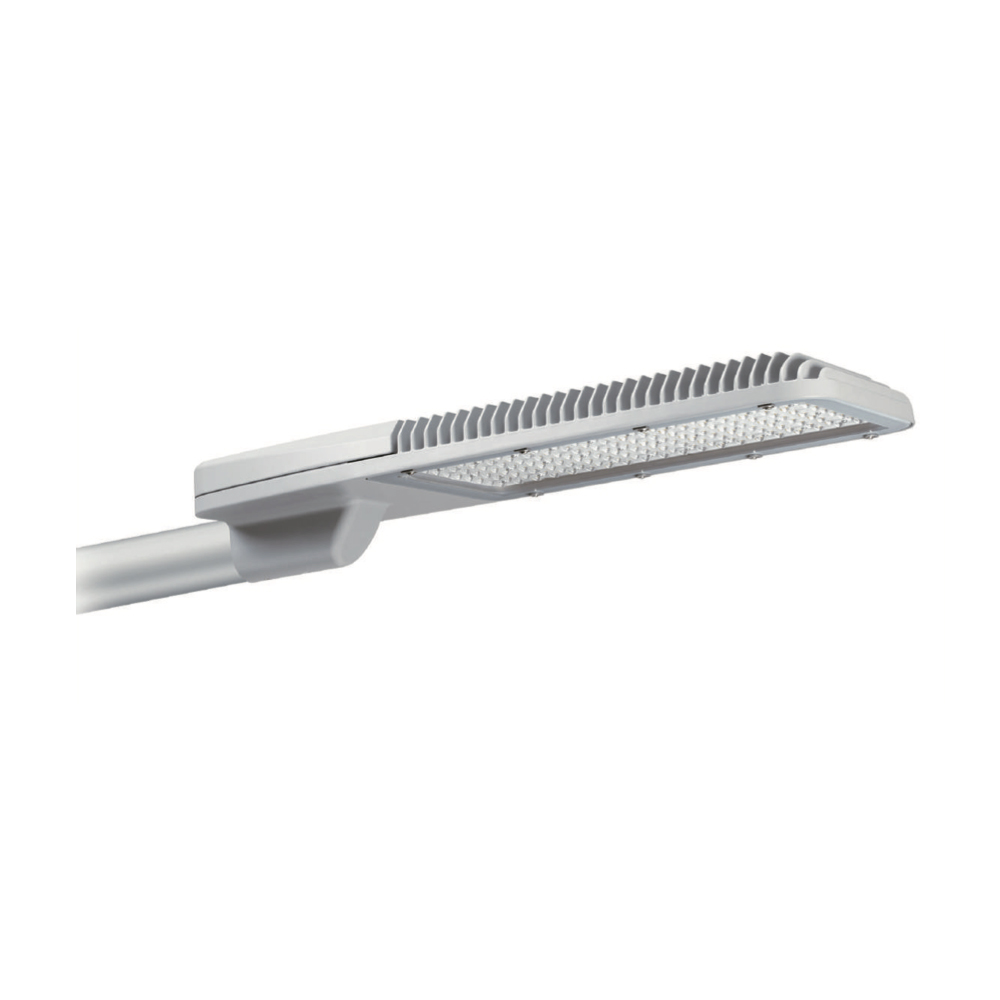

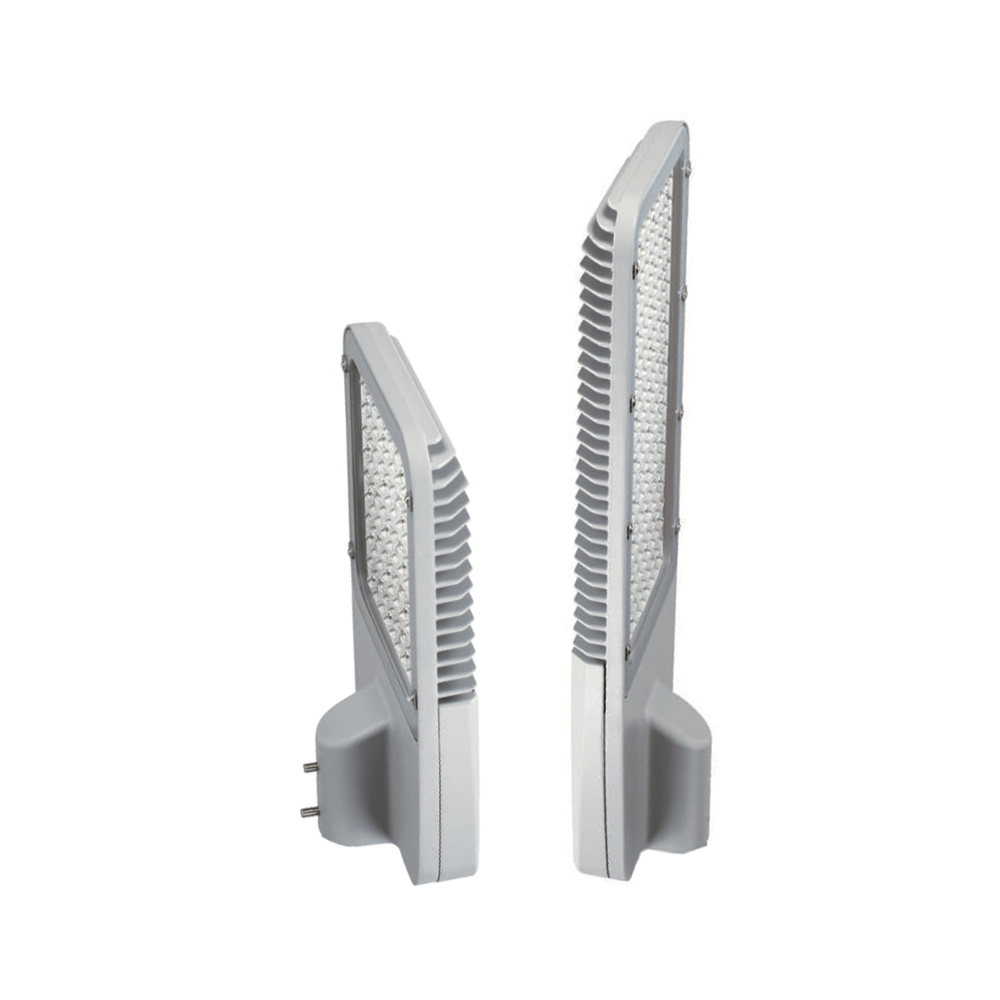

SKX-LD-FF Series LED Street Light (60-300W)
High-Performance Roadway Lighting Solution

Product Overview

The SKX-LD-FF series delivers superior illumination for urban roads, highways, and public spaces with its advanced thermal management and customizable optics. Engineered for durability and efficiency, these luminaires are ideal for demanding outdoor environments.

Technical Specifications

1. Electrical & Optical Performance

Parameter	60-100W	120-180W	200-300W
Input Voltage	AC90-305V, 50/60Hz
Power Factor	>0.95
Luminous Efficacy	110-150 lm/W
LED Type	3030/5050 SMD (Lumileds/CREE)
LED Configuration	60W: 72pcs (3030) / 36pcs (5050)	180W: 216pcs (3030) / 108pcs (5050)	300W: 360pcs (3030)
CCT Options	2700K-6500K (Customizable)
CRI	>70 (Standard), >80 (Optional)
Beam Angle	70°×140° (Standard), Customizable

2. Mechanical Design

Feature	Specification
Housing Material	ADC12 Die-cast Aluminum
Lens Material	5mm Tempered Glass + Anti-UV PC Reflector
Thermal Conductivity	96W/M.K
Protection Rating	IP65 (Full silicone sealing)
Impact Resistance	IK08

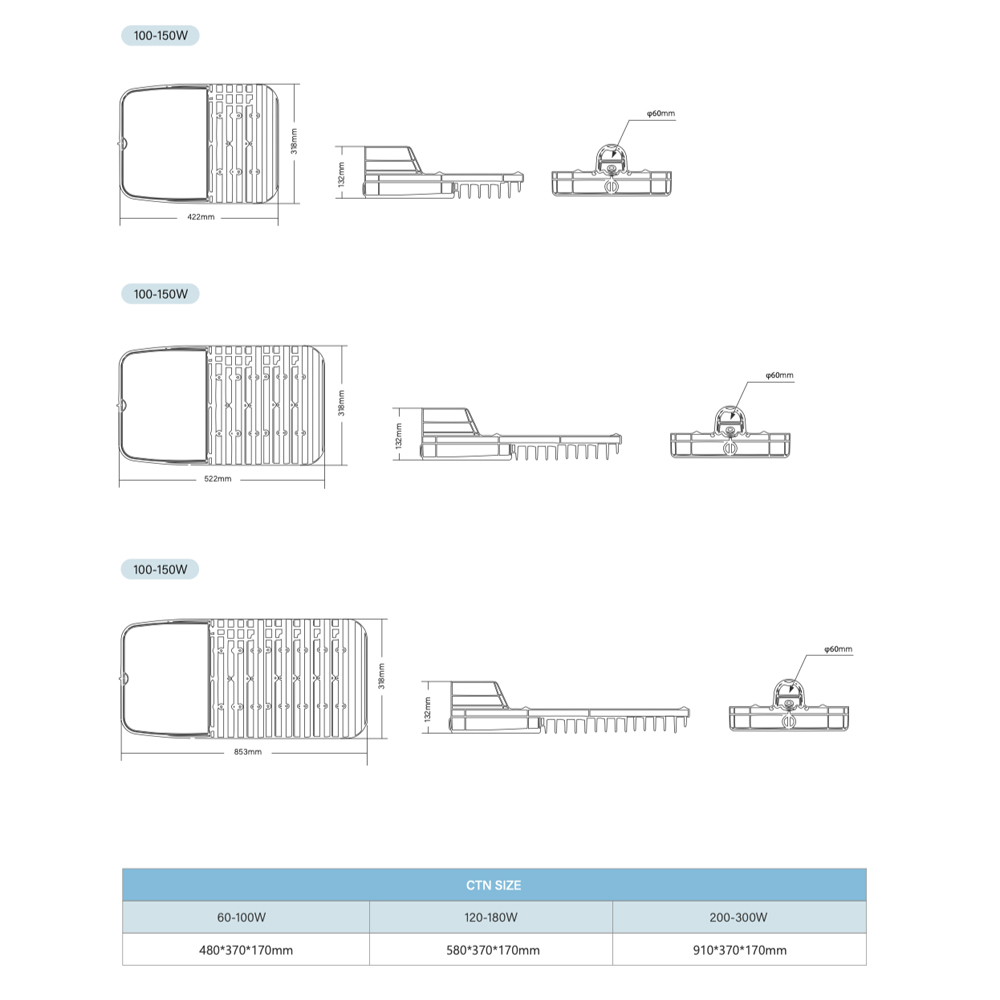

3. Dimensions & Weight

Model	Fixture (L×W×H)	Package (L×W×H)	Weight
60-100W	480×370×170mm	580×370×170mm	6.2kg
120-180W	580×370×170mm	680×370×170mm	8.5kg
200-300W	910×370×170mm	910×370×170mm	12.0kg

4. Thermal Performance

Junction Temperature: <65°C at 45°C ambient
Hot-Cold Zone Separation: Extends LED lifespan to 50,000+ hours
Heat Dissipation: Optimized fin structure

Key Features

✔ Precision Optics

Darkoo anti-glare lens for uniform light distribution (UGR<19)
Optional Type II, III, or V beam patterns

✔ Smart-Ready Design

Compatible with 0-10V/DALI dimming
Optional photocell/motion sensors

✔ Rugged Construction

Corrosion-resistant powder coating
Streamlined windproof design (withstands 60m/s winds)

✔ Easy Maintenance

Tool-free access to LED modules and drivers
Field-replaceable components

Packaging & Logistics

Model	CTN Qty	20'GP	40'HQ	Pallet Loading
60-100W	1	2368	5751	24
200-300W	1	1054	2560	14

Packaging Features:

Double-layer corrugated boxes with foam protection
Waterproof inner lining
QR code tracking

Certifications & Warranty

Safety: CE, RoHS, IEC 60598-1
Reliability: LM-80 & TM-21 verified
Warranty: 5 years (extendable to 7 years)

Recommended Applications

Highways: 200-300W @ 10-12m poles
Urban Roads: 120-180W @ 7-10m
Residential Areas: 60-100W @ 4-7m
