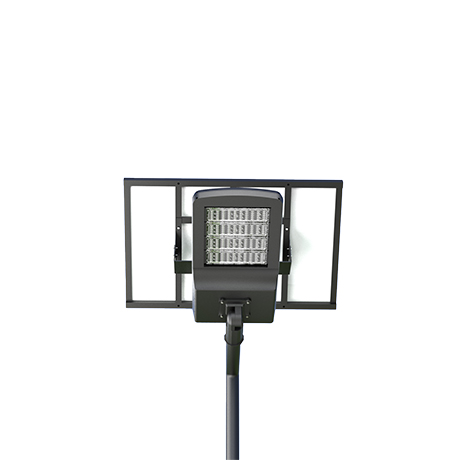

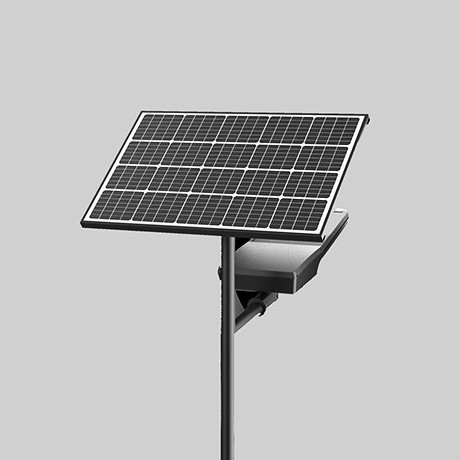

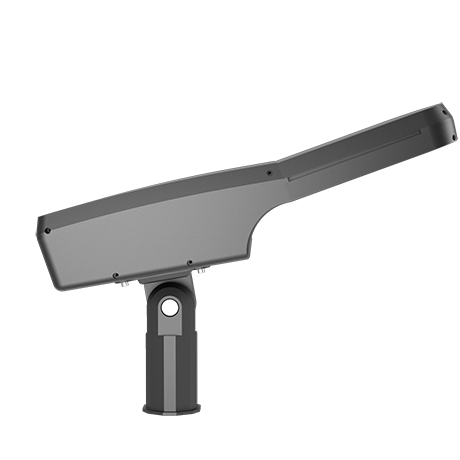

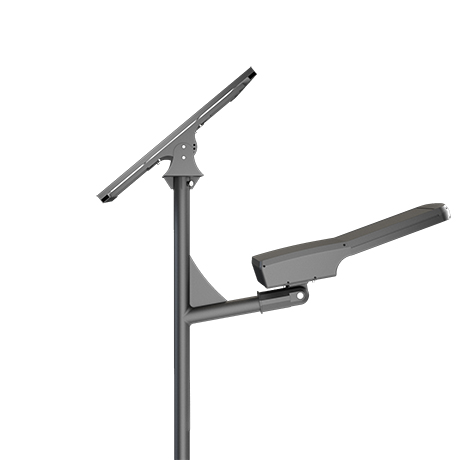

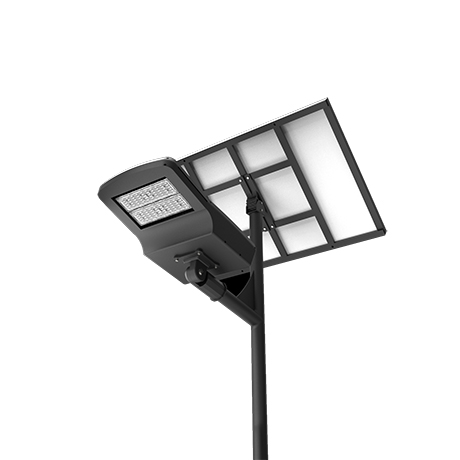

SKX-S-LD22 split type 60-120W die cast aluminum solar street light
P/N: SKX-S-LD Series Solar Street Light
Power: 60W/80W/100W/120W
120W~200W Solar panel
LED SMD 5050
Upto 24000lm
Die-cast aluminum
LiFePO4 battery
MPPT controller
SKX-S-LD22 is split separated solar street light series from 60W to 120W, adopting independent separated monocrystalline solar panel design, separated LiFePO4 battery and built-in high-efficiency MPPT controller. All lamp body made of ADC12 die cast aluminum with IP65 protection, high brightness 5050 SMD LED up to 200lm/W, widely used for rural highway, community road, parking lot and public green space outdoor lighting.
| Model No | Rated Power | Solar Panel | LiFePO4 Spec | Total Lumen | Suggest Pole Height |
|---|---|---|---|---|---|
| SKX-S-LD22-60P | 60W | 120W Mono | 12.8V 42AH | ＞12000LM | 7~8M |
| SKX-S-LD22-80P | 80W | 150W Mono | 12.8V 60AH | ＞16000LM | 8~10M |
| SKX-S-LD22-100P | 100W | 180W Mono | 25.6V 36AH | ＞20000LM | 10~12M |
| SKX-S-LD22-120P | 120W | 200W Mono | 25.6V 42AH | ＞24000LM | 10~12M |
Beam lens Type I/II/III optional; Solar panel adjustable 0~15°; Fit pole diameter:60~76mm; Working temp:-25℃~+65℃; Full 3-year global factory warranty.
Custom CCT, solar panel wattage, battery capacity, lamp housing color and silk-screen brand logo available for bulk project orders.
Q1: Is this split lamp different from all-in-one solar street light?
A: Split type separates panel and battery away from lamp head for flexible installation on uneven pole height.
Q2: How many rainy days backup can original battery support?
A: Standard configuration ensures minimum 3 consecutive rainy full lighting days.
Q3: Available CCT color options?
A:5 fixed choices:3000K/4000K/5000K/5700K/6500K customizable.
Q4: What’s the tilt range of solar panel?
A:0~15 degrees adjustable bracket to optimize sunlight receiving angle.
Q5: Suitable pole diameter size?
A: Designed for 60mm~76mm standard galvanized lamp pole.
Q6: What’s full charging hours under good sunshine?
A:4~5 hours full charging with strong sunlight via high efficiency MPPT controller.
Q7: Official warranty period?
A:3 years whole set factory warranty for manufacturing defects free spare parts replacement.
Q8: Bulk order MOQ?
A:MOQ50pcs, small sample order acceptable for project test.
Q9: Can customize solar panel power?
A:Yes, upgrade higher watt panel for poor sunshine area upon request.
Q10: Working temperature scope?
A:-25℃~+65℃ adapt cold northern and tropical outdoor regions.
Q11: Can change lens beam type?
A:Three kinds of optical lens (Type1/2/3) for different road width layout.
Q12: Available shipment ways?
A:Sea/Air/DHL/Fedex all optional for global delivery.
60W High Power Solar Street Light | 50W High End Solar Street Light | 30W High End Solar Street Light | 40W All-in-One Solar Street Light
Contact us at info@forleaves.com for free project design and customized split solar street light quotation.
