FL020M Specification Sheet

Overview

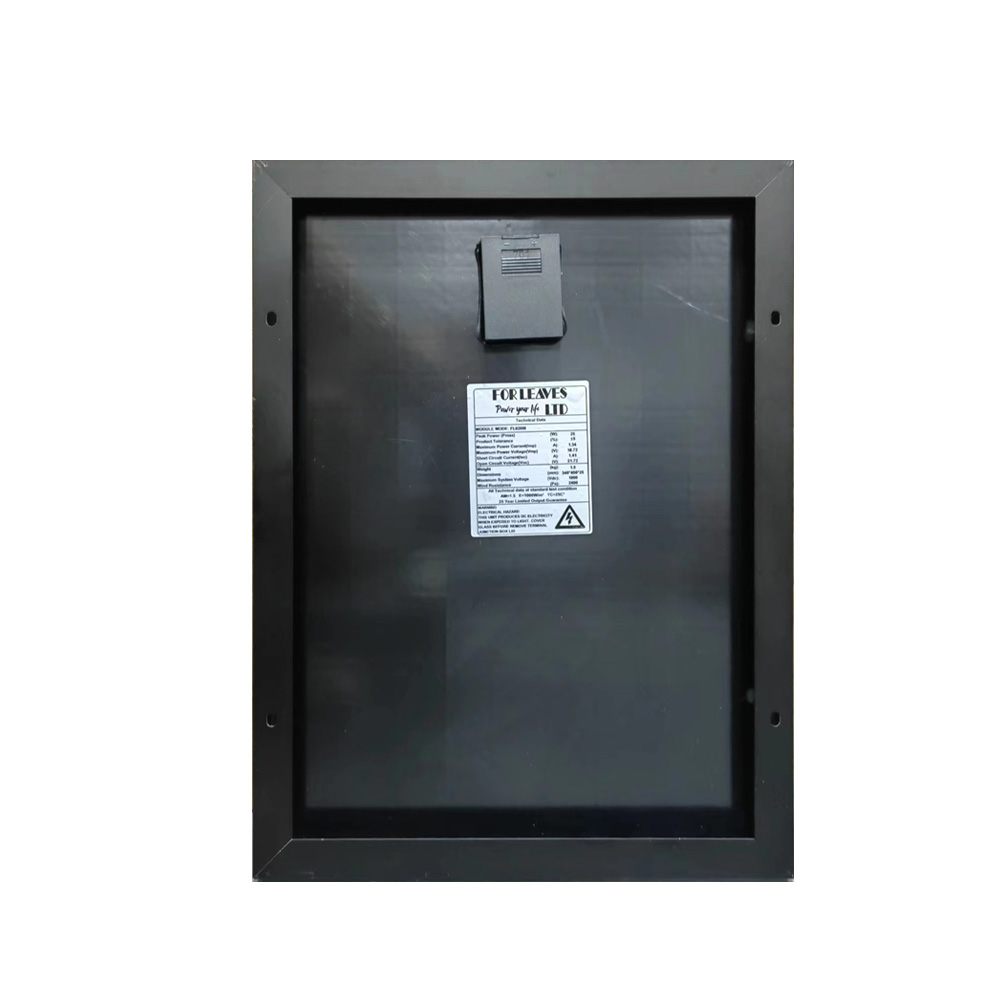

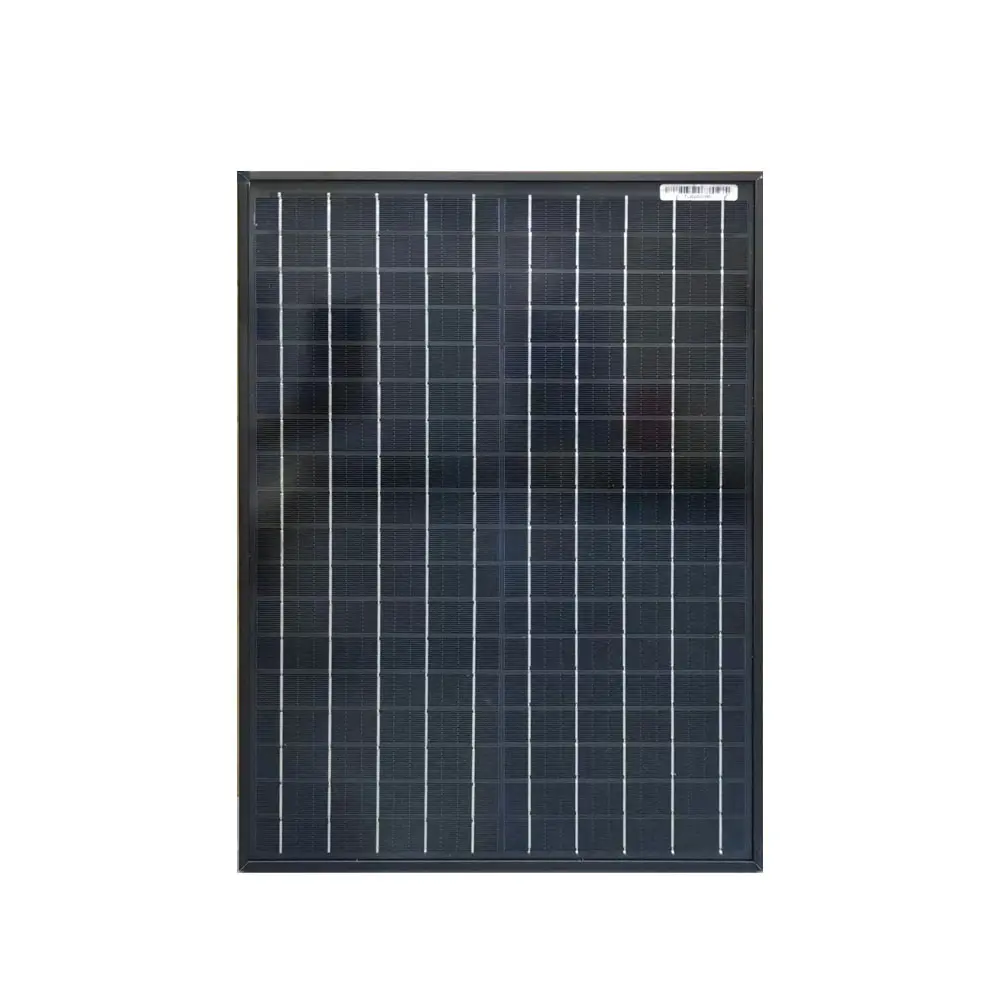

The FL020M is a high-performance monocrystalline solar panel equipped with 158 high-efficiency solar cells. Specifically designed to provide dependable energy solutions, this solar panel is an excellent choice for residential, commercial, and industrial applications.

Key Features

• High Efficiency: 22~23% cell efficiency.
• Durable & Long Lifespan: Engineered with durable materials for an extended lifespan of up to 25 years.
• Flexibility: The aluminum frame is versatile and can be custom-designed and installed to suit user needs and site conditions, offering adaptability regardless of region or climate.
• Warranty: 10 years of workmanship and raw materials.
• Customizable: Open to customization based on client requirements.

Applications

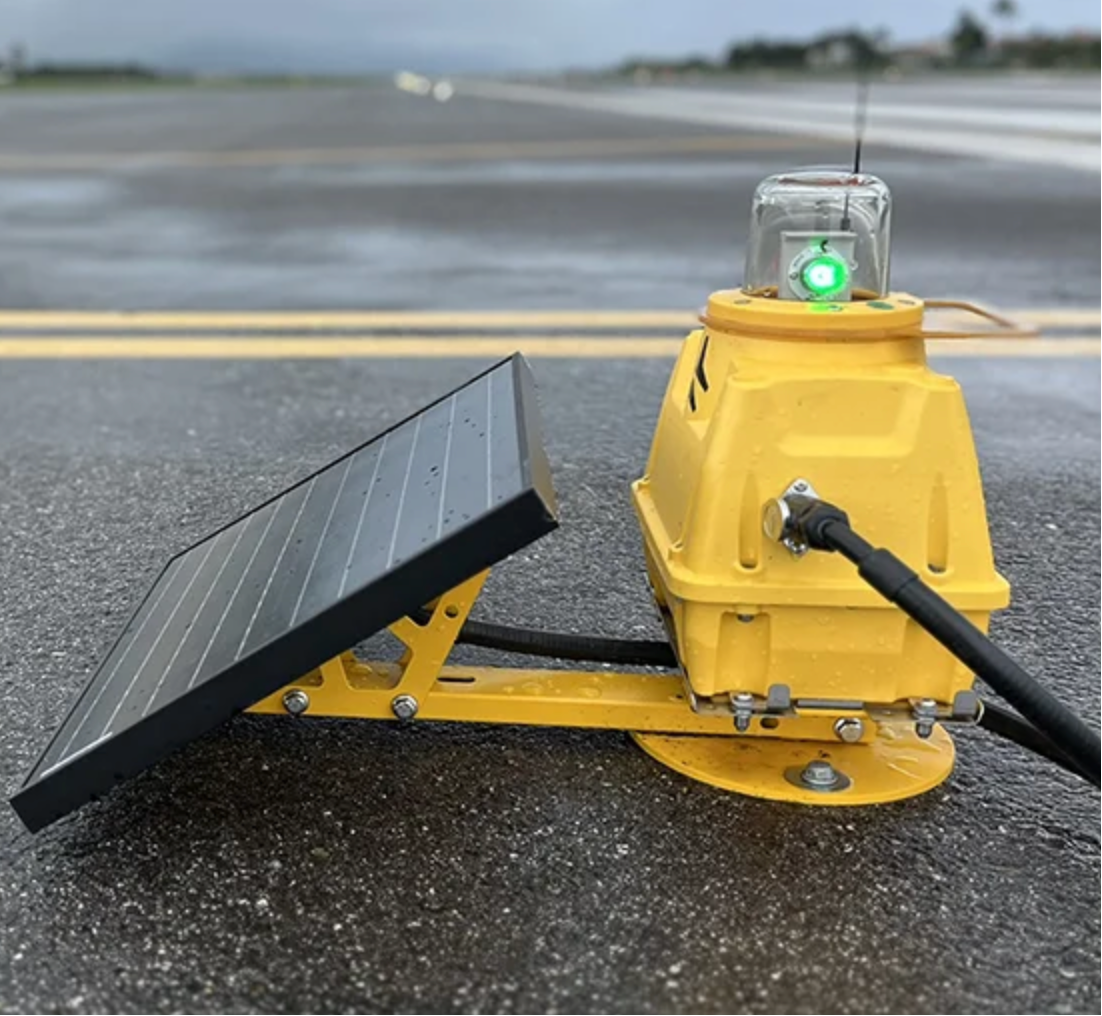

• Remote Areas: Perfect for use in remote mountainous regions, off-grid locations, islands, communication base stations, streetlights, etc., addressing the electricity needs of local residents and facilities.
• Emergency Backup: Ideal for areas prone to frequent power interruptions or unexpected disasters, serving as an emergency backup energy source and ensuring the seamless operation of critical loads.

Technical Data

• Model: FL020M
• Power: 25Wp
• Open Circuit Voltage (Voc): 21.72V
• Maximum Power Working Voltage (Vmp): 18.72V
• Short Circuit Current (Isc): 1.41A
• Maximum Power Working Current (Imp): 1.34A
• Size: 340 x 450 x 25mm
• Weight: 2 kg
• Front Glass: 3.2mm tempered ultra-white glass
• Frame Material: Aluminum alloy
• Junction Box: IP65 waterproof level (optional)
• Connector: MC4 compatible type (optional)
• Maximum System Voltage: 1000V DC
• Temperature Coefficient (Pmax): -0.45%/℃
• Temperature Coefficient (Voc): -0.35%/℃
• Temperature Coefficient (Isc): 0.05%/℃
• Working Temperature Range: -40℃~+85℃

All technical data based on the Standard Test Conditions: AM=1.5, E=1000W/m², TC=25°C

FAQ:

Small Custom Glass Solar Panels

Q1: Are custom shapes available?
A1: Yes, square, round, rectangular, triangular, ring, or other special shapes. Frameless or Framed available.

Q2: What electrical parameters can I customize?
A2: Voltage, current, power, and size.

Q3: Free design and prototype?
A3: Free consultation; prototype samples in 10–15 days.

Q4: Weak light/shade performance?
A4: Crystalline glass modules generate electricity under diffuse light but output decreases in low-light/shaded conditions.

Q5: Can these panels be pre-wired with connectors?
A5: Yes, custom wires and connectors can be soldered to panels for ready-to-install use.

Q6: Shipping options?
A6: Sea, air, express, DDU, or DDP. Panels are carefully packed; transport damage risk remains, but we cooperate with reputable logistics partners.

Q7: Typical applications?
A7: Solar Street lights, IoT devices, outdoor CCTV cameras, off grid applications, small solar kits, and so on.
