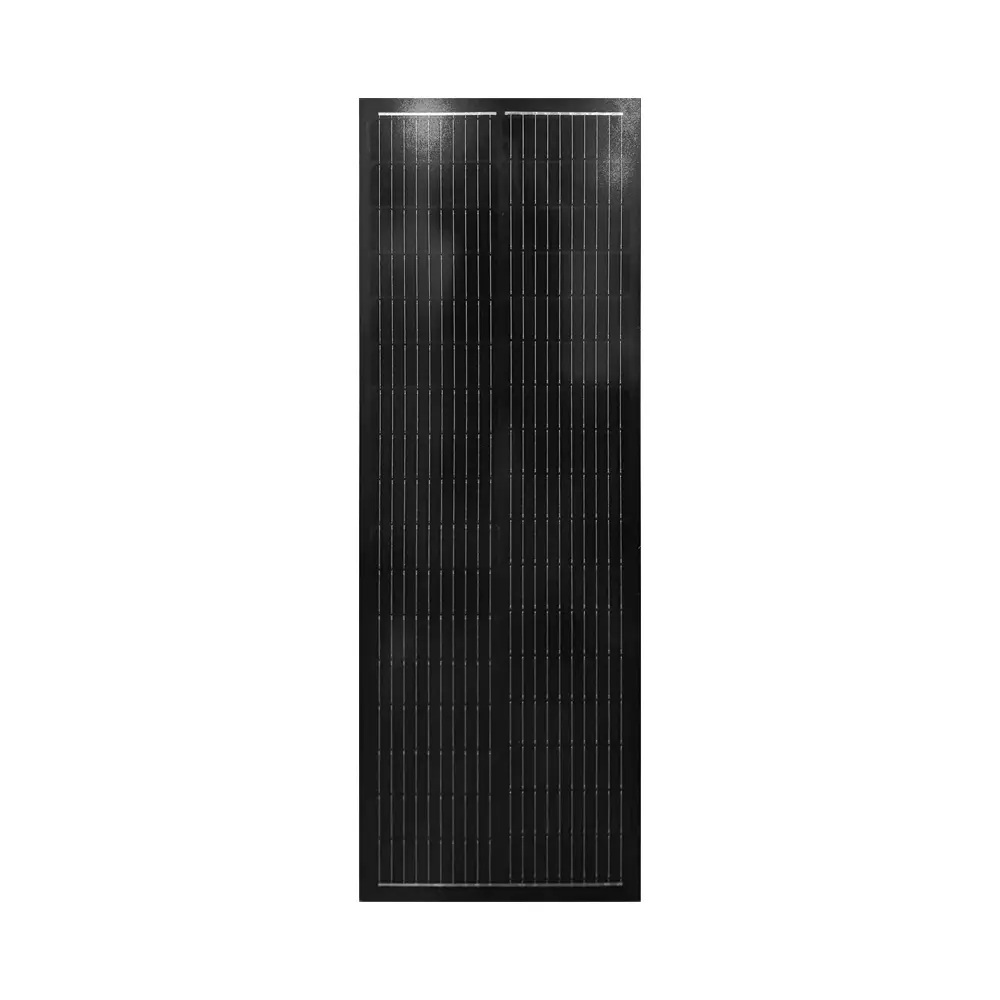

80W 18V Frameless Solar Panel for All in One Solar Street Lights

80W 18V Frameless Solar Panel FG-8018 398x1156x4.5mm for All-in-One Solar Street Lights

P/N:FG-8018

80W 18V Output

Monocrystalline 23-24%

Frameless Black Glass

Dimensions:398x1156x4.5mm

For All-in-One Solar Street Lights

80W 18V Frameless Solar Panel for All in One Solar Street Lights

This 80W 18V frameless glass solar panel is specially designed for all-in-one solar street lights. With whole black tempered PV glass and frameless structure, it provides stable and efficient power for outdoor street lighting systems.

Built with 23~24% high-efficiency 182mm monocrystalline cells, it supports 12.8V lithium-ion battery charging with MPPT controller and ensures long-term outdoor durability.

Key Features

High performance 182mm monocrystalline solar cell with 23~24% efficiency
18V~23V design for 12.8V lithium-ion battery with MPPT controller
Whole black tempered PV glass, frameless structure
Ultra-thin 4.5mm thickness for lightweight installation
PV glass backed construction for stable outdoor use
High power output suitable for street light applications
Customized size & voltage available for projects

Typical Applications

All-in-one solar street lights
Integrated solar road lighting systems
12.8V battery charging for street light equipment
Off-grid solar power for outdoor lighting
Custom frameless solar lighting projects

Similar Products

100W Frameless Solar Panel | 40W 11V Frameless Solar Panel

Technical Specifications

Model: FG-8018
Maximum Power: 80W
Peak Voltage: 18.7V
Open Circuit Voltage: 22V
Peak Current: 4.34A
Power Tolerance: ±5%
Dimensions: 398 x 1156 x 4.5mm
Weight: Approx. 4kg
Cell Type: 182mm Monocrystalline (23~24% Efficiency)
Surface: Tempered PV glass (whole black)
Structure: Frameless, PV glass backed
Application: All-in-one solar street lights
Warranty: 5-year product warranty

Custom Solar Panel Solutions

We provide OEM & ODM services for frameless street light solar panels. Custom options include size, voltage, power, cable length and connectors for all-in-one solar street light projects.

FAQ

Q: What applications is this 80W 18V frameless panel suitable for?
A: It is specially designed for all-in-one solar street lights and integrated solar road lighting systems.

Q: Can you provide custom shapes for solar lighting panels?
A: Yes, we support square, rectangular, round, triangular, ring and other special shapes; frameless or framed options are available.

Q: What electrical parameters can be customized?
A: We can customize voltage, current, power, dimensions and structure to match your street light project requirements.

Q: Do you offer free design and prototype service?
A: We provide free design consultation and drawings; prototype samples can be prepared in 10–15 working days.

Q: How is the low-light and shade performance?
A: Crystalline glass modules generate power under diffuse light, but output will decrease in low-light or heavily shaded conditions.

Q: Can you pre-wire cables and connectors for ready installation?
A: Yes, custom wires and connectors can be soldered for plug-and-play use.

Q: What shipping options do you support?
A: We support sea freight, air freight, express delivery, DDU and DDP with safe professional packing.

Q: What is the minimum order quantity (MOQ)?
A: Standard MOQ is 500–1000 pcs; small trial orders are acceptable for existing models.

Q: How long is the lead time for mass production?
A: Standard lead time is 15–25 working days after sample approval and deposit payment.

Q: Can you provide samples before bulk orders?
A: Yes, samples are available with sample fee.

Q: What certifications and warranties do you provide?
A: We provide CE, RoHS test reports and 5-year product warranty for long-term outdoor use.
