Features
High performance polycrystalline solar cell
Cell efficiency 18.6%, 5V design to charge 3.2V lithium-ion battery
Tempered PV glass
Durable and long lifespan
Aluminum framed
4 mounting holes for easy installation

Size and Weight
220 x 130 x 17mm
Appr.450 grams

Output
Open Circuit Voltage: 6V
Peak Voltage: 5V
Peak Current: 700mA
Peak Power: 3.5W
Power Tolerance: +/-5%
For maximum power output, orient the panel towards the sun

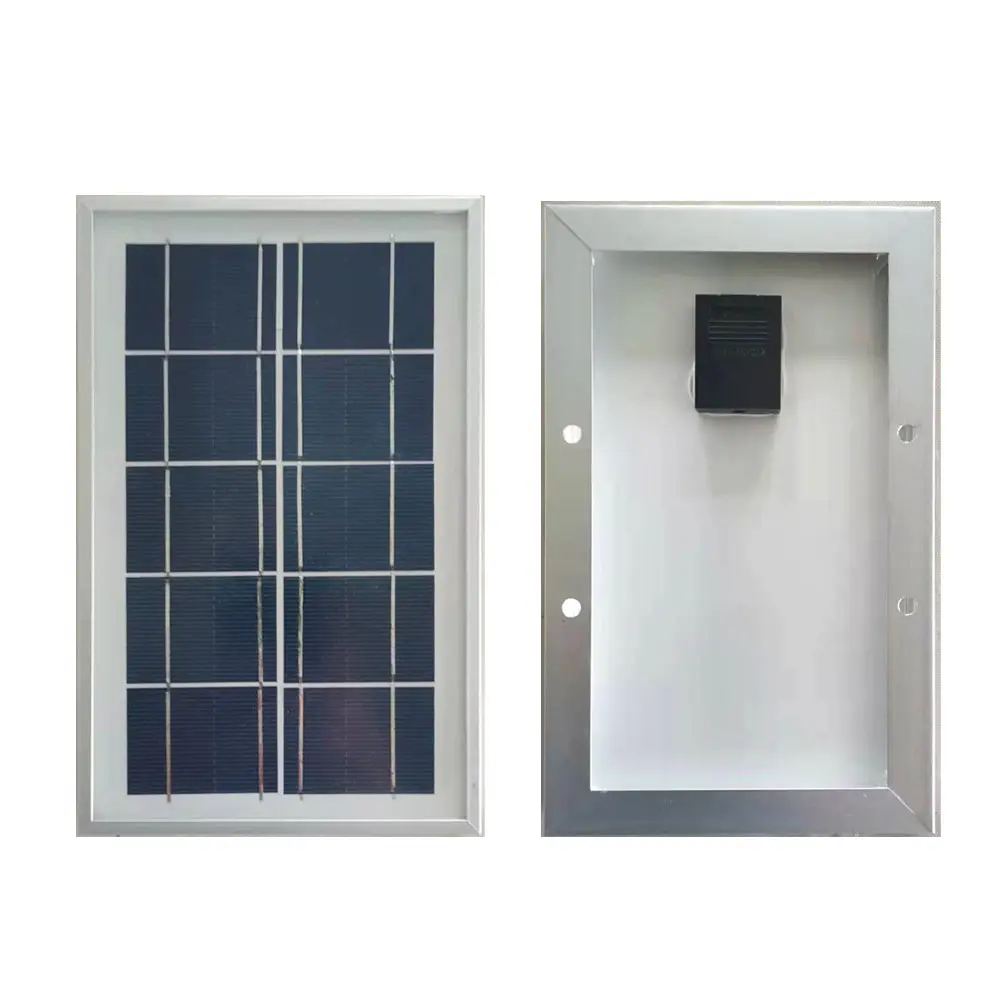

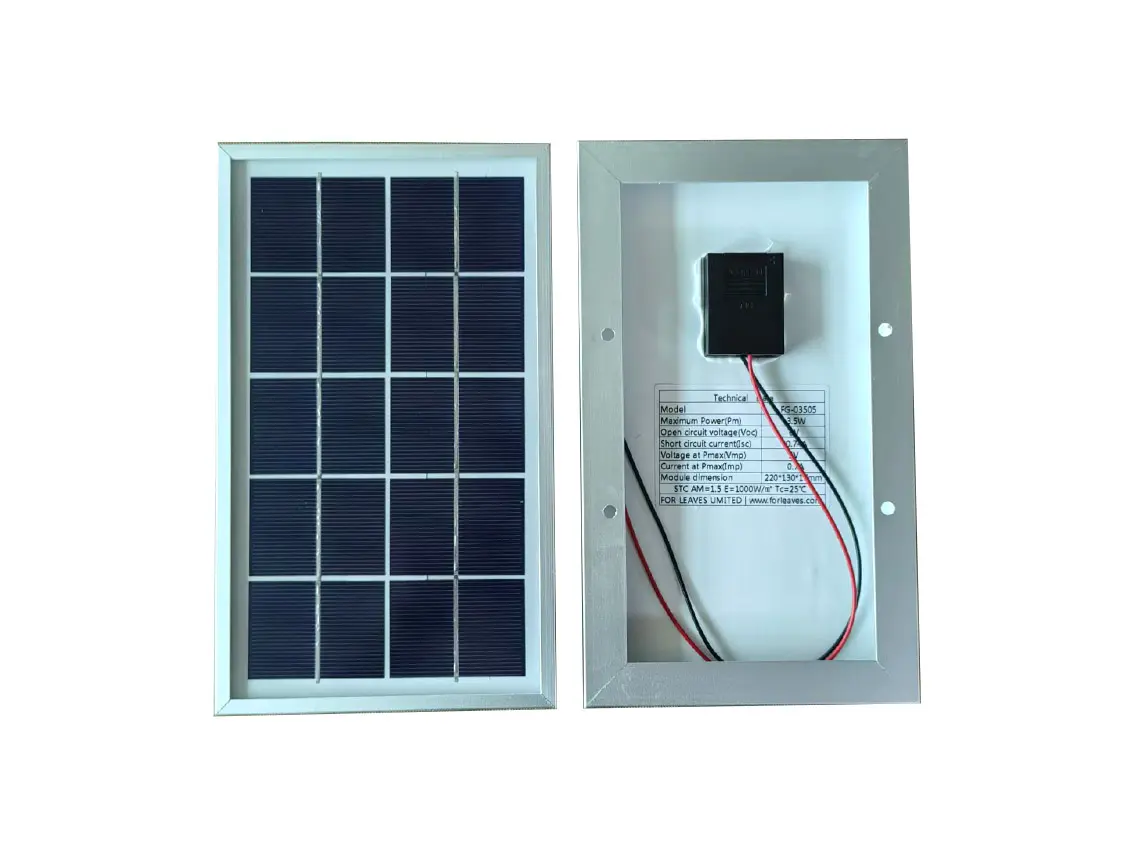

Construction
PV glass backed
Framed with aluminum frame
With Junciton box for the easy wiring

Warranty
5-year warranty on solar panels

FAQ:

Small Custom Glass Solar Panels

Q1: Are custom shapes available?
A1: Yes, square, rectangular, round, rectangular, triangular, ring, or other special shapes. Frameless or Framed available.

Q2: What electrical parameters can I customize?
A2: Voltage, current, power, and size.

Q3: Free design and prototype?
A3: Free consultation; prototype samples in 10–15 days.

Q4: Weak light/shade performance?
A4: Crystalline glass modules generate electricity under diffuse light but output decreases in low-light/shaded conditions.

Q5: Can these panels be pre-wired with connectors?
A5: Yes, custom wires and connectors can be soldered to panels for ready-to-install use.

Q6: Shipping options?
A6: Sea, air, express, DDU, or DDP. Panels are carefully packed; transport damage risk remains, but we cooperate with reputable logistics partners.

Q7: Typical applications?
A7: Solar street lights, IoT devices, outdoor CCTV cameras, off grid applications, small solar kits, and so on.
