Features
High performance monocrystalline solar cell
Cell efficiency 22.5%+
Tempered PV glass
Durable and long lifespan
frameless for roof tiles
Size and Weight
172 x 340 mm
Appr. 600 grams
Output
Open Circuit Voltage: 1.2V
Peak Voltage: 1V
Peak Current: 10A
Peak Power: 10W
Power Tolerance: +/-5%
For maximum power output, orient the panel towards the sun
Construction
PV glass backed
Frameless

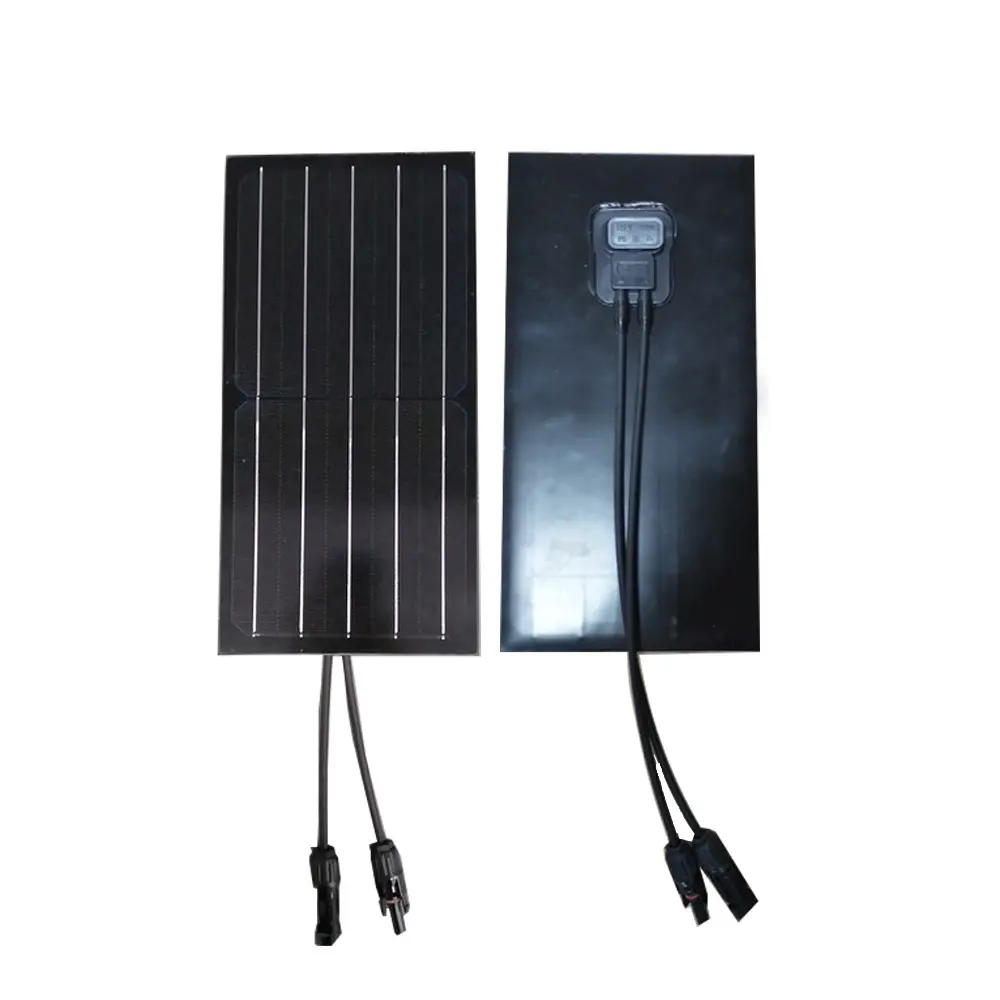

With PV cable and MC4 connector
Warranty
5-year warranty on solar panels
FAQ:
Small Custom Glass Solar Panels
Q1: Are custom shapes available?
A1: Yes, square, rectangular, round, rectangular, triangular, ring, or other special shapes. Frameless or Framed available.
Q2: What electrical parameters can I customize?
A2: Voltage, current, power, and size.
Q3: Free design and prototype?
A3: Free consultation; prototype samples in 10–15 days.
Q4: Weak light/shade performance?
A4: Crystalline glass modules generate electricity under diffuse light but output decreases in low-light/shaded conditions.
Q5: Can these panels be pre-wired with connectors?
A5: Yes, custom wires and connectors can be soldered to panels for ready-to-install use.
Q6: Shipping options?
A6: Sea, air, express, DDU, or DDP.
Q7: Typical applications?
A7: Solar street lights, IoT devices, outdoor CCTV cameras, off grid applications, small solar kits, and so on.
