Product Overview

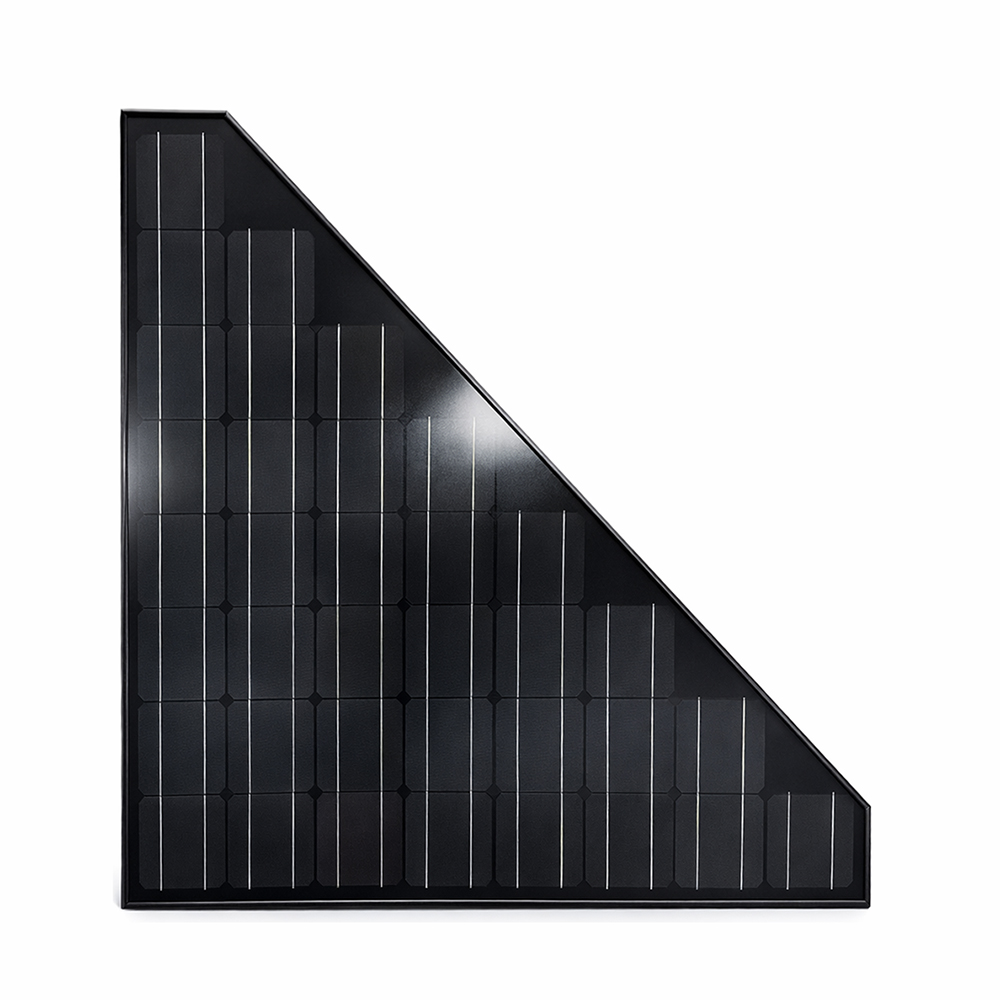

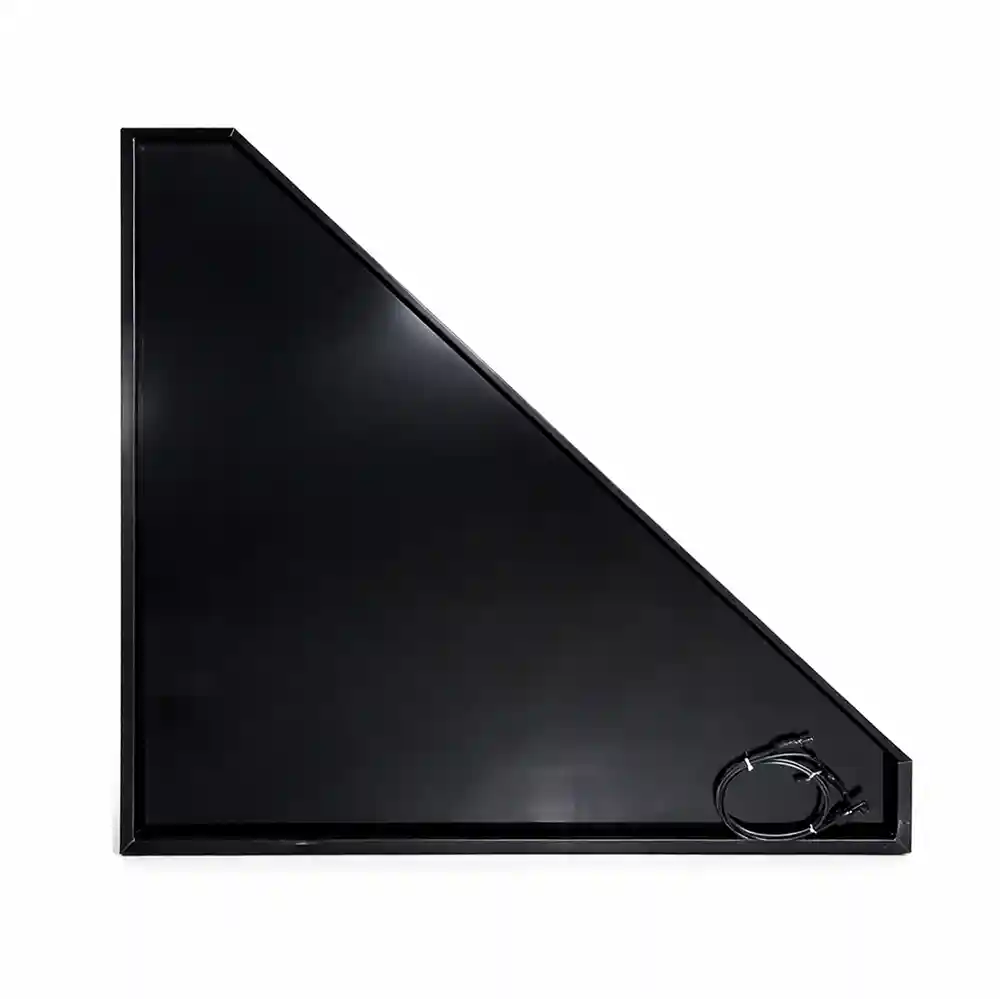

This triangular / trapezoidal solar panel is specially designed for roof slope corners and edge areas where standard rectangular modules cannot be installed efficiently.
By filling unused triangular gaps on pitched roofs, this module allows the entire roof surface to be fully covered with solar panels, significantly improving total installed capacity, visual uniformity, and system efficiency.
The panel is engineered for building-integrated photovoltaic (BIPV) systems and custom rooftop solar solutions, making it ideal for residential, commercial, and architectural solar projects.

Key Features

Special triangular / trapezoidal geometry for roof corner installation
Rated power: 100W, system voltage 18V
Designed to match roof pitch and slope angles
Maximizes rooftop space utilization
Seamless integration with standard rectangular solar panels
High-efficiency monocrystalline solar cells
Weather-resistant, suitable for long-term outdoor installation
Custom sizes, shapes, and power ratings available

Technical Specifications

Rated Power (Pmax) ~100 W

Rated Voltage (Vmp) ~18 V

Rated Current (Imp) ~5.56 A

Open Circuit Voltage (Voc) ~21.6 V

Short Circuit Current (Isc) ~5.9 A

Cell Type: High-efficiency monocrystalline silicon

System Voltage: 1000 V DC (optional 1500 V)

Size: 1064 x 1064 x 30mm

Panel Shape: Trapezoidal / Triangular

Frame: Aluminum alloy (optional frameless)

Front Cover: 3.2mm tempered glass

Backsheet: Black / white / transparent (optional)

Applications

-Pitched roof solar systems
-Residential rooftop PV projects
-Commercial and villa rooftops
-BIPV (Building Integrated Photovoltaics)
-Roof edge and corner solar infill
-Architectural solar roofing solutions

System Integration Advantages

-Eliminates unused roof corner space
-Improves total system wattage per roof
-Enhances visual consistency of rooftop PV arrays
-Compatible with standard 18V / 36V string configurations
-Can be wired in series or parallel with conventional panels

Customization Options

This solar panel is fully customizable, including:
-Custom dimensions (length, angle, thickness)
-Custom power output (e.g. 60W / 80W / 120W)
-Custom voltage (e.g. 18V / 24V / 36V)
-Different roof pitch angles
-Framed or frameless structure
-Glass-glass or lightweight composite design
-Color-matched frame for roofing aesthetics

FAQ

Q1: Why use triangular or trapezoidal solar panels?
They allow solar installation in roof corners and sloped edges where rectangular panels cannot fit, maximizing total rooftop power generation.

Q2: Can this panel work with standard solar panels?
Yes. It is designed to electrically match standard 18V solar modules and can be connected in the same PV string.

Q3: Is the size fixed or customizable?
The size shown is a reference design. Dimensions, angles, and power output can all be customized based on roof drawings.

Q4: Is this suitable for BIPV projects?
Yes. It is ideal for architectural and BIPV systems where aesthetics and full roof coverage are important.

Q5: Can the panel be made frameless?
Yes. Frameless glass-glass or lightweight structures are available upon request.
