3W 5V glass solar panel for IoT devices and solar-powered electronics
P/N: FLG-0305
3 Watt 5 Volt
160x180mm
Custom Mini Glass Solar Panel
Designed for IoT, Agriculture Sensors, SHS, Pico PV systems
Contact us: info@forleaves.com
Features
High performance polycrystalline solar cell
Tempered PV glass
Durable and long lifespan
Aluminum framed
Plastic corner protected
Size and Weight
160 x 180 x 17mm
Appr.450 grams
Output
Open Circuit Voltage: 6V
Peak Voltage: 5V
Peak Current: 600mA
Peak Power: 3W
Power Tolerance: +/-5%
For maximum power output, orient the panel towards the sun

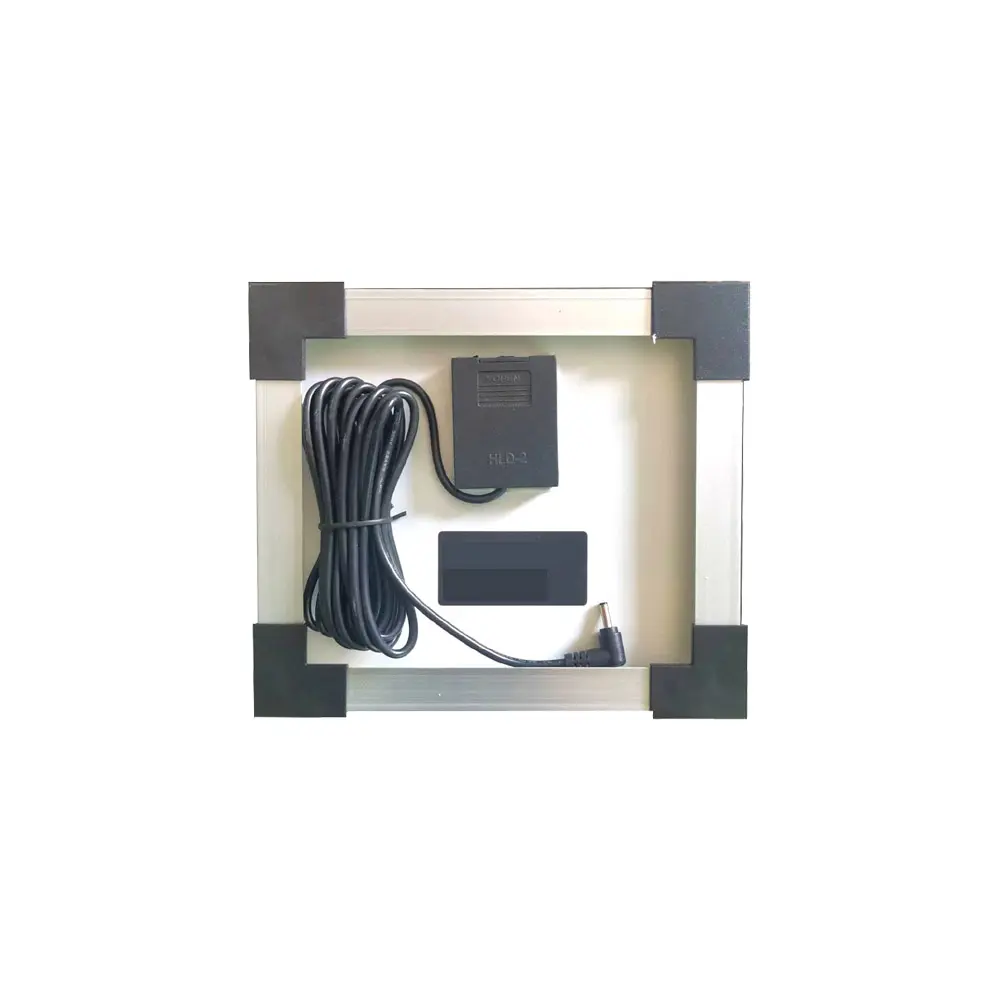

Construction
PV glass backed
Framed with aluminum frame
With Junciton box and 3M cable
DC3511 or other connector
Warranty
5-year warranty on solar panels
For more warranty information, see the warranty guide
FAQ:
Small Custom Glass Solar Panels
Q1: Are custom shapes available?
A1: Yes, square, rectangular, round, rectangular, triangular, ring, or other special shapes. Frameless or Framed available.
Q2: What electrical parameters can I customize?
A2: Voltage, current, power, and size.
Q3: Free design and prototype?
A3: Free consultation; prototype samples in 10–15 days.
Q4: Weak light/shade performance?
A4: Crystalline glass modules generate electricity under diffuse light but output decreases in low-light/shaded conditions.
Q5: Can these panels be pre-wired with connectors?
A5: Yes, custom wires and connectors can be soldered to panels for ready-to-install use.
Q6: Shipping options?
A6: Sea, air, express, DDU, or DDP. Panels are carefully packed; transport damage risk remains, but we cooperate with reputable logistics partners.
Q7: Typical applications?
A7: Solar street lights, IoT devices, outdoor CCTV cameras, off grid applications, small solar kits, and so on.
