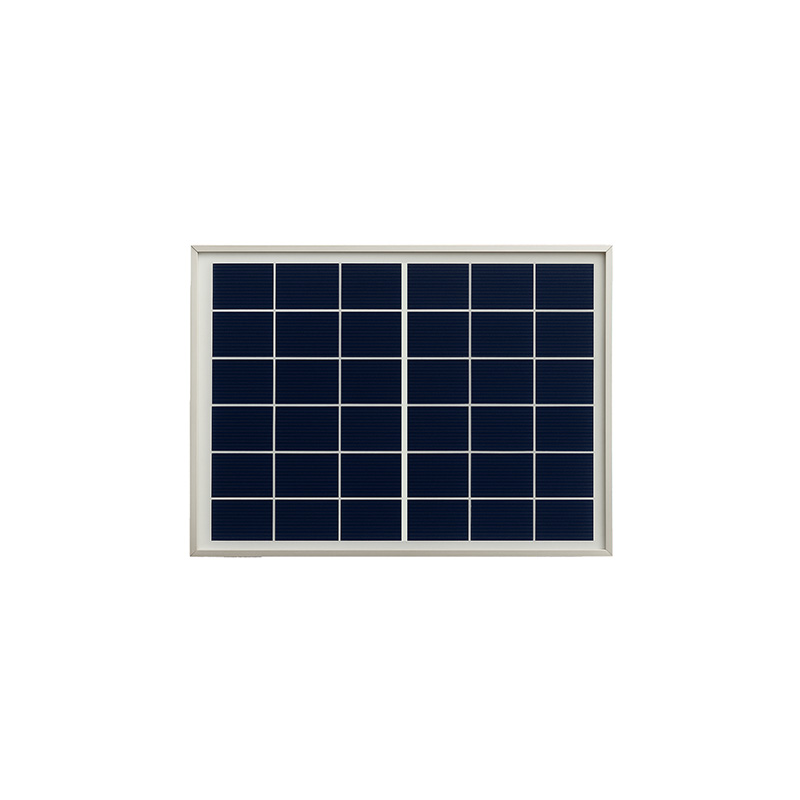

FLG‑1006P 10W 6V Polycrystalline Glass Solar Panel for Garden Lights, IoT Devices & DIY Solar Kits

FLG‑1006P 10W 6V polycrystalline glass solar panel for garden lights IoT devices and DIY solar kits

P/N: FLG‑1006P

10W 6.3V Vmp

230×340×17 mm

Polycrystalline 18.6%

Tempered Glass

Aluminum Frame

For Garden Lights & DIY Kits

FLG‑1006P 10W 6V Polycrystalline Glass Solar Panel for Garden Lights, IoT Devices & DIY Solar Kits

This 10W 6V polycrystalline glass solar panel is built for garden lights, IoT devices, DIY solar kits, solar lanterns and small‑scale off‑grid power systems. With aluminum frame and tempered PV glass, it delivers stable power for charging 3.2V lithium‑ion batteries in outdoor small‑power equipment.

Adopting 18.6% efficiency polycrystalline solar cells and rugged glass‑frame construction, this module offers long‑term durability for outdoor lighting and DIY solar projects.

Key Features

High‑performance polycrystalline solar cells with 18.6% conversion efficiency
6.3V peak output optimized for 3.2V lithium‑ion battery charging
3.2mm tempered PV glass for outdoor durability and long service life
Sturdy aluminum frame with 2‑4 mounting holes for simple installation
PV‑glass backed construction for stable outdoor operation
Built‑in junction box for convenient wiring work
Optional pre‑fitted cables and connectors such as DC5521 are available
Custom size, voltage and power parameters supported for OEM projects

Typical Applications

This framed polycrystalline solar panel fits multiple small outdoor power‑supply scenarios:

Garden lights and outdoor decorative lighting
IoT sensors and remote monitoring devices
Solar lanterns and portable off‑grid lighting
3.2V lithium‑ion battery charging equipment
DIY solar kits, educational and small‑scale solar projects
Small off‑grid home power systems

Similar Products

10W 18V Poly Solar Panel | 50W 18V Poly Solar Panel | 6W 4.5V Poly Glass Solar Panel | 10W 5V Polycrystalline Glass Solar Panel

We supply a wide portfolio of framed polycrystalline small solar panels for lighting, IoT and DIY‑kit applications. Custom dimension and electrical parameters can be arranged for OEM orders.

Technical Specifications

Model Number: FLG‑1006P
Nominal Power (Pmax): 10 Wp
Voltage at Maximum Power (Vmp): 6.3 V
Current at Maximum Power (Imp): 1.58 A
Open‑circuit Voltage (Voc): 7.38 V
Power Tolerance: ±3%
Overall Dimension: 230 × 340 × 17 mm
Weight: Approx. 800 g
Cell Type: Polycrystalline Silicon (18.6% efficiency)
Surface: 3.2 mm tempered PV glass
Frame: Aluminum alloy frame with mounting holes
Junction box: Built‑in standard junction box
Warranty: 5‑year product warranty against manufacturing defects

Custom Solar Panel Solutions

FORLEAVES provides OEM & ODM service for small polycrystalline glass solar panels. Custom options include voltage, current, power, dimensions, frame style, cables and connectors for garden lighting, IoT device and DIY‑kit projects.

Share your project drawings and technical requirements via email: info@forleaves.com Our engineering team will offer technical suggestions and project‑based quotation within 24 working hours.

FAQ

Q1: What applications is FLG‑1006P suitable for?
A1: It is designed for garden lights, IoT devices, DIY solar kits, solar lanterns and 3.2V lithium‑ion battery off‑grid charging scenarios.

Q2: Can you make custom‑made solar panels?
A2: Yes. We support custom shapes, output voltage, power, frame and connector configurations according to your device design.

Q3: Do you provide design consultation and prototype samples?
A3: Free design consultation service is available. Prototype samples can be arranged; sample‑related fees and lead‑time will be quoted separately.

Q4: How about its performance under weak‑light or shaded conditions?
A4: Polycrystalline glass module generates power under diffuse sunlight, but power output will drop significantly under heavy shading or dim‑light environment.

Q5: Can you pre‑install DC5521 or other custom connectors?
A5: Yes, DC5521 and other custom wires / connectors can be pre‑soldered for plug‑and‑play assembly.

Q6: What shipping methods are supported?
A6: Sea freight, air freight and international courier services are available. Panels are packed with export cartons for glass‑surface protection during transit.

Q7: What warranty coverage is provided?
A7: 5‑year product warranty against manufacturing defects for this standard framed glass solar module.

Looking for 10W 6V polycrystalline glass solar panels for garden‑light and DIY‑kit projects?
FORLEAVES supplies framed polycrystalline PV modules with flexible custom options for lighting and IoT manufacturers. Send your technical requirements for project‑based quotation:

info@forleaves.com
