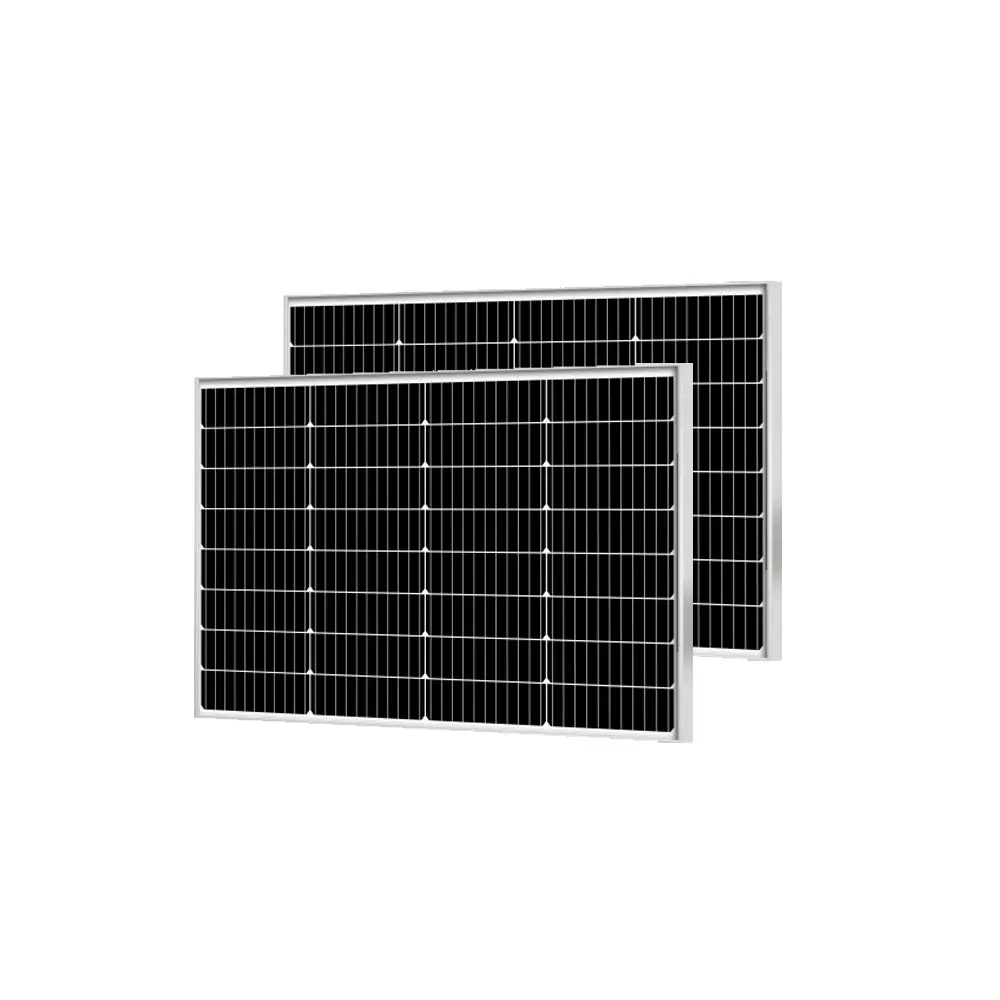

60 Watt 18 Volt Glass Solar Panel


60 Watt 18 Volt Glass Solar Panel

P/N: FL060-32

60 Watt 18 Volt

430 x 760mm

Glass Solar Panel With Frame

Designed for Solar Home System & Solar Street Light

FL-060M-32 Specification Sheet

Overview

The FL060M-32 is a high-performance monocrystalline solar panel equipped with 182 high-efficiency solar cells. Specifically designed to provide dependable energy solutions, this solar panel is an excellent choice for residential, commercial, and industrial applications.

Key Features

  • High Efficiency: 22~23% cell efficiency.
  • Durable & Long Lifespan: Engineered with durable materials for an extended lifespan of up to 25 years.
  • Flexibility: The aluminum frame is versatile and can be custom-designed and installed to suit user needs and site conditions, offering adaptability regardless of region or climate.
  • Warranty: 10 years of workmanship and raw materials.
  • Customizable: Open to customization based on client requirements.

Applications

  • Remote Areas: Perfect for use in remote mountainous regions, off-grid locations, islands, communication base stations, streetlights, etc., addressing the electricity needs of local residents and facilities.
  • Emergency Backup: Ideal for areas prone to frequent power interruptions or unexpected disasters, serving as an emergency backup energy source and ensuring the seamless operation of critical loads.

Technical Data

  • Model: FL060M-32
  • Power: 60Wp
  • Open Circuit Voltage (Voc): 21.8V
  • Maximum Power Working Voltage (Vmp): 18.24V
  • Short Circuit Current (Isc): 3.49A
  • Maximum Power Working Current (Imp): 3.29A
  • Size: 430 x 760 x 30mm
  • Weight: 4.3 kg
  • Front Glass: 3.2mm tempered ultra-white glass
  • Frame Material: Aluminum alloy
  • Junction Box: IP65 waterproof level
  • Connector: MC4 compatible type
  • Maximum System Voltage: 1000V DC
  • Temperature Coefficient (Pmax): -0.45%/℃
  • Temperature Coefficient (Voc): -0.35%/℃
  • Temperature Coefficient (Isc): 0.05%/℃
  • Working Temperature Range: -40℃~+85℃

All technical data based on the Standard Test Conditions: AM=1.5, E=1000W/m², TC=25°C
