FL-050M-32 Specification Sheet

Overview

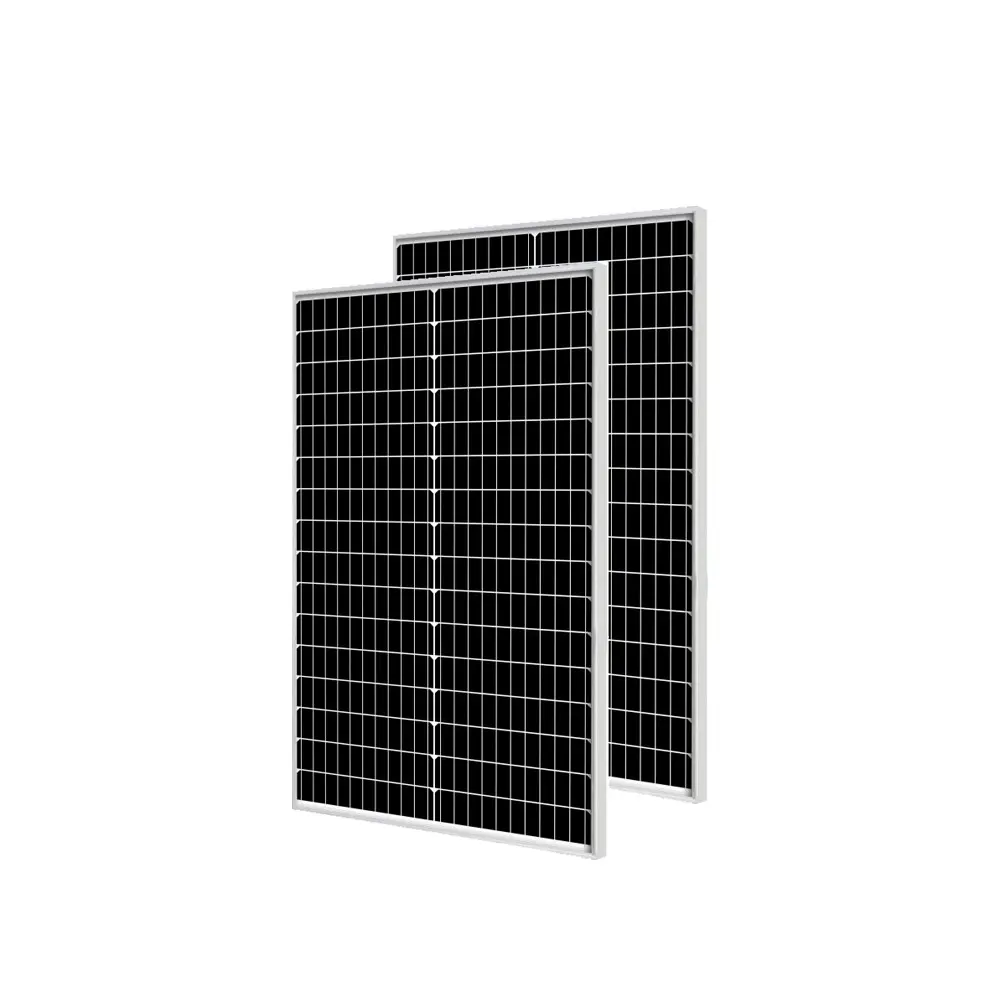

The FL050M-32 is a high-performance monocrystalline solar panel equipped with 182 high-efficiency solar cells. Specifically designed to provide dependable energy solutions, this solar panel is an excellent choice for residential, commercial, and industrial applications.

Key Features

• High Efficiency: 22~23% cell efficiency.
• Durable & Long Lifespan: Engineered with durable materials for an extended lifespan of up to 25 years.
• Flexibility: The aluminum frame is versatile and can be custom-designed and installed to suit user needs and site conditions, offering adaptability regardless of region or climate.
• Warranty: 10 years of workmanship and raw materials.
• Customizable: Open to customization based on client requirements.

Applications

• Remote Areas: Perfect for use in remote mountainous regions, off-grid locations, islands, communication base stations, streetlights, etc., addressing the electricity needs of local residents and facilities.
• Emergency Backup: Ideal for areas prone to frequent power interruptions or unexpected disasters, serving as an emergency backup energy source and ensuring the seamless operation of critical loads.

Technical Data

• Model: FL050M-32
• Power: 50Wp
• Open Circuit Voltage (Voc): 21.8V
• Maximum Power Working Voltage (Vmp): 18.24V
• Short Circuit Current (Isc): 2.97A
• Maximum Power Working Current (Imp): 2.74A
• Size: 400 x 760 x 25mm
• Weight: 3.8 kg
• Front Glass: 3.2mm tempered ultra-white glass
• Frame Material: Aluminum alloy
• Junction Box: IP65 waterproof level
• Connector: MC4 compatible type
• Maximum System Voltage: 1000V DC
• Temperature Coefficient (Pmax): -0.45%/℃
• Temperature Coefficient (Voc): -0.35%/℃
• Temperature Coefficient (Isc): 0.05%/℃
• Working Temperature Range: -40℃~+85℃

All technical data based on the Standard Test Conditions: AM=1.5, E=1000W/m², TC=25°C
