25.6V 18Ah Custom LiFePO4 Battery Pack Built-in BMS


FORLEAVES 25.6V 18Ah LiFePO4 Battery FL-8S3P32700 BMS Solar Street Light Off-Grid Battery

P/N: FL-8S3P32700

25.6V 18Ah

32700 Cell 3.2V 8s3p

Lithium iron Phosphate Battery

In-Built BMS

Designed for solar street light & home appliances

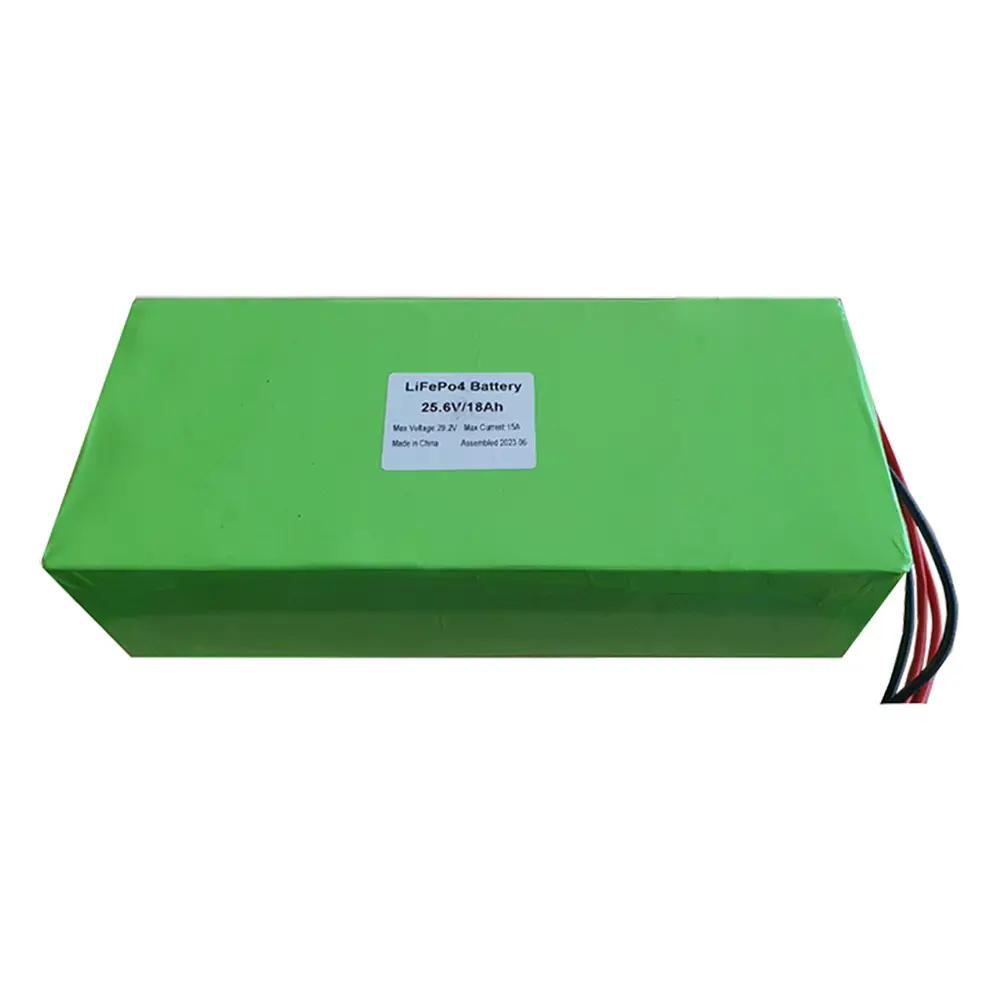

FORLEAVES 25.6V 18Ah Lithium Iron Phosphate Battery | FL-8S3P32700

FORLEAVES 25.6V 18Ah LiFePO4 battery pack (Model: FL-8S3P32700) is a high-performance rechargeable lithium iron phosphate battery designed for solar street lights, small off-grid systems, solar boilers and home appliances. Built with 32700 3.2V 6000mAh lithium iron phosphate cells in 8S3P configuration, this battery pack integrates a professional built-in BMS for full safety protection and stable output. It supports customized shape, wires and terminals to meet different installation and application requirements.

Product Features

  • Light Weight & High Capacity Design
  • Excellent Discharge Performance & Stable Output
  • Long Cycle Life: 1200 cycles at 80% DOD
  • High Safety Performance & Low Internal Resistance
  • No Memory Effects, Green & Environment-friendly
  • Built-in BMS for full safety protection
  • Customized shape, wires, terminals and connectors
  • Wide working temperature range for outdoor use
  • 3 years warranty for reliable use

Technical Specifications

  • Model: FL-8S3P32700
  • Battery Type: Lithium Iron Phosphate (LiFePO4)
  • Cell Specification: 32700 3.2V 6000mAh, 8S3P
  • Nominal Voltage: 25.6V
  • Rated Capacity: 18Ah @0.2C5A, 460.8Wh
  • Max Charge Voltage: 29.2V
  • Discharge Cut-off Voltage: 18.4V
  • Standard Charge Current: ≤15A
  • Working Discharge Current: ≤30A
  • Single Cell Over Charge Cut-off: 3.65V
  • Single Cell Over Discharge Cut-off: 2.3V
  • Charge Temperature Range: 0℃ ~ 45℃
  • Discharge Temperature Range: -20℃ ~ 65℃
  • Cycle Life: 1200 cycles @ 80% DOD
  • Warranty: 3 Years
  • Lead Wires: 3239#12AWG (customizable)
  • Dimensions: approx. 85×120×270mm
  • Gross Weight: approx. 2.5kgs
  • Application: Solar Street Lights, Small Off-Grid Systems, Solar Boilers, Home Appliances

Applications

  • Solar Street Lights & Integrated Solar Lights
  • Small Off-Grid Solar Systems & Home Appliances
  • Solar Off-Grid Boilers
  • Toys, Power Tools & Consumer Electronics
  • Small Electric Power Systems & Boats
  • Customized Portable Power & Industrial Power

Related Products

FORLEAVES 12.8V 48Ah LiFePO4 Battery Pack | FORLEAVES 12.8V 72Ah Customized LiFePO4 Battery Pack

FAQ - Frequently Asked Questions

Q1: Is this battery FORLEAVES brand?
A: Yes, this is 100% FORLEAVES brand original lithium iron phosphate battery pack, model FL-8S3P32700.

Q2: Does this battery have built-in BMS?
A: Yes. It has built-in BMS for overcharge, over-discharge, over-current and short circuit protection.

Q3: Can I customize the cable, connector or terminals?
A: Yes. We support customized wires, connectors, terminals and length according to your requirements.

Q4: Can I customize voltage, capacity or size?
A: Yes. We provide full customization service including voltage, capacity, dimensions and BMS parameters.

Q5: What is the cycle life of this battery?
A: It can reach up to 1200 cycles at 80% DOD, long service life for solar and outdoor applications.

Q6: What applications is this battery suitable for?
A: It is mainly designed for solar street lights, small off-grid systems, solar boilers and home appliances.

Q7: What is the warranty period?
A: This model provides 3 years warranty under normal use conditions.

Q8: Is this battery suitable for 24V system?
A: Yes. 25.6V is perfectly compatible with 24V solar street light and small off-grid systems.

Contact Us

If you are interested in our products or have any customization requirements, please feel free to contact us for more details, best price and professional solutions.
