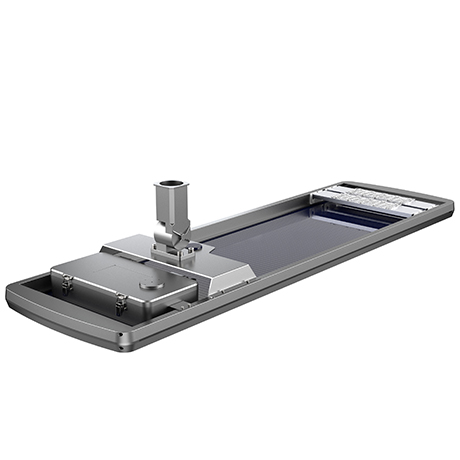

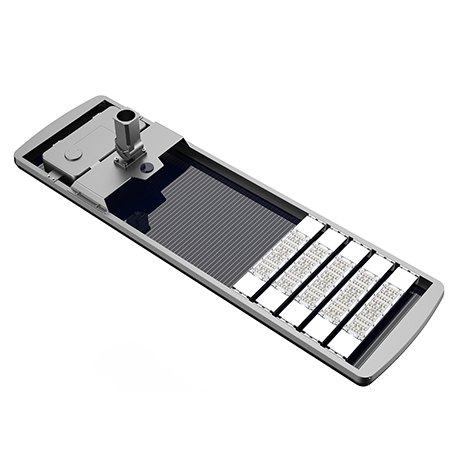

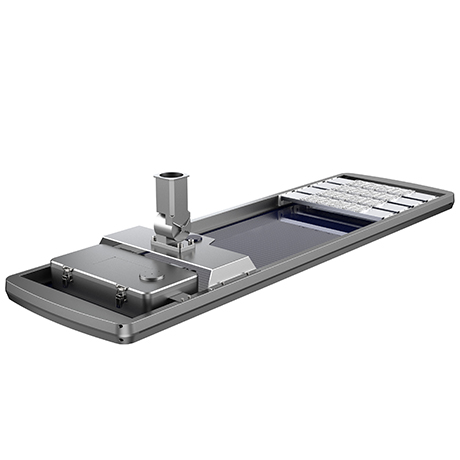

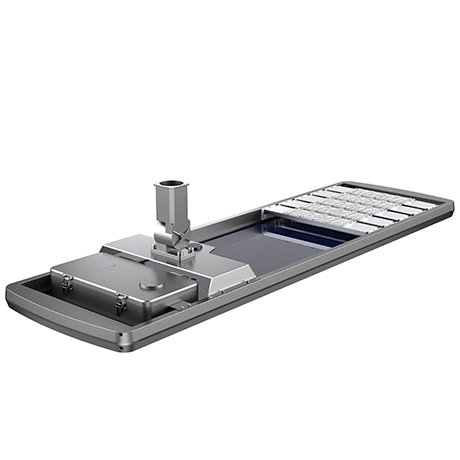

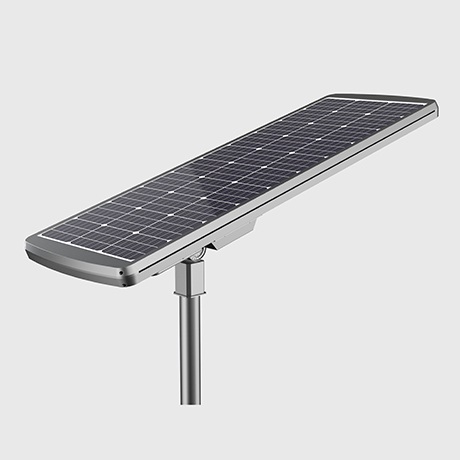

SKX-S-FY24-H 40W~160W Bifacial All-in-One Die Cast Aluminum Solar Street Light Series


SKX-S-FY24-H 40W-160W bifacial die cast aluminum all in one IP65 solar street light

P/N:SKX-S-FY24-H Series

Power:40W~160W

Bifacial Mono Panel

LiFePO4 + MPPT

IP65 All In One Solar Street Light for Highway Project

SKX-S-FY24-H 40W~160W Bifacial All-in-One Die Cast Aluminum Solar Street Light Series

SKX-S-FY24-H is full-range high-power bifacial integrated solar street light covering 40W up to 160W options, equipped with high-efficiency bifacial mono panel, high-lumen 5050 LED and built-in LiFePO4 battery plus MPPT controller, widely adopted for municipal highway, large industrial zone and new rural road construction projects.

Product Core Advantages

  • Exclusive patented streamlined 6063 die-cast aluminum housing with outstanding heat dissipation
  • Bifacial solar module design lifts total power generation over 30% vs single-sided panels
  • 250~260lm/W high-performance SMD 5050 LED for excellent road brightness output
  • Full modular layout for quick split replacement of LED, battery and controller parts
  • Triple intelligent control: light sensor + timing + microwave human motion dimming function
  • IP65 dustproof & waterproof, stable working from -20℃ to +65℃ across all climates

Typical Application Scenarios

  • Urban main arterial roads & national highway reconstruction engineering
  • Large industrial parks, factory perimeter and commercial open plazas
  • Docks, bus stations, scenic areas and new countryside roadway lighting
  • Wide sidewalks, bicycle lanes and suburban trunk roads

Full Series Technical Specifications

Parameter SKX-S-FY100 SKX-S-FY120 SKX-S-FY140 SKX-S-FY160
Model 100W 120W 140W 160W
Solar Panel 18V 100W Bifacial Mono 18V 120W Bifacial Mono 18V 140W Bifacial Mono 18V 160W Bifacial Mono
LiFePO4 Battery 12.8V 42AH(537WH) 12.8V 48AH(614WH) 12.8V 60AH(768WH) 12.8V 66AH(845WH)
MPPT Controller 10A 10A 15A 15A
Total Lumen 10000LM±500 12000LM±500 16000LM±500 20000LM±500
LED Quantity 56pcs 5050 84pcs 5050 112pcs 5050 140pcs 5050
CCT 5700K(Custom) 5700K(Custom) 5700K(Custom) 5700K(Custom)
CRI >70 >70 >70 >70
IP Grade IP65 IP65 IP65 IP65
Beam Angle 80×160° 80×160° 80×160° 80×160°
Charge Time 5~6H 5~6H 5~6H 5~6H
Runtime 12H Adjustable 12H Adjustable 12H Adjustable 12H Adjustable
Sensor Light+Time+Motion Light+Time+Motion Light+Time+Motion Light+Time+Motion

Customization Service

FORLEAVES offers full OEM & ODM customization for this series: adjust LED wattage, LiFePO4 battery capacity, CCT value(3000K~6500K), lamp housing color and silk-screen brand logo; customized technical drawings and project solution are available for bulk orders.

FAQ

Q1: What’s the biggest advantage of bifacial solar panel on this series?
A: Bifacial panel absorbs sunlight from front plus ground reflected light, improving overall charging efficiency by over 30% vs conventional single-face modules, great for cloudy & low-sunshine regions.

Q2: Recommended installation height & spacing for 100~160W models?
A: Suggest mounting height 9~12m, standard installation spacing 20~30 meters for main highway layout.

Q3: How many rainy backup days for original battery configuration?
A: Standard setup supports minimum 3 consecutive rainy days full lighting; larger capacity LiFePO4 upgrade available for 4~7 days backup.

Q4: Do you have small-watt same series models (60W/80W)?
A: Yes, we have 60W SKX-S-FY60 and 80W SKX-S-FY80 standard die-cast all-in-one solar street lights.

Q5: Can I reprogram dimming & working timing parameters?
A: All dusk/dawn switch, brightness ratio and working hours can be customized based local project requirements.

Q6: Optional LED chip brands available?
A: CREE, Bridgelux and Philips original 5050 SMD LED are optional for different budget needs.

Q7: What’s the official product warranty?
A: Full 3-year global warranty for complete lamp; free replacement for factory defective spare parts within warranty period.

Q8: What’s your bulk order MOQ?
A: Standard MOQ 50pcs, small trial & sample order is acceptable for pre-project testing.

Q9: Can I customize housing color and print customer’s own logo?
A: Custom spray color and OEM silk-screen logo service are fully supported.

Q10: Working temperature adaptability of this series?
A: Stable performance between -20℃~+65℃, fits frigid northern & tropical high-temperature environments.

Q11: Will you supply installation documents?
A: Detailed PDF installation manual and dimension drawings will be provided before or along with shipment.

Q12: Available shipment options?
A: Sea freight, air cargo & international courier(DHL/Fedex) are all supported for your selection.
