SKX-S-LD-YC Combatant all-in-one solar street light with LiFePO4 battery and microwave motion sensor
P/N: SKX-S-LD-YC
All-in-One Solar Street Light
20-50W
LiFePO4 Battery
MPPT Controller
Microwave Sensor
IP65
IK08
Custom Lighting & Control

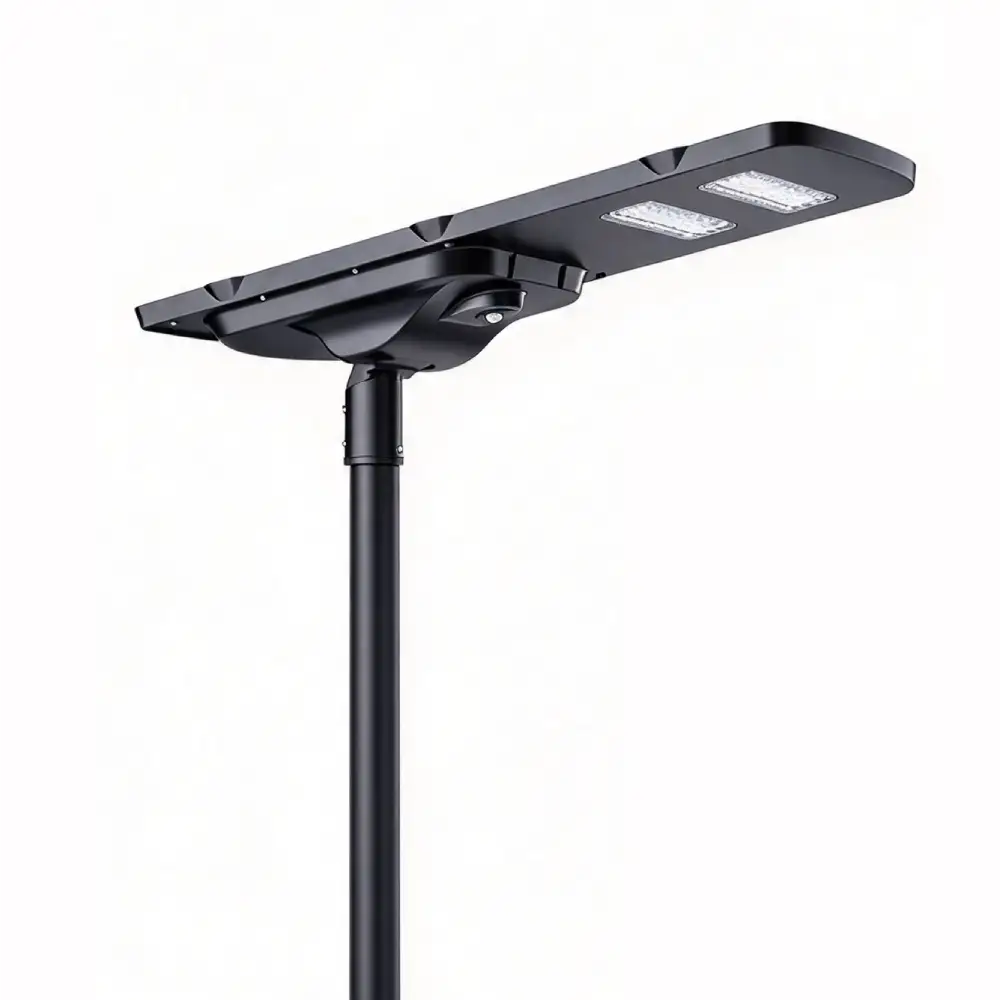

The SKX-S-LD-YC Combatant Series is an all-in-one solar street light integrating the solar panel, LED light source, LiFePO4 battery, MPPT solar controller and microwave motion sensor into a single outdoor lighting unit. The integrated design is suitable for standalone road lighting, residential roads, rural roads, commercial streets and other outdoor lighting applications.

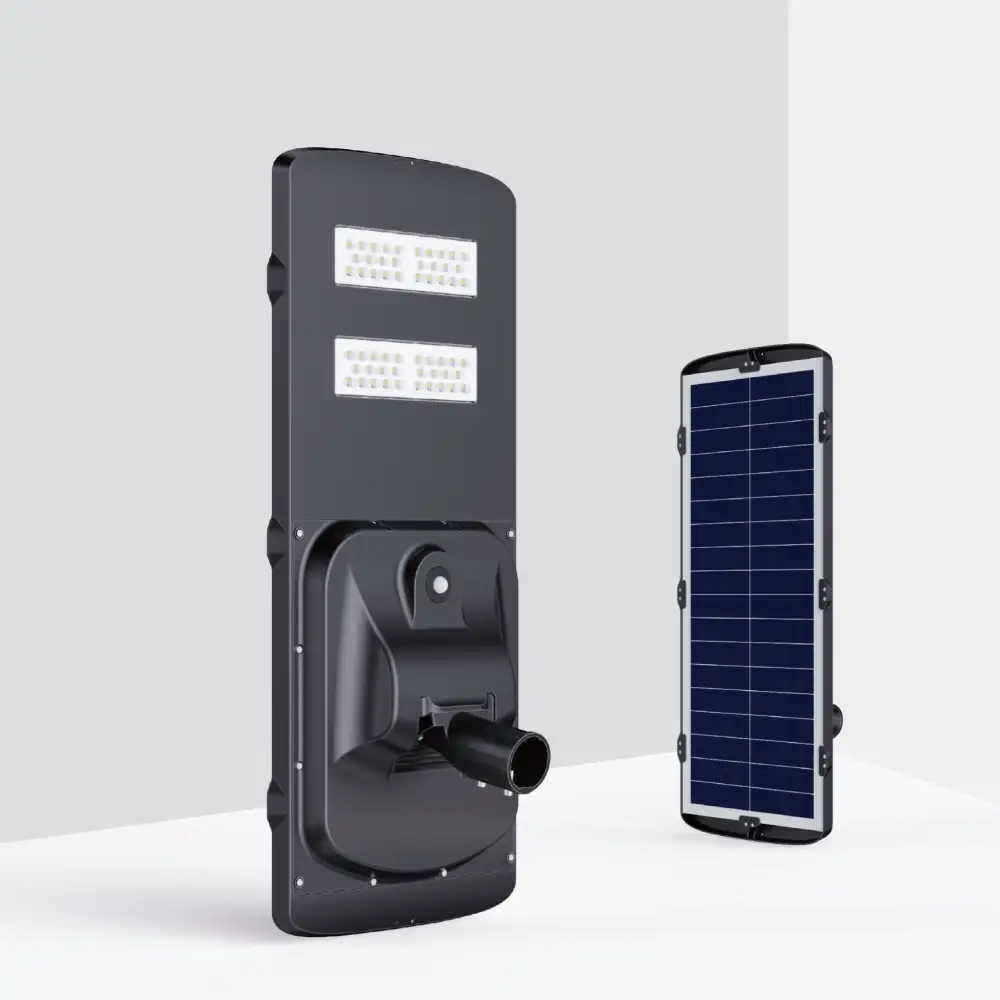

The solar street light uses a die-cast aluminum alloy housing, Bridgelux 5050 LED light source and PC batwing light distribution lens. With IP65 protection and IK08 impact protection, the SKX-S-LD-YC is designed for outdoor lighting environments. Two standard configurations are available, covering 20-33W and 43-50W LED power.
The built-in microwave motion sensor allows the lighting output to respond to activity around the installation area. When movement is detected, the lamp can operate at a higher lighting level. When the area becomes inactive, the lighting output can be reduced according to the configured control strategy to help manage battery energy consumption.
The SKX-S-LD-YC integrates the major components required for standalone solar street lighting into one lighting unit. The photovoltaic solar panel, LiFePO4 battery, LED light source, MPPT controller and microwave sensor are incorporated into the overall product design.
Compared with a split solar street light system, the all-in-one configuration combines the main components into a single lighting unit, which can simplify installation and reduce the number of separate components required at the installation site.

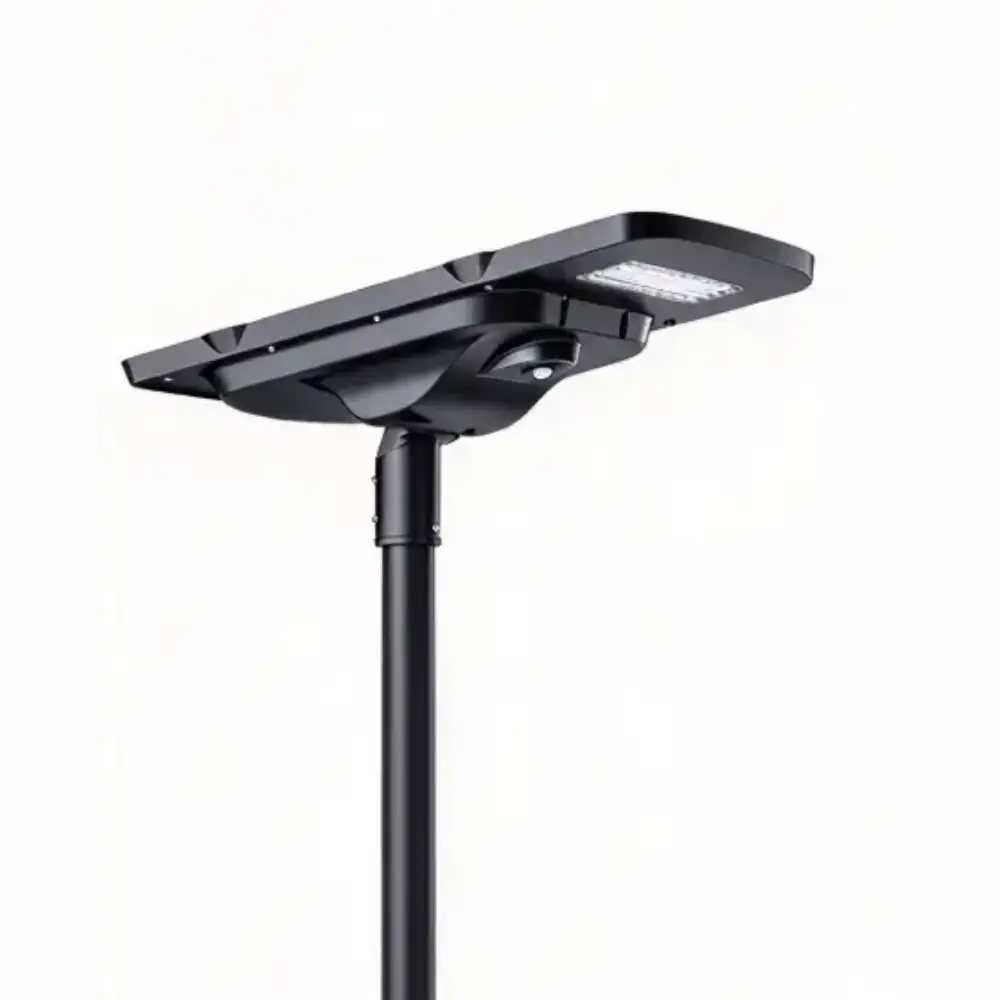

The SKX-S-LD-YC features an integrated microwave motion sensor for adaptive lighting control. When people or vehicles are detected, the lamp can increase its lighting output. When movement is no longer detected, the lighting output can be reduced according to the configured lighting strategy.
The intelligent controller also supports functions including battery low-voltage protection, automatic restart, low-power sleep operation and operating data recording. The system can use different control strategies according to project requirements.
The SKX-S-LD-YC uses a LiFePO4 lithium iron phosphate battery for energy storage. The YC30 configuration uses a 12.8V 24Ah battery, while the YC50 configuration uses a 12.8V 36-42Ah battery.
The supplied product specification indicates a battery cycle life of more than 1,000 cycles. Battery capacity can also be reviewed according to the required lighting power, operating hours, local solar conditions and project requirements.
The SKX-S-LD-YC uses Bridgelux 5050 LED light sources with a reported luminous efficacy of 180-200 lm/W and a stated light source lifetime of 50,000 hours.
The PC batwing light distribution lens is designed to provide a wider and more uniform distribution of light across the target outdoor area. The optical design helps direct the light toward the intended road and surrounding area.
The SKX-S-LD-YC series can be configured according to different project requirements. FORLEAVES can review the required lighting hours, brightness levels, battery capacity, solar panel capacity and control method to determine a suitable configuration for the application.
Depending on the project requirements, customization can include:
For example, a project may require higher brightness during the first part of the night, reduced brightness during low-traffic hours and increased brightness when movement is detected. The lighting schedule, dimming ratio and sensing strategy can be reviewed according to the project requirements.
Battery capacity and solar panel power can also be evaluated according to the required daily operating hours, local solar conditions and expected lighting load. This allows the all-in-one solar street light to be configured for different climates, road types and project conditions.
FORLEAVES supports customized solar street light solutions for OEM and project applications. Customers can provide the required LED power, installation height, daily lighting hours, control method, battery capacity, project location and quantity for configuration review and quotation.

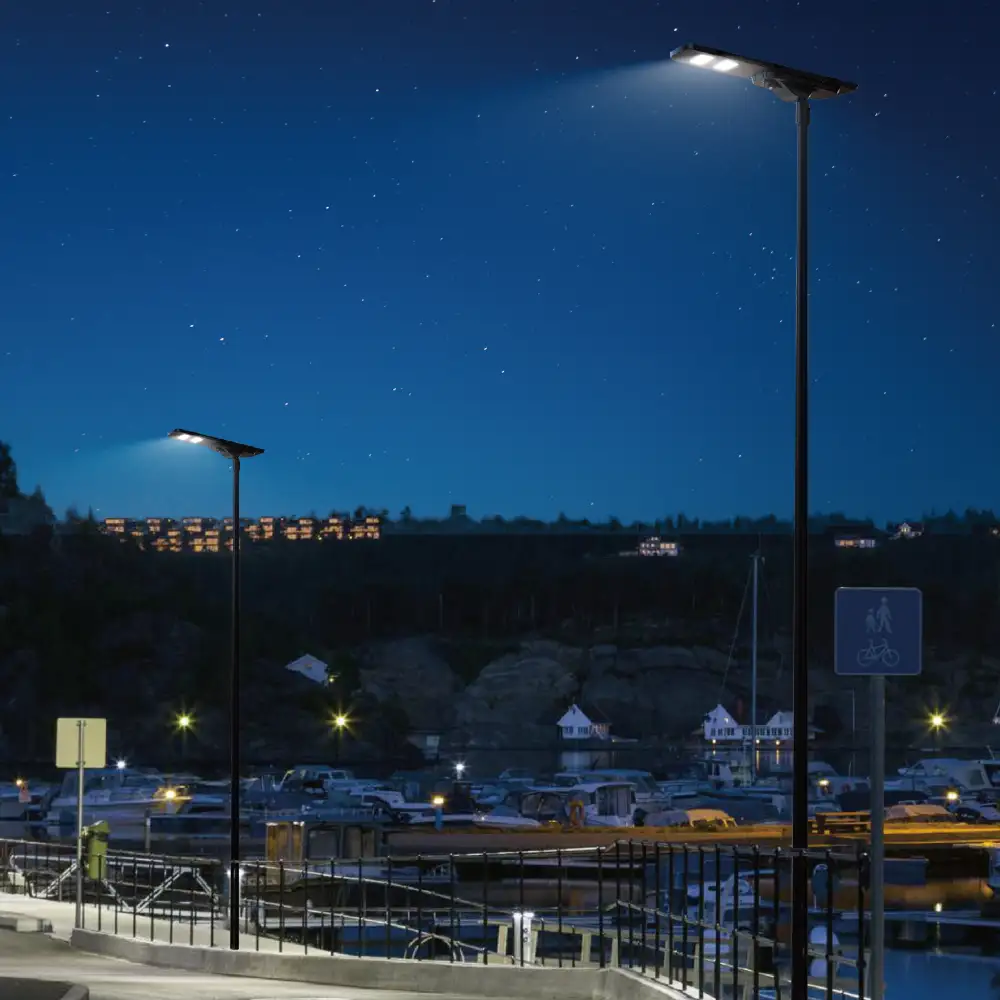

The SKX-S-LD-YC series is suitable for outdoor road and area lighting projects where standalone solar lighting and intelligent lighting control are required.
The SKX-S-LD-YC30 is recommended for installation heights of approximately 4-6m, while the SKX-S-LD-YC50 is recommended for approximately 6-8m. The actual mounting height, pole spacing and lighting arrangement should be determined according to the road layout, installation environment and required lighting performance.
FORLEAVES offers different all-in-one solar street light configurations for road, residential, commercial and industrial lighting projects. Related models include:
Different models can be selected according to LED power, solar panel capacity, battery capacity, installation height and control requirements. For project applications, FORLEAVES can also review customized configurations according to the customer's requirements.
Q1: What is an all-in-one solar street light?
A1: An all-in-one solar street light integrates the solar panel, battery, LED light source and solar controller into one lighting unit. The SKX-S-LD-YC series also integrates a microwave motion sensor for intelligent lighting control.
Q2: What battery does the SKX-S-LD-YC use?
A2: The SKX-S-LD-YC uses a LiFePO4 lithium iron phosphate battery. The YC30 uses a 12.8V 24Ah battery, while the YC50 uses a 12.8V 36-42Ah battery.
Q3: What solar panel capacity is used?
A3: The YC30 uses an 18V 40-60W solar panel, while the YC50 uses an 18V 80-100W solar panel.
Q4: Does this solar street light have a microwave motion sensor?
A4: Yes. The SKX-S-LD-YC has a built-in microwave motion sensor. The lighting output can be adjusted according to detected movement and the configured lighting strategy.
Q5: What is the difference between the YC30 and YC50?
A5: The YC30 is rated at 20-33W and is recommended for approximately 4-6m installation heights. The YC50 is rated at 43-50W and is recommended for approximately 6-8m installation heights. They also use different battery and solar panel capacities.
Q6: Can the daily lighting hours be customized?
A6: Yes. The lighting schedule can be configured according to project requirements. Full-brightness hours, reduced-brightness periods and overall daily operating time can be reviewed according to the application.
Q7: Can the battery capacity be customized?
A7: Yes. The LiFePO4 battery capacity can be reviewed according to the required lighting power, daily operating hours, local solar conditions and project requirements.
Q8: Can the solar panel power be customized?
A8: Yes. The solar panel capacity can be reviewed according to the lighting load, battery capacity, local solar conditions and required operating schedule.
Q9: What control methods are available?
A9: Depending on the project requirements, control strategies can include dusk-to-dawn light control, time-based control, microwave motion sensing, dimming and combinations of these functions.
Q10: What LED chip is used?
A10: The SKX-S-LD-YC uses Bridgelux 5050 LED technology. The supplied specification states a luminous efficacy of 180-200 lm/W and a light source lifetime of 50,000 hours.
Q11: What color temperatures are available?
A11: The listed color temperatures are 4000K, 5000K and 6500K. CRI options are listed as 70 and 80.
Q12: Can the lamp be installed horizontally or vertically?
A12: Yes. The SKX-S-LD-YC supports both horizontal and vertical installation, and the mounting sleeve angle can be adjusted according to the installation requirements.
Q13: What is the IP rating of the SKX-S-LD-YC?
A13: The product has an IP65 protection rating and IK08 impact protection rating.
Q14: What type of roads can use this solar street light?
A14: The product can be considered for urban roads, residential roads, rural roads, non-motorized lanes, commercial streets, access roads and other outdoor lighting applications.
Q15: Can the solar street light operate without grid electricity?
A15: Yes. The SKX-S-LD-YC is designed as a standalone solar lighting system with its photovoltaic panel, LiFePO4 battery and controller integrated into the lighting unit. Actual operating performance depends on local solar conditions, lighting configuration and system settings.
Q16: How are solar street lights packaged for shipment?
A16: The solar street lights are packed with suitable protective materials to protect the lamp body, solar panel, battery and other components during transportation. Reinforced export packaging or wooden-crate packaging can be considered for larger project orders according to product quantity and shipping requirements.
Q17: Can the solar street lights be shipped by sea?
A17: Yes. Sea freight, air freight or international express delivery can be considered according to order quantity, destination and delivery requirements. For project quantities, sea freight is generally evaluated based on shipment volume and destination.
Q18: What shipping terms are available?
A18: Shipping and trade terms can be quoted according to the project and destination. Depending on the order, terms such as EXW, FOB, CIF or DAP can be considered.
Q19: Can the solar street light be customized for a project?
A19: Yes. FORLEAVES can review requirements such as LED power, solar panel capacity, battery capacity, daily lighting hours, dimming schedule, control method, color temperature, mounting configuration and project quantity.
Q20: What information should I provide for a customized solar street light?
A20: Useful project information includes installation height, road or area application, required LED power, daily lighting hours, preferred control method, project location, battery backup requirement and estimated quantity. FORLEAVES can then review the configuration and provide a suitable proposal.
The SKX-S-LD-YC Combatant Series combines solar power generation, LiFePO4 energy storage, LED lighting, MPPT charging control and microwave motion sensing in one integrated solar street light. With 20-33W and 43-50W standard configurations, the series can be considered for different road and outdoor lighting projects.
For project applications, FORLEAVES can also review customized configurations based on customer requirements, including lighting hours, battery capacity, solar panel capacity, dimming schedule and control method.
