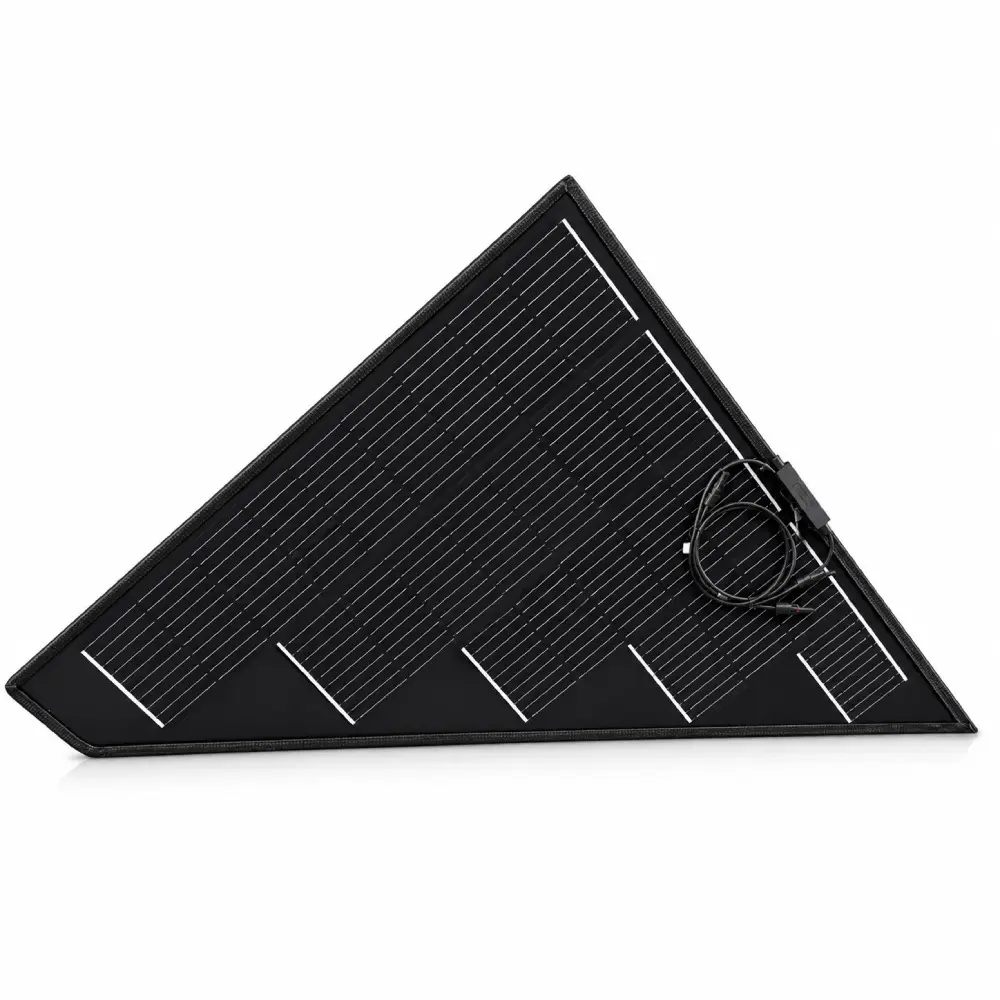

FL-174-DG 174W Black Double Glass Frameless Triangular Trapezoidal Solar Panel for BIPV Architectural Roof

FL-174-DG 174W black double glass frameless triangular trapezoidal solar panel for BIPV gable roof

P/N: FL-174-DG

174W Black Double Glass Triangular Trapezoidal Panel

Overall Dimension: 1165 mm × 1198 mm × 8 mm

Frameless Optional Frame, 3.2mm Glass for BIPV

FL-174-DG 174W Black Double Glass Frameless Triangular Trapezoidal Solar Panel for BIPV Architectural Roof

FL-174-DG is a high-power custom triangular & trapezoidal photovoltaic module constructed with dual 3.2mm black tempered glass layers, supporting frameless minimalist design plus optional matching aluminum frame. Rated at 174W peak power and 27.26V Vmp, this full-black aesthetic solar panel equips standard MC4 cables, perfectly matched for large gable roofs, commercial irregular facades, sunroom skylights and high-end BIPV architectural integration projects.

Unlike regular rectangular solar modules, its unique triangular trapezoidal contour fills large roof edge gaps completely, delivering unified all-black glass appearance to meet architects and BIPV contractors’ dual demands of power output and building decorative aesthetics.

Technical Specifications

Model Number: FL-174-DG
Nominal Power (Pmax): 174 Wp
Power Tolerance: +/-5 %
Voltage at Maximum Power (Vmp): 27.26V
Current at Maximum Power (Imp): 6.38A
Open‑circuit Voltage (Voc): 31.85V
Short‑circuit Current (Isc): 6.76A
Rated System Voltage: 1500 V
Front Glass: 3.2 mm tempered glass
Backsheet: 3.2 mm tempered glass
Encapsulant: EVA
Connector: MC4‑compatible
Cable: 4.0mm²‑1000 mm length
Max Mechanical Load: 5400 Pa
Overall Dimension: 1165 mm × 1198 mm × 8 mm, triangular trapezoidal profile

Key Product Advantages

Dual-layer 3.2mm black tempered double glass, outstanding anti-hail, anti-UV and anti-corrosion performance for long-term all-climate outdoor building installation
Dual installation options: borderless ultra-thin frameless design or reinforced aluminum frame for high wind/snow load regions
Triangular trapezoidal special shape designed for large-area gable roof gap filling, maximizing usable rooftop power generation space
Uniform full-black glass surface, highly integrated with modern villa and commercial building facade design without visual fragmentation
Standard MC4 plug with fixed-length cables, freely series-parallel connected to match high-voltage BIPV system string layout
5400Pa high front mechanical load rating, stable operation under strong wind and heavy snow weather conditions
Full OEM & ODM customization of size, power, voltage, glass color and frame style for exclusive architectural project design

Main Application Scenarios

This high-power 174W black double glass triangular trapezoidal PV panel targets large-scale aesthetic building photovoltaic construction:

Large villa gable triangular roof BIPV power station
Commercial building irregular slope roof & facade photovoltaic decoration
Sunroom, glass canopy and large skylight integrated solar power system
High-end real estate landscape integrated photovoltaic renovation projects
Custom off-grid power supply for architectural scenic constructions

Related Custom BIPV Solar Modules

140W Double Glass Triangular Solar Panel | Custom Trapezoidal BIPV Solar Panel | Special‑Shaped Double Glass Solar Module | 125W Black Double Glass Triangular Solar Panel

The above links show our mature customized special-shaped BIPV reference cases. All triangular and trapezoidal solar panels are fully tailor-made based on architectural drawings, with no fixed standard specifications or stock goods. Contact our technical team for exclusive customized BIPV project solutions.

Full OEM & ODM Custom Service

FORLEAVES provides one-stop customized PV development for architectural design firms and BIPV engineering contractors:

Custom triangular/trapezoidal side length, outline and dimension per construction drawing requirements
Adjust power, Vmp and Voc to match building energy storage and high-voltage power systems
Select black/transparent tempered glass, adjust single/double glass thickness as project needs
Optional frameless design or color-matched aluminum alloy mounting frame
Replace MC4 connector, customize wire gauge and cable length for site wiring layout

Send your architectural drawings and electrical parameter demands to our dedicated BIPV project mailbox: info@forleaves.com Our technical team will provide customized drawings and formal quotation within 24 working hours.

FAQ

Q1: What advantages does 174W triangular trapezoidal double glass panel have for large gable roofs?
A: The large power rating improves single-panel output, while the trapezoidal triangle shape fully fills roof edge gaps; double black glass balances long outdoor durability and unified architectural visual effect.

Q2: Can I choose frameless or framed structure for FL-174-DG?
A: Two options available: ultra-slim frameless for minimalist aesthetics, aluminum frame for extra structural protection in harsh wind/snow regions.

Q3: Are triangular trapezoidal panels standard stock products?
A: All irregular BIPV PV modules are fully customized without fixed specs or inventory, all dimensions and electrical parameters produced per client architectural drawings.

Q4: What is the MOQ for custom 174W triangular solar panels?
A: Standard minimum order quantity is 50 pieces, small trial batches are acceptable with adjusted unit pricing based on customization complexity.

Q5: How long is mass production lead time after order confirmation?
A: General production cycle is around 3 weeks; exact delivery schedule depends on order quantity, glass process and frame customization requirements.

Q6: What factory warranty do you offer for this double glass module?
A: 5-year official factory warranty covering all manufacturing defects; extended warranty terms negotiable for large long-term BIPV cooperation.

Q7: How are large glass solar panels packed for long-distance shipment?
A: Reinforced export wooden case packaging with full shockproof filling to prevent breakage during sea and air freight transportation.

Q8: What international shipping options are supported for bulk BIPV orders?
A: Sea freight, air cargo and door-to-door international express are available; sea transport recommended for large construction projects to cut logistics cost.

Q9: Can I request pre-production samples for project validation?
A: Custom sample service supported, sample cost and lead time quoted separately based on your size, glass and electrical custom demands.

Q10: What temperature range can this triangular trapezoidal panel operate stably?
A: Stable power generation performance from -40℃ to +85℃, suitable for year-round outdoor installation in most global climate zones.

Need custom high-power 174W triangular trapezoidal double glass solar panels for your BIPV & gable roof project?
FORLEAVES offers full triangular trapezoidal PV OEM design, glass & frame customization and bulk supply for construction and solar engineering firms. Send your architectural drawing to receive a free tailored quotation via mailbox:

info@forleaves.com
