FLG-25W-24° 25W 24-degree sector glass solar panel for solar flower tracking system
P/N: FLG-25W-24°
25Wp
Vmp 21.6V
Voc 25.2V
24° Sector Glass
775mm Height
Single or Double Glass
Solar Flower

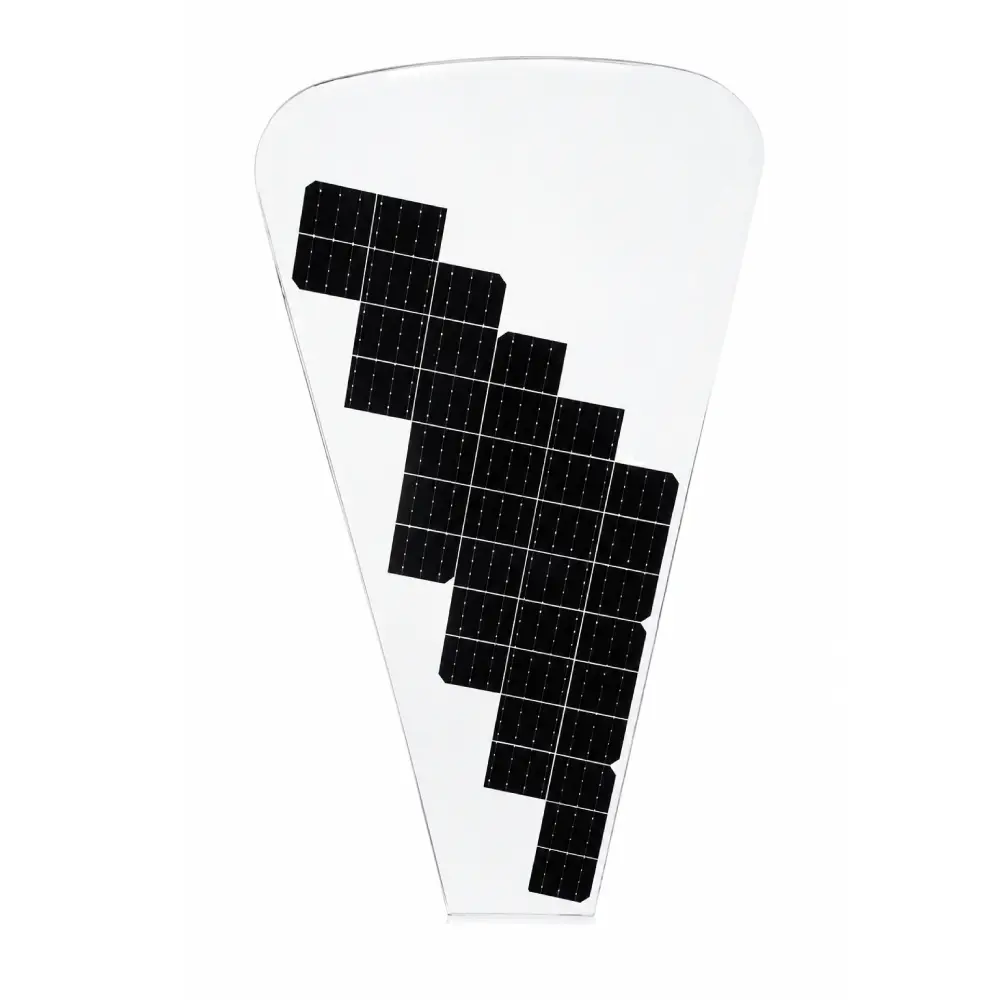

FLG-25W-24° is a 25Wp 24-degree sector-shaped glass solar panel designed for solar flower structures, solar tracking systems and other special-shaped photovoltaic applications. The panel uses monocrystalline solar cells and provides a Vmp of 21.6V and a Voc of 25.2V, with an overall height of 775mm.
The narrow 24-degree sector geometry allows multiple panels to be arranged radially around a central structure, making it suitable for solar flower and photovoltaic tracking concepts where individual solar panels form the petals of a larger system. When arranged as a complete 360-degree circular configuration, fifteen 24-degree sections can form one full circle. The panel is available in either single-glass or double-glass construction according to project requirements.
The FLG-25W-24° is designed for photovoltaic structures where multiple narrow solar panels are arranged radially around a central support or tracking mechanism. This configuration is particularly suitable for solar flower concepts in which the solar panels form individual petals.
140W 60-Degree Flower-Shaped Flexible ETFE Solar Panel | 200W 90-Degree Quarter-Circle Glass Solar Panel | 140W Double Glass Triangular Solar Panel | 125W Black Double Glass Triangular Solar Panel
FORLEAVES manufactures custom-shaped solar panels for solar flowers, tracking systems, landscape structures, architectural projects and other applications where conventional rectangular modules cannot meet the required geometry. Our special-shaped PV solutions include sector, flower-shaped, triangular, trapezoidal and other irregular configurations in glass and flexible constructions.
FORLEAVES provides project-based customization for solar tracking system manufacturers, landscape designers, architectural projects, photovoltaic structure manufacturers and OEM customers. The panel geometry and electrical configuration can be considered according to the required solar flower structure and tracking mechanism.
Send your solar flower design, tracking mechanism drawing, required dimensions and electrical requirements to our project mailbox: info@forleaves.com. Our engineering team can review the project requirements and provide a corresponding custom configuration and quotation.
Q1: What is a 24-degree sector solar panel?
A1: A 24-degree sector solar panel is a special-shaped photovoltaic module designed as one section of a circular or radial structure. Multiple 24-degree panels can be arranged around a central point to create a circular or flower-shaped photovoltaic system.
Q2: What is the FLG-25W-24° used for?
A2: The FLG-25W-24° is mainly intended for solar flower concepts, solar tracking systems, decorative photovoltaic structures and other applications where multiple sector-shaped solar panels form the petals or radial sections of a larger structure.
Q3: How many 24-degree panels are needed to form a complete circle?
A3: A full 360-degree circle can theoretically be formed by fifteen 24-degree sections. The actual number and arrangement of panels in a solar flower or tracking system depend on the mechanical structure and the customer's design concept.
Q4: What is the power output of the FLG-25W-24°?
A4: Each FLG-25W-24° panel has a nominal power output of 25Wp, with a Vmp of 21.6V and a Voc of 25.2V.
Q5: What is the height of the 24-degree solar panel?
A5: The specified overall height of the FLG-25W-24° is 775mm. Other dimensions can be considered according to the customer's solar flower structure and installation requirements.
Q6: Is the FLG-25W-24° available with both single glass and double glass?
A6: Yes. The FLG-25W-24° can be configured with either single-glass or double-glass construction according to the structural, weight and application requirements of the project.
Q7: Can the sector angle be customized?
A7: Yes. FORLEAVES can manufacture special-shaped solar panels according to customer drawings and project requirements. The sector angle, dimensions and panel geometry can be evaluated according to the required number of petals and mechanical arrangement.
Q8: Can the electrical parameters be customized?
A8: Yes. Power, voltage, current and cell configuration can be considered according to the customer's battery, controller and solar tracking system requirements. The FLG-25W-24° configuration shown on this page provides 25Wp, 21.6V Vmp and 25.2V Voc.
Q9: Can this type of panel be used on a solar tracking system?
A9: Yes. Sector-shaped solar panels can be integrated into solar flower or other photovoltaic tracking structures where the panels are arranged as individual petals or radial sections. The final mechanical connection and tracking system should be designed according to the specific project structure.
Q10: How are the glass solar panels packaged for shipment?
A10: Special-shaped glass solar panels are packed in reinforced export wooden crates with suitable internal protection to reduce the risk of glass breakage, edge damage and movement during transportation. The final packing method can be determined according to the panel dimensions, quantity and shipping method.
Q11: Can these solar panels be shipped by sea or air?
A11: Yes. Sea freight, air freight and international express delivery can be considered depending on the order quantity, destination and delivery requirements. For larger quantities, sea freight is generally more suitable, while samples and small trial orders can be arranged by air or express shipment.
Q12: What shipping terms are available for the FLG-25W-24° solar panel?
A12: Shipping and trade terms can be arranged according to the project requirements and destination. Depending on the order, FORLEAVES can quote on terms such as EXW, FOB, CIF, DAP or other mutually agreed arrangements. Freight cost and final delivery terms are confirmed according to the specific quantity, destination and shipping method.
Q13: Is FLG-25W-24° a standard stock solar panel?
A13: No. This type of special-shaped solar panel is normally manufactured according to the customer's required geometry, dimensions, electrical configuration and application. The FLG-25W-24° shown on this page represents one customized configuration rather than a conventional rectangular stock module.
