FLG-200W-90° 200W 90-Degree Quarter-Circle Glass Solar Panel for Solar Street Lights

FLG-200W-90° 200W 90-degree quarter-circle glass solar panel for circular solar street light

P/N: FLG-200W-90°

200Wp

19.24V Vmp

90° Quarter-Circle Glass PV

R1173mm

Custom Solar Panel for Circular Street Lights

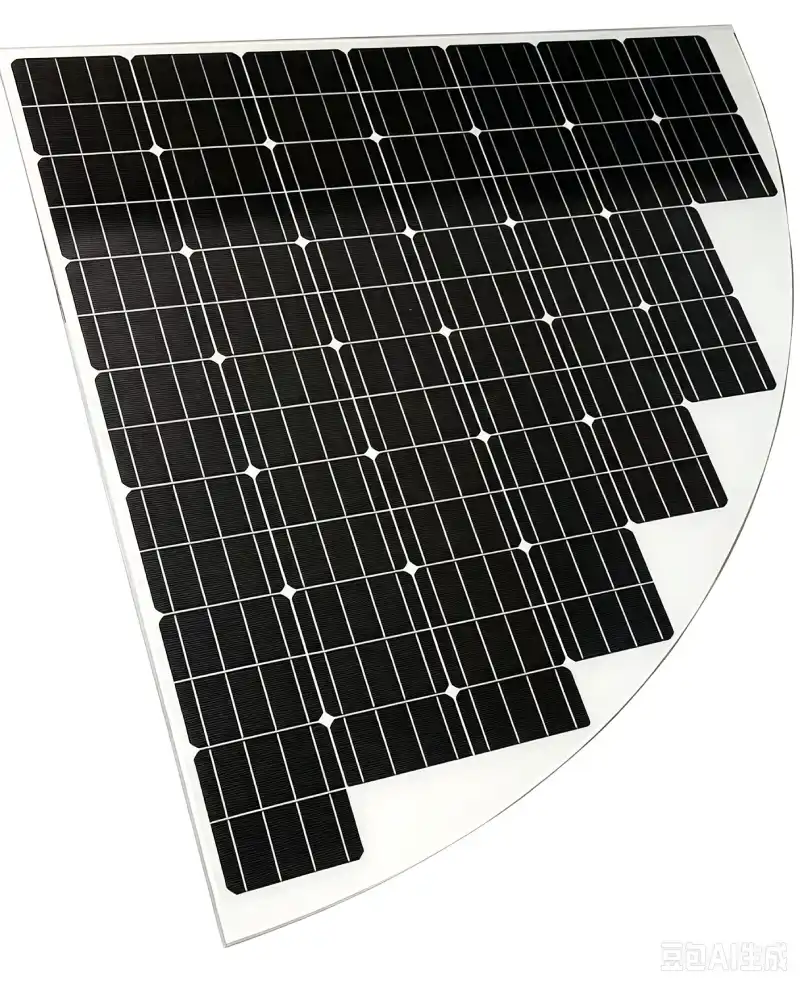

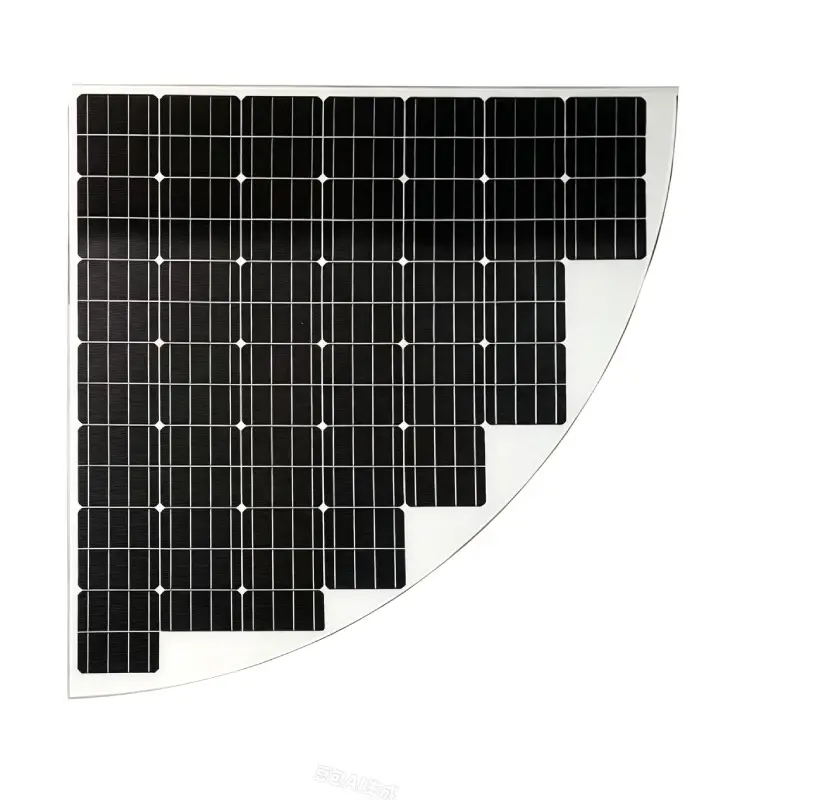

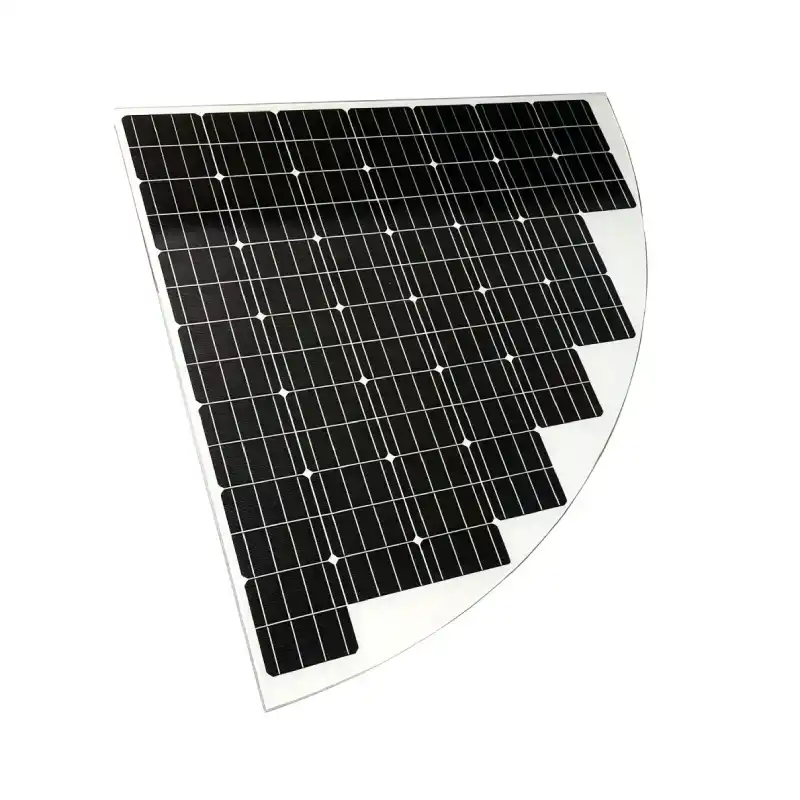

FLG-200W-90° 200W 90-Degree Quarter-Circle Glass Solar Panel

FLG-200W-90° is a 200Wp 90-degree quarter-circle glass solar panel designed for circular and curved solar lighting structures. It uses 3.2mm photovoltaic glass and provides 19.24V Vmp output with a 1173mm radius. Four 90-degree panels can be assembled into a complete circular photovoltaic surface, making the configuration suitable for round solar street light poles, landscape lighting columns and other custom outdoor lighting structures.

Unlike conventional rectangular solar panels, this quarter-circle design follows the geometry of a circular lighting structure and allows multiple modules to form a continuous photovoltaic surface around a round pole or column. The sector angle, radius, dimensions, electrical configuration and frame can be customized according to the project design.

Technical Specifications

Model Number: FLG-200W-90°
Nominal Power (Pmax): 200 Wp
Voltage at Maximum Power (Vmp): 19.24 V
Glass Type: 3.2 mm photovoltaic glass
Module Shape: 90-degree quarter-circle / sector
Radius: 1173 mm
Combination: 4 pieces form one complete circular module
Frame Option: Custom arc aluminum frame or steel bracket frame
Custom Angle: 45°, 90° or other angles according to project requirements
Application: Solar street lights, landscape lighting and custom outdoor lighting

Key Product Features

90-degree quarter-circle geometry allows four panels to form a complete circular photovoltaic surface
Designed for round solar street light poles, cylindrical structures and landscape lighting
3.2mm photovoltaic glass provides a rigid and durable module structure for outdoor applications
Customizable angle, radius, dimensions and electrical configuration according to project requirements
Custom arc-shaped aluminum or steel frame options are available according to the installation structure
Electrical parameters can be configured to match the customer's battery and MPPT charging system
Suitable for projects where a conventional rectangular solar panel cannot follow the required curved or circular geometry

Applications of 90-Degree Quarter-Circle Solar Panels

This custom quarter-circle solar panel is suitable for outdoor lighting structures that require a circular or curved photovoltaic surface rather than a conventional rectangular module.

Round-pole solar street lights
Circular solar lighting systems
Landscape lighting columns
Decorative solar lighting structures
Custom solar lighting poles
Cylindrical outdoor lighting fixtures
Architectural and landscape lighting projects

Related Custom-Shaped Solar Panels

140W Double Glass Triangular Solar Panel | 125W Black Double Glass Triangular Solar Panel | 174W Triangular Trapezoidal Double Glass Solar Panel | Custom Trapezoidal BIPV Solar Panel

FORLEAVES manufactures custom-shaped glass solar modules according to customer drawings, dimensions and electrical requirements. The 90-degree quarter-circle configuration shown on this page is one example of our special-shaped PV manufacturing capability rather than a fixed stock product. Sector, triangular, trapezoidal and other irregular solar panels can be customized for specific lighting, architectural and industrial applications.

Custom Quarter-Circle & Special-Shaped Solar Panels

FORLEAVES provides project-based customization for solar lighting manufacturers, landscape engineering companies, lighting fixture designers and other OEM customers. Solar panels can be configured according to the required geometry, installation structure and electrical system.

Customize sector angle and radius according to the required pole diameter and design drawing
Customize overall dimensions and glass shape to match the specific lighting fixture structure
Adjust power, Vmp, Imp and Voc to match the battery and MPPT charging system
Custom arc aluminum frame or steel bracket frame according to the installation structure
Custom glass thickness and other construction requirements according to project specifications
Custom cable and connector configuration can be considered for specific system requirements

Send your light pole diameter, drawing and electrical requirements to our project mailbox: info@forleaves.com. Our engineering team can review the project requirements and provide a corresponding custom configuration and quotation.

Frequently Asked Questions

Q1: What is a 90-degree quarter-circle solar panel?
A1: A 90-degree quarter-circle solar panel is a sector-shaped photovoltaic module covering one quarter of a circular geometry. Four 90-degree panels can be assembled to form a complete circular photovoltaic surface for round poles, cylindrical structures and circular solar lighting systems.

Q2: What is a quarter-circle solar panel used for?
A2: Quarter-circle solar panels are used for applications where the photovoltaic surface needs to follow a circular or curved structure. Typical applications include round-pole solar street lights, landscape lighting columns, decorative solar lighting structures and other custom outdoor lighting projects.

Q3: Can four 90-degree panels form a circular solar module?
A3: Yes. Four 90-degree sector panels can be arranged together to form a complete circular photovoltaic surface. The final diameter and mechanical configuration depend on the specified panel radius and installation structure.

Q4: Can the radius and dimensions be customized?
A4: Yes. The radius, overall dimensions and sector geometry can be customized according to the customer's light pole diameter, fixture structure and design drawing.

Q5: Can the angle be changed from 90 degrees to 45 degrees?
A5: Yes. In addition to 90-degree sector panels, FORLEAVES can manufacture other sector angles according to project requirements, such as 45 degrees. The number of sections used to form a complete circle can therefore be adjusted according to the required geometry and installation design.

Q6: Can the electrical parameters be customized?
A6: Yes. Power, Vmp, Imp and Voc can be configured according to the customer's battery, charge controller and system requirements. The FLG-200W-90° configuration shown on this page provides 200Wp with 19.24V Vmp.

Q7: Can the glass and frame be customized?
A7: Yes. Glass thickness and frame construction can be customized according to the project requirements. Depending on the installation structure, options can include a custom arc-shaped aluminum frame or a steel bracket frame.

Q8: Is this a standard stock solar panel?
A8: No. This type of special-shaped solar panel is normally manufactured according to the customer's required dimensions, radius, angle, power and installation structure. The FLG-200W-90° shown on this page represents one customized configuration rather than a fixed standard stock product.

Need a custom 90-degree quarter-circle solar panel for a circular street light or landscape lighting project?
FORLEAVES manufactures quarter-circle, sector, triangular, trapezoidal and other special-shaped solar panels according to customer drawings and project requirements. Custom angle, radius, dimensions, electrical configuration and frame construction can be considered for your application. Send your pole diameter, drawings and electrical requirements to receive a project-based quotation:

info@forleaves.com
