Product Overview

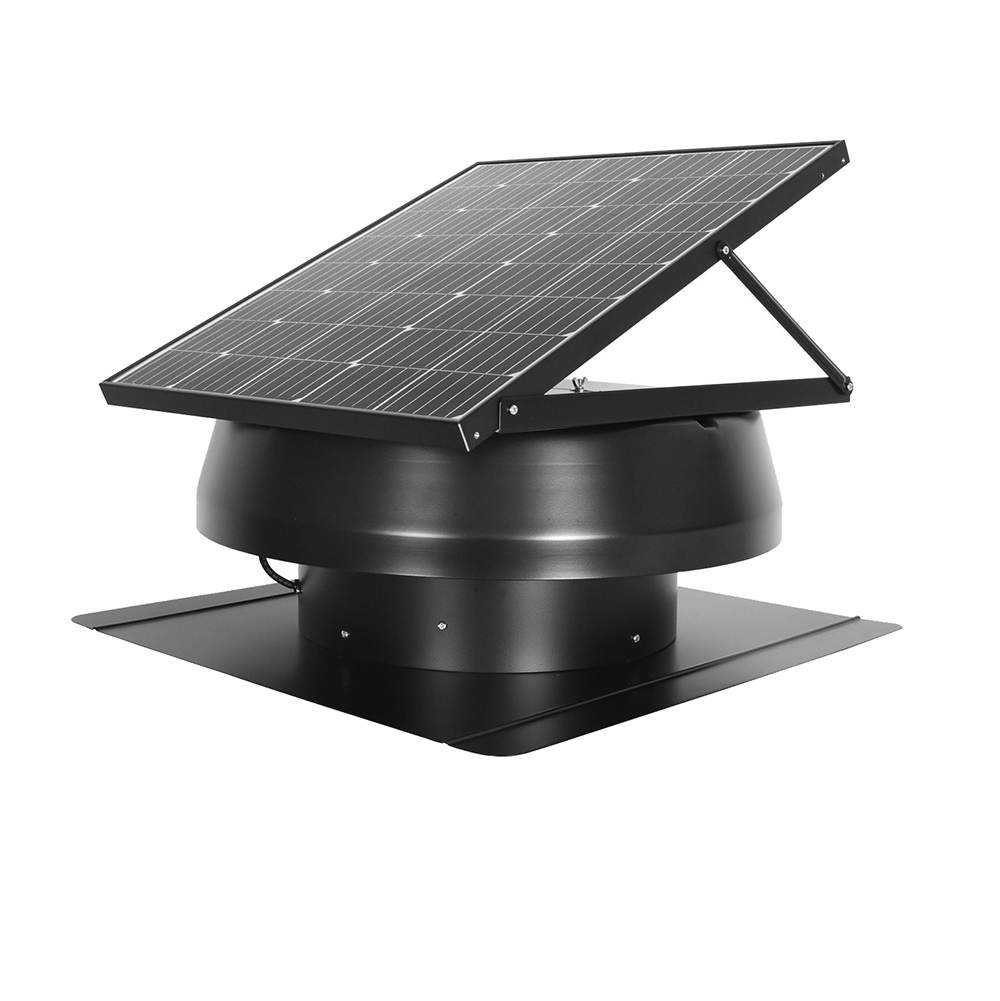

This solar roof ventilation fan is an all-in-one attic cooling and ventilation solution powered entirely by solar energy.

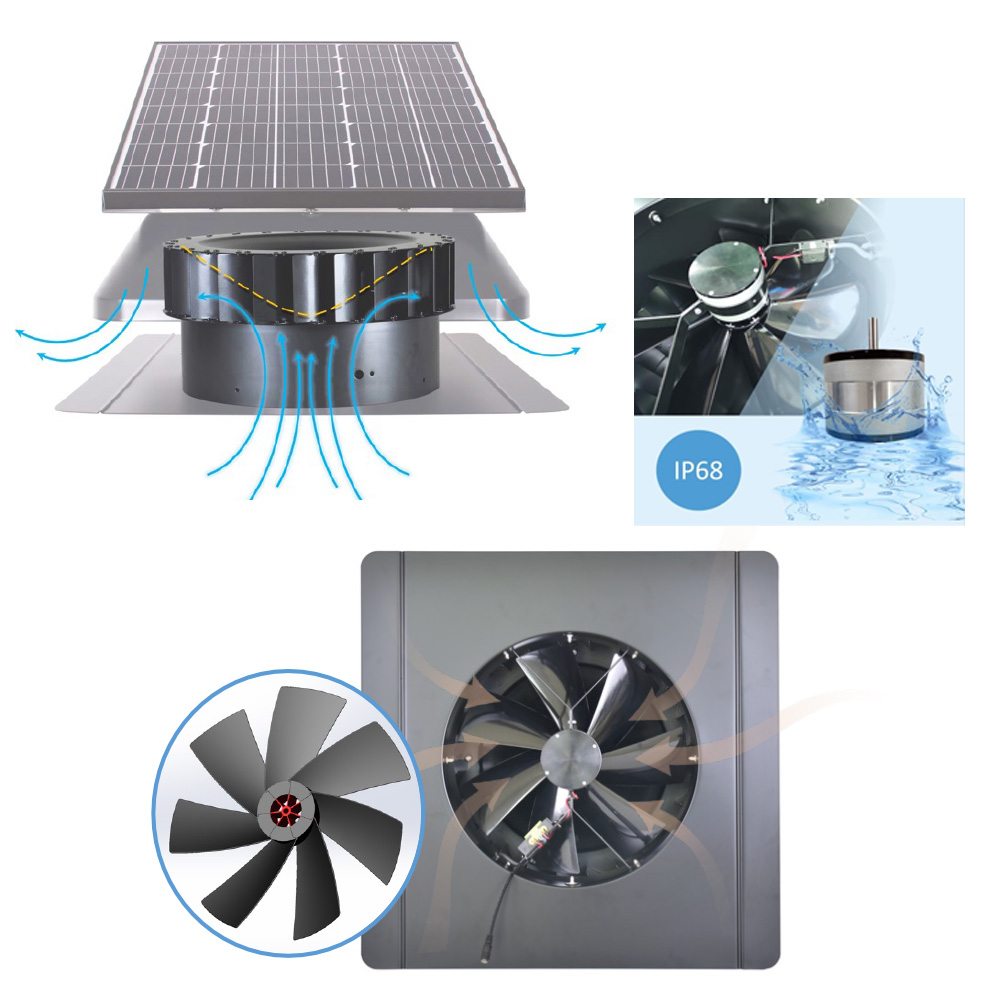

It uses a 14-inch high-performance fan, IP68 brushless DC motor, and a heavy-duty galvanized steel casing with anti-UV coating for long-term reliability.
It effectively reduces attic heat, improves airflow, prevents moisture buildup, and lowers HVAC load during hot seasons.

With optional adjustable or detachable solar panels, the system ensures maximum power capture and optimal ventilation under various roof conditions.

Key Features

Powered by high-efficiency 60W monocrystalline solar panel

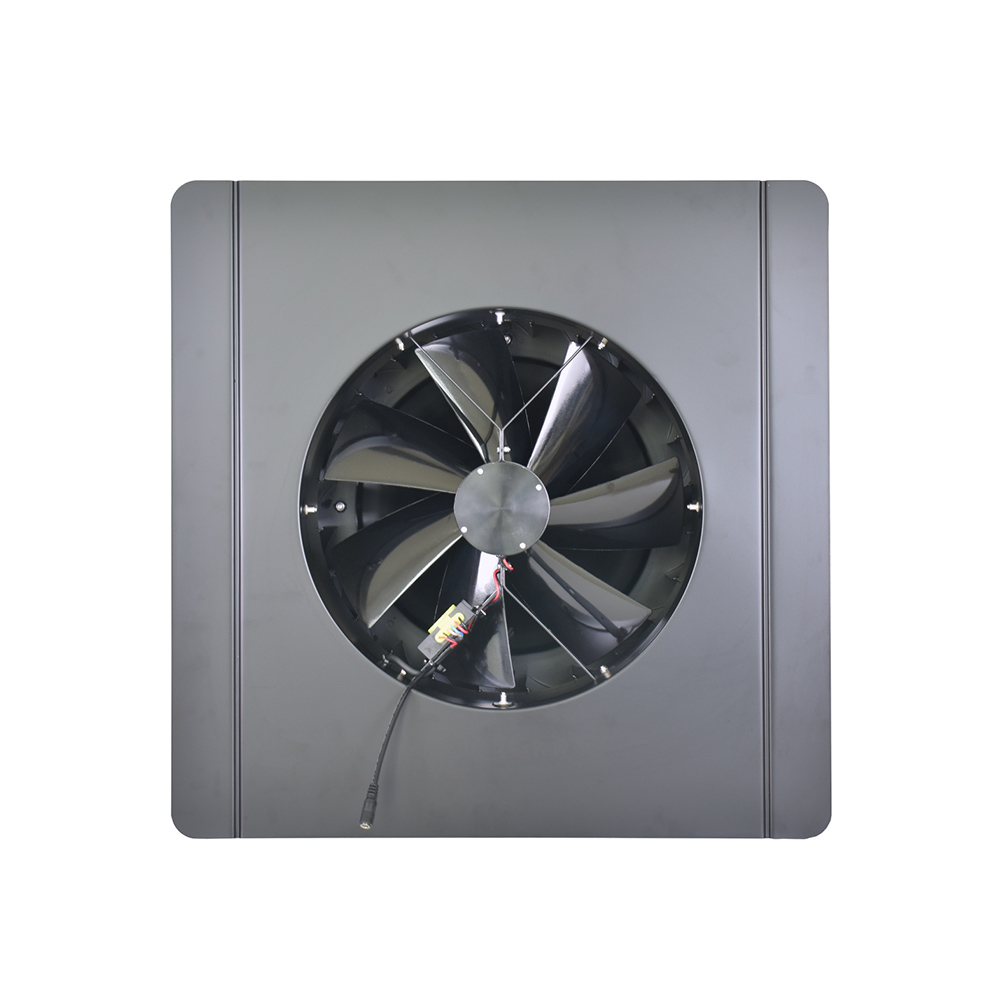

14-inch 7-blade nylon-fiberglass fan for high airflow
Brushless DC motor, IP68 waterproof rating
Galvanized steel casing with anti-rust & anti-UV powder coating
Maintenance-free, wiring-free solar operation
Optional adjustable/remote-mounted solar panel for better sun exposure
Supports accessories such as thermostat, wireless remote, backup battery, AC/DC adapter
Extends roof lifespan, prevents mold, reduces attic heat & moisture
Technical Specifications (14-inch Models)
Solar Roof Fan – 60W (14”)

Specification

Fan Blade Size 14” (Φ 368 mm)
Solar Panel Power 60W, 24V
Solar Panel Size 495 × 575 × 25 mm (adjustable)
Motor Type Brushless DC Motor, IP68
Motor Speed 1264 RPM
Airflow 2284 CMH / 1344 CFM
Fan Housing Size 600 × 600 × 255 mm
Weight 17–19 kg
Casing Material Galvanized steel with powder coating
Fan Blades 7 pcs nylon-fiberglass
Color Options Black / White / Green / Brown
Installation Asphalt / tile / metal roofs

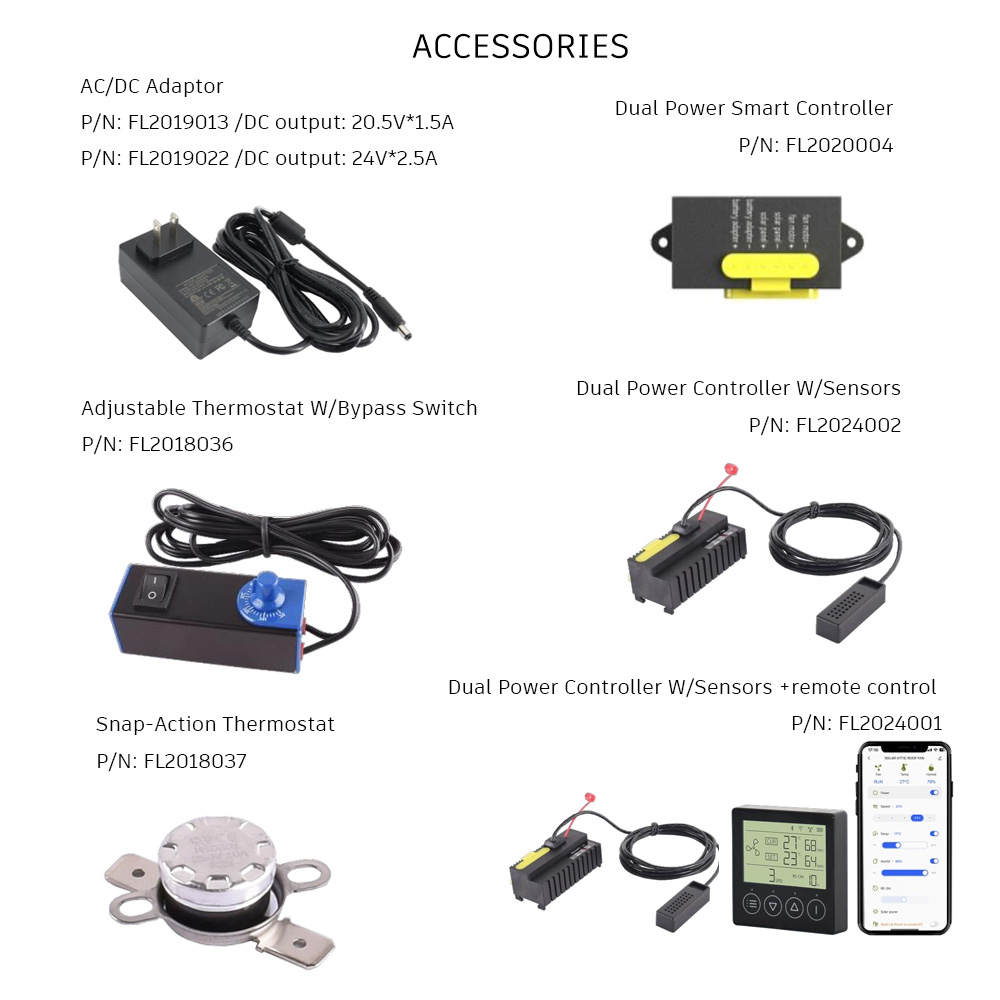

Optional Accessories

Smart controller (temperature, humidity, speed, timer)
Wireless remote controller
Adjustable thermostat / snap-action thermostat
Backup solar-charged battery pack
AC/DC adapter for nighttime operation
Additional fan guards

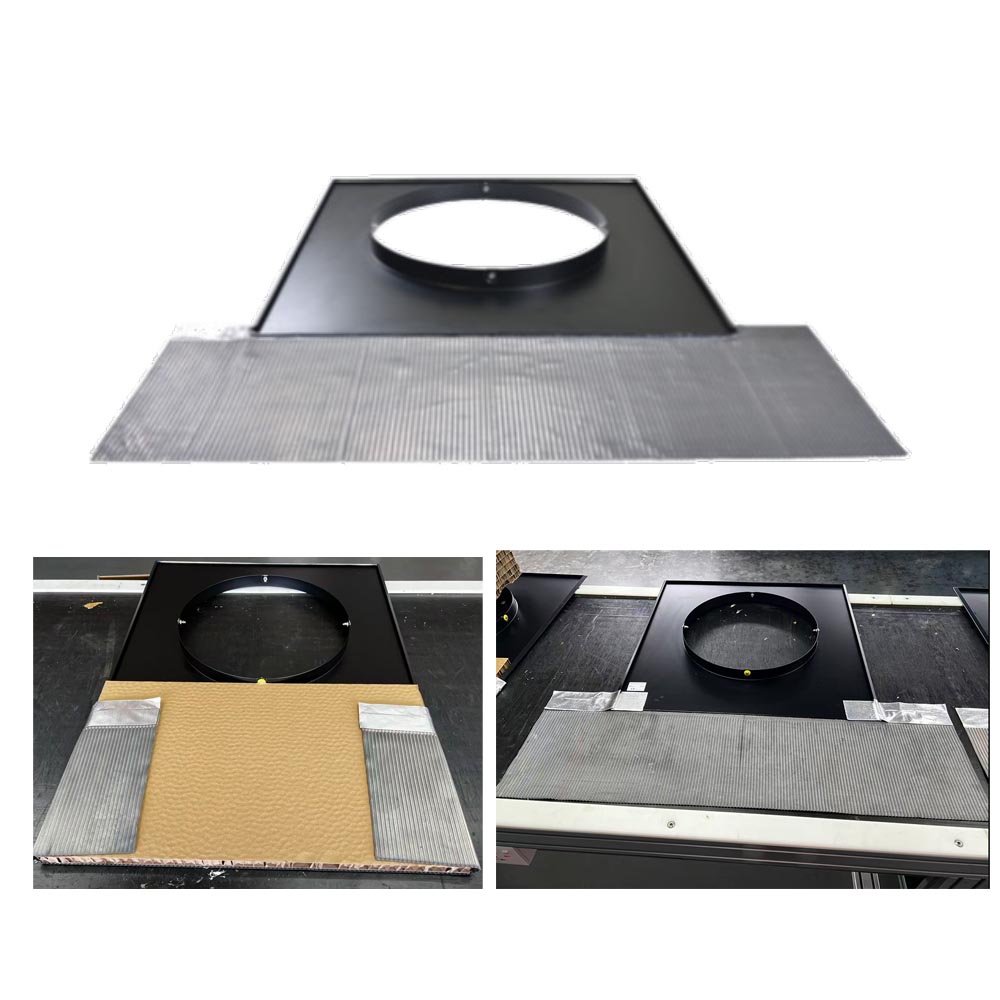

Flexible or extended fan bases
Separated / remote-mounted solar panel kit

Recommended Applications

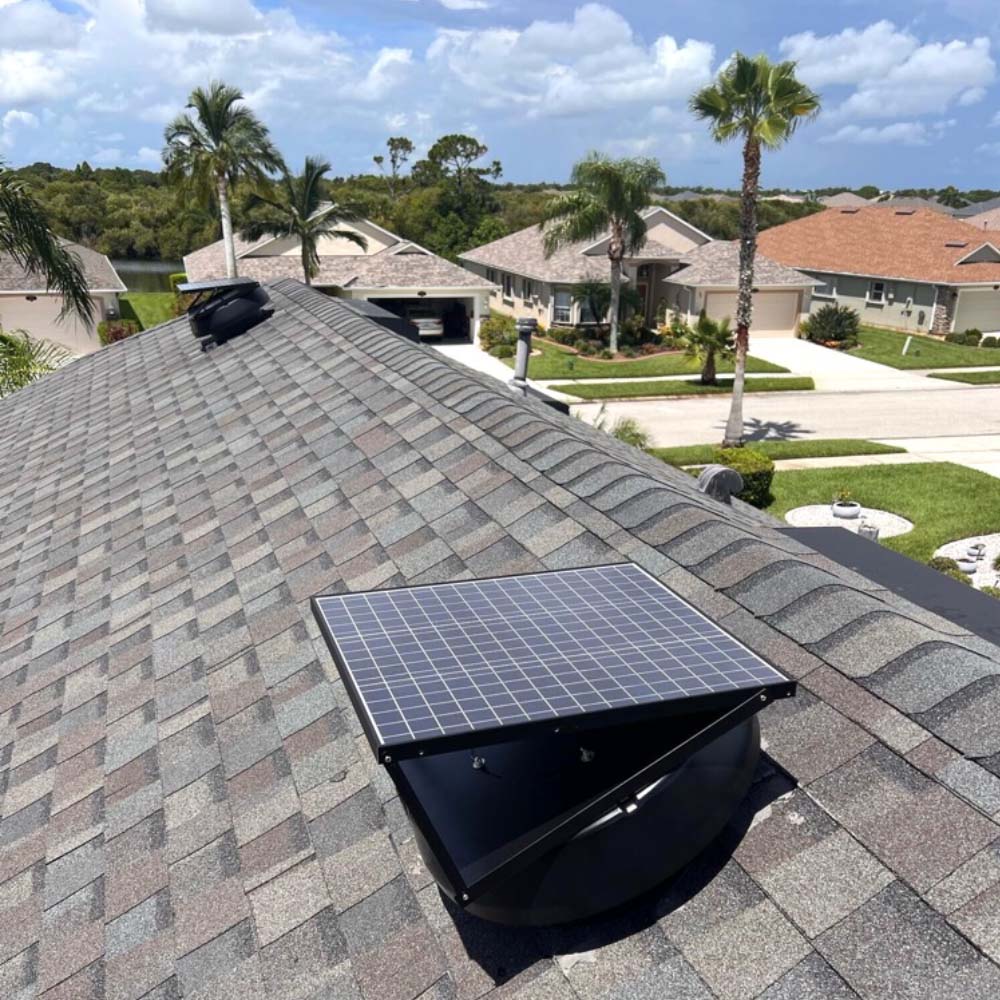

Residential attic ventilation
Warehouse / factory roof exhaust
Garage, shed, workshop ventilation
Greenhouses and agricultural buildings
Prefab houses, domes, portable buildings
Water tanks, equipment rooms

FAQ

Q1: What is the difference between 25W, 40W, and 60W models?

Higher wattage models deliver higher RPM and airflow, suitable for larger attics or areas with high heat buildup.

Q2: Can the fan run at night?

Yes, with optional backup battery or AC/DC adapter.

Q3: What roof types are compatible?

Compatible with asphalt shingles, metal roofs, S-tiles, clay tiles, and curved roofs (with optional base).

Q4: Is the motor waterproof?

Yes. The motor is IP68-rated, suitable for all outdoor weather conditions.

Q5: Can the solar panel angle be adjusted?
Yes, the 40W and 60W models include an adjustable bracket for better solar exposure.
