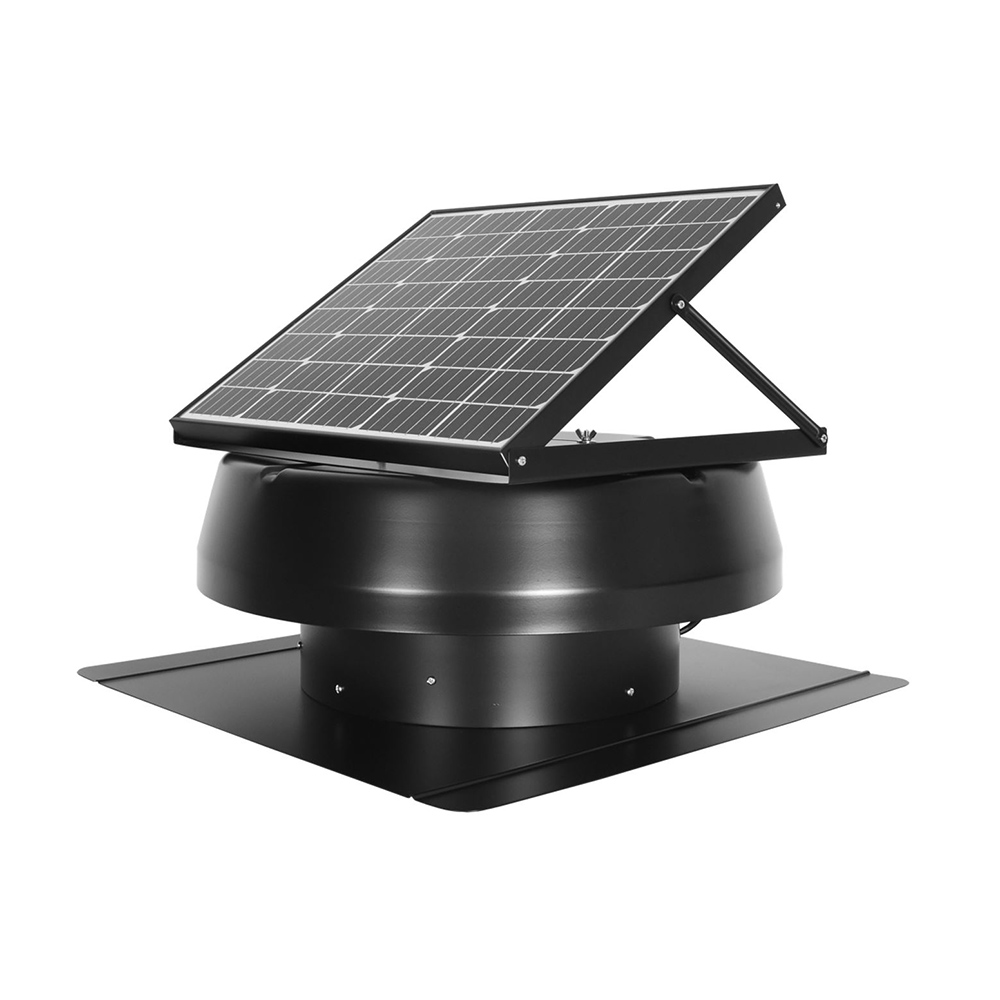

40W Solar Roof Ventilation Fan | 14 Inch Attic Exhaust Fan


FORLEAVES 40W Solar Roof Ventilation Fan FL2014008 14 Inch IP68

P/N: FL2014008

40W 14” Solar Roof Ventilation Fan

14" Nylon-Fiber-Al Fan Blades

600 x 600mm Square Metal Base

CE Certified

5-Year Warranty

24V monocrystalline panel, IP68 brushless DC motor, 1207 CFM airflow, galvanized steel housing for roof attic ventilation.

FORLEAVES 40W Solar Roof Ventilation Fan | 14 Inch Round Attic Exhaust Fan

FORLEAVES 40W Solar Roof Ventilation Fan is a mid-power solar-powered roof ventilation solution, ideal for residential attics, garages, small warehouses and greenhouses. Equipped with 40W 24V high-efficiency monocrystalline solar panel and IP68 waterproof brushless DC motor, it provides stable strong airflow to exhaust hot air, remove moisture and odor, reduce indoor temperature, save air conditioning cost and protect building roof structure. Weatherproof design fits most roof types for year-round outdoor installation.

Key Features

  • 100% solar powered, no grid electricity required, zero running cost
  • 40W 24V high-efficiency monocrystalline solar panel with adjustable bracket

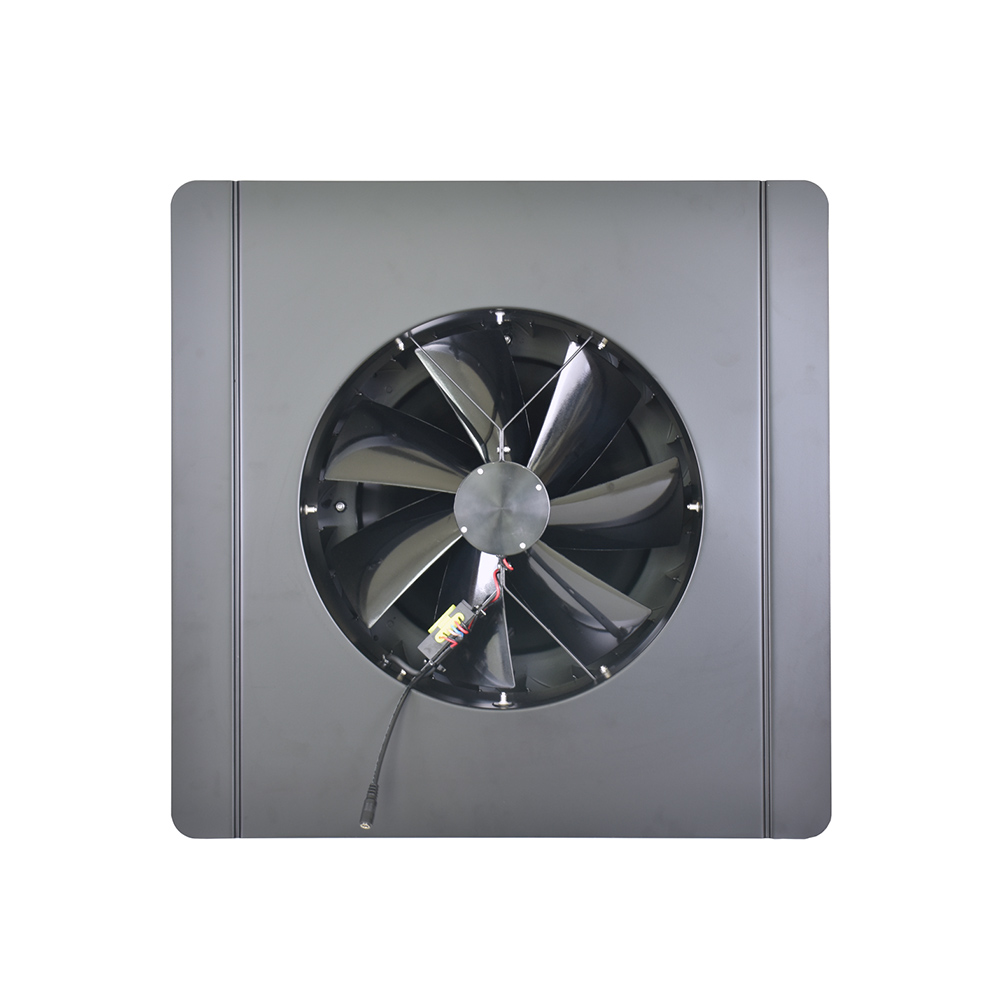

  • 14-inch 7-blade nylon-fiberglass fan blade for balanced quiet airflow
  • IP68 waterproof brushless DC motor, rainproof, dustproof and long service life
  • Powder-coated galvanized steel housing, anti-rust and UV-resistant
  • Adjustable solar panel angle to maximize sunlight absorption
  • Easy to install and compatible with most common roof types
  • Optional thermostat, smart controller, battery and AC adapter available
  • Suitable for residential, commercial and agricultural ventilation use
  • 5-year warranty for reliable long-term outdoor operation

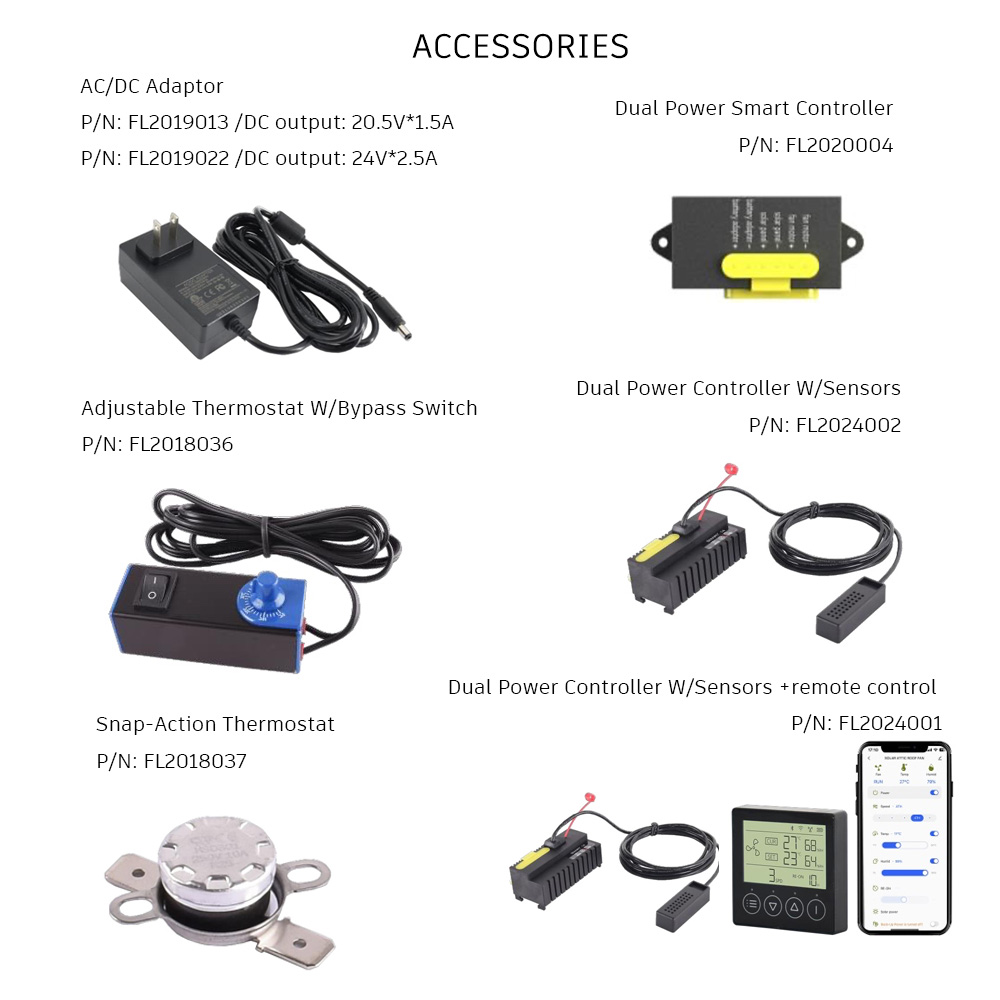

Optional Accessories

  • AC/DC Adaptor: FL2019013 / FL2019022
  • Adjustable Thermostat W/Bypass Switch: FL2018036
  • Snap-Action Thermostat: FL2018037
  • Dual Power Smart Controller: FL2020004
  • Dual Power Controller With Sensors: FL2024002
  • Dual Power Controller With Sensors & Remote: FL2024001
  • Solar Backup Battery & Remote Mount Solar Panel Kit

Technical Specifications

  • Part Number: FL2014008 [Round Fan Cover]
  • Fan Blade Size: 14” (Φ 368 mm)
  • Solar Panel: 40W, 24V Monocrystalline
  • Panel Dimensions: 415 × 495 × 25 mm
  • Motor: Brushless DC, IP68 Waterproof
  • Motor Speed: 1772 RPM
  • Airflow: 2052 CMH / 1207 CFM

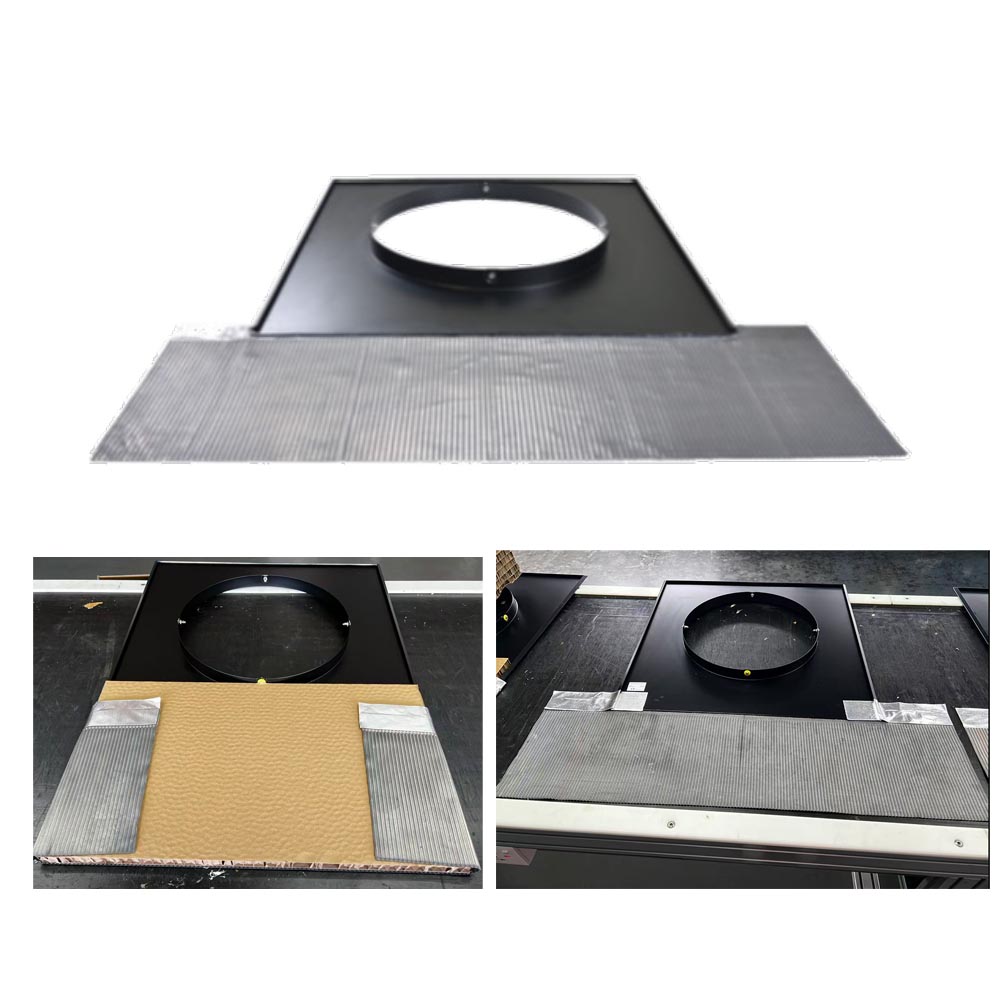

  • Housing Dimensions: 600 × 600 × 255 mm
  • Weight: 17–19 kg
  • Housing Material: Galvanized Steel with Powder Coating
  • Fan Blades: 7-Blade, Nylon-Fiberglass
  • Color Options: Black, White, Green, Brown
  • Compatible Roofs: Asphalt Shingle, Tile, Metal
  • Warranty: 5 Years

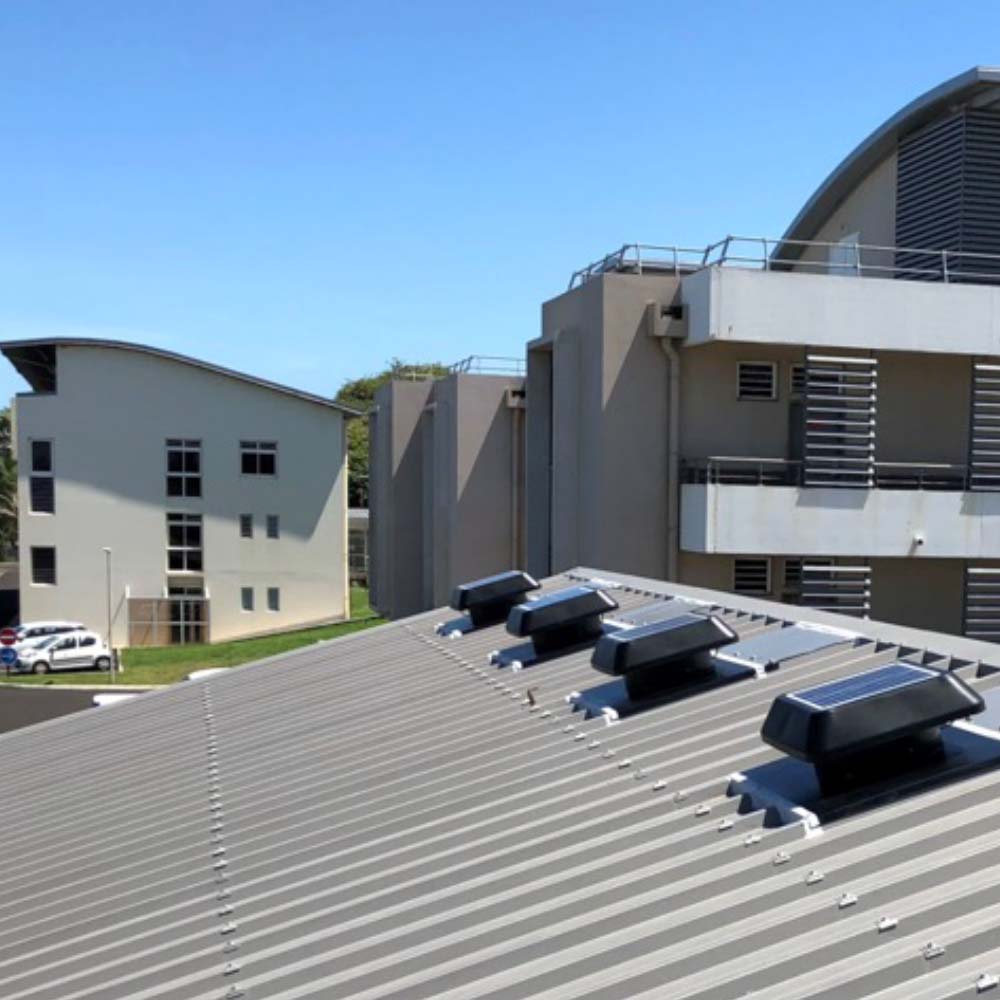

Applications

  • Residential home attic heat extraction and moisture ventilation
  • Warehouse, workshop and factory roof cooling exhaust
  • Garage, shed and storage building heat dissipation
  • Greenhouse and agricultural building air circulation
  • Prefab house, portable building and dome ventilation
  • All medium space roof temperature reduction and dehumidification

Related Products

25W Solar Roof Ventilation Fan | 60W Solar Roof Ventilation Fan | 60W Solar Roof Ventilation Fan | 60W Solar Roof Ventilation Fan (Solar Panel Separated)

FAQ - Frequently Asked Questions

Q1: Is this 40W fan fully solar powered?
A: Yes. It runs automatically by solar energy during daytime, no grid power needed, saving electricity cost completely.

Q2: What is the motor type and waterproof level?
A: Adopts brushless DC motor with IP68 waterproof grade, rainproof, dustproof and suitable for long-term roof outdoor use.

Q3: Can this fan work at night or on rainy cloudy days?
A: It works automatically under sunlight by default. You can install optional backup battery or AC/DC adapter for 24-hour continuous operation.

Q4: What roof types is this 40W fan compatible with?
A: Perfectly fits asphalt shingle roof, ceramic tile roof and metal roof for easy installation.

Q5: Do you provide optional matching accessories?
A: Yes, we supply thermostat, dual power controller, remote control, AC/DC adapter and solar backup battery kit.

Q6: Is the fan noisy when running?
A: No. Balanced 7-blade design and brushless motor structure ensure quiet and stable operation.

Q7: What is the airflow and rotating speed of this model?
A: Motor speed 1772 RPM, airflow reaches 2052 CMH / 1207 CFM for medium space ventilation.

Q8: What is the product size and weight?
A: Housing size 600×600×255mm, net weight 17–19kg, standard 14-inch round fan cover design.

Q9: What color options are available?
A: Black, White, Green, Brown optional to match different roof appearance and style.

Q10: Can the solar panel angle be adjusted?
A: Yes. The solar panel is equipped with adjustable bracket to capture maximum sunlight angle.

Q11: Is installation complicated for home users?
A: Not difficult. It comes with full installation manual and standard mounting parts, suitable for household and commercial DIY installation.

Q12: How long is the warranty period?
A: This 40W solar roof ventilation fan enjoys 5-year official manufacturer warranty.
