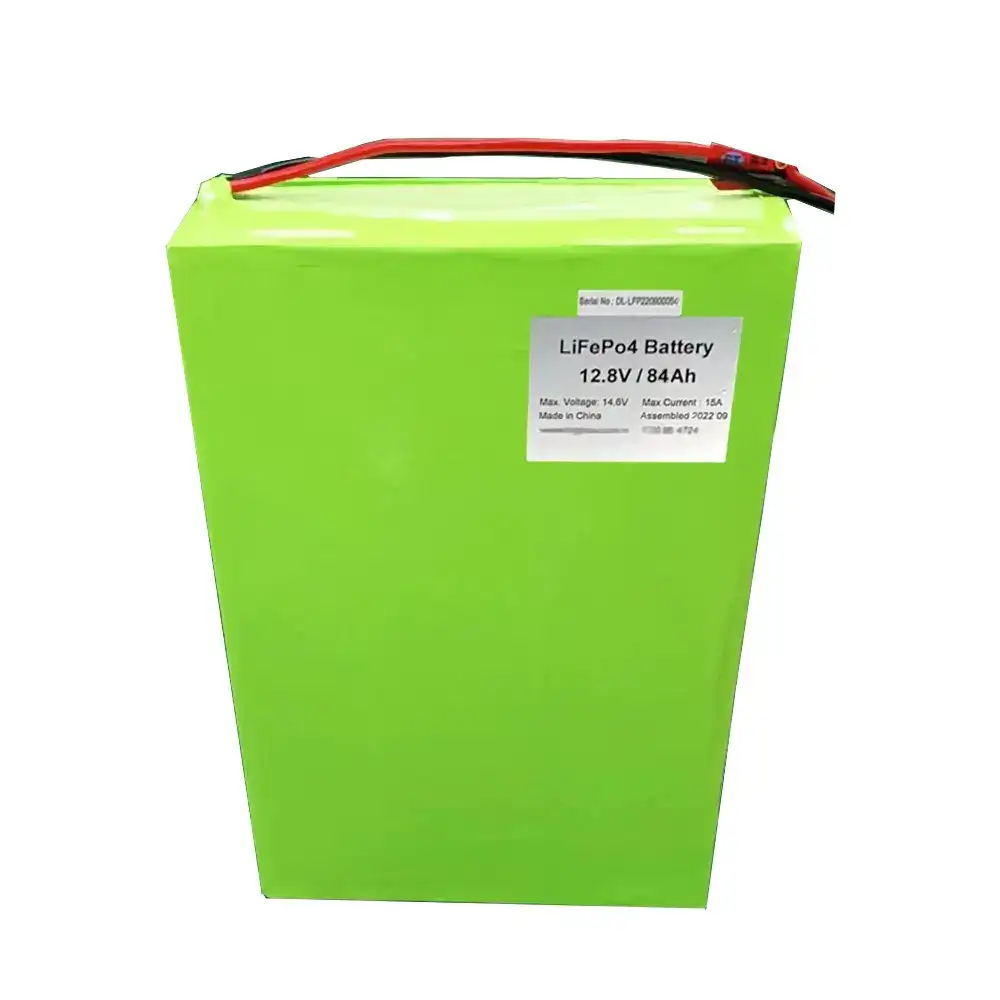

12.8V 84Ah Custom LiFePO4 Battery Pack With Bluetooth


12.8V 84Ah Custom LiFePO4 Battery Pack With Bluetooth

P/N: FL-4S14P32700

12.8V 84Ah

32700 Cell 3.2V 4s14p

Lithium iron Phosphate Battery

In-Built BMS

Bluetooth Module

Customized for Solar Street Lights & Off Grid Systems

FORLEAVES 12.8V 84Ah Lithium Iron Phosphate Battery | FL-4S14P32700

FORLEAVES 12.8V 84Ah LiFePO4 battery pack (Model: FL-4S14P32700) is a high-performance rechargeable lithium iron phosphate battery designed for solar street lights, on-grid solar systems, and various outdoor & industrial power applications. Built with 32700 3.2V 6000mAh lithium iron phosphate cells in 4S14P configuration, this battery pack integrates a professional battery management system and Bluetooth communication module to ensure safe, stable, and intelligent operation. It supports customized wiring, connectors, shape and terminals to meet different installation and application requirements.

Product Features

  • Light Weight & High Capacity Design
  • Excellent Discharge Performance & Stable Output
  • Long Cycle Life: 1200 cycles at 80% DOD
  • High Safety Performance & Low Internal Resistance
  • No Memory Effects, Green & Environment-friendly
  • Built-in BMS for full safety protection
  • Built-in Bluetooth module for APP monitoring
  • Customized shape, wires, terminals and connectors
  • Wide working temperature range for outdoor use
  • 3 years warranty for reliable use

Technical Specifications

  • Model: FL-4S14P32700
  • Battery Type: Lithium Iron Phosphate (LiFePO4)
  • Cell Specification: 32700 3.2V 6000mAh, 4S14P
  • Nominal Voltage: 12.8V
  • Rated Capacity: 84Ah
  • Max Charge Voltage: 14.6V
  • Discharge Cut-off Voltage: 10V
  • Standard Charge Current: ≤15A
  • Working Discharge Current: ≤30A
  • Single Cell Over Charge Cut-off: 3.65V
  • Single Cell Over Discharge Cut-off: 2.5V
  • Charge Temperature Range: 0℃ ~ 45℃
  • Discharge Temperature Range: -20℃ ~ 65℃
  • Cycle Life: 1200 cycles @ 80% DOD
  • Warranty: 3 Years
  • Lead Wire: 2.5mm² cable + JST connector (customizable)
  • Dimensions: TBA
  • Gross Weight: 8.2kgs
  • Built-in BMS Protection: Yes
  • Communication Module: Bluetooth
  • Application: Solar Street Lights, Small Off-Grid Systems, Home Appliances

Applications

  • Solar Street Lights & Integrated Solar Lights
  • On-grid & Off-grid Solar Energy Storage Systems
  • Electric Tools, Home Appliances, Consumer Electronics
  • Small Electric Power Systems & Boats
  • Outdoor Monitoring & Security Equipment
  • Customized Portable Power & Industrial Power

Related Products

FORLEAVES 12.8V 48Ah LiFePO4 Battery Pack | FORLEAVES 12.8V 72Ah Customized LiFePO4 Battery Pack | FORLEAVES 25.6V 18Ah LiFePO4 Battery Pack | FORLEAVES 12.8V 36Ah LiFePO4 Battery Pack

FAQ - Frequently Asked Questions

Q1: Is this battery FORLEAVES brand?
A: Yes, this is 100% FORLEAVES brand original lithium iron phosphate battery pack, model FL-4S14P32700.

Q2: Does this battery have built-in BMS and Bluetooth?
A: Yes. It has built-in BMS for full protection and built-in Bluetooth module for mobile APP monitoring.

Q3: Can I customize the cable, connector or terminals?
A: Yes. We support customized wires, connectors, terminals, length and output mode according to your requirements.

Q4: Can I customize voltage, capacity or size?
A: Yes. We provide full customization service including voltage, capacity, dimensions, BMS parameters and appearance.

Q5: What is the cycle life of this battery?
A: It can reach up to 1200 cycles at 80% DOD, long service life for solar and outdoor applications.

Q6: What applications is this battery suitable for?
A: It is mainly designed for solar street lights, on-grid solar systems, outdoor lighting, industrial equipment and custom power solutions.

Q7: What is the warranty period?
A: This model provides 3 years warranty under normal use conditions.

Q8: Can I adjust BMS parameters via APP?
A: Yes. With built-in Bluetooth, you can connect APP to view battery status and adjust related working parameters.

Contact Us

If you are interested in our products or have any customization requirements, please feel free to contact us for more details, best price and professional solutions.
Email: info@forleaves.com
