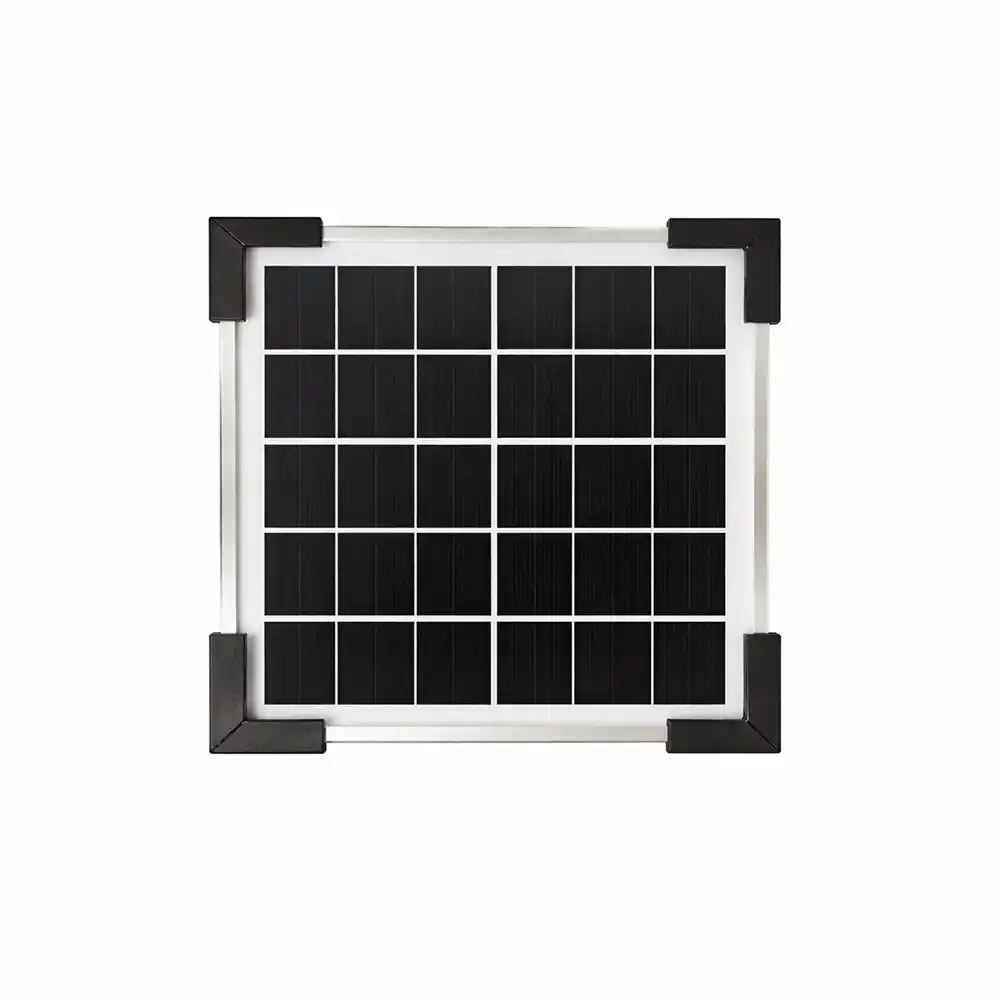

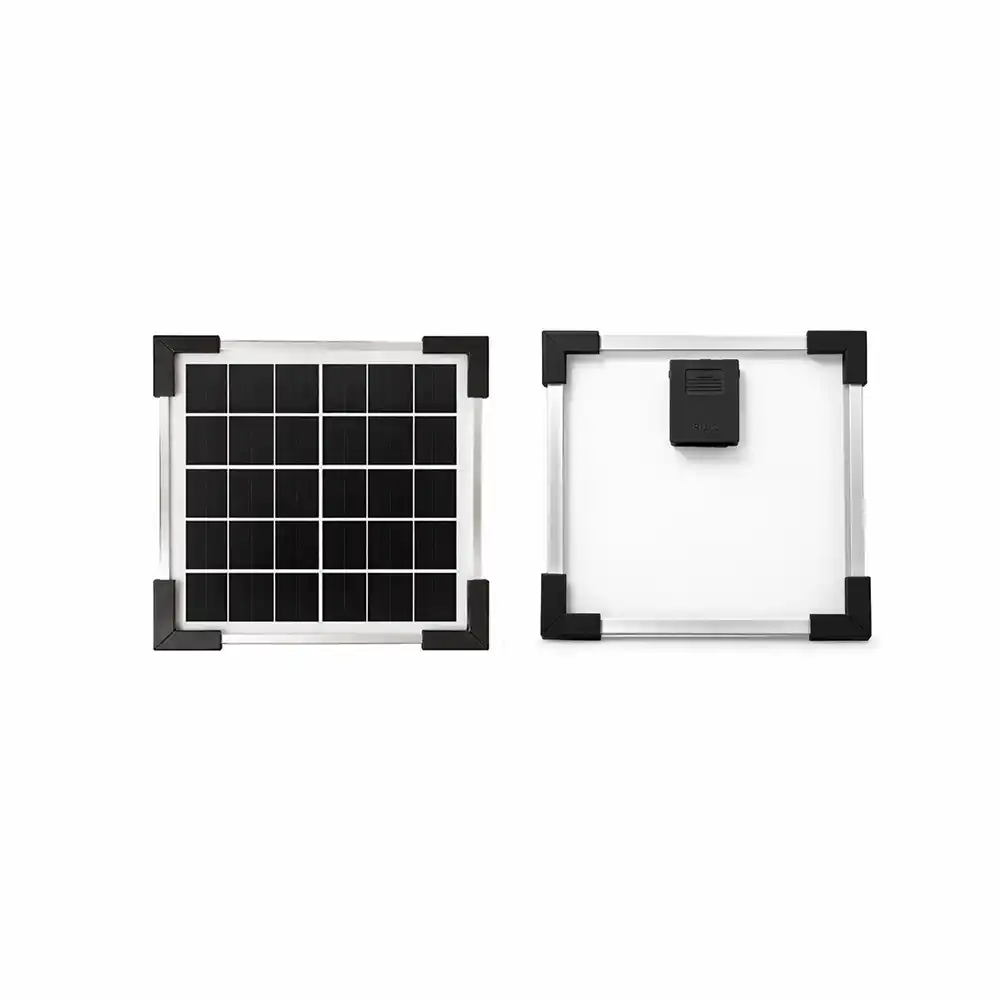

5W 5V Framed Solar Panel | 10 Cells in Series for IoT & DIY


5W 5V 1A Framed Solar Panel for IoT & DIY Solar System

P/N: FLG-0505

5 Watt 5 Volt

190x200mm (200x200)

10 Cells in Series

Framed Glass Solar Panel

Designed for IoT Device, Agriculture Sensors, Solar Home System & Solar Lantern

Contact us: info@forleaves.com

Features
High performance polycrystalline solar cell
Tempered PV glass
Durable and long lifespan
Aluminum framed
Plastic corner protected

Size and Weight
190 x 200 x 17mm (or 200x200mm)
Appr.510 grams

Output
Open Circuit Voltage: 6V
Peak Voltage: 5V
Peak Current: 1000mA
Peak Power: 5W
Power Tolerance: 0~+5%
For maximum power output, orient the panel towards the sun

Construction
PV glass backed
Framed with aluminum frame
With Junction box  (cable connector optional)


Applications:
- IoT devices & Agriculture sensors
- DIY solar power systems
- Portable electronic chargers
- Solar lanterns & garden lights
- Educational solar projects

Warranty

5-year warranty on solar panels

FAQ:

Small Custom Glass Solar Panels

Q1: Are custom shapes available?
A1: Yes, square, rectangular, round, rectangular, triangular, ring, or other special shapes. Frameless or Framed available.

Q2: What electrical parameters can I customize?
A2: Voltage, current, power, and size.

Q3: Free design and prototype?
A3: Free consultation; prototype samples in 10–15 days.

Q4: Weak light/shade performance?
A4: Crystalline glass modules generate electricity under diffuse light but output decreases in low-light/shaded conditions.

Q5: Can these panels be pre-wired with connectors?
A5: Yes, custom wires and connectors can be soldered to panels for ready-to-install use.

Q6: Shipping options?
A6: Sea, air, express, DDU, or DDP. Panels are carefully packed; transport damage risk remains, but we cooperate with reputable logistics partners.

Q7: Typical applications?
A7: Solar street lights, IoT devices, outdoor CCTV cameras, off grid applications, small solar kits, and so on.
