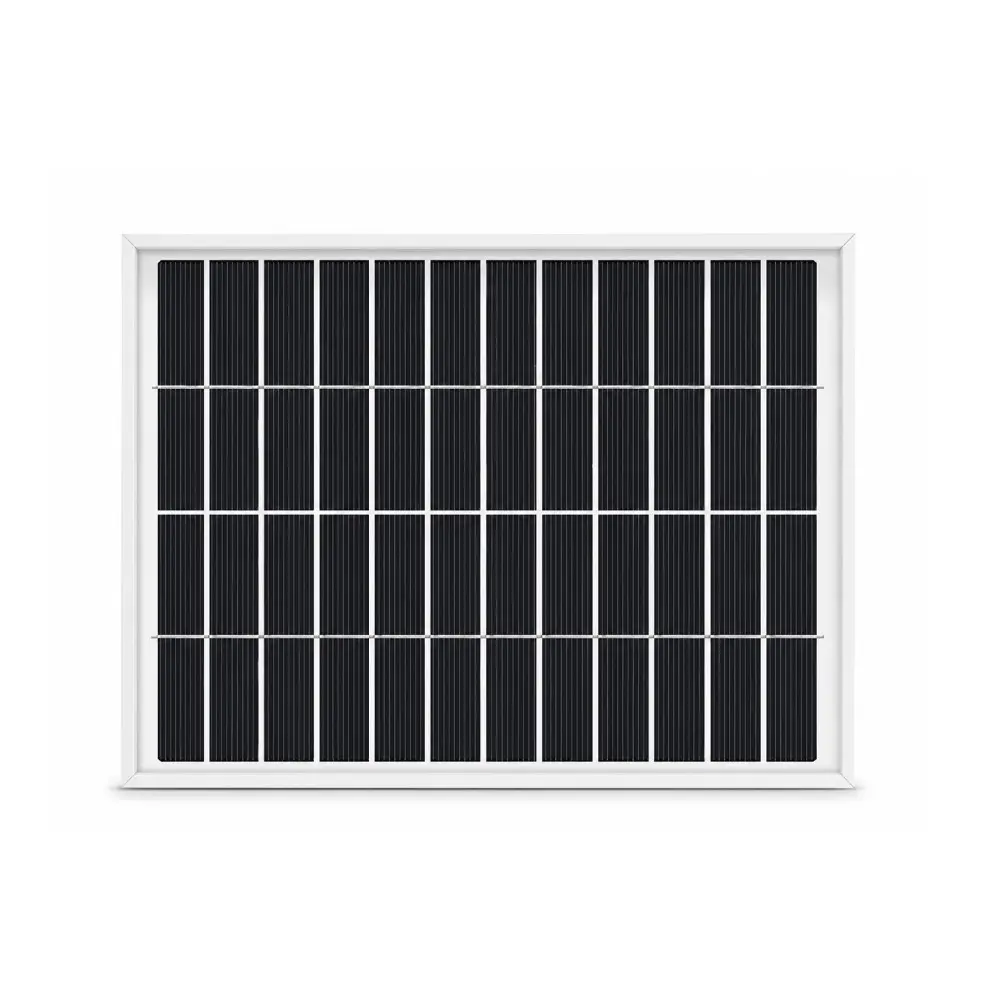

FLG-0514 5.5W 14.6V aluminum frame solar panel for Bushlinx IoT data logger, compact monocrystalline solar module
P/N: FLG-0514
5.5W Peak Power
14.6V Vmp Aluminum Frame Solar Panel
Specialized Power Module for IoT Data Logger
New Arrival Solar Module
FLG-0514 is a compact 5.5W aluminum frame monocrystalline solar panel engineered as dedicated power supply for industrial IoT data logger devices. This small 14V solar module delivers stable 14.6V maximum power voltage to match the charging demand of remote field data recording equipment, solving off-grid power shortage issues for unattended monitoring sensors, agricultural data recorders and industrial IoT stations.
Engineers and procurement buyers sourcing IoT data logger solar panel, small aluminum frame solar module or low wattage off-grid solar panels for remote monitoring will find FLG-0514 an ideal match thanks to its precise voltage output, lightweight alloy frame and compact 230×180×17mm footprint.
| Parameter Item | Value | Unit |
|---|---|---|
| Module Model | FLG-0514 | - |
| Peak Power (Pmax) | 5.5 | W |
| Max Power Current (Imp) | 0.37 | A |
| Max Power Voltage (Vmp) | 14.6 | V |
| Short Circuit Current (Isc) | 0.39 | A |
| Open Circuit Voltage (Voc) | 17.3 | V |
| Net Weight | 0.45 | kg |
| Overall Dimensions | 230 × 180 × 17 | mm |
This 5.5W 14V aluminum frame solar panel serves as core power accessory for all types of remote IoT data loggers and low-power monitoring hardware, widely deployed in these off-grid industrial projects:
5W 5V Aluminum Frame Solar Panel | 10W 6V Monocrystalline Solar Module | 3.5W 5V Compact Small Solar Panel | 15W 18V Full Black Aluminum Solar Panel
The above links are standard fixed-spec solar modules. All customized size, voltage, connector and branded solar panel solutions are not covered by these standard series. Please reach out to our sales team directly to get exclusive custom project quotation.
FORLEAVES supports full custom modification on solar panels for IoT equipment manufacturers and system integrators, all custom specifications require separate consultation with our engineering team:
Send your full technical drawings, voltage requirements and order quantity to our dedicated custom project mailbox: info@forleaves.com Our engineering team will reply with detailed customized drawing, pricing and production schedule within 24 working hours.
Q1: Is this 14.6V solar panel compatible with most 12V IoT data loggers?
A: Yes. The 14.6V Vmp and 17.3V open circuit voltage are designed to match standard 12V class lithium battery charging input of mainstream industrial data logger and monitoring sensor models.
Q2: What is the advantage of aluminum frame over PET laminated flexible panels for outdoor IoT use?
A: Rigid aluminum frame provides better impact resistance, dust and rain sealing, and longer service life for multi-year unattended field deployment compared with flexible thin-film panels.
Q3: How does this panel perform in cloudy or low-light winter conditions?
A: High-efficiency monocrystalline cells maintain stable trickle charging under weak irradiance. Paired with proper LiFePO4 battery storage, it keeps data loggers running through extended low-sunlight periods.
Q4: What is the operating temperature range of this solar module?
A: Standard operating temperature range is -40℃ to +85℃, suitable for both cold northern regions and hot tropical outdoor IoT installations.
Q5: Can you customize the panel size, voltage or wire connector for our IoT device?
A: Yes, full customization is available. Custom specs are outside the standard product range listed above, send your detailed technical drawings and requirements to our sales team via info@forleaves.com for exclusive pricing and solution.
Q6: Can we print our own company logo on the panel frame or backsheet?
A: Yes, we can print your custom brand logo and company name on the backside label of solar panels. Logo printing on aluminum frame is not supported for this module model.
Q7: What is the standard MOQ for this 5.5W solar panel?
A: Standard minimum order quantity is 1000 pieces. We accept any custom order volume, and unit price will be adjusted accordingly based on your actual order quantity.
Q8: What is the typical lead time for bulk production?
A: Production lead time varies based on order quantity and custom specification complexity, our sales will confirm exact production schedule after receiving your official order requirements via email.
Q9: What international shipping methods do you support?
A: We offer sea freight, air cargo and express courier (DHL, FedEx, UPS) options. For small sample orders we recommend express delivery for fastest transit.
Q10: What is the official product warranty period?
A: Standard 5-year factory warranty covering all manufacturing defects. Extended warranty terms can be negotiated for large-volume long-term project orders.
Q11: Is any mounting bracket included with the panel?
A: Standard package includes the solar panel only. Optional mounting brackets, fixing screws and installation accessories can be supplied upon request for IoT project integration.
Q12: Do you have other wattage options for different IoT sensor power requirements?
A: Yes, the four links above show standard ready-made small solar modules from 3.5W to 15W with fixed voltage. Any non-standard power or size design requires custom development via our sales channel.
