FL-9536E 95W 36V custom-shaped flexible ETFE solar panel for vehicle roof
P/N: FL-9536E
95Wp
36V
ETFE Flexible
800×685mm
MC4 + Cable
Lightweight
Custom Vehicle Roof Solar Panel

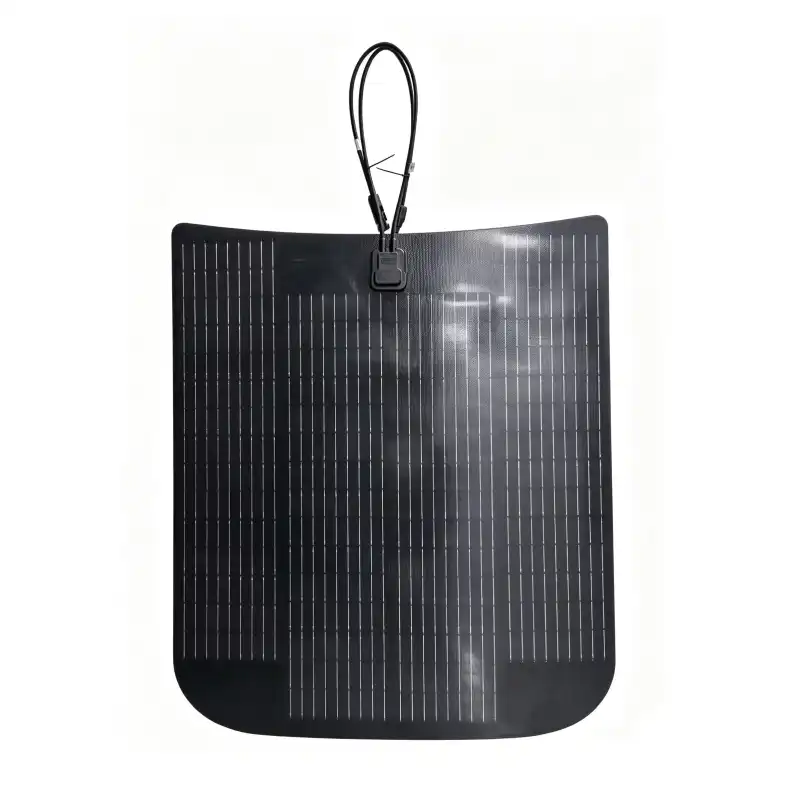

FL-9536E is a 95Wp 36V custom-shaped flexible ETFE solar panel designed as an example of vehicle-integrated photovoltaic applications. With a lightweight flexible construction, 800 × 685mm overall size, MC4 connector and cable, this panel can be used on vehicle surfaces where a conventional rectangular glass solar panel is too heavy or cannot follow the available installation area.
The irregular shape of FL-9536E is particularly suitable for vehicle roof and body integration. The same manufacturing approach can be adapted to different vehicle platforms, including cars, trucks, vans, three-wheelers and other mobile equipment. Instead of selecting a fixed standard panel, customers can provide the available roof area, vehicle drawings and battery requirements, and FORLEAVES can evaluate a suitable custom-shaped flexible solar panel configuration.
The main value of this type of flexible ETFE solar panel is not the specific FL-9536E shape, but the ability to manufacture the photovoltaic module around the available vehicle surface. Vehicle roofs often have limited width, curved sections, equipment openings, roof edges or other structural restrictions. A custom-shaped solar panel can be designed to use the available area more efficiently while keeping the module lightweight.
For a vehicle project, the solar panel does not have to follow the shape of FL-9536E. The panel can be redesigned according to the roof outline, available installation area, required power, battery voltage and connection requirements.
Custom flexible vehicle solar panels can be considered for applications where solar energy is used to supplement or maintain an onboard battery system. Typical applications include:
100W 18V Flexible ETFE Solar Panel for RV, Marine & Vehicle | 110W Flexible Solar Panel for Vehicle & RV | 75W Flexible Solar Panel for Vehicle & RV | 0.8W ETFE Solar Panel for Vehicle GPS Tracker
FORLEAVES manufactures flexible, ETFE and custom-shaped solar panels for vehicle, RV, marine and mobile energy applications. Existing flexible solar panel examples include rectangular modules for vehicle and RV applications, while custom-shaped photovoltaic modules can be considered when the available installation area does not match a standard panel size.
FORLEAVES provides project-based customization for vehicle manufacturers, mobility companies, battery-system integrators, RV manufacturers and other OEM customers. The solar panel can be designed around the actual vehicle roof instead of requiring the vehicle structure to accommodate a standard solar module.
For a new vehicle project, provide the roof dimensions or drawing, available installation area, target power, battery voltage and preferred cable or connector configuration to: info@forleaves.com. Our engineering team can review the requirements and propose a suitable custom solar panel configuration.
Q1: What is the FL-9536E 95W flexible solar panel designed for?
A1: FL-9536E is an example of a custom-shaped flexible ETFE solar panel designed for vehicle roof integration. It can provide solar charging power for onboard battery systems and other auxiliary electrical applications.
Q2: Can the shape be changed for a different vehicle roof?
A2: Yes. The FL-9536E shape is only one example. FORLEAVES can evaluate different panel outlines according to the available roof area, vehicle drawing and installation requirements. The panel does not need to use the same 800 × 685mm shape.
Q3: Can you make a solar panel specifically for a car roof?
A3: Yes. A custom flexible solar panel can be designed according to the usable area of a car roof. The panel outline can be adjusted to follow the available space and avoid roof equipment or structural restrictions.
Q4: Can this type of solar panel be used on a truck or van roof?
A4: Yes. Flexible ETFE solar panels can be considered for truck, van, RV and other vehicle roof applications. The required power, panel dimensions and electrical configuration should be determined according to the available roof area and battery system.
Q5: Can you make a custom solar panel for a three-wheeler or electric tricycle roof?
A5: Yes. Three-wheeler roofs often have narrower or irregular installation areas. A custom-shaped flexible panel can be configured according to the actual roof dimensions and required battery charging power.
Q6: What are the electrical specifications of FL-9536E?
A6: The FL-9536E configuration shown on this page is rated at 95Wp with a 36V electrical configuration. It is supplied with a cable and MC4 connector. The electrical configuration can be reviewed and customized for a specific battery and charging system.
Q7: Why use flexible ETFE instead of a conventional glass solar panel on a vehicle?
A7: Flexible ETFE construction can reduce module weight and can be better suited to vehicle surfaces where a rigid glass module is difficult to integrate. The appropriate construction depends on the vehicle roof, mechanical requirements and installation method.
Q8: Can the panel power or charge the vehicle battery directly?
A8: The solar panel provides photovoltaic power for a suitable charging system. The actual connection to the vehicle battery should use an appropriate solar charge controller or charging circuit selected according to the battery chemistry, voltage and charging requirements.
Q9: Can the cable length and connector be customized?
A9: Yes. Cable length and connector configuration can be considered according to the vehicle wiring layout and charging-system requirements. The FL-9536E example is supplied with cable and an MC4 connector.
Q10: How are custom-shaped flexible solar panels packaged for shipment?
A10: Flexible solar panels are packed with suitable protective materials to prevent surface scratches, bending damage and connector or cable damage during transportation. The final packaging method depends on the panel dimensions, quantity and shipping method.
Q11: Can custom vehicle solar panels be shipped by sea or air?
A11: Yes. Sea freight, air freight and international express delivery can be considered according to order quantity, destination and delivery requirements. The appropriate shipping method is confirmed according to the specific project.
Q12: What shipping terms are available for custom vehicle solar panels?
A12: Trade and shipping terms can be arranged according to the project and destination. Depending on the order, FORLEAVES can quote on terms such as EXW, FOB, CIF, DAP or other mutually agreed arrangements.
Q13: Is FL-9536E a standard stock solar panel?
A13: No. FL-9536E is an example of a custom-shaped flexible solar panel configuration. For vehicle projects, the panel shape, dimensions, power, voltage, cable and connector can be evaluated according to the actual vehicle roof and battery system.
