Overview

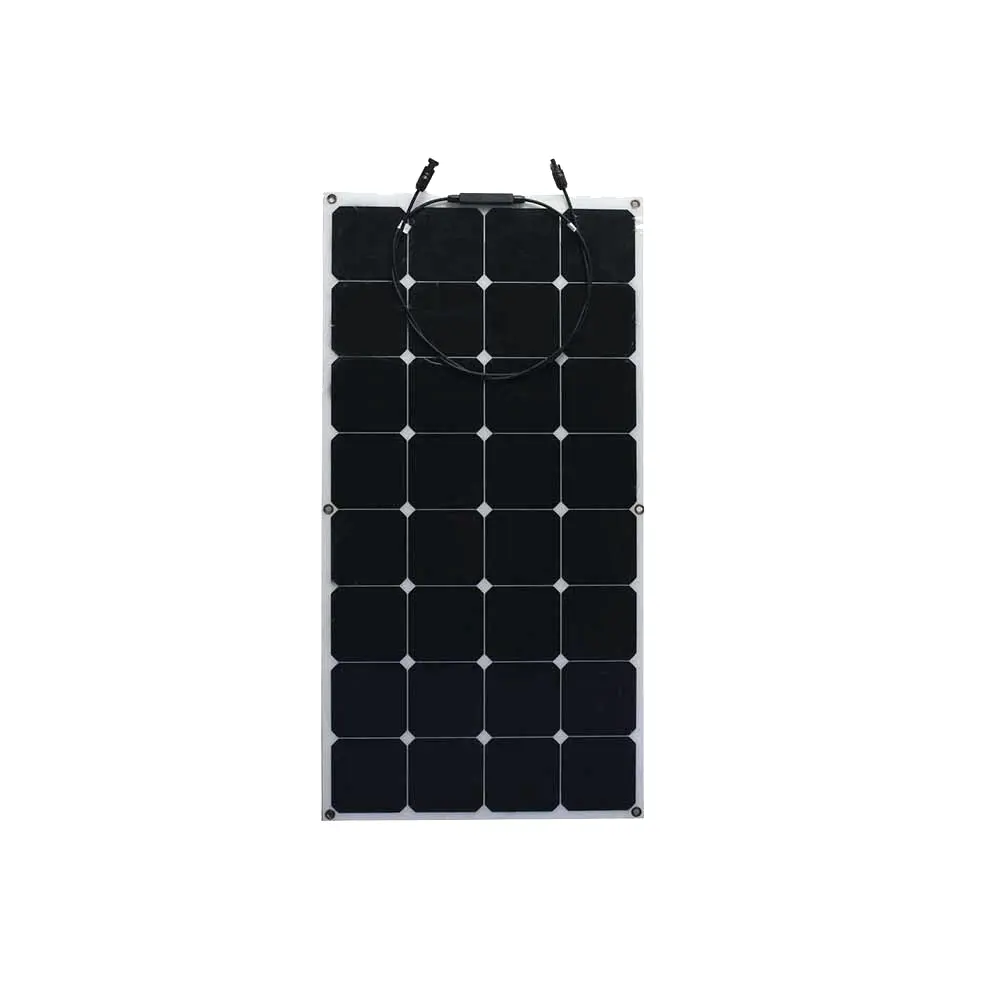

The SunPower series flexible solar panel is a lightweight, high performance solar panel designed specifically for curved surfaces and irregular shapes where traditional rigid panels are unsuitable. It utilizes high-efficiency monocrystalline SUNPOWER MAXEON solar cells with 23%+ efficiency to provide reliable off-grid power for marine, vehicle, cabin, RVs, and special applications. The thin, bendable design and weather-resistant construction make installation easy in tight spaces.
Key Features:

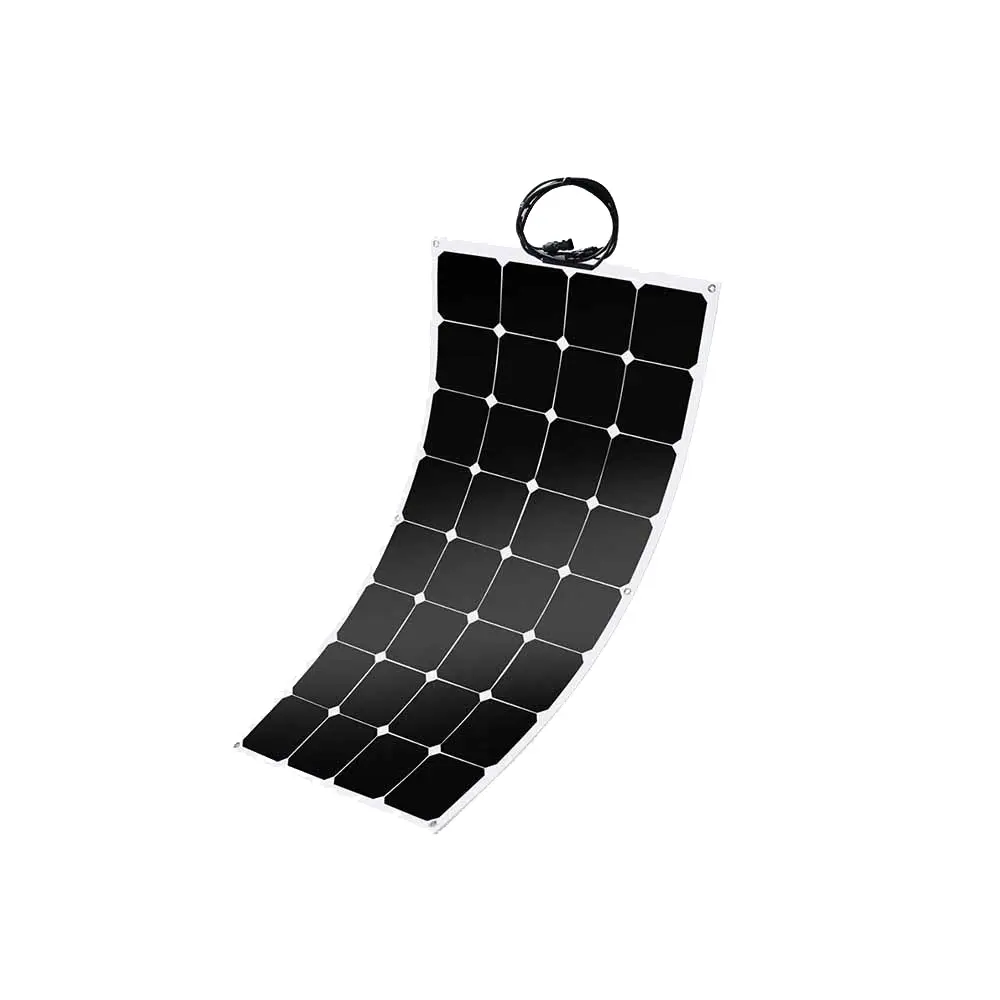

- Extremely flexible - Up to 30 degrees bending
- Lightweight and thin for easy installation - 3~4kgs/m², 2.5~3mm thickness
- High efficiency SunPower Maxeon monocrystalline cells (23%+) (More cells like IBC cells, or Perc cells available)
- IP67 rated junction box - waterproof and dustproof.
- Durable ETFE or Matt PET top layer with high light transmission
- Pre-drilled holes and MC4 connectors for quick mounting (optional)
- Excellent for off-grid applications on irregular surfaces
Technical Specifications
- Model: FLEX-100MS
- Power Output: 100W
- Open Circuit Voltage (Voc): 21.12V
- Maximum Power Voltage (Vmp): 17.6V
- Short Circuit Current (Isc): 5.68A
- Maximum Power Current (Imp): 6.02A
- Dimensions: 1185x540mm
- Weight: appr. 2.2kg
- Cable Length: 90cm
- Connectors: MC4 compatible or other connector
- Operating Temperature: -40°C to 85°C
- Warranty: 1 year
All technical data based on the Standard Test Conditions: AM=1.5, E=1000W/m², TC=25°C
FAQ for Flexible Solar Panels with SunPower Solar Cell
Product Features & Performance
Q1: What are SunPower flexible solar panels best used for?
A: They are ideally designed for mobile applications like RVs, boats, and vans, where their lightweight nature and easy installation are major advantages. Meanwhile, due to SUNPOWER cell special mechanical design, it is much better than any other types c-si cells used for flexible panels.
Q2: How efficient and durable are these panels compared to rigid ones?
A: While flexible panels generally have a shorter lifespan than rigid ones, SunPower's use of high-efficiency cells ensures high power output. Newer panels with an ETFE coating are significantly more durable than older PET-laminated models.
Q3: What is the panel's operating temperature range?
A: The panels are designed to operate in temperatures ranging from -40°C to 85°C.
Installation
Q4: How are these panels installed?
A: They offer flexible installation options, typically using a strong adhesive for a permanent bond or grommets for a mechanical fix. They come with quick-connect cables and a detailed guide for ease of setup
Q5: Should there be a gap between the panel and the mounting surface?
A: Yes, it is highly recommended to leave a small air gap. This prevents overheating and helps maintain higher efficiency and performance.
Handling, Maintenance & Storage
Q6: What should I avoid doing with my flexible panel to prevent damage?
A: To avoid permanent damage, you should not:
Excessively fold or crease the panel.
Step on it.
Store it tightly rolled for long periods.
Flex or handle it in extreme cold, as the material can become brittle.
Q7: What is the best way to clean the panels?
A: Clean the panels early in the morning when they are cool to avoid thermal shock from cold water on a hot surface.
Q8: How should I store the panels seasonally?
A: Do not roll them tightly. For long-term storage, lay them flat and place bubble wrap or a soft material between layers if stacked.
