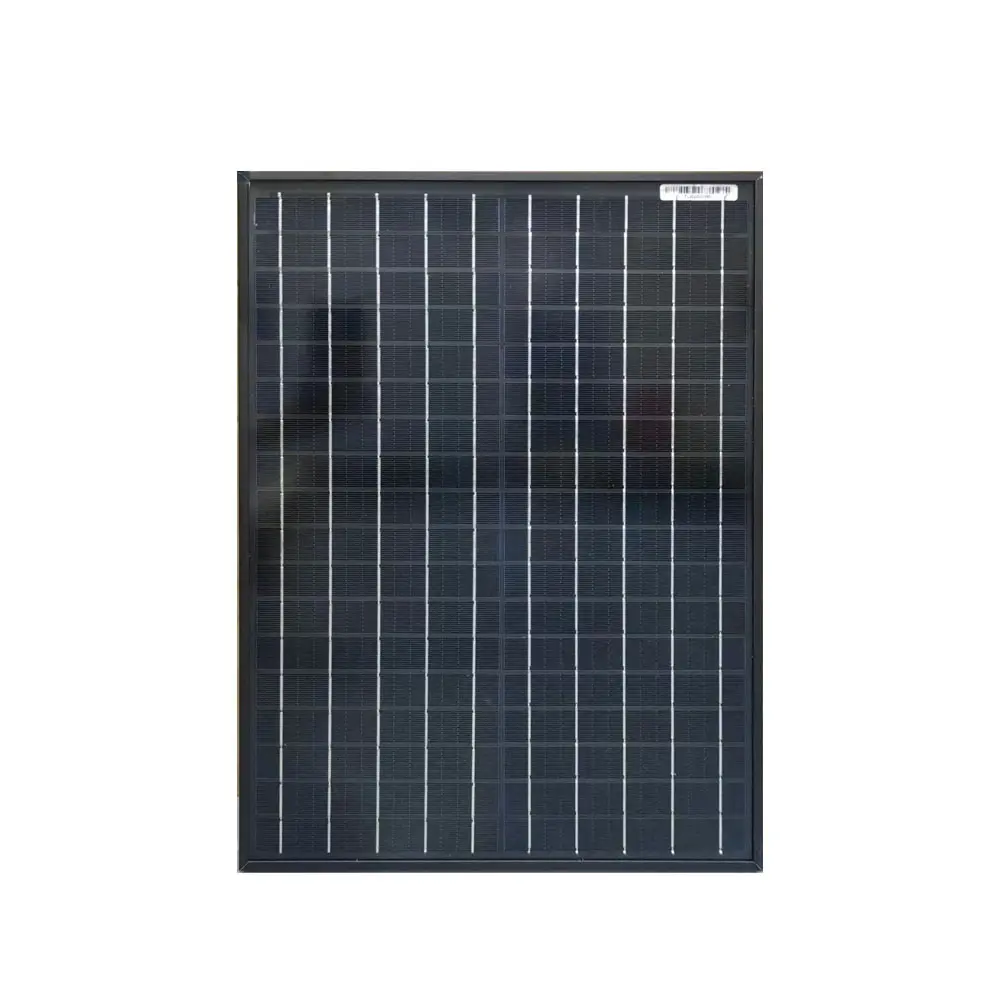

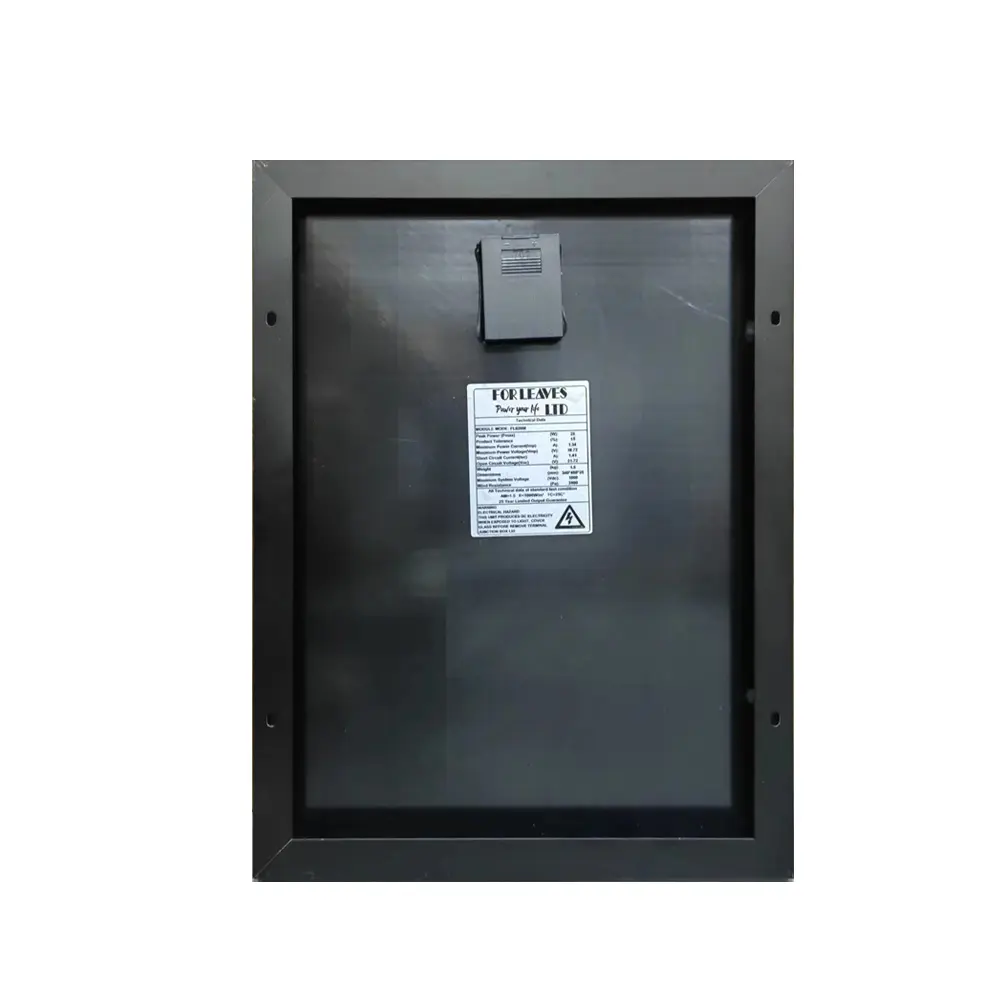

25W 18V Whole Black Glass Solar Panel 340x450mm for Airfield Lighting

25W 18V whole black glass solar panel 340x450mm off-grid IP65 for airport runway lighting

P/N: FL020M

25 Watt 18 Volt

340 x 450 x 25mm

Glass Solar Panel With Frame

Designed for Solar Airfield Lighting & Solar Street Light

25W 18V Whole Black Glass Solar Panel 340x450mm for Airfield Lighting

This 25W 18V whole black glass solar panel is specially designed for off-grid solar airfield runway lighting. It uses 22–23% high-efficiency monocrystalline cells, 3.2mm tempered glass, aluminum frame and IP65 waterproof junction box, providing stable and reliable power for airport runway and taxiway lights.

Key Features

Whole black low-glare surface compliant with aviation safety standards
22–23% high conversion efficiency monocrystalline solar cells
3.2mm tempered ultra-white glass for impact resistance
Sturdy aluminum alloy frame for long outdoor service life
IP65 waterproof junction box for harsh weather adaptation
Off-grid design for independent power supply

Typical Applications

Solar airfield runway edge lights & threshold lights
Solar taxiway lights & apron guidance lights
Off-grid solar street lights & emergency lights
Remote communication base stations & island power supply
Emergency backup energy for disaster areas

Similar Standard Glass Solar Panels

Technical Specifications

Part Number: FL020M
Peak Power: 25Wp
Max. Power Voltage: 18.72V
Max. Power Current: 1.34A
Open Circuit Voltage: 21.72V
Short Circuit Current: 1.41A
Dimensions: 340 x 450 x 25mm
Weight: 2kg
Front Glass: 3.2mm tempered ultra-white glass
Frame: Aluminum alloy
Junction Box: IP65 waterproof (optional)
Connector: MC4 compatible (optional)
Cell Efficiency: 22~23%
Warranty: 10-year materials & workmanship

Custom Solutions

We provide professional OEM & ODM services for off-grid airport solar panels. Custom options include power, voltage, size, frame color, junction box, connector and wiring for solar airfield lighting projects.

FAQ

Q1. Why use whole black design for airport runway lighting?
A1. Whole black avoids reflective glare that affects pilots’ vision, complies with aviation safety standards, and is safer than standard blue or silver panels.

Q2. Is this an off-grid solar panel?
A2. Yes, it works independently without grid power, ideal for remote airports and off-grid runway light systems.

Q3. How durable is this panel outdoors?
A3. Tempered glass, aluminum frame and IP65 waterproof ensure stable performance for up to 25 years in harsh outdoor environments.

Q4. Can voltage and size be customized?
A4. Yes, we can customize voltage, power, dimensions and connectors to match your runway light system.

Q5. What matching small glass panels do you offer?
A5. We supply 3W, 3.5W, 4W, 10W, 15W, 40W standard glass panels for various solar light and IoT applications.

Q6. Are samples available for airport projects?
A6. Yes, samples can be provided within 15 working days for testing and certification.

Q7. What is the MOQ and warranty?
A7. MOQ is 1000 pieces. We provide 10-year warranty for materials and workmanship.

Q8. Does it support MC4 connectors for easy installation?
A8. Yes, MC4 compatible connectors are optional for fast and stable wiring.
