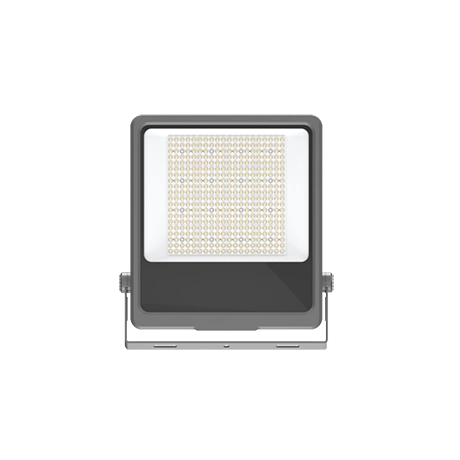

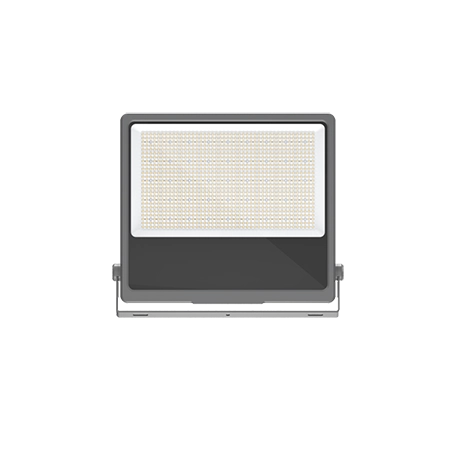

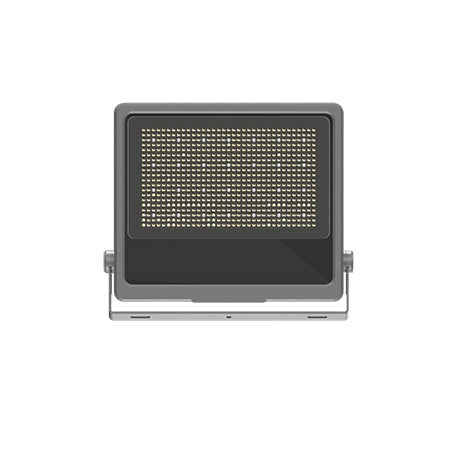

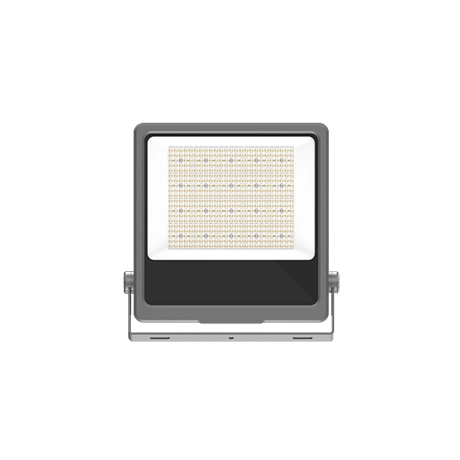

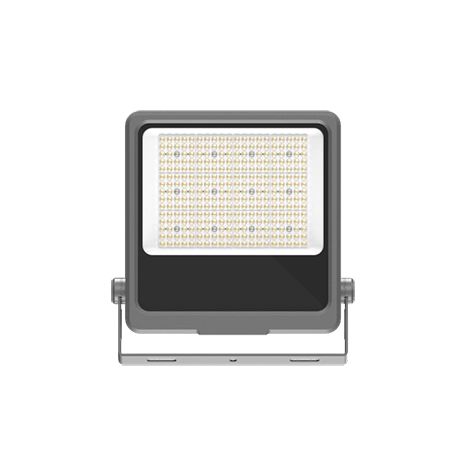

DF1 30W-600W front-frame flood light
P/N: SKX-DF1 Series
LED Flood Light
Power: 30-600W
Input Voltage: AC 85-265Vac; 50/60Hz
Luminous efficiency: 110lm/W
Die-cast Aluminum housing
Lifetime: 5,000 hrs
IP65
DF1 Flood Light Series (Front Frame Type)
Product Overview
The DF1 Flood Light Series (Front Frame Type) offers a perfect balance of performance, design, and reliability. Built with a die-cast aluminum housing and tempered glass front frame, it ensures excellent waterproofing, anti-corrosion, and aesthetic integration for architectural and outdoor applications. Available from 30W to 600W, the DF1 delivers high luminous efficiency, optional beam angles, and flexible mounting configurations for professional lighting projects.
Key Features
• Power range: 30W / 50W / 100W / 150W / 200W / 300W / 400W / 600W
• Front-frame design — elegant and strong mechanical protection
• IP65 waterproof rating
• Die-cast aluminum housing + tempered glass for durability
• Optional symmetrical/asymmetrical light distribution
• Adjustable mounting bracket, easy to install
• Compatible with photocell or dimming controls
• Long lifespan >50,000 hours
• High luminous efficiency up to 110 lm/W
• Wide voltage input: AC 85–265V
• High power factor: ≥ 0.9
Applications
• Building façades
• Commercial plazas
• Billboards
• Parking areas
• Stadiums
• Industrial facilities
• Public spaces
• Architectural lighting
• Landscape illumination
• Retail storefronts
Technical Specifications
| Model | Power | Voltage | Power Factor | Efficiency | CRI | Beam Options | IP Rating | Lifespan | Dimensions |
|---|---|---|---|---|---|---|---|---|---|
| SKX-DF1-30 | 30W | AC 85–265V | ≥ 0.9 | 110 lm/W | ≥ 80 | 60° / 90° / 120° | IP65 | 50,000 hrs | 193 × 187 × 50mm |
| SKX-DF1-50 | 50W | AC 85–265V | ≥ 0.9 | 110 lm/W | ≥ 80 | 60° / 90° / 120° | IP65 | 50,000 hrs | 231 × 287 × 50mm |
| SKX-DF1-100 | 100W | AC 85–265V | ≥ 0.9 | 110 lm/W | ≥ 80 | 60° / 90° / 120° | IP65 | 50,000 hrs | 253 × 290 × 56mm |
| SKX-DF1-150 | 150W | AC 85–265V | ≥ 0.9 | 110 lm/W | ≥ 80 | 60° / 90° / 120° | IP65 | 50,000 hrs | 326 × 342 × 50mm |
| SKX-DF1-200 | 200W | AC 85–265V | ≥ 0.9 | 110 lm/W | ≥ 80 | 60° / 90° / 120° | IP65 | 50,000 hrs | 365 × 402 × 62mm |
| SKX-DF1-300 | 300W | AC 85–265V | ≥ 0.9 | 110 lm/W | ≥ 80 | 60° / 90° / 120° | IP65 | 50,000 hrs | 430 × 438 × 62mm |
| SKX-DF1-400 | 400W | AC 85–265V | ≥ 0.9 | 110 lm/W | ≥ 80 | 60° / 90° / 120° | IP65 | 50,000 hrs | 500 × 436 × 66mm |
| SKX-DF1-600 | 600W | AC 85–265V | ≥ 0.9 | 110 lm/W | ≥ 80 | 60° / 90° / 120° | IP65 | 50,000 hrs | 602 × 534 × 66mm |
Optical System
• Precision PMMA lens or tempered glass diffuser
• Multiple beam configurations: 60° / 90° / 120° / asymmetric
• Uniform illumination with <5% light decay after 6000 hrs
• High color rendering index (CRI ≥80)
• Consistent color temperature maintenance
Mounting Options
• Adjustable U-shaped bracket (0–180° tilt)
• Wall-mounted or pole-mounted installation
• Compatible with junction box or surface conduit entry
• Ceiling mount adapters available
• Ground spike mounting option
Control Options
• 1–10V dimming capability
• Photocell sensor for automatic operation
• Timer control compatible
• Motion sensor ready
• DALI protocol support available
• Wireless control options
Frequently Asked Questions
Q: What is special about the DF1 front-frame design?
A: It improves waterproofing and mechanical protection while providing a sleek, architectural look for façades and outdoor areas. The design enhances both durability and aesthetics.
Q: Can the DF1 be installed horizontally or vertically?
A: Yes, the adjustable bracket allows full 180° tilt for flexible installation in any orientation to meet specific lighting requirements.
Q: Is it suitable for continuous outdoor operation?
A: Yes, IP65 ratings ensure long-term durability in rain, dust, or impact conditions. The corrosion-resistant housing withstands harsh environmental exposure.
Q: Does it support dimming?
A: 1–10V dimming or photocell control can be configured upon request. Multiple smart control options are available for energy management.
Q: What type of LED chips are used?
A: High-brightness Lumileds / CREE SMD LEDs ensure consistent color and high efficiency throughout the product lifespan.
Q: What is the typical lifespan of these lights?
A: With a rated lifespan of 50,000 hours, these fixtures provide many years of reliable service with minimal maintenance requirements.
Q: Are different color temperatures available?
A: Yes, the series is available in various color temperatures from warm white to cool white to suit different application needs and aesthetic preferences.
