SKX-TGD-XH-S19 50W-300W IP65 die cast aluminum industrial LED flood light
P/N: SKX-TGD-XH-S19 Series
Multi-Beam Industrial AC LED Flood Light
Power: 50-300W
Input Voltage: AC 90-305Vac; 50/60Hz
Luminous efficiency: 120-150lm/W
Die-cast Aluminum housing
Lifetime: 5,000 hrs
IP65

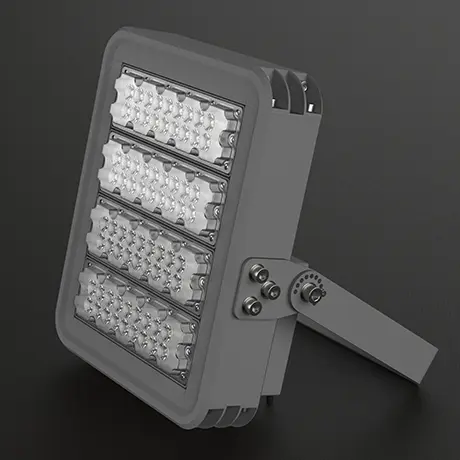

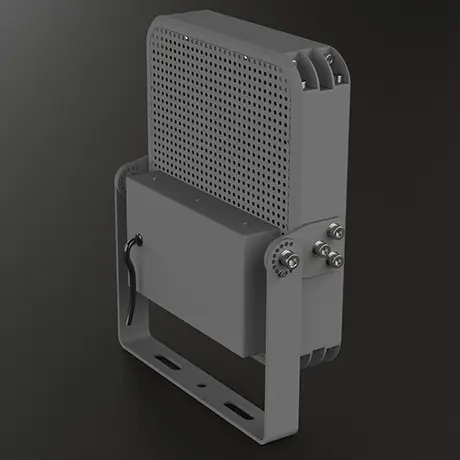

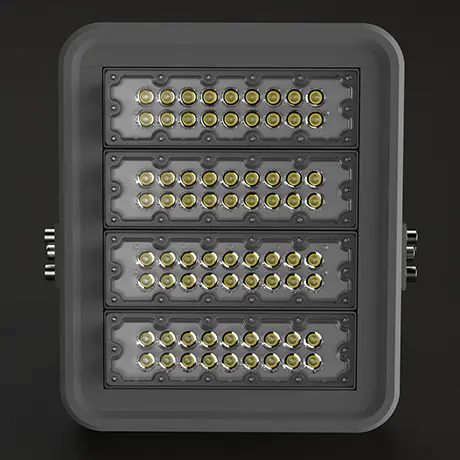

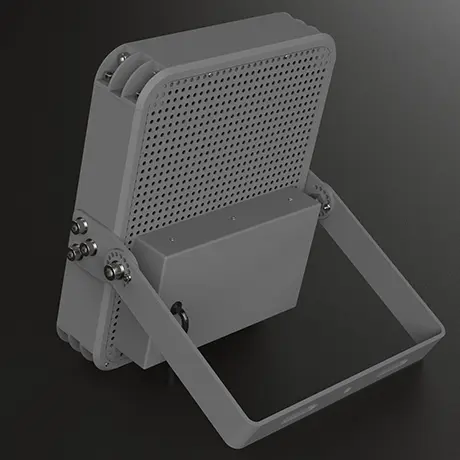

SKX-TGD-XH-S19 is a versatile industrial-grade AC-driven LED flood light series ranging from 50W to 300W, built with robust die-cast aluminum housing and high-efficiency LED chips. Equipped with 5 optional beam distributions and wide universal AC input. Besides standard AC version, the whole lamp structure can be modified into off-grid solar powered flood light by matching extra solar panel and lithium battery system, widely applied in warehouse, parking lot, billboard and outdoor venue lighting.
| Model | Power | Voltage | Power Factor | Efficiency | CCT | CRI | IP | Lifespan | Dimension |
|---|---|---|---|---|---|---|---|---|---|
| SKX-TGD-XH-S19-50 | 50W | AC 90-305V | ≥0.95 | 120-150 lm/W | 2700-6500K | ≥70/80 | IP65 | >50000h | 325×145×120mm |
| SKX-TGD-XH-S19-100 | 100W | AC 90-305V | ≥0.95 | 120-150 lm/W | 2700-6500K | ≥70/80 | IP65 | >50000h | 325×225×120mm |
| SKX-TGD-XH-S19-150 | 150W | AC 90-305V | ≥0.95 | 120-150 lm/W | 2700-6500K | ≥70/80 | IP65 | >50000h | 325×305×120mm |
| SKX-TGD-XH-S19-200 | 200W | AC 90-305V | ≥0.95 | 120-150 lm/W | 2700-6500K | ≥70/80 | IP65 | >50000h | 325×385×120mm |
| SKX-TGD-XH-S19-250 | 250W | AC 90-305V | ≥0.95 | 120-150 lm/W | 2700-6500K | ≥70/80 | IP65 | >50000h | 325×465×120mm |
| SKX-TGD-XH-S19-300 | 300W | AC 90-305V | ≥0.95 | 120-150 lm/W | 2700-6500K | ≥70/80 | IP65 | >50000h | 325×545×120mm |
FORLEAVES supports OEM & ODM customization: adjustable CCT from 2700K~6500K, customized beam, housing color and logo; we also provide modification scheme to turn this AC floodlight into off-grid solar flood light with matched solar panel and LiFePO4 battery pack.
Q1: Does this flood light have multiple beam choices?
A: Yes, total 5 kinds of Type I-V beam patterns available to satisfy different lighting range demands for billboard or road side installation.
Q2: Can this fixture be mounted on wall, pole and ground?
A: Equipped with adjustable universal bracket to realize wall mount, pole mount and ground mount flexibly.
Q3: Can I refit this AC lamp into solar floodlight?
A: Sure, our technical team can provide full solar upgrade solution with corresponding solar panel and lithium battery set.
Q4: Is motion sensor or dimming function optional?
A: Yes, we can add microwave motion sensor and 0-10V dimming driver upon customer’s customized order.
Q5: How much energy can it save vs traditional halogen lamp?
A: It can save over 60% electricity consumption compared with conventional halogen and metal halide flood lights.
Q6: What CCT options are available?
A: Standard 2700K warm white up to 6500K cool white, custom color temperature is acceptable.
Q7: What’s the official product warranty?
A: 3-year global factory warranty, free replacement for production defective components within warranty period.
Q8: What’s your bulk order MOQ?
A: Standard MOQ 50pcs, small sample order is available for project test.
Q9: Can I print my own logo?
A: Custom silk-screen logo and OEM spray color service are supported.
Q10: Working temperature range?
A: Stable from -30℃~+55℃, fit tropical and cold regions.
Q11: Will you provide installation drawing?
A: Free PDF installation manual offered before shipment.
Q12: Available shipping ways?
A: Sea, air and international courier(DHL/Fedex) optional.
SKX-DF1 30W~600W Front Frame LED Flood Light | SKX-TGD-XH-L20 120W~1200W High Power Flood Light | SKX-TGD-FL24 300W~500W IP66 Flood Light | SKX-TGD-XH-S19 50W~300W IP65 Flood Light
Contact us at info@forleaves.com for free project layout, solar modification plan and customized quotation.
