SKX-TGD-FL24 300W~500W IP66 Die Cast Aluminum LED Flood Light

SKX-TGD-FL24 300W-500W IP66 split heat sink industrial LED flood light

P/N:SKX-TGD-FL24

300/400/500W LED Flood Light

AC90-305V

IP66 Die-cast Aluminum housing

Split Cooling LED Flood Light, Solar Retrofit Available

SKX-TGD-FL24 300W~500W IP66 Die Cast Aluminum LED Flood Light

SKX-TGD-FL series is high-performance IP66 grade industrial flood light covering 300W,400W,500W power options. Adopts independent split heat sink design for LED module and driver to reduce light decay efficiently. Equipped with multiple beam angles and abundant smart control choices, the modular lamp body supports later modification to off-grid solar flood light with matched solar panel and lithium battery pack, widely applied in seaport, industrial park, warehouse and sports field projects.

Key Product Features

Available power:300W / 400W / 500W, high luminous efficiency up to 180lm/W

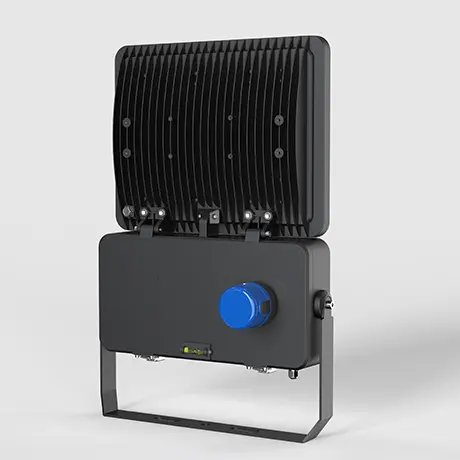

Independent split heat dissipation structure for LED and power supply to slow light attenuation
ADC12 die-cast aluminum housing plus anti-corrosion coating, IP66 high waterproof grade
Tool-free disassembly design for easy onsite maintenance and component replacement
5 types of optional optical lens (Type I~V) for diversified lighting layout
Adjustable U bracket for wall, pole, ground multi-scenario installation
Wide AC90~305V input, power factor＞0.95 to fit global power grid
Compatible with photocell,1-10V dimming, timer and motion sensor intelligent control
Modular structure allows convenient upgrade to solar-powered flood light
Rated service life over 50,000 hours with low maintenance cost

Typical Application Scenarios

Large industrial workshops, indoor & outdoor storage warehouses
Seaport terminals, dock perimeter and logistics yard lighting
Sports arenas, outdoor stadium and commercial building façade
Construction sites and large open parking lots
Remote no-power areas after solar conversion modification

Full Technical Specifications

Model	Power	Input Voltage	Power Factor	Luminous Efficiency	IP Grade	Service Life	Overall Size
SKX-TGD-FL24-300	300W	AC90-305V 50/60Hz	＞0.95	120~180lm/W	IP66	＞50000h	450×514×86mm
SKX-TGD-FL24-400	400W	AC90-305V 50/60Hz	＞0.95	120~180lm/W	IP66	＞50000h	450×514×86mm
SKX-TGD-FL24-500	500W	AC90-305V 50/60Hz	＞0.95	120~180lm/W	IP66	＞50000h	450×514×86mm

Available Beam Types

Type I：90°×155° Road dedicated lens
Type II：80°×145° Medium narrow beam
Type III：100°×160° /45°×157° Medium beam
Type IV：105°×157° Medium wide beam
Type V：160°×160° Symmetric wide flood

Mounting & Intelligent Control Options

Mount Solutions：Single/Double U bracket, pole sleeve(Ø60/Ø89mm), ground spike, trunnion & ceiling mount adapters

Smart Control：Photocell auto on/off,1-10V dimming, programmable timer, motion sensor, DALI & wireless remote optional

OEM Custom Service

FORLEAVES accepts full OEM/ODM customization: CCT 2700K~6500K optional, customized beam, housing paint color and silk-screen brand logo; we provide complete solar flood light upgrade scheme with solar panel and LiFePO4 battery pack.

FAQ

Q1: What’s the core advantage of FL24 compared with ordinary floodlight?
A: Independent split cooling for LED and driver greatly reduces thermal decay, plus tool-free disassembly for easy field maintenance.

Q2: Can this AC lamp be upgraded to solar floodlight?
A: Yes, our engineering team supplies complete matching panel and lithium battery solution for off-grid conversion.

Q3: How many beam lens choices are available?
A: Total five different optical distributions to match roadway, billboard and industrial field lighting.

Q4: Can it be used in coastal salt fog environment?
A: Anti-corrosion aluminum shell + IP66 high sealing, perfect for seaport damp & salt air conditions.

Q5: What intelligent control functions can be added?
A: Photocell, 1-10V dimming, timer, human body sensor, DALI and wireless remote are all optional.

Q6: Available color temperature range?
A: Standard 2700K warm white ~6500 cool white, custom CCT for bulk order.

Q7: Working ambient temperature scope?
A: Stable running from -40℃~+50℃, adapt cold and high-temperature regions.

Q8: Official product warranty period?
A: Full 3-year factory warranty, free replacement of factory defective parts.

Q9: What’s the order MOQ?
A: Standard MOQ50pcs, small sample order acceptable for project test.

Q10: Can customer’s brand logo be printed?
A: Custom silk printing and housing color spray OEM service supported.

Q11: Multiple installation ways available?
A: Wall, pole, ground spike, trunnion, ceiling five installation accessories optional.

Q12: Available shipment modes?
A: Sea freight, air transport, DHL/Fedex international express optional.
