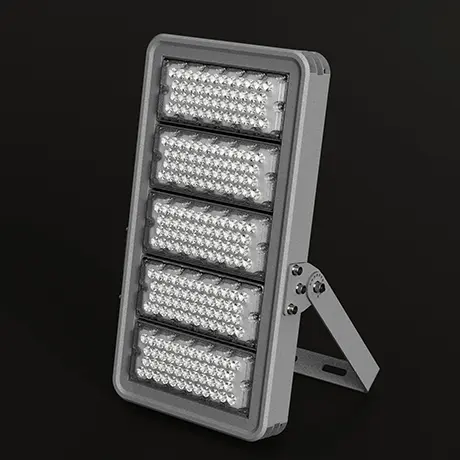

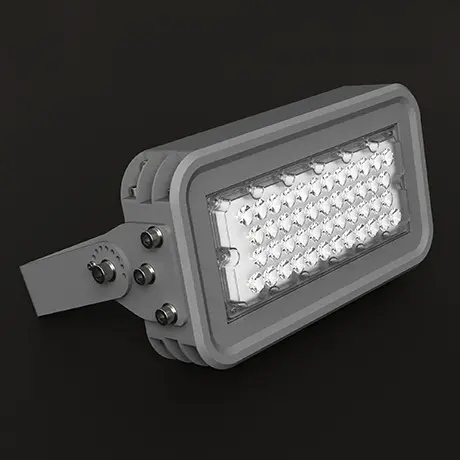

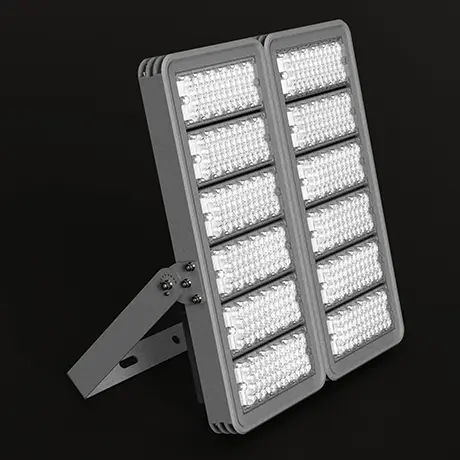

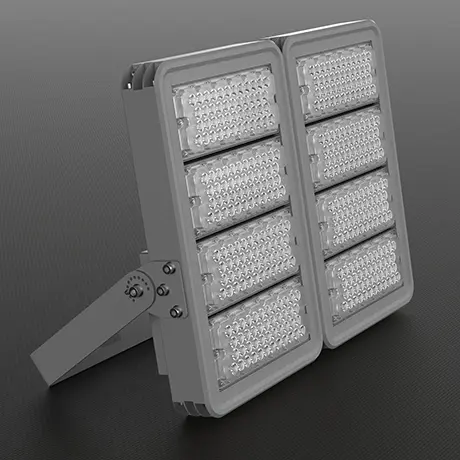

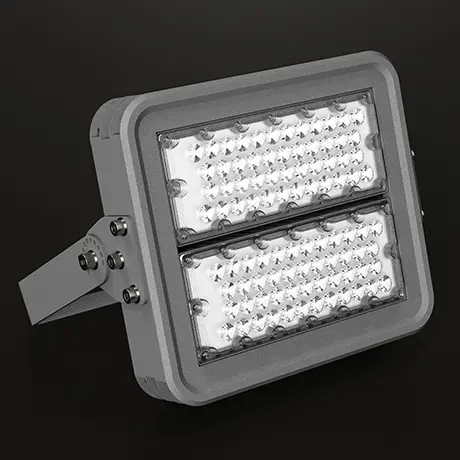

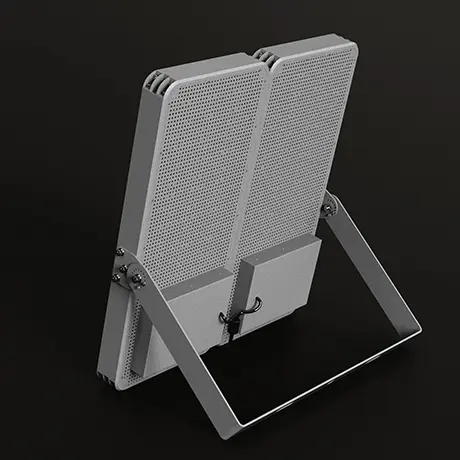

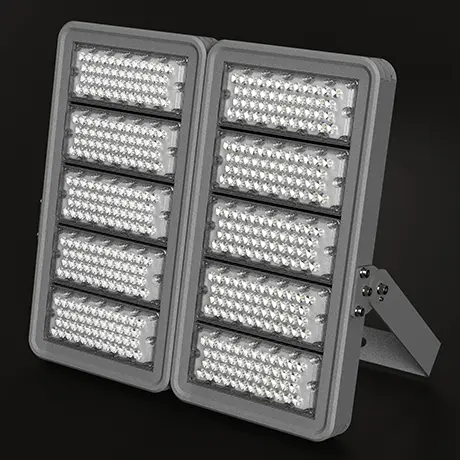

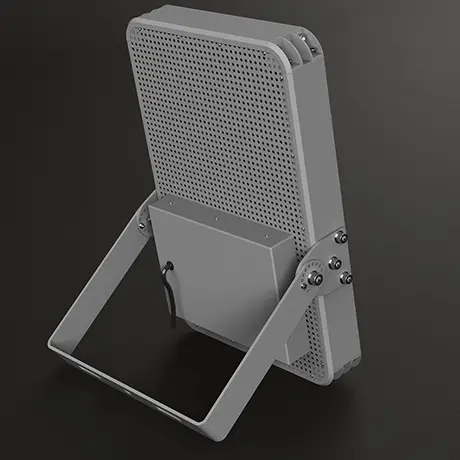

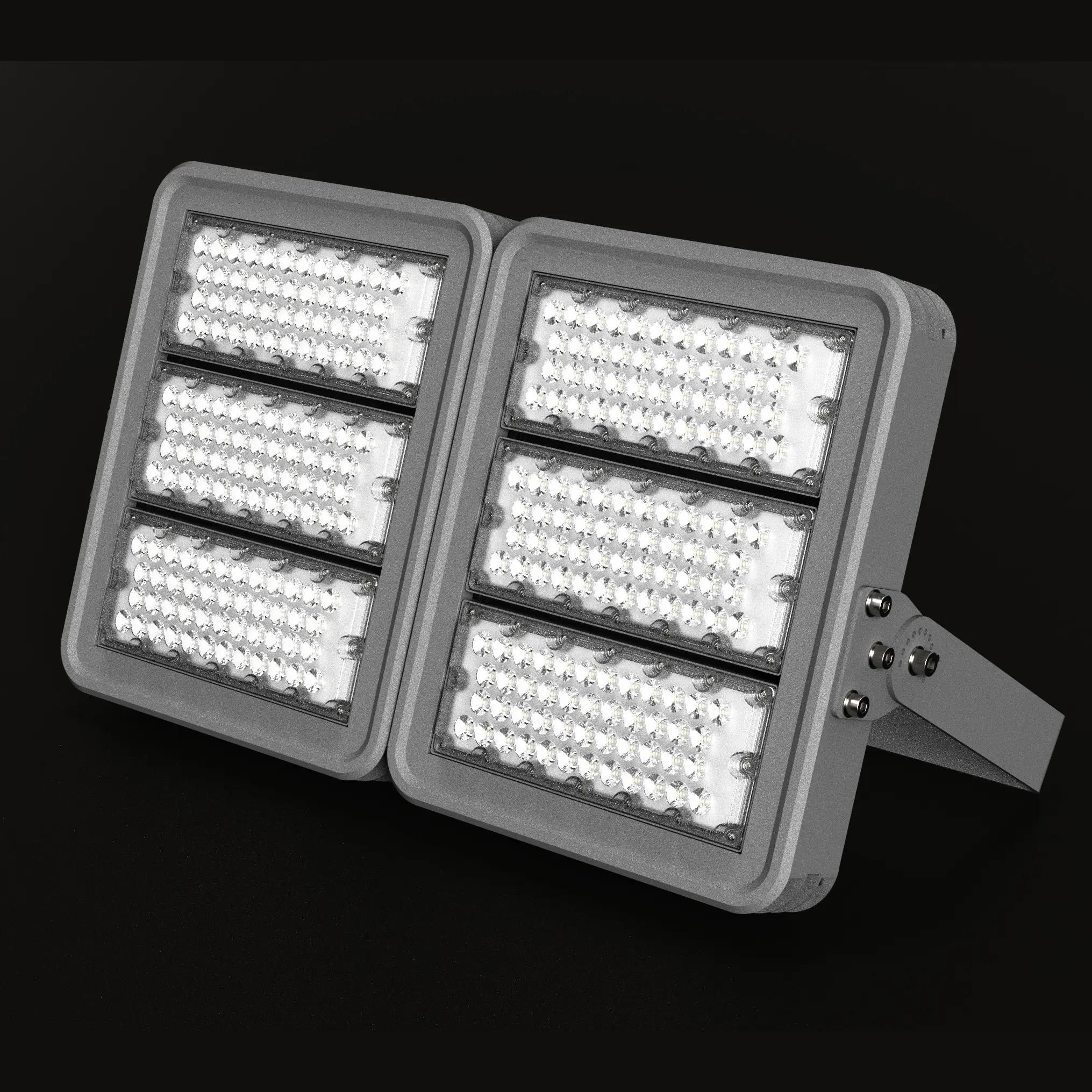

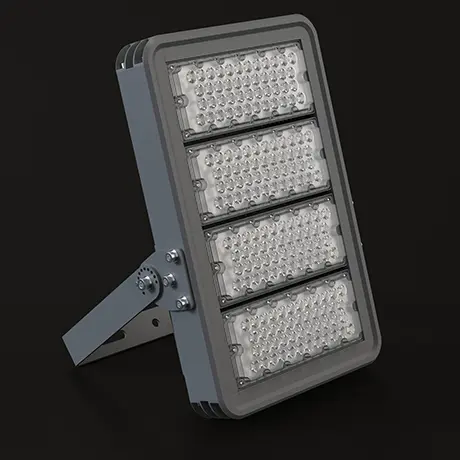

SKX-TGD-XH-L20 120W-1200W IP65 high power stadium LED flood light
P/N: SKX-TGD-XH-L20 Series
High Power LED Flood Light
Power: 120-1200W
Input Voltage: AC 90-305Vac; 50/60Hz
Luminous efficiency: 120-180lm/W
Die-cast Aluminum housing
Lifetime: 5,000 hrs
IP65
SKX-TGD-XH-L20 series covers power range from 120W up to 1200W, specially engineered for stadium, seaport and large industrial outdoor lighting. Equipped with six optional beam distributions and wide universal AC input. Its modular structural design supports later upgrade and modification into off-grid solar flood light by matching customized solar panel and LiFePO4 battery pack, ideal for no-grid large construction and open space projects.
| Model | Power | Voltage | Power Factor | Efficiency | IP Rating | Lifespan | Dimension |
|---|---|---|---|---|---|---|---|
| SKX-TGD-XH-L20-120 | 120W | AC 90–305V | ≥ 0.95 | 120–180 lm/W | IP65 | > 50000 h | 380 × 320 × 120mm |
| SKX-TGD-XH-L20-240 | 240W | AC 90–305V | ≥ 0.95 | 120–180 lm/W | IP65 | > 50000 h | 380 × 350 × 120mm |
| SKX-TGD-XH-L20-360 | 360W | AC 90–305V | ≥ 0.95 | 120–180 lm/W | IP65 | > 50000 h | 380 × 480 × 120mm |
| SKX-TGD-XH-L20-480 | 480W | AC 90–305V | ≥ 0.95 | 120–180 lm/W | IP65 | > 50000 h | 380 × 620 × 120mm |
| SKX-TGD-XH-L20-600 | 600W | AC 90–305V | ≥ 0.95 | 120–180 lm/W | IP65 | > 50000 h | 380 × 750 × 120mm |
| SKX-TGD-XH-L20-720 | 720W | AC 90–305V | ≥ 0.95 | 120–180 lm/W | IP65 | > 50000 h | 760 × 480 × 120mm |
| SKX-TGD-XH-L20-960 | 960W | AC 90–305V | ≥ 0.95 | 120–180 lm/W | IP65 | > 50000 h | 760 × 620 × 120mm |
| SKX-TGD-XH-L20-1200 | 1200W | AC 90–305V | ≥ 0.95 | 120–180 lm/W | IP65 | > 50000 h | 760 × 750 × 120mm |

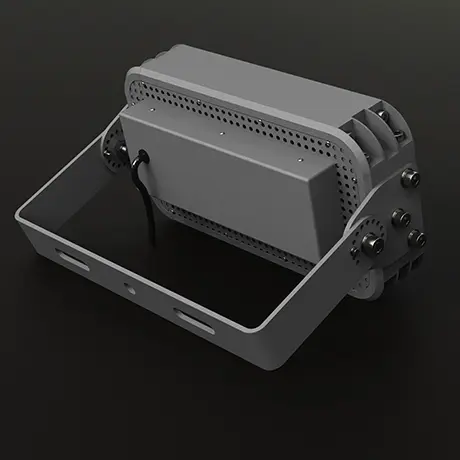

Mounting: Adjustable wall/pole/ground spike/trunnion/ceiling mounting kits available
Control: Optional photocell, 1-10V dimming, timer, human motion sensor for AC or modified solar version
FORLEAVES supports full OEM customization: CCT 2700K~6500K optional, customized beam angle, shell color and brand silk printing; we provide dedicated AC-to-solar floodlight transformation scheme with matched solar module and lithium battery pack.
Q1: Is this high power lamp suitable for stadium and port projects?
A: Yes, it is specially designed for stadium, airport, seaport and large industrial high-mast lighting projects.
Q2: Can this AC floodlight be converted into solar type?
A: Our engineering team can provide complete retrofit plan with matched bifacial solar panel and LiFePO4 battery for off-grid usage.
Q3: How many different beam angles can I select?
A: Total six optical patterns from narrow 15° to extra wide 150° to fit diverse field layout demands.
Q4: What’s the working ambient temperature range?
A: Stable performance from -40℃ up to +50℃, fit cold northern and coastal high-humidity regions.
Q5: What CCT choices do you supply?
A: Standard 2700K warm white ~6500K cool white, customized color temperature acceptable for bulk order.
Q6: Can I add dimming or photocell function?
A: 1-10V dimming driver, dusk-dawn photocell and motion sensor are all optional upgrades.
Q7: Official product warranty term?
A: 3-year global factory warranty, free replacement of defective spare parts within warranty period.
Q8: What is your bulk order MOQ?
A: Standard MOQ 50pcs, small sample order is available for project pre-verification.
Q9: Can customer’s own logo be printed on lamp housing?
A: OEM silk-screen logo and customized housing spray painting service are supported.
Q10: What installation methods are available?
A: Wall, pole, ground spike, trunnion and ceiling five kinds of installation accessories optional.
Q11: Will technical installation drawings be offered?
A: Free PDF specification and installation manual provided before goods delivery.
Q12: Available delivery ways?
A: Sea freight, air shipment and DHL/Fedex international express all optional.
